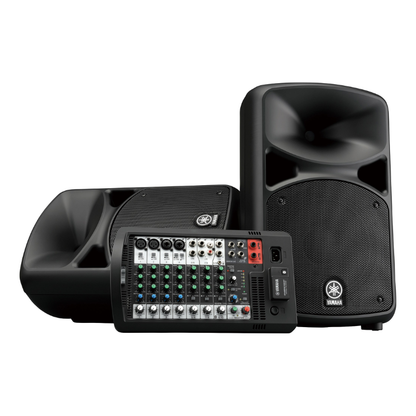

Yamaha STAGEPAS 600BT 680 W Portable PA System
More power, more inputs, still a one-trip portable PA
- 680 W dynamic output (340 W + 340 W) driving two 10-inch two-way speakers
- Detachable 10-channel mixer with 3-band channel EQ, stores inside a speaker
- Bluetooth audio streaming from a phone or tablet, approx. 10 m range
- SPX digital reverb, 1-Knob Master EQ and one-touch feedback suppressor
- Up to 129 dB SPL per speaker, with monitor and subwoofer outputs
Taxes included.
Yamaha STAGEPAS 600BT 680 W Portable PA System

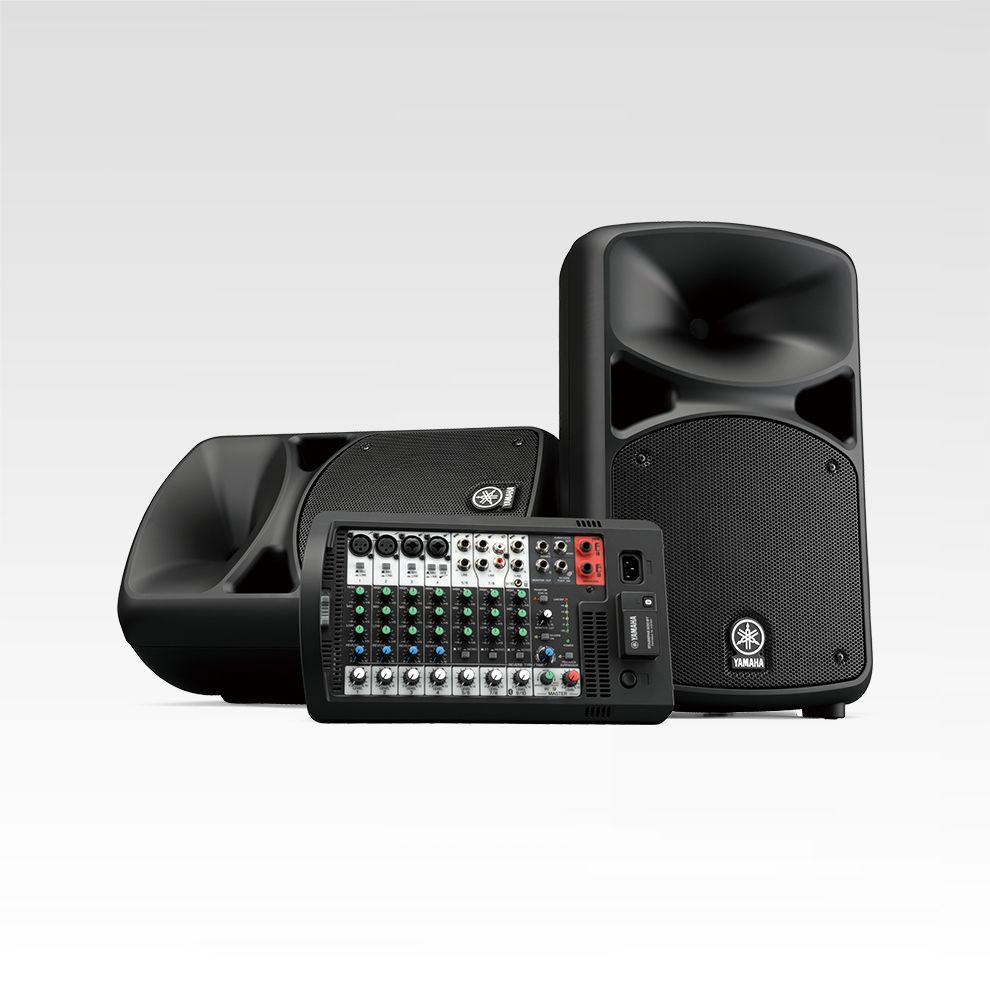

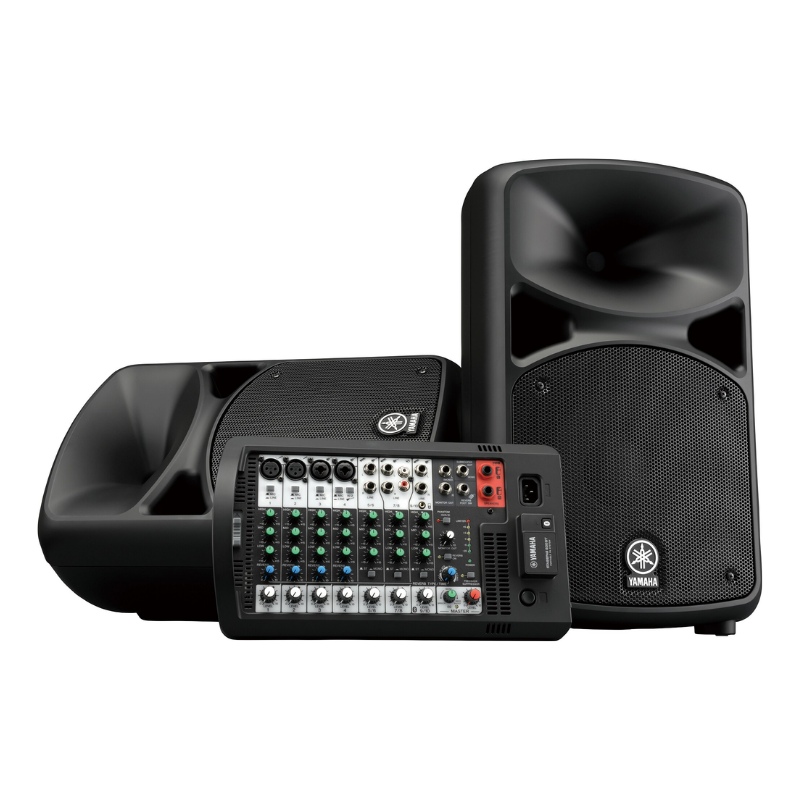

The Yamaha STAGEPAS 600BT is an all-in-one portable PA with a detachable 10-channel powered mixer and two passive two-way speakers, each built around a 10-inch woofer and a 1.4-inch compression driver. Its amplifier is rated at 680 W dynamic (340 W per side), and Bluetooth streaming, SPX reverb and a feedback suppressor are built in.
It is aimed at bands, worship teams, schools, corporate events and anyone who needs more volume and more inputs than the STAGEPAS 400BT offers, while keeping the convenience of a system that packs into its own speakers. The complete system weighs 25.6 kg.
Key Features
All-in-one portable PA system in a carry-ready package

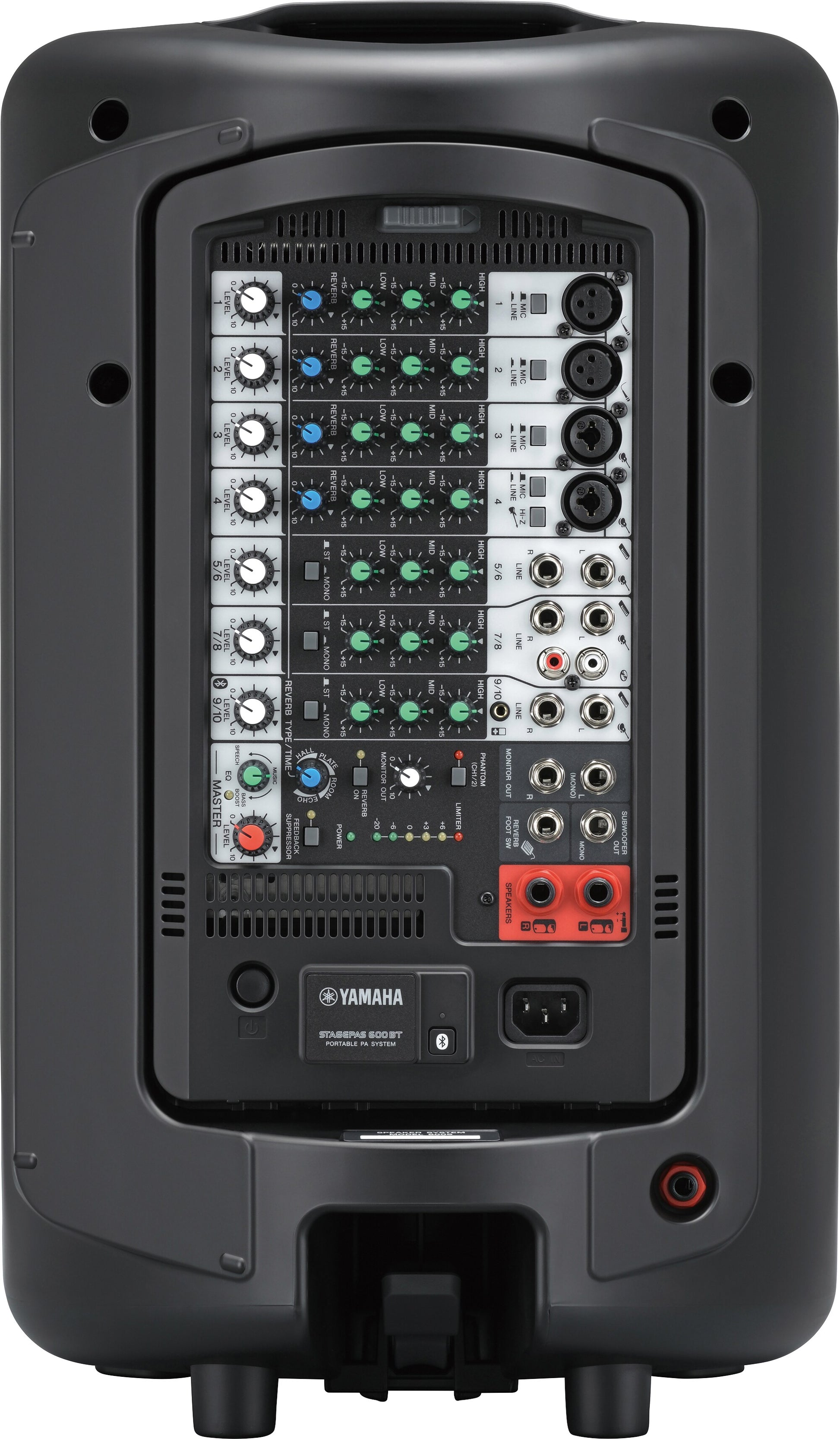

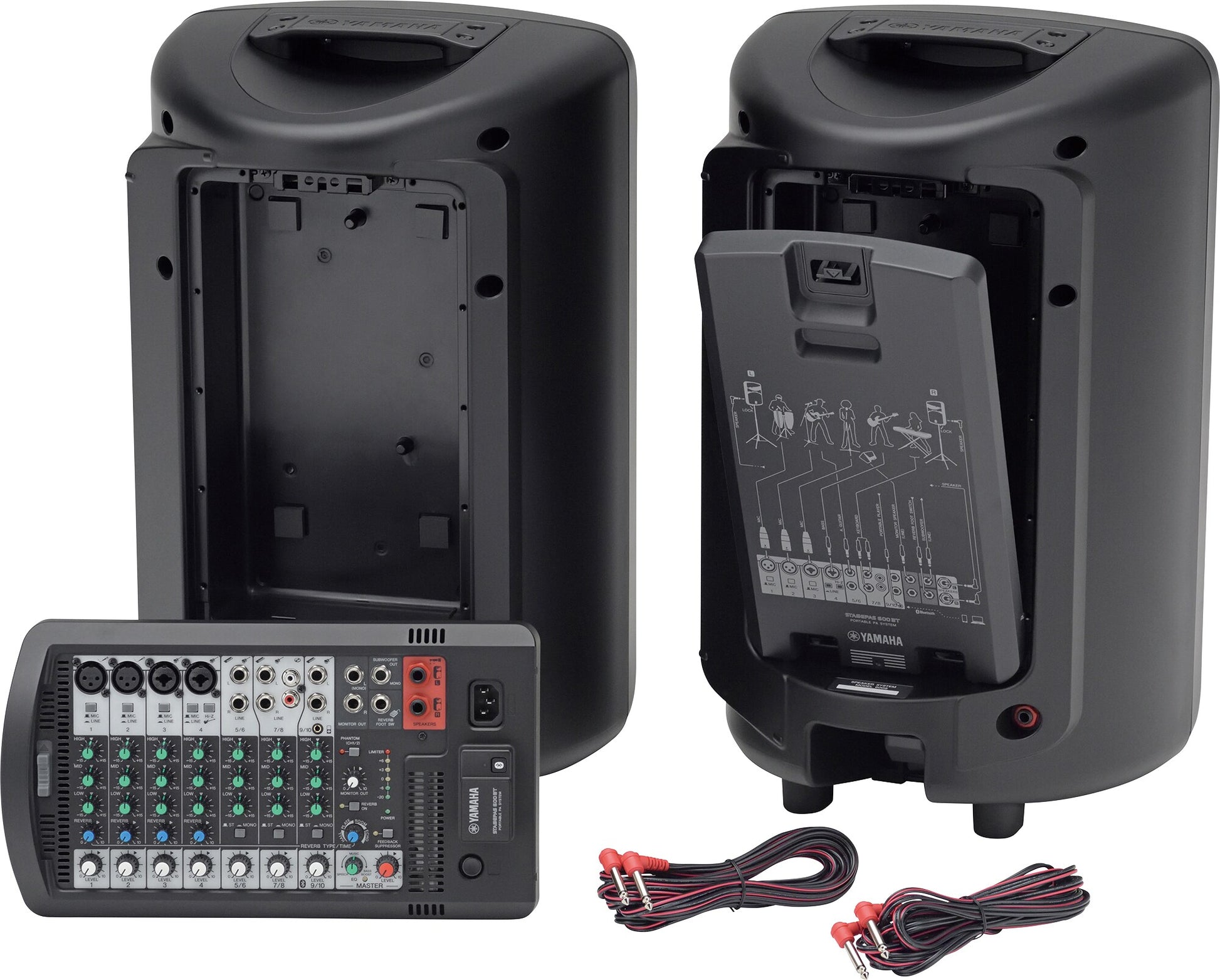

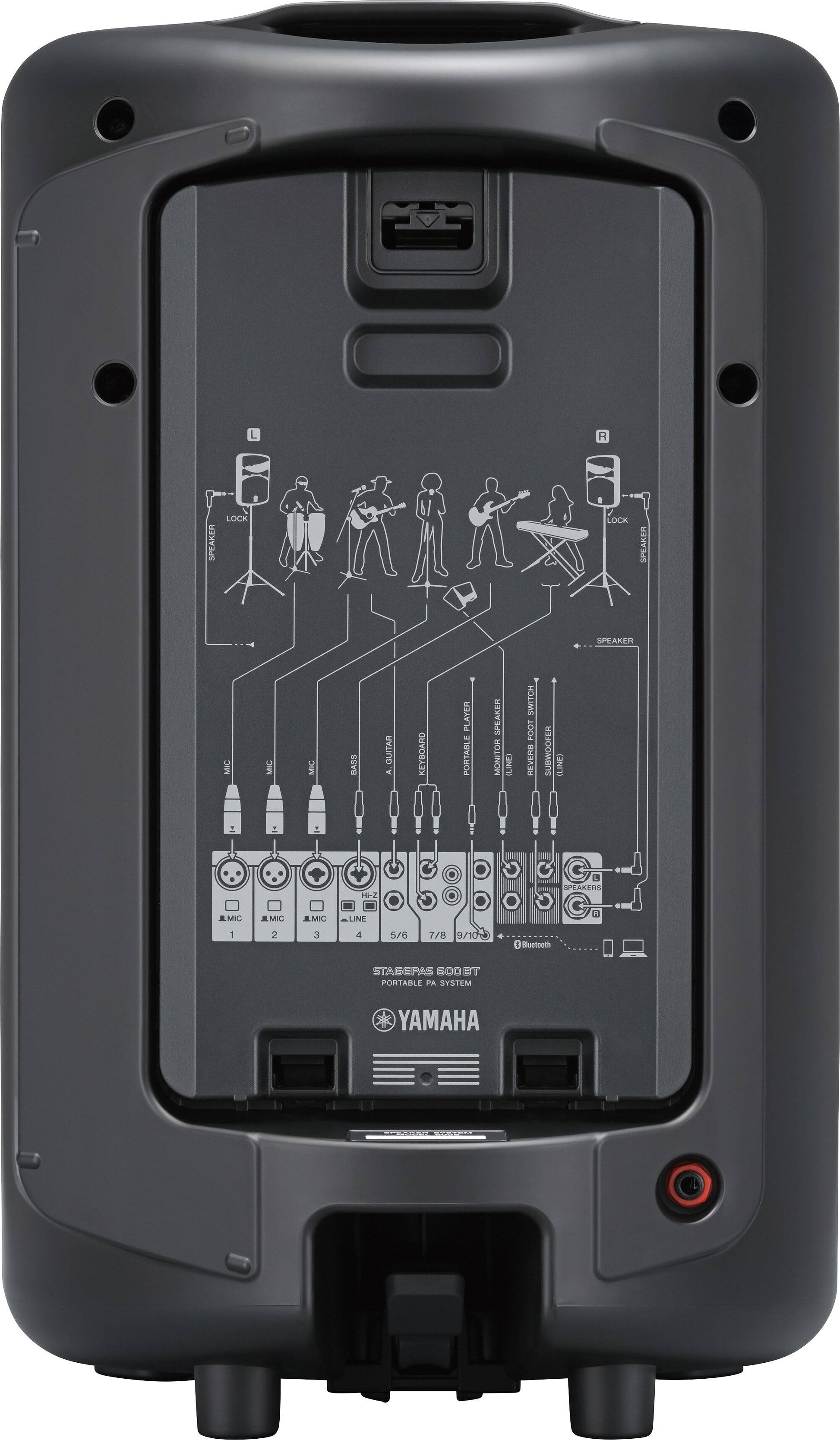

Two speakers, the detachable mixer, two 6 m speaker cables and the power cord combine into one compact package. The mixer docks in the back of a speaker cabinet for transport and lifts out for the show, so setting up takes very little time.
680 W output with 10-inch two-way speakers
The powered mixer delivers 680 W dynamic (340 W + 340 W) or 560 W continuous (280 W + 280 W) into 4 ohms. Each bass-reflex speaker combines a 10-inch cone woofer with a 1.4-inch voice-coil compression driver for up to 129 dB SPL per speaker, a 55 Hz to 20 kHz range and 90° x 60° coverage, giving more headroom for bigger rooms and audiences.
10-channel mixer for larger line-ups

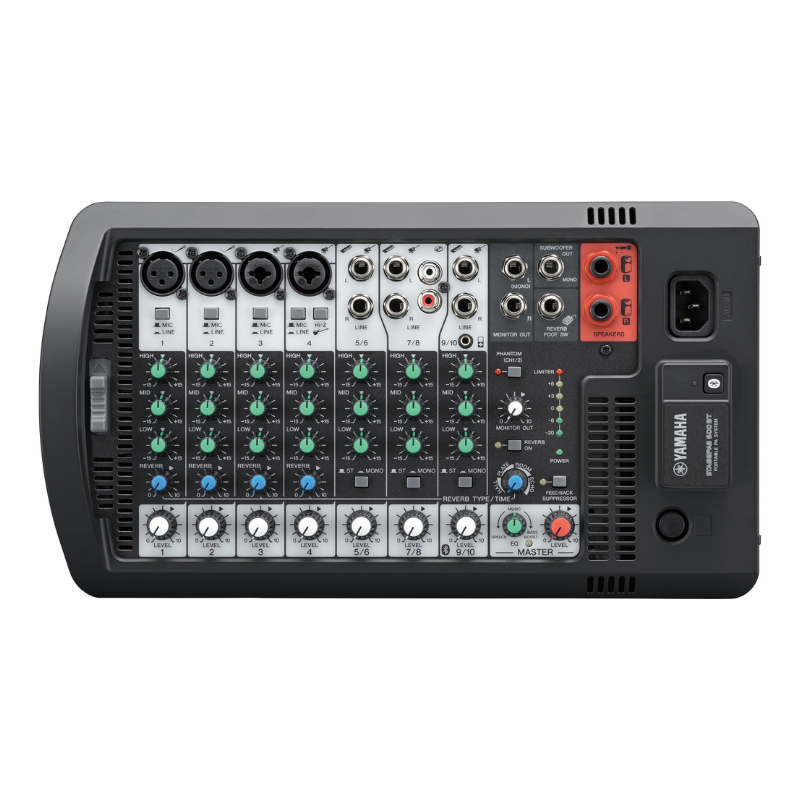

Four mono mic/line channels take vocals and instruments, and channels 5/6, 7/8 and 9/10 work as stereo pairs or as independent mono inputs. Channel 4 has a Hi-Z switch for passive-pickup guitars and basses, and +30 V phantom power on channels 1 and 2 runs condenser microphones.
3-band channel EQ with mid-range control
Every channel has high shelving EQ at 8 kHz, a mid peaking band at 2.5 kHz and low shelving at 100 Hz. The extra mid control, which the 400BT doesn't have, is particularly useful for vocals and guitars.
Bluetooth audio streaming
Stream backing tracks, interval music or presentation audio wirelessly from a smartphone or tablet. The Bluetooth 4.1 (A2DP) input has a maximum range of approximately 10 m.
SPX reverb, 1-Knob Master EQ and feedback suppressor
One knob selects from four high-resolution SPX reverb types and sets their time, and each channel sends as much reverb as it needs. The 1-Knob Master EQ, with virtual bass boost, adapts the overall sound for speech, music or extra low end, and the onboard feedback suppressor removes feedback at the push of a button.
Expand the STAGEPAS 600BT PA system
Monitor outputs (L/Mono, R) can drive powered monitors or extra speakers such as Yamaha's DBR, DXR or DSR models. Plugging a powered subwoofer, such as a Yamaha DXS Series model, into the mono Subwoofer output automatically applies a high-pass filter to the main speakers. An optional FC5 footswitch turns the reverb on and off hands-free.
Watch & Hear It
Frequently Asked Questions
STAGEPAS 600BT or STAGEPAS 400BT: which should I choose?
Choose the 600BT if you need more volume or more inputs: 680 W dynamic versus 400 W, 10-inch woofers versus 8-inch, 10 mixer channels versus 8, 3-band channel EQ versus 2-band, and up to 129 dB SPL per speaker versus 125 dB. The 400BT is lighter (18.3 kg against 25.6 kg) and is enough for solo acts, speech and small rooms.
How much power does the STAGEPAS 600BT have?
Yamaha rates it at 680 W dynamic (340 W + 340 W) and 560 W continuous (280 W + 280 W) into 4 ohms. Each speaker reaches a maximum output level of 129 dB SPL at 1 m on axis.
What comes in the box?
Two speakers and the detachable powered mixer, plus a cover panel, a 2 m power cord, two 6 m speaker cables, 12 non-skid pads, two ferrite cores and two cable ties. Speaker stands are not included; Yamaha lists the BMS10A mic stand adaptor and the FC5 footswitch as options.
Can I plug a guitar or a condenser microphone straight in?
Yes. Channel 4 has a Hi-Z switch for passive-pickup guitars and basses, and channels 1 and 2 provide +30 V phantom power for condenser microphones.
How does it compare with the STAGEPAS 1K mkII?

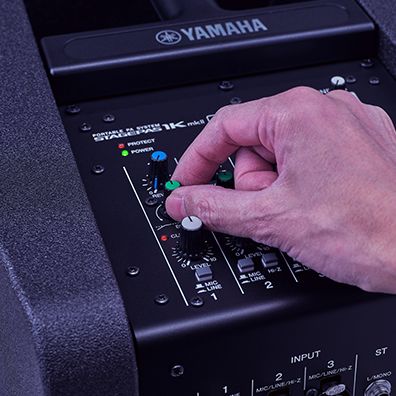

The 600BT uses two separate box speakers with a 10-channel detachable mixer, so you can place the speakers either side of the stage. The 1K mkII is a single column system with a 12-inch powered subwoofer, a 10-driver line array, a 5-channel digital mixer, 1100 W dynamic power and 170° horizontal coverage, plus app control.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | Yamaha STAGEPAS 600BT |
|---|---|
| Type | Powered mixer with 2 passive speakers |
| Series | STAGEPAS |
Amplifier
| Maximum output power (4 ohms) | 680 W dynamic (340 W + 340 W); 560 W continuous (280 W + 280 W) |
|---|
Acoustic
| Speaker type | Two-way bass-reflex |
|---|---|
| Frequency range (-10 dB) | 55 Hz - 20 kHz |
| Nominal coverage | 90° H x 60° V |
| Floor monitor angle | 50° |
| LF driver | 10" (25 cm) cone |
| HF driver | 1.4" (3.56 cm) voice-coil compression driver |
| Maximum output level (1 m, on axis) | 129 dB SPL per speaker |
Mixer
| Mixing channels | 10 |
|---|---|
| Input channel functions | Hi-Z switch: CH4; ST/MONO switch: CH5/6 - 9/10 |
| Channel EQ | HIGH shelving 8 kHz; MID peaking 2.5 kHz; LOW shelving 100 Hz |
| Output functions | Feedback suppressor, 1-Knob Master EQ |
| Effects | SPX digital reverb (4 programs, parameter control) |
Inputs & Outputs
| Inputs | 4 mono mic/line + 6 mono / 3 stereo line |
|---|---|
| Phantom power | +30 V (CH1, CH2) |
| Outputs | SPEAKERS OUT (L, R), MONITOR OUT (L/MONO, R), SUBWOOFER OUT (MONO) with auto HPF |
| Bluetooth | Ver. 4.1, A2DP v1.2, maximum range approx. 10 m |
| Control | Reverb footswitch input |
General
| Power requirements | 100 V - 240 V, 50 Hz/60 Hz |
|---|---|
| Power consumption | 35 W (idle), 100 W (1/8 power) |
| Pole socket | 34.8 - 35.2 mm with StageLok |
| Handle | 1 x top |
| Dimensions (W x H x D) | Speaker 335 x 545 x 319 mm; Mixer 348 x 197 x 135 mm |
| Weight | 25.6 kg (56.4 lb) total: 2 x speaker 10.9 kg + mixer 3.8 kg |
Included Accessories
| Included | Cover panel, power cord (2 m), 2 x speaker cables (6 m), 12 x non-skid pads, 2 x ferrite cores, 2 x cable ties |
|---|---|
| Options | Yamaha BMS10A mic stand adaptor (mixer mount), FC5 footswitch (reverb on/off) |
Specifications from Yamaha India's STAGEPAS 400BT/600BT specifications page; subject to change by Yamaha.
