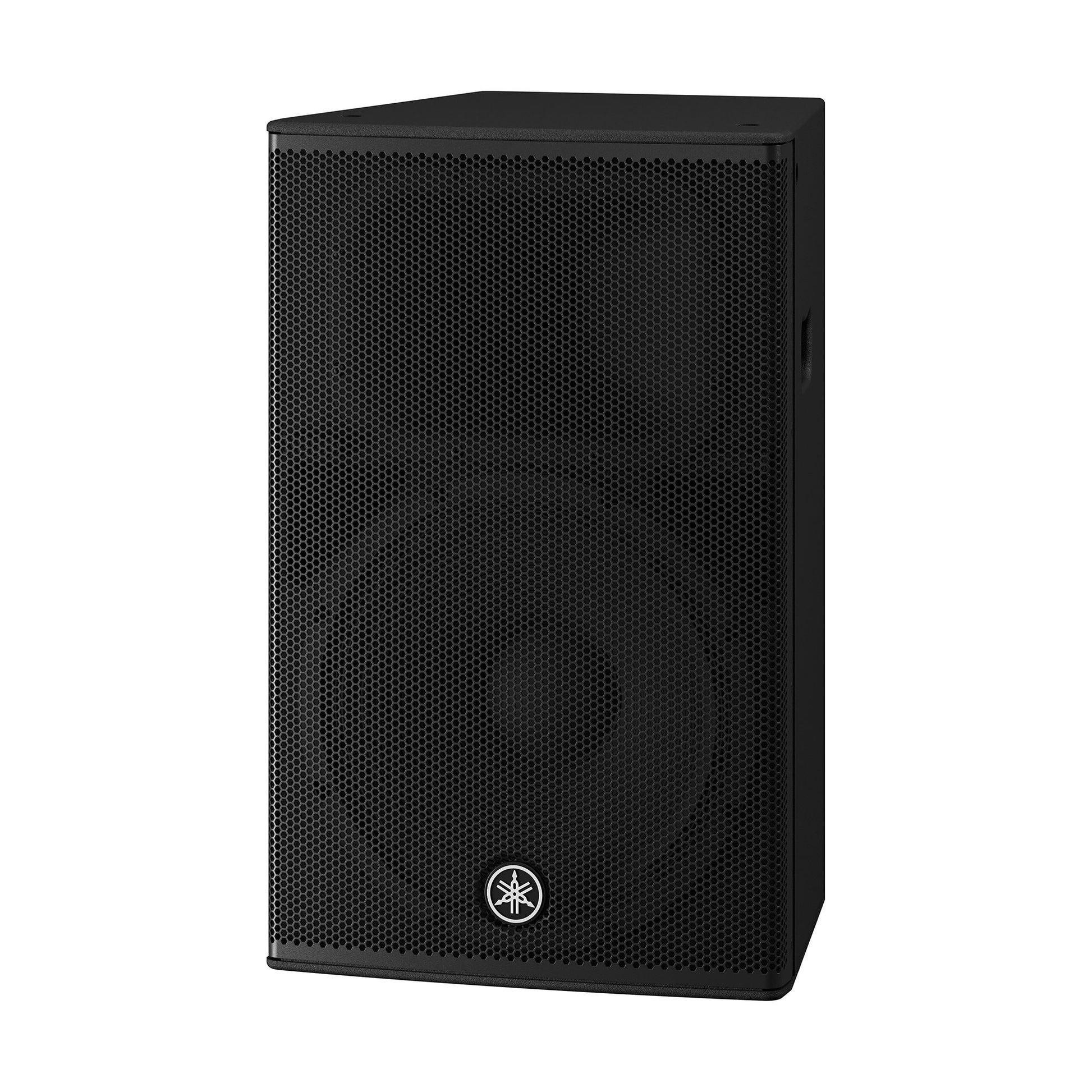

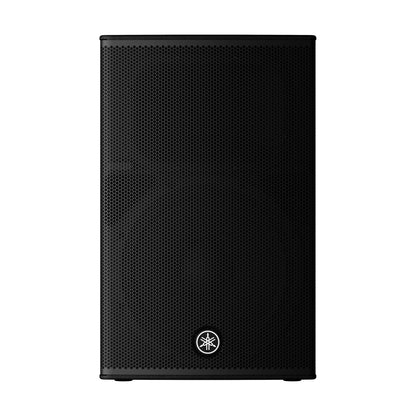

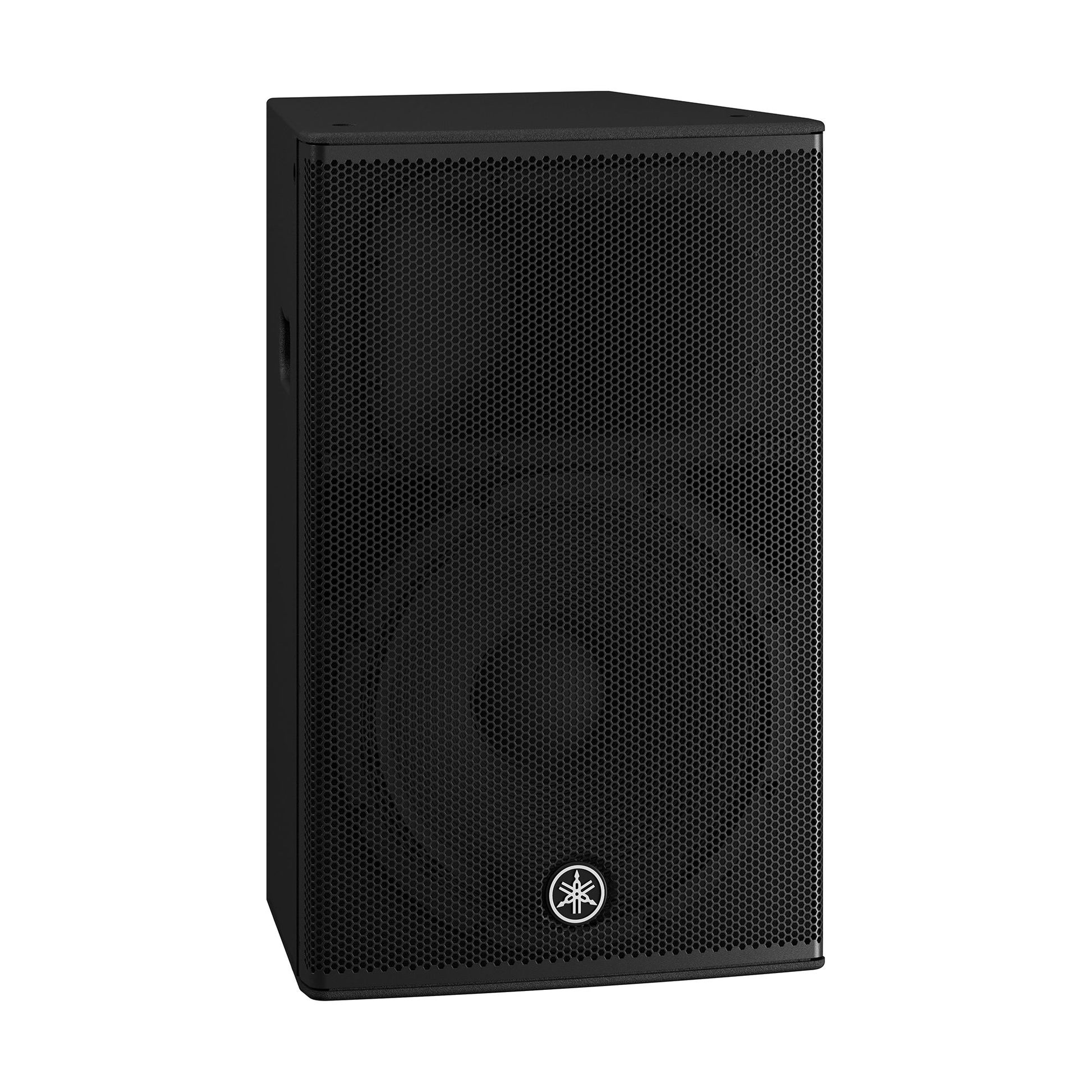

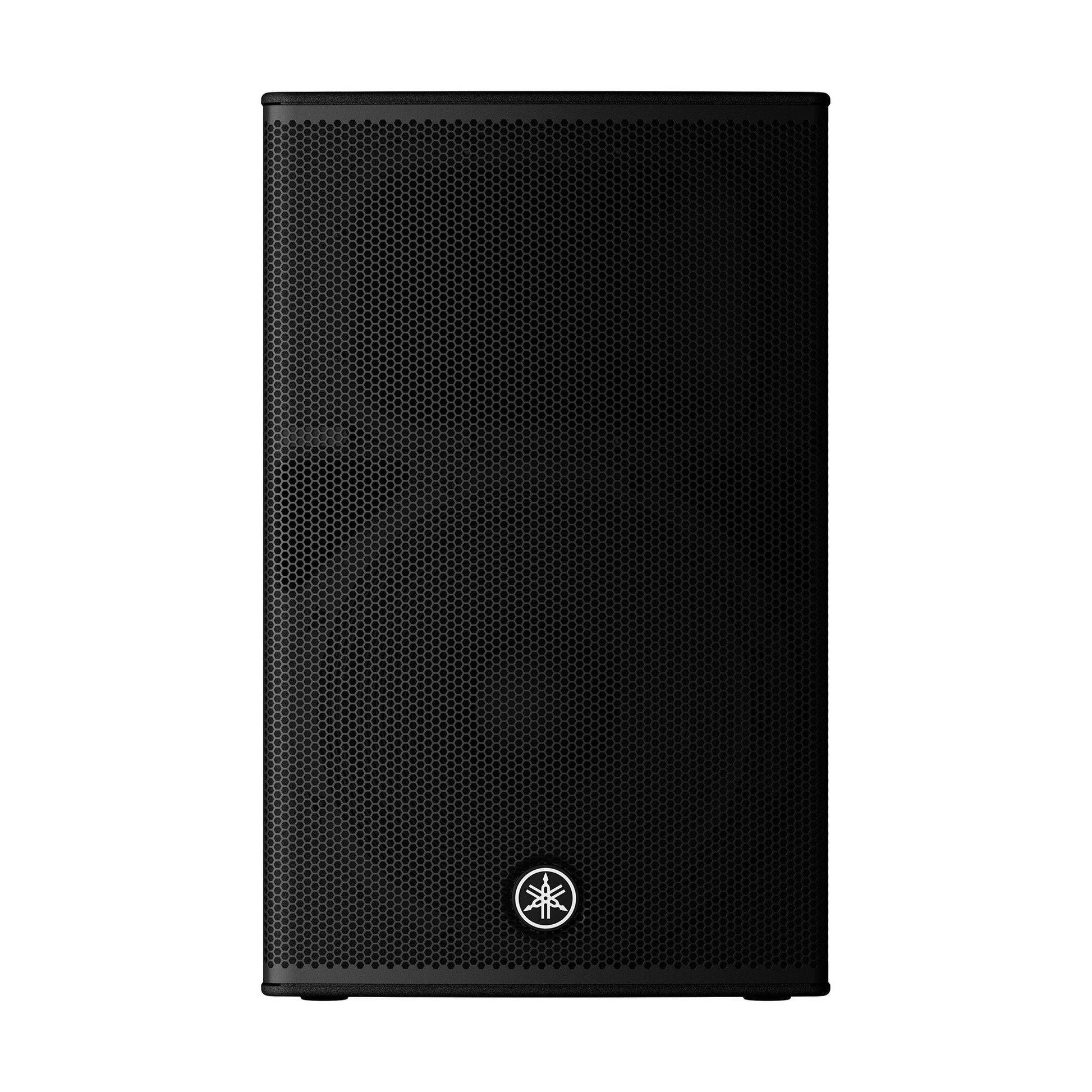

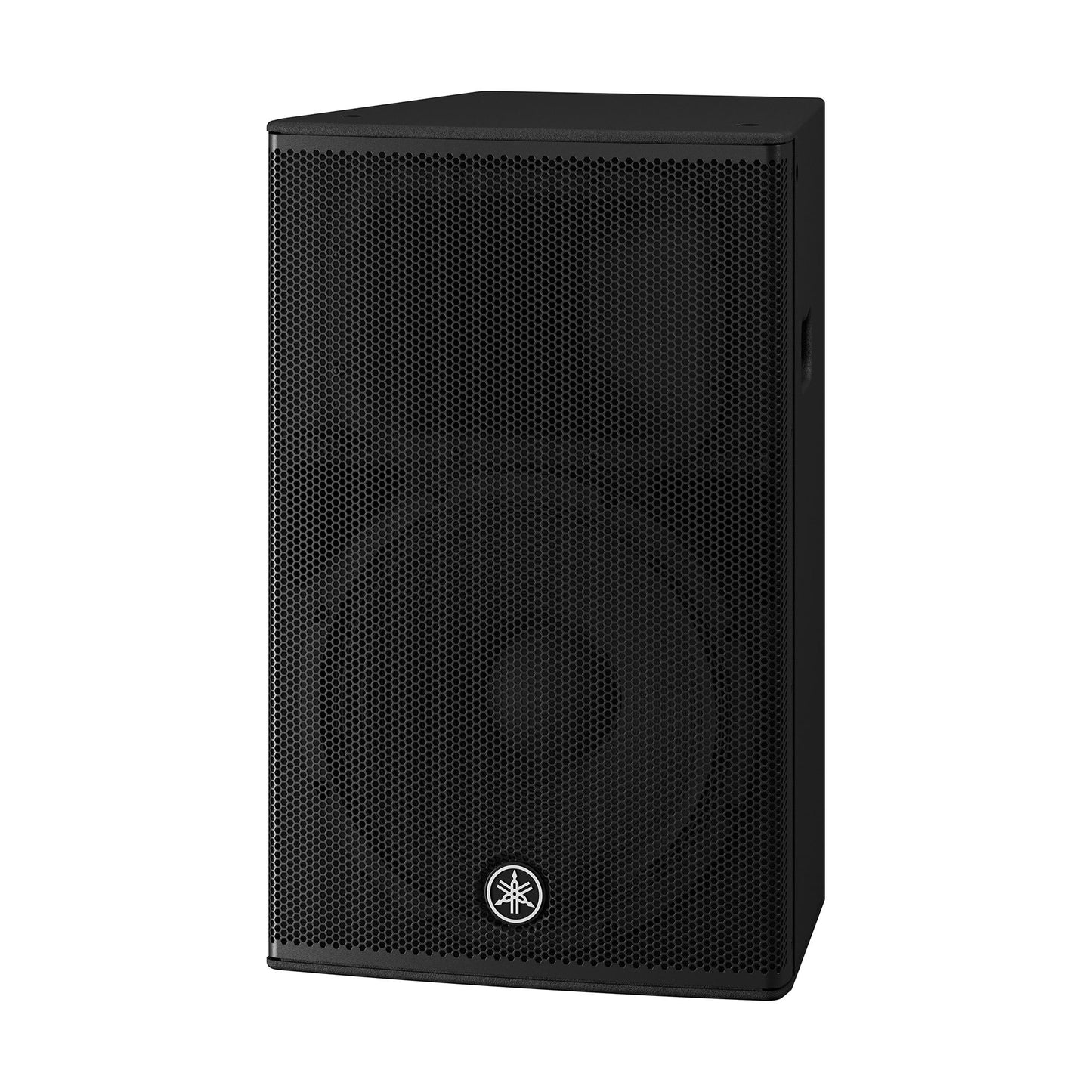

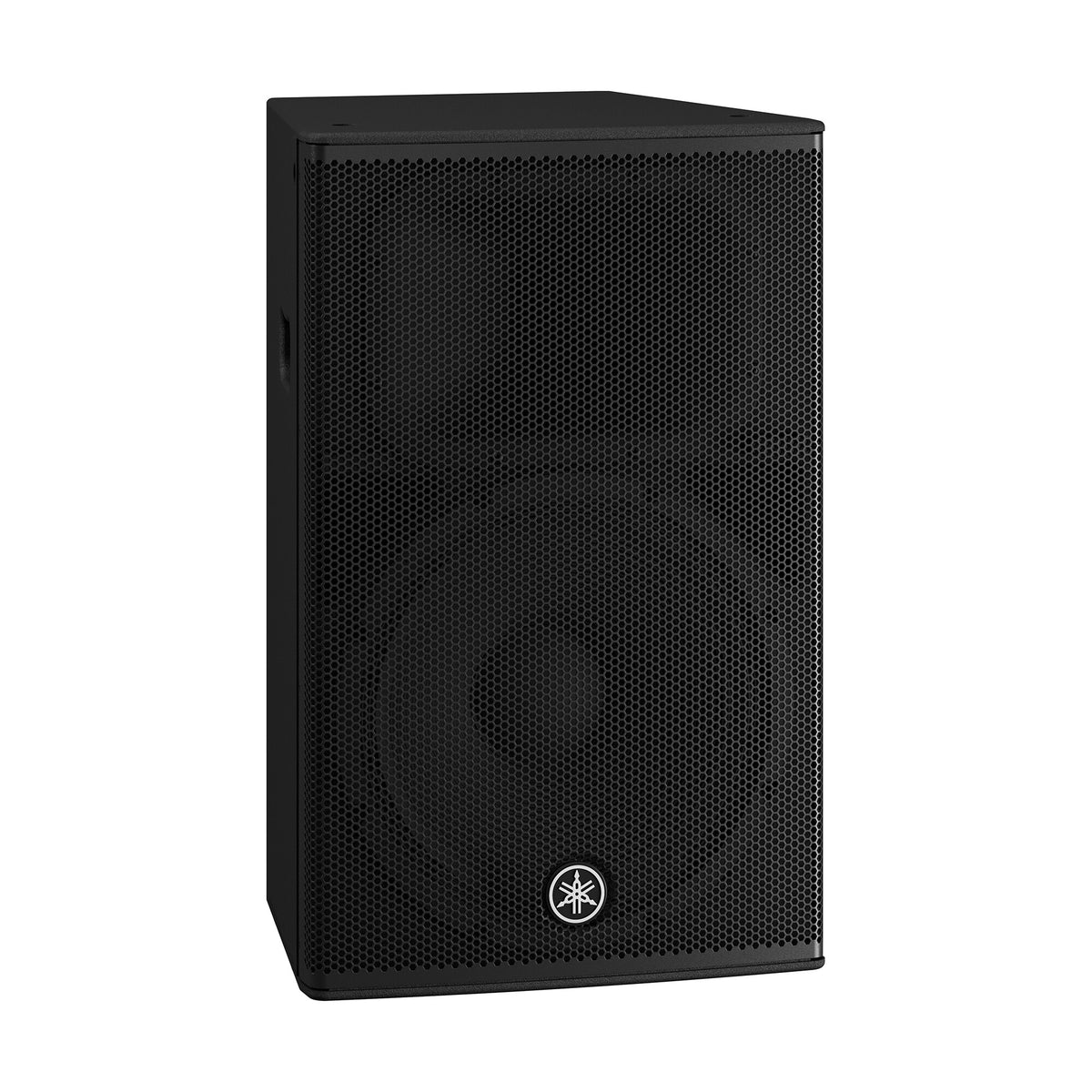

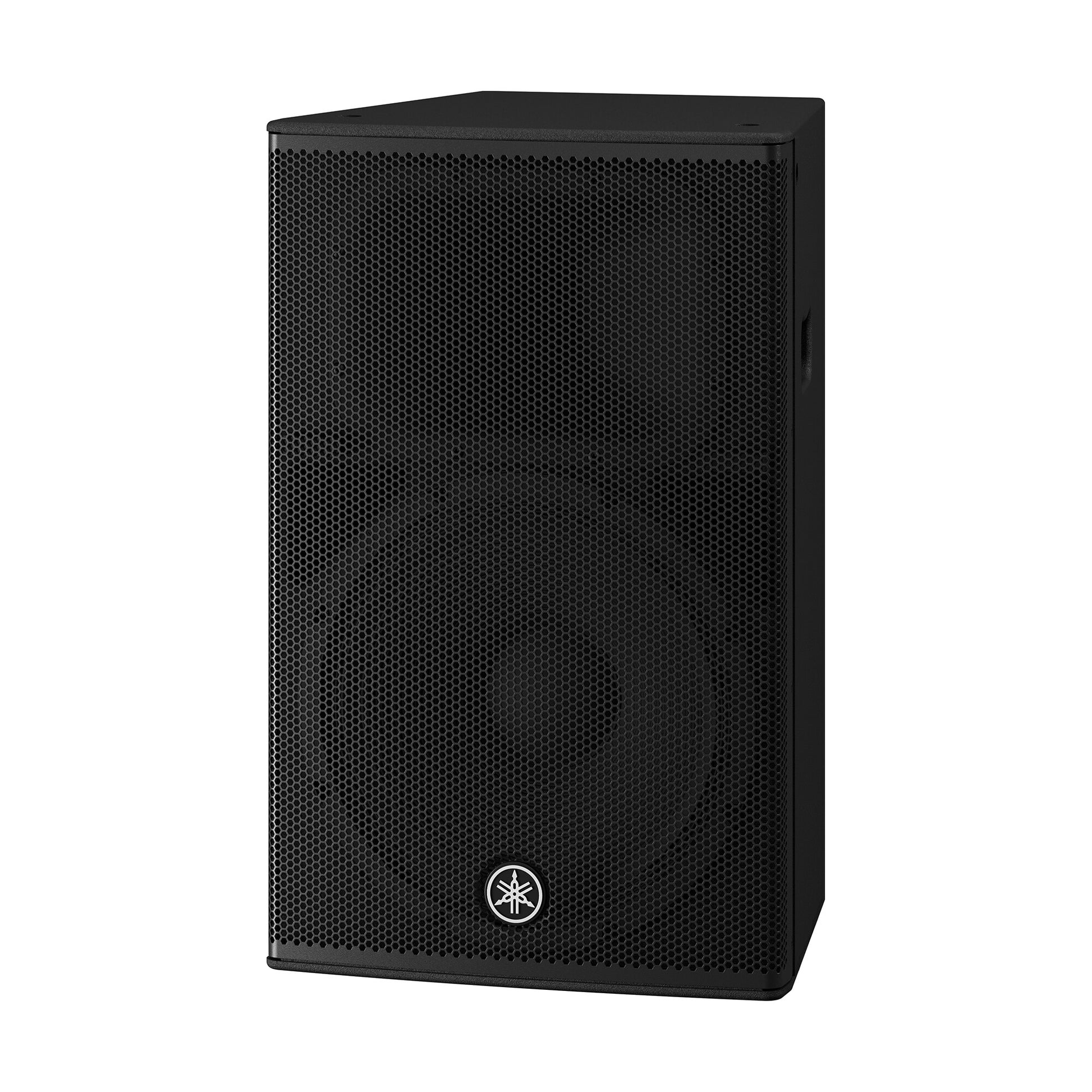

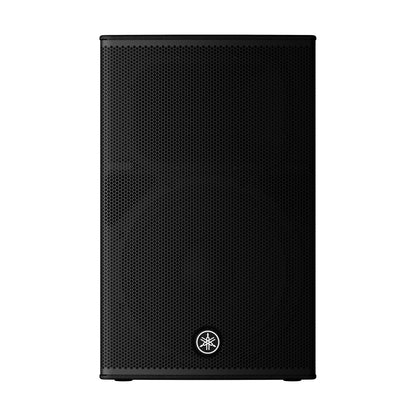

Yamaha DHR15 15-Inch Powered PA Speaker

15-inch plywood power for full-range front-of-house sound

15-inch woofer and 1.4-inch compression driver with a 44 Hz–20 kHz range
1,000 W dynamic Class-D bi-amplification delivering up to 131 dB SPL
FIR-X tuning and D-CONTOUR FOH/MAIN or MONITOR modes for consistent clarity
Two-channel mixer with mic/line combo, RCA inputs and a linkable XLR output
Polyurea-coated plywood, dual-angle 0°/-7° pole sockets and M10 rigging points

MRP~~₹80,100~~30% OFF

YMS Price₹56,069

Taxes included.

Yamaha DHR15 15-Inch Powered Speaker

The Yamaha DHR15 is a 2-way, bi-amped powered loudspeaker built around a 15-inch woofer and a 1.4-inch HF compression driver. Its 1,000 W (dynamic) Class-D amplifier and Yamaha DSP sit inside a polyurea-coated plywood cabinet of the kind used in the higher-end DZR Series, and it reaches down to 44 Hz with up to 131 dB SPL.

Yamaha intends the DHR15 as a main, front-of-house speaker, so it suits bands, DJs, event companies and venues that want strong, full-range sound from a durable wooden cabinet. Rigging points and dual-angle pole sockets also make it a good choice for fixed installations.

Key Features

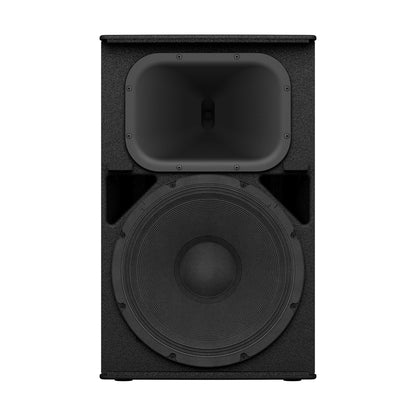

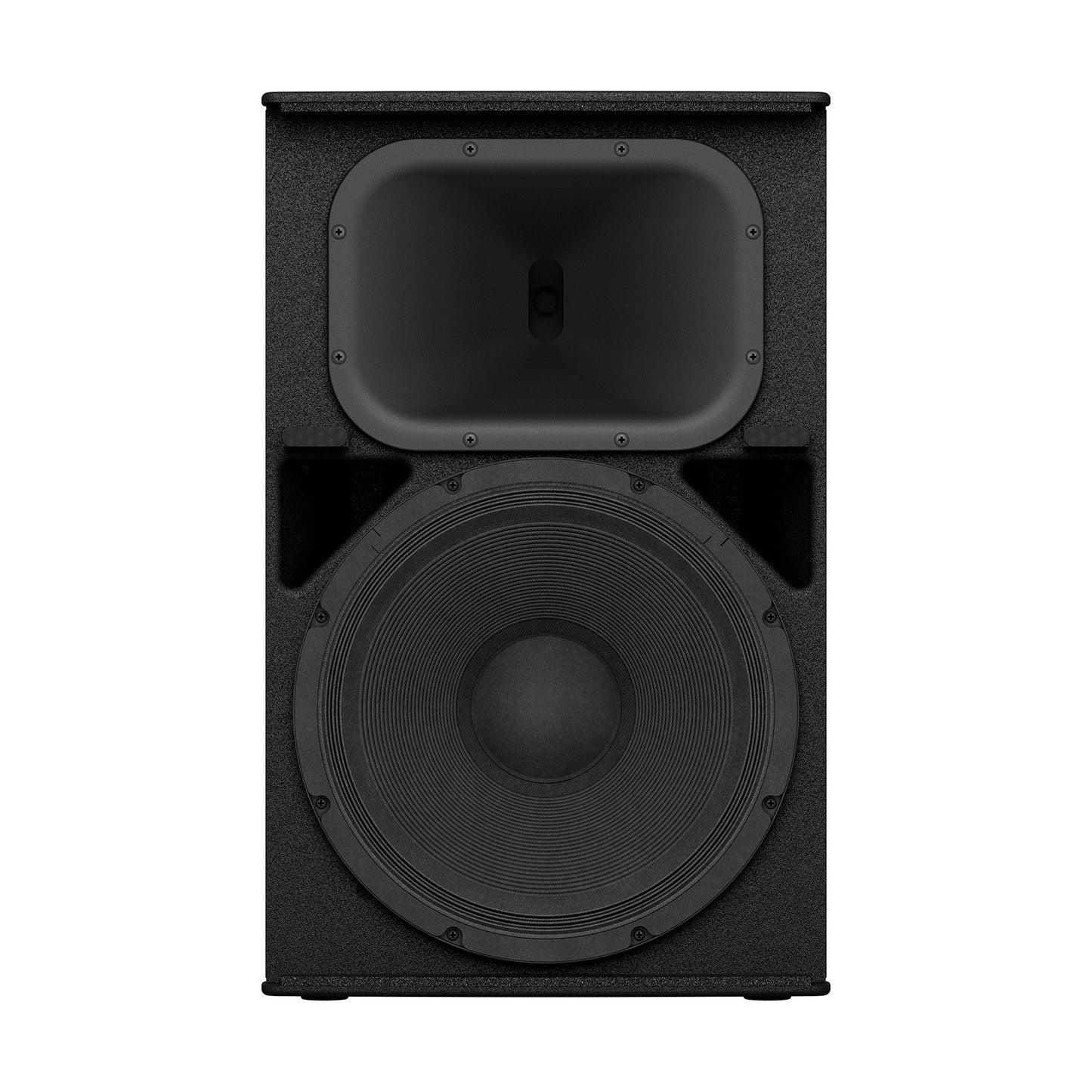

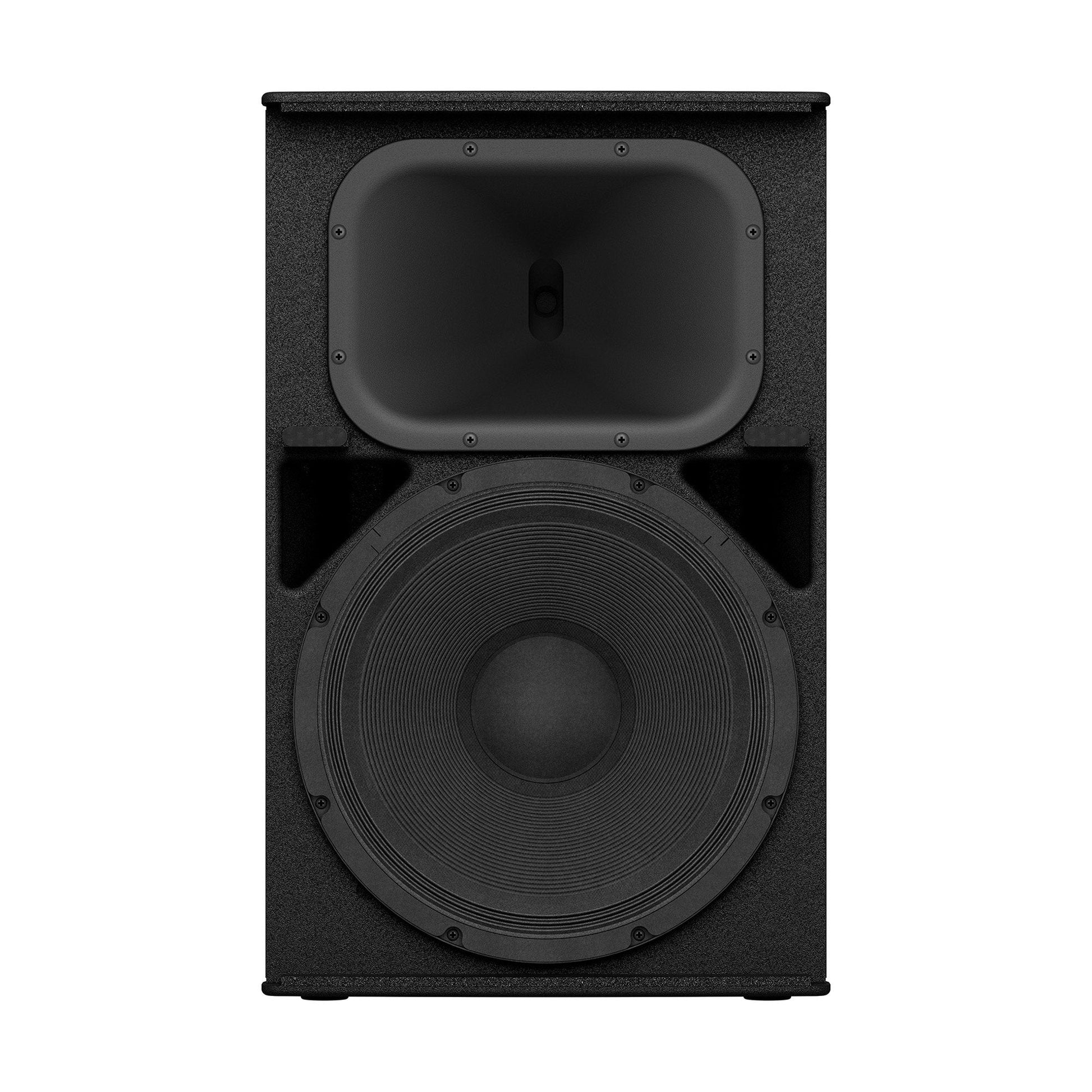

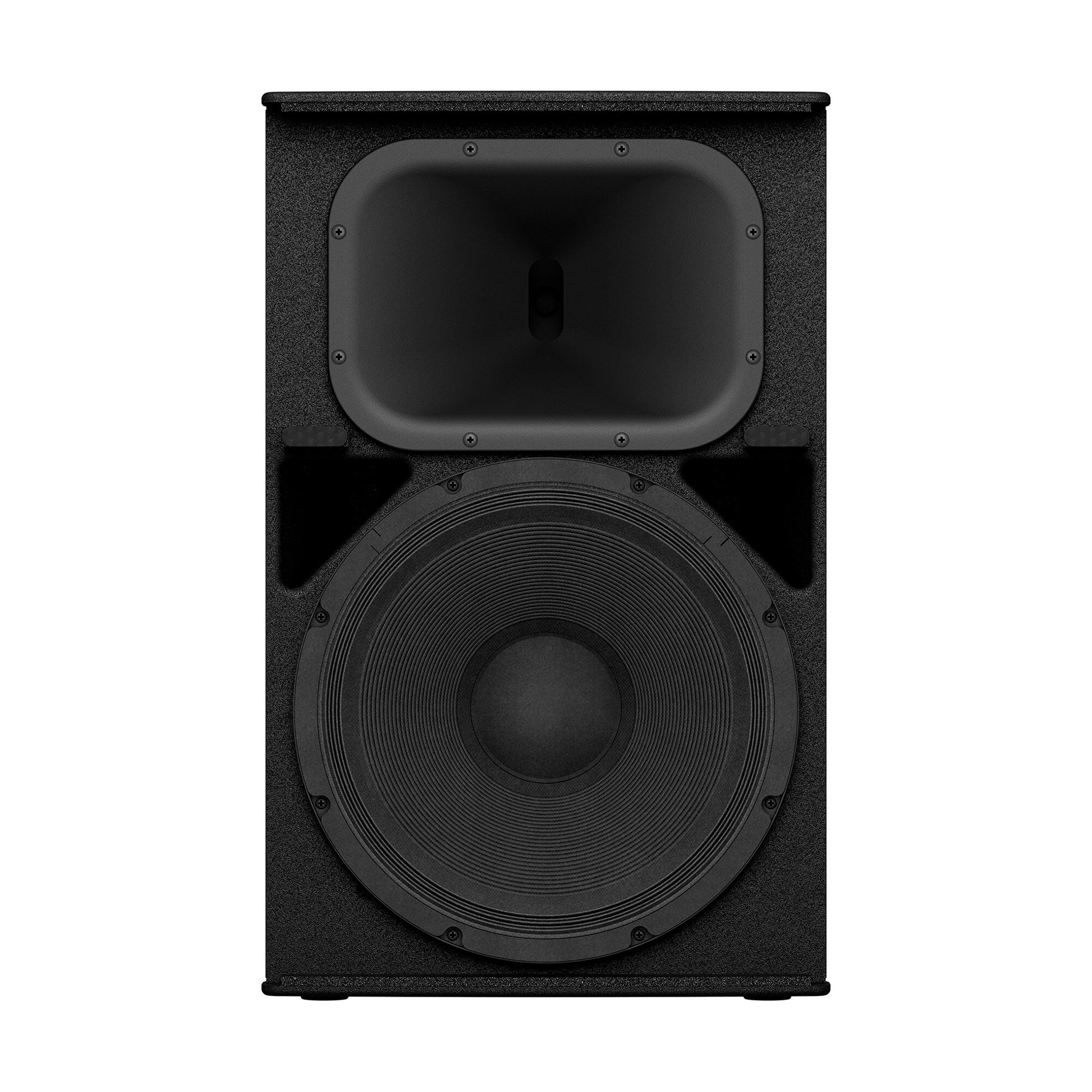

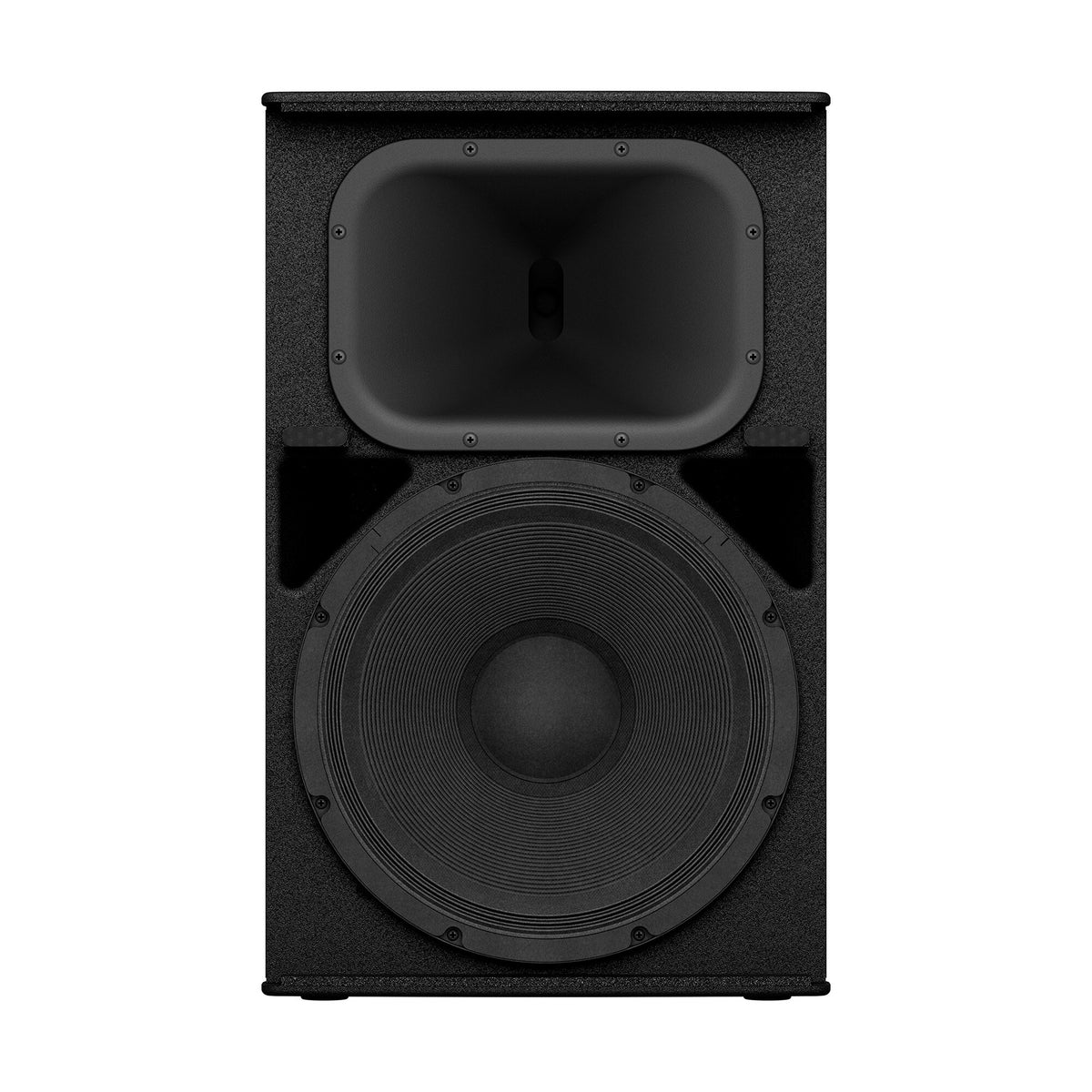

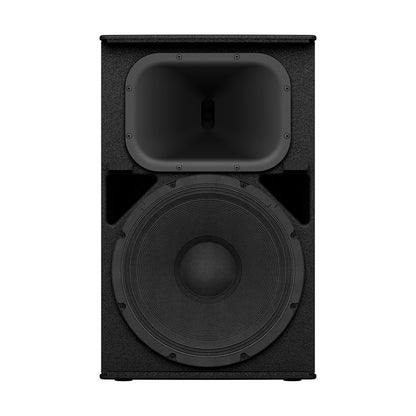

Woofer and compression driver used in the Yamaha DHR15

15-inch woofer with a 1.4-inch driver

Custom high-power transducers give the DHR15 well-defined bass with low distortion, while a 1.4-inch precision compression driver handles the mids and highs. Despite the large woofer, the cabinet stays compact at 432 x 692 x 405 mm.

Class-D amplifier circuit board inside a Yamaha DHR Series speaker

1,000 W of bi-amplified power

The Class-D amplifier provides 1,000 W dynamic power, with 800 W for the woofer and 200 W for the HF driver (465 W continuous). That takes the DHR15 to a maximum of 131 dB SPL, the highest output in the DHR range alongside the DHR15M.

Phase response comparison of a typical crossover and Yamaha FIR-X tuning

FIR-X tuning for clarity

Linear-phase FIR filters at the 1.8 kHz crossover optimise frequency response, phase and time alignment between the drivers at the same time. The smoother crossover gives better clarity and imaging than a typical crossover, with 24-bit converters keeping the signal clean.

DHR15 frequency response with D-CONTOUR FOH/MAIN mode and with D-CONTOUR off

D-CONTOUR for DHR15 front-of-house use

D-CONTOUR is a multi-band compressor that keeps the sound clear at every level. FOH/MAIN mode lifts the low end that is often lost when a speaker is flown or on a stand, MONITOR mode tames the lows for wedge use, and a 100 Hz or 120 Hz high-pass filter helps when adding a subwoofer.

Block diagram of the DSP protection functions in Yamaha powered speakers

Protection that lets it run hard

Yamaha set an optimal limiter point for each driver and amplifier combination, and the DSP monitors the power supply, amplifiers and transducers using protection functions derived from its professional power amplifiers. LIMIT and PROTECTION indicators keep you informed during the show.

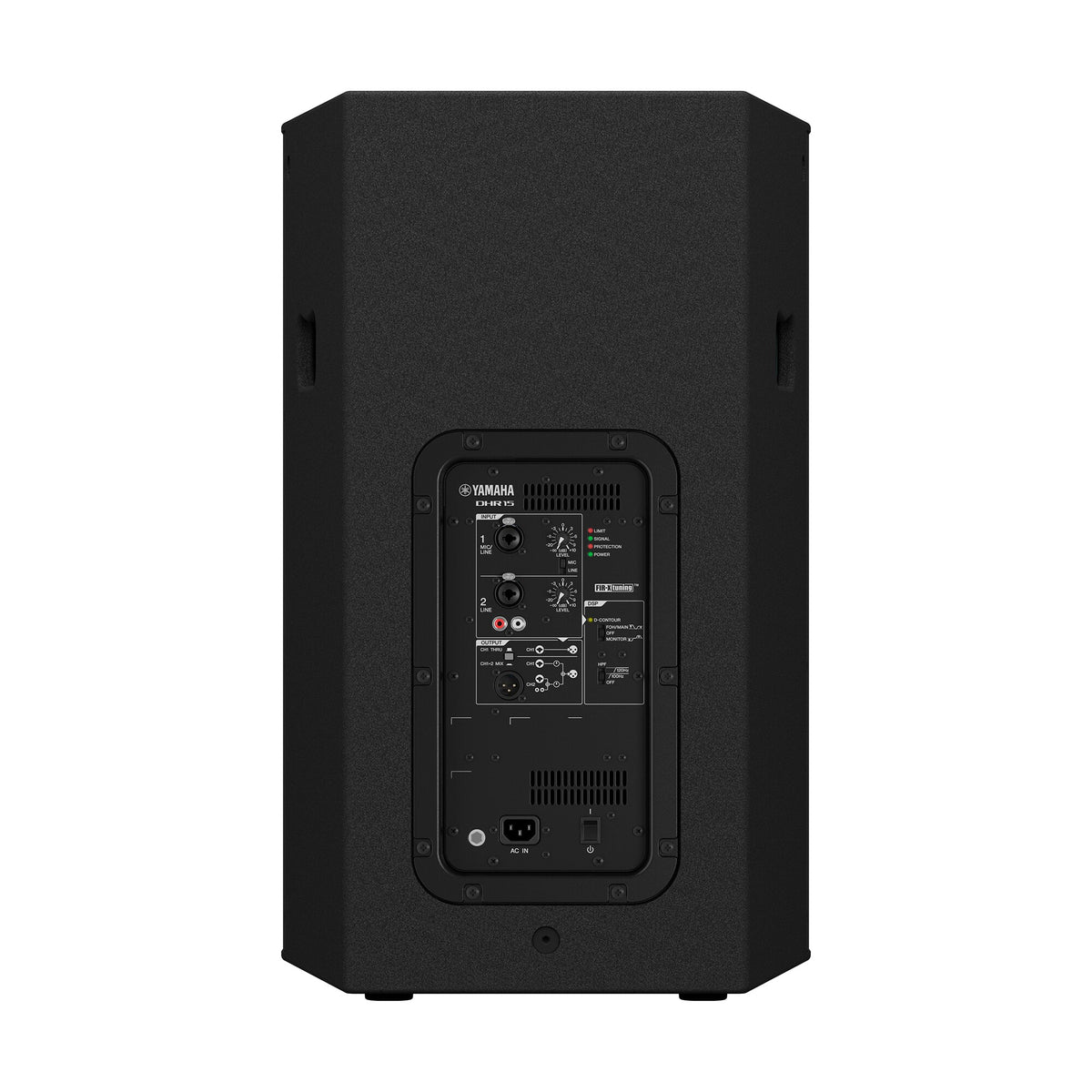

Rear panel of a Yamaha DHR Series speaker showing inputs, output, D-CONTOUR and HPF switches

Two-channel mixer on board

Channel 1 accepts a mic or line signal through a combo jack with a MIC/LINE switch, and Channel 2 adds a combo jack plus stereo RCA inputs for a music player. The XLR output can pass Channel 1 alone or send a mix of both channels to another speaker.

Yamaha speaker on a stand using the -7° tilt pole socket compared with normal pole mount

Dual-angle pole sockets

Two 35 mm pole sockets let you mount the DHR15 level or tilted 7° downward. The tilt helps aim sound at the audience and away from low ceilings and other reflective surfaces for a clearer mix.

Yamaha DHR15 suspended using eyebolts in its rigging points

Plywood cabinet with rigging points

The plywood enclosure keeps unwanted vibration low and is coated in durable, scratch-resistant black polyurea. Two side handles help with transport, and three rigging points (two top, one rear) accept M10 x 30-50 mm eyebolts for installation.

Watch & Hear It

Frequently Asked Questions

How does the DHR15 compare with the DBR15?

Both are 15-inch, 2-way powered speakers with 1,000 W dynamic amplification and a two-channel mixer. The DHR15 uses a polyurea-coated plywood cabinet (24.0 kg), reaches 44 Hz and has dual-angle pole sockets and M10 rigging points. The DBR15 has a lighter plastic cabinet (19.3 kg), reaches 50 Hz and has a slightly higher 132 dB maximum output.

How does the DHR15 compare with the DZR15?

The DZR15 is Yamaha's higher-end model with 2,000 W dynamic power, 96 kHz processing, a 34 Hz–20 kHz range and 139 dB maximum output. The DHR15 brings the same style of plywood construction in a simpler design, with 1,000 W, 48 kHz processing, 44 Hz extension and 131 dB SPL.

Does the DHR15 need an external amplifier?

No. It is a powered speaker with a built-in 1,000 W (dynamic) Class-D bi-amplifier.

Can I plug a microphone straight into it?

Yes. Input 1 is a combo jack with a MIC/LINE switch. For several microphones or instruments, use a mixer and feed its output to the speaker.

Can the DHR15 be used with a subwoofer?

Yes. Its high-pass filter can be set to 100 Hz or 120 Hz (24 dB/octave) to hand the deep bass over to a subwoofer, and the XLR output can link to further speakers.

What is in the box?

Yamaha's DHR Series owner's manual lists an AC power cord and the owner's manual as the included items.

Why Buy from YMS?

Authorised Yamaha Premium Retailer
Genuine stock with full manufacturer warranty
Demo units at our Bengaluru and Mangaluru stores
Secure delivery across India
Free domestic shipping on all orders

Specifications

Overview

Model	Yamaha DHR15
Type	2-way bi-amped powered speaker, bass-reflex
Series	DHR Series
Frequency Range (-10 dB)	44 Hz – 20 kHz
Coverage	90° H x 60° V
Maximum Output Level	131 dB SPL (measured peak, IEC noise at 1 m)

Components

LF	15 in cone, 2.5 in voice coil, ferrite magnet
HF	1.4 in diaphragm, 1 in throat compression driver, ferrite magnet
Crossover	1.8 kHz, FIR-X tuning (linear-phase FIR)

Amplifier

Amplifier Class	Class-D
Dynamic Power	1,000 W (LF 800 W, HF 200 W)
Continuous Power	465 W (LF 400 W, HF 65 W)
Cooling	Fan cooling, 4 speeds

Processing

A/D and D/A Converters	24-bit, 48 kHz sampling
High-Pass Filter	Off, 100 Hz, 120 Hz (24 dB/oct)
D-CONTOUR	FOH/MAIN, MONITOR, OFF

Inputs & Outputs

Input 1	Combo x 1 (mic/line)
Input 2	Combo x 1 + RCA pin x 2 (unbalanced)
Output	XLR3-32 x 1 (CH1 parallel through or CH1+CH2 mix)

General

Cabinet	Plywood, durable polyurea coating, black
Handles	Side x 2
Pole Sockets	35 mm x 2 (bottom, 0° or -7°)
Rigging	Top x 2, rear x 1 (fit M10 x 30-50 mm eyebolts)
Power Requirements	100 V, 100-120 V or 220-240 V, 50/60 Hz (by region)
Power Consumption	18 W idle, 74 W at 1/8 power
Dimensions (W x H x D)	432 x 692 x 405 mm (with rubber feet)
Net Weight	24.0 kg
Included Accessories	AC power cord, owner's manual

Specifications from Yamaha India's official DHR Series product data and the DHR owner's manual; subject to change by Yamaha.
