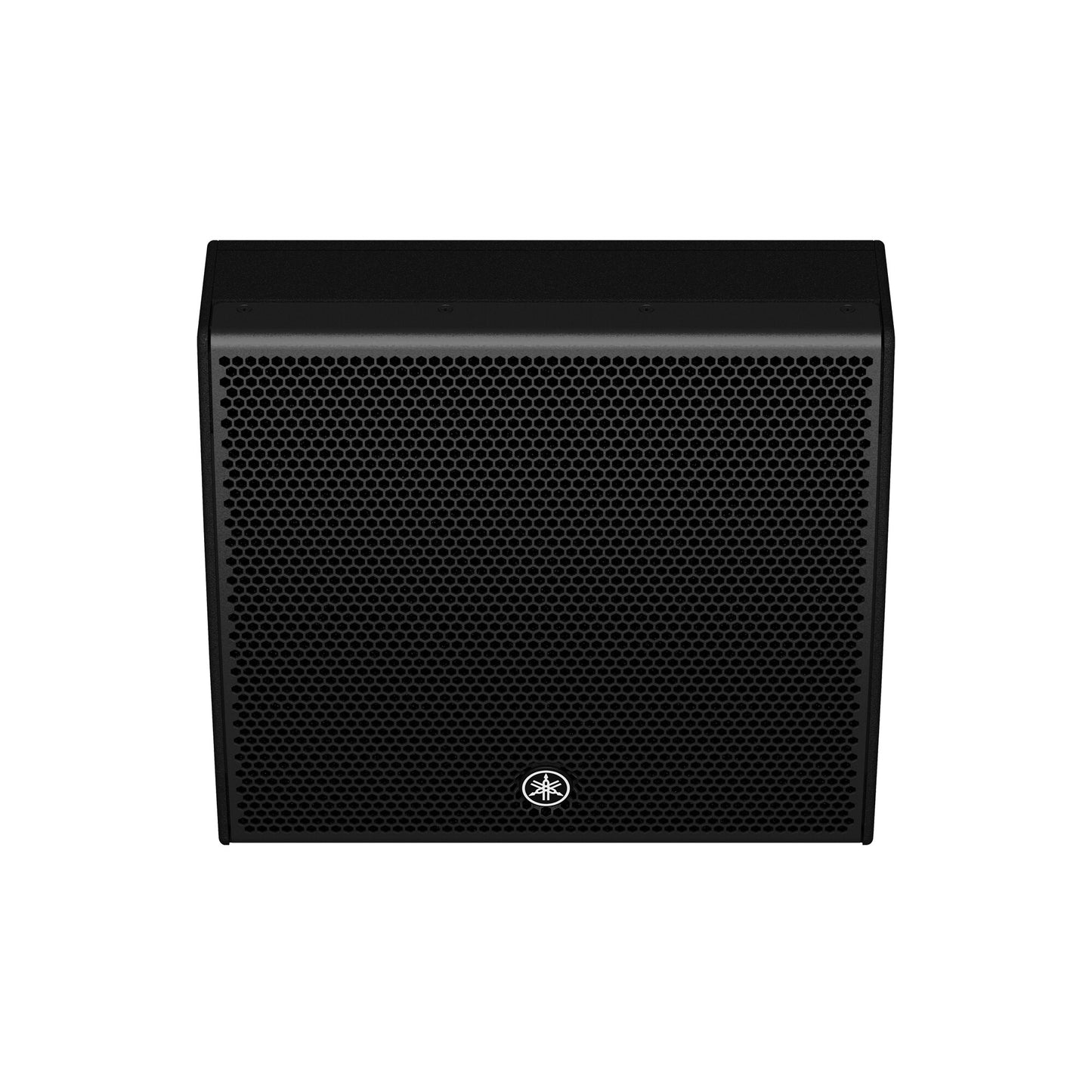

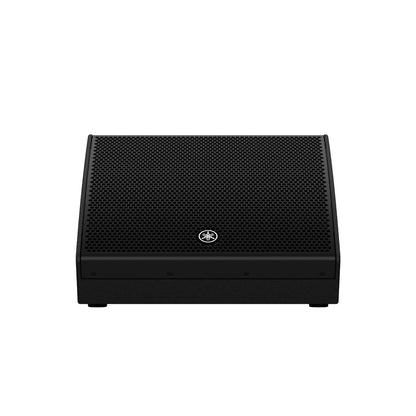

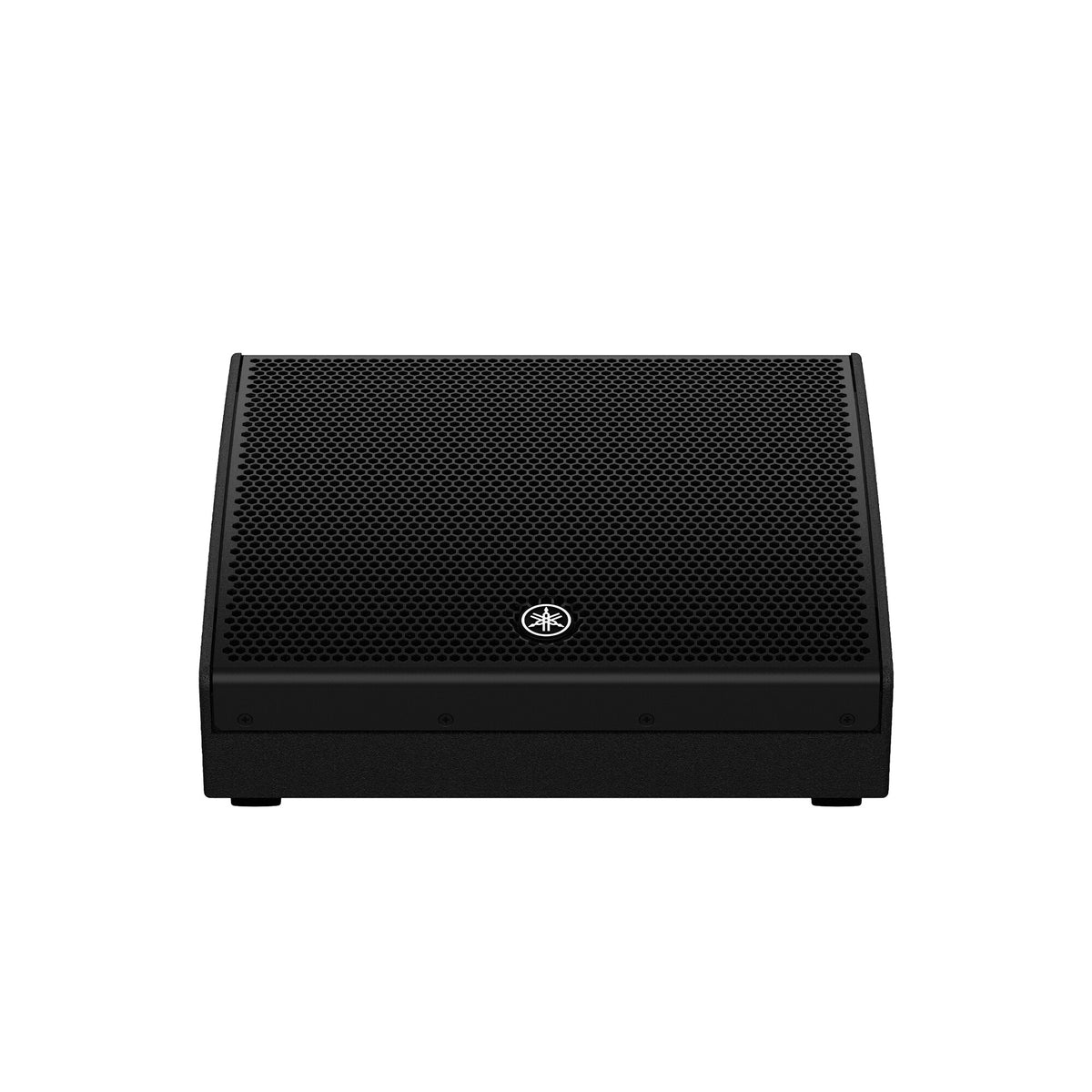

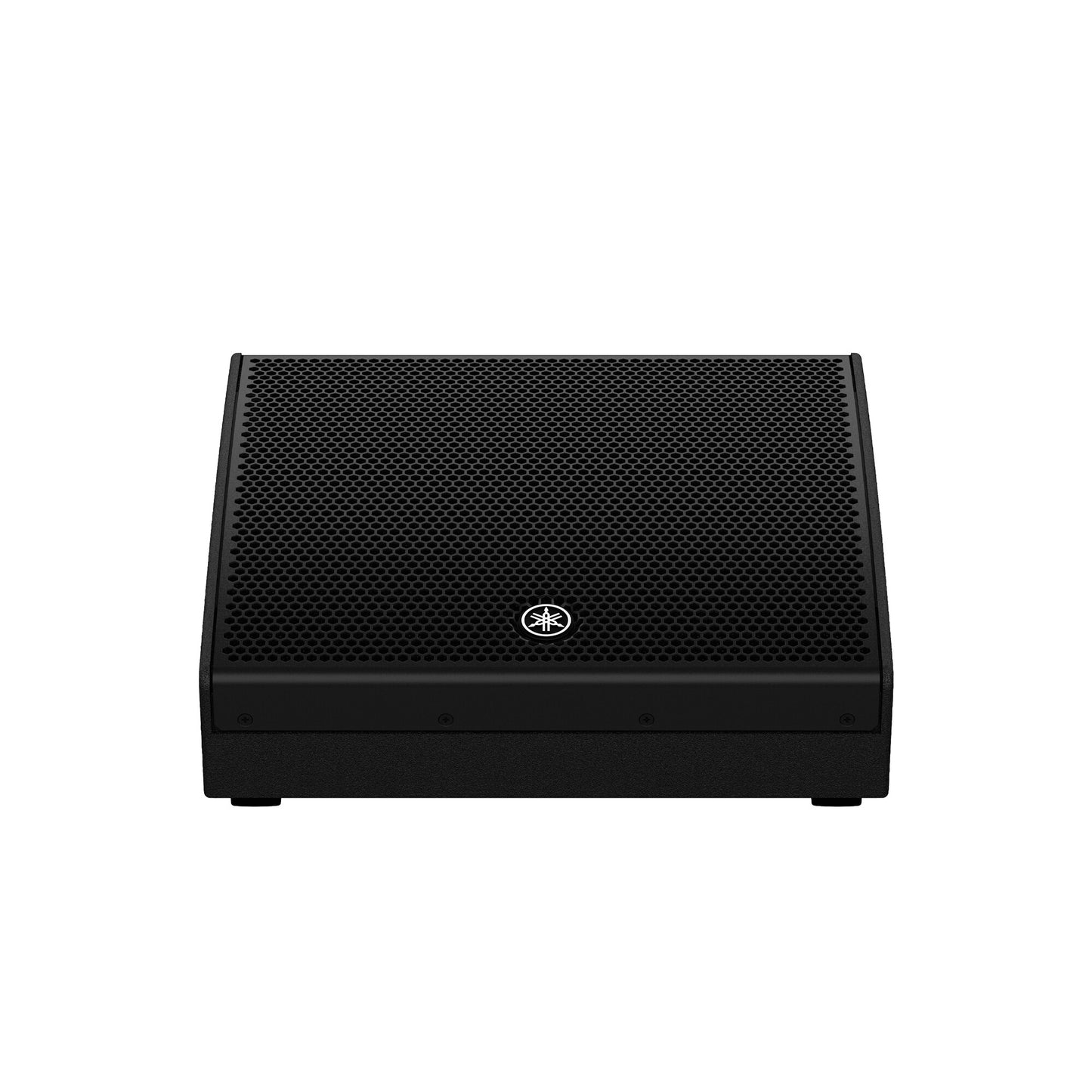

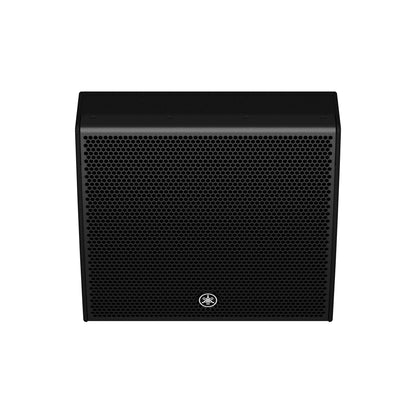

Yamaha DHR12M 12-Inch Powered Floor Monitor

Coaxial 12-inch floor monitor with 1,000 W and an even 90° x 90° spread

12-inch woofer and 1.75-inch coaxial compression driver for smooth, focused monitoring
1,000 W dynamic Class-D bi-amplification reaching up to 129 dB SPL
Symmetrical 90° x 90° coverage with a 55 Hz–20 kHz frequency range
FIR-X tuning, D-CONTOUR monitor mode and selectable 100 or 120 Hz high-pass
Low-profile 57° plywood wedge with polyurea finish and a side pole socket

MRP~~₹74,700~~30% OFF

YMS Price₹52,289

Taxes included.

Yamaha DHR12M Powered Floor Monitor

The Yamaha DHR12M is a 2-way, bi-amped powered loudspeaker designed first and foremost as a floor monitor. A 12-inch woofer and a 1.75-inch HF driver sit in a space-saving coaxial arrangement, driven by a 1,000 W (dynamic) Class-D amplifier with Yamaha DSP, all inside a low-profile plywood cabinet like those used in the higher-end DZR Series.

It is built for singers, musicians and presenters who need a clear, consistent monitor mix, and for sound engineers who want a wedge that is quick to set up. The onboard two-channel mixer and side pole socket also make it handy as a compact stand-mounted speaker when the job calls for it.

Key Features

Coaxial driver for focused monitoring

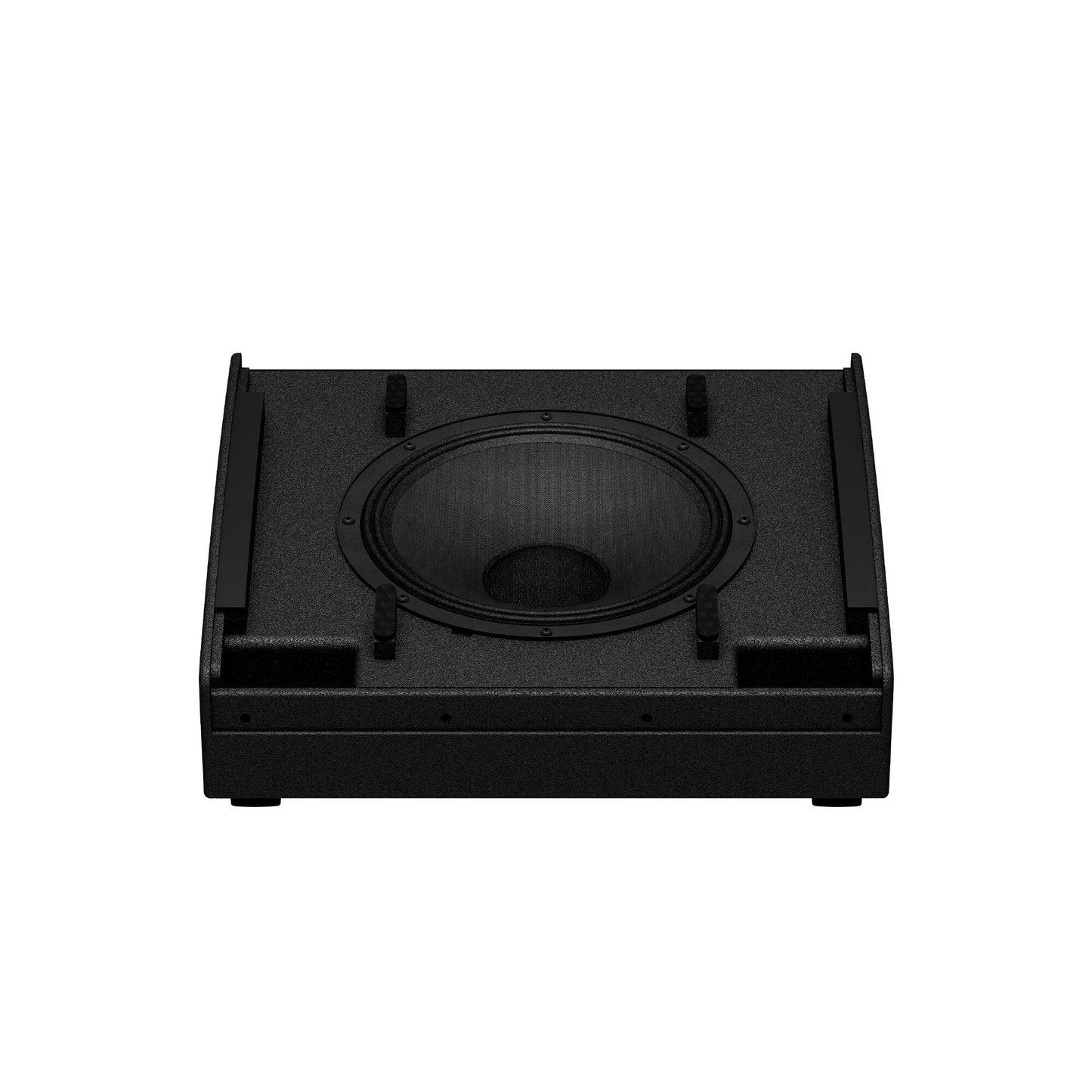

The DHR12M mounts its 1.75-inch compression driver coaxially with the 12-inch woofer, a space-saving layout that gives precise, smooth phase and frequency response for monitoring. Coverage is a wide, symmetrical 90° x 90°.

Class-D amplifier circuit board inside a Yamaha DHR Series speaker

1,000 W bi-amplified Class-D power

A lightweight Class-D amplifier supplies 1,000 W dynamic power, split 800 W to the woofer and 200 W to the HF driver (465 W continuous). The DHR12M reaches 129 dB SPL peak, giving loud stages plenty of monitor level.

Phase response comparison of a typical crossover and Yamaha FIR-X tuning

FIR-X tuning for clarity

Yamaha's FIR-X tuning uses linear-phase FIR filters at the 1.8 kHz crossover, adjusting frequency, phase and time alignment between the drivers together. The smoother crossover region improves clarity and imaging compared with a typical crossover, and 24-bit converters keep the signal clean.

D-CONTOUR monitor mode and high-pass filter

D-CONTOUR is a multi-band compressor that keeps the sound clear at any level. Its MONITOR mode reins in excess low end for a cleaner wedge mix, while the high-pass filter (100 Hz or 120 Hz, 24 dB/octave) trims low frequencies further or helps you add a subwoofer.

Block diagram of the DSP protection functions in Yamaha powered speakers

Built-in protection

A microprocessor and DSP watch the power supply, amplifiers, drivers and signal, applying limiting and protection functions derived from Yamaha's professional power amplifiers. LIMIT and PROTECTION indicators on the rear panel show when they are working, so the DHR12M can run hard with confidence.

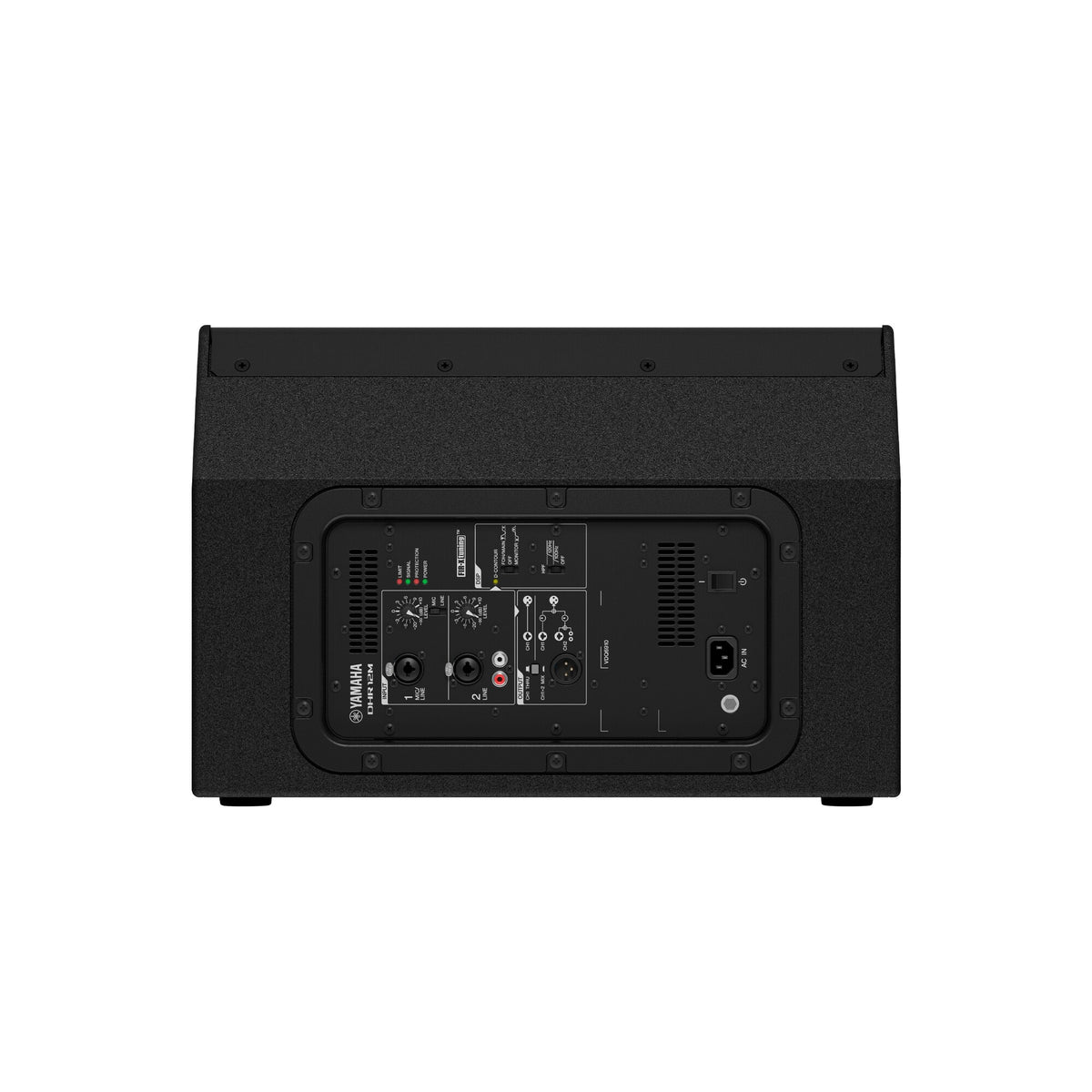

Rear panel of a Yamaha DHR Series speaker showing inputs, output, D-CONTOUR and HPF switches

Two-channel mixer on board

Channel 1 has a combo jack with a MIC/LINE switch, and Channel 2 adds a combo jack plus stereo RCA inputs for a playback device. The XLR output can pass Channel 1 alone or send a mix of both channels to another speaker in the chain.

Low-profile 57° plywood wedge

The compact plywood enclosure sits at a 57° floor-monitor angle and minimises cabinet vibration for clearer sound. A durable polyurea coating gives it a scratch-resistant black finish that stands up to life on stage.

DHR12M side pole socket

A 35 mm pole socket on the side lets you put the DHR12M on a speaker stand. At 16.5 kg with a side handle, it is easy to move between the stage floor and a stand.

Watch & Hear It

Frequently Asked Questions

What is the difference between the DHR12M and the DHR12?

The DHR12M is a floor monitor with a 1.75-inch coaxial driver, 90° x 90° coverage, a 57° wedge angle and a side pole socket (16.5 kg). The DHR12 is a main or utility speaker with a 1.4-inch driver on a rotatable 90° x 60° horn, 48 Hz–20 kHz range, 130 dB SPL, dual-angle pole sockets, M10 rigging points and an optional U-bracket (19.2 kg). Both use 1,000 W dynamic amplification.

Should I choose the DHR12M or the passive CHR12M?

The CHR12M shares the coaxial design and cabinet size but is passive, so it needs an external power amplifier and connects by speakON. The DHR12M has its own 1,000 W amplifier, DSP and two-channel mixer, so you can plug a mic or mixer straight in.

Does the DHR12M need an external amplifier?

No. It is a powered speaker with a built-in 1,000 W (dynamic) Class-D bi-amplifier.

Can I plug a microphone straight into it?

Yes. Input 1 is a combo jack with a MIC/LINE switch, so it accepts a microphone or a line signal. For several sources, feed it from a mixer.

What is in the box?

Yamaha's DHR Series owner's manual lists an AC power cord and the owner's manual as the included items.

Why Buy from YMS?

Authorised Yamaha Premium Retailer
Genuine stock with full manufacturer warranty
Demo units at our Bengaluru and Mangaluru stores
Secure delivery across India
Free domestic shipping on all orders

Specifications

Overview

Model	Yamaha DHR12M
Type	2-way bi-amped powered speaker (floor monitor), bass-reflex
Series	DHR Series
Frequency Range (-10 dB)	55 Hz – 20 kHz
Coverage	90° H x 90° V
Maximum Output Level	129 dB SPL (measured peak, IEC noise at 1 m)

Components

LF	12 in cone, 2.5 in voice coil, ferrite magnet
HF	1.75 in diaphragm, 1 in throat coaxial compression driver, ferrite magnet
Crossover	1.8 kHz, FIR-X tuning (linear-phase FIR)

Amplifier

Amplifier Class	Class-D
Dynamic Power	1,000 W (LF 800 W, HF 200 W)
Continuous Power	465 W (LF 400 W, HF 65 W)
Cooling	Fan cooling, 4 speeds

Processing

A/D and D/A Converters	24-bit, 48 kHz sampling
High-Pass Filter	Off, 100 Hz, 120 Hz (24 dB/oct)
D-CONTOUR	FOH/MAIN, MONITOR, OFF

Inputs & Outputs

Input 1	Combo x 1 (mic/line)
Input 2	Combo x 1 + RCA pin x 2 (unbalanced)
Output	XLR3-32 x 1 (CH1 parallel through or CH1+CH2 mix)

General

Cabinet	Plywood, durable polyurea coating, black
Floor Monitor Angle	57°
Handle	Side x 1
Pole Socket	35 mm x 1 (side)
Power Requirements	100 V, 100-120 V or 220-240 V, 50/60 Hz (by region)
Power Consumption	18 W idle, 74 W at 1/8 power
Dimensions (W x H x D)	500 x 343 x 454 mm (with rubber feet)
Net Weight	16.5 kg
Included Accessories	AC power cord, owner's manual

Specifications from Yamaha India's official DHR Series product data and the DHR owner's manual; subject to change by Yamaha.
