Yamaha STAGEPAS 200BTR Battery-Powered Portable PA System
A complete 5-channel PA with up to 10 hours of battery power
- 180 W Class-D amp with 8-inch coaxial driver and 125 dB maximum SPL
- 5-channel digital mixer: 3 mic/line inputs plus a stereo line input
- Lithium-ion battery included for up to 10 hours of operation
- SPX reverb, 1-knob EQ presets, MODE compressor, ducker and feedback suppressor
- Bluetooth audio and STAGEPAS Controller app for remote mixing
Taxes included.
Yamaha STAGEPAS 200BTR Battery-Powered Portable PA System

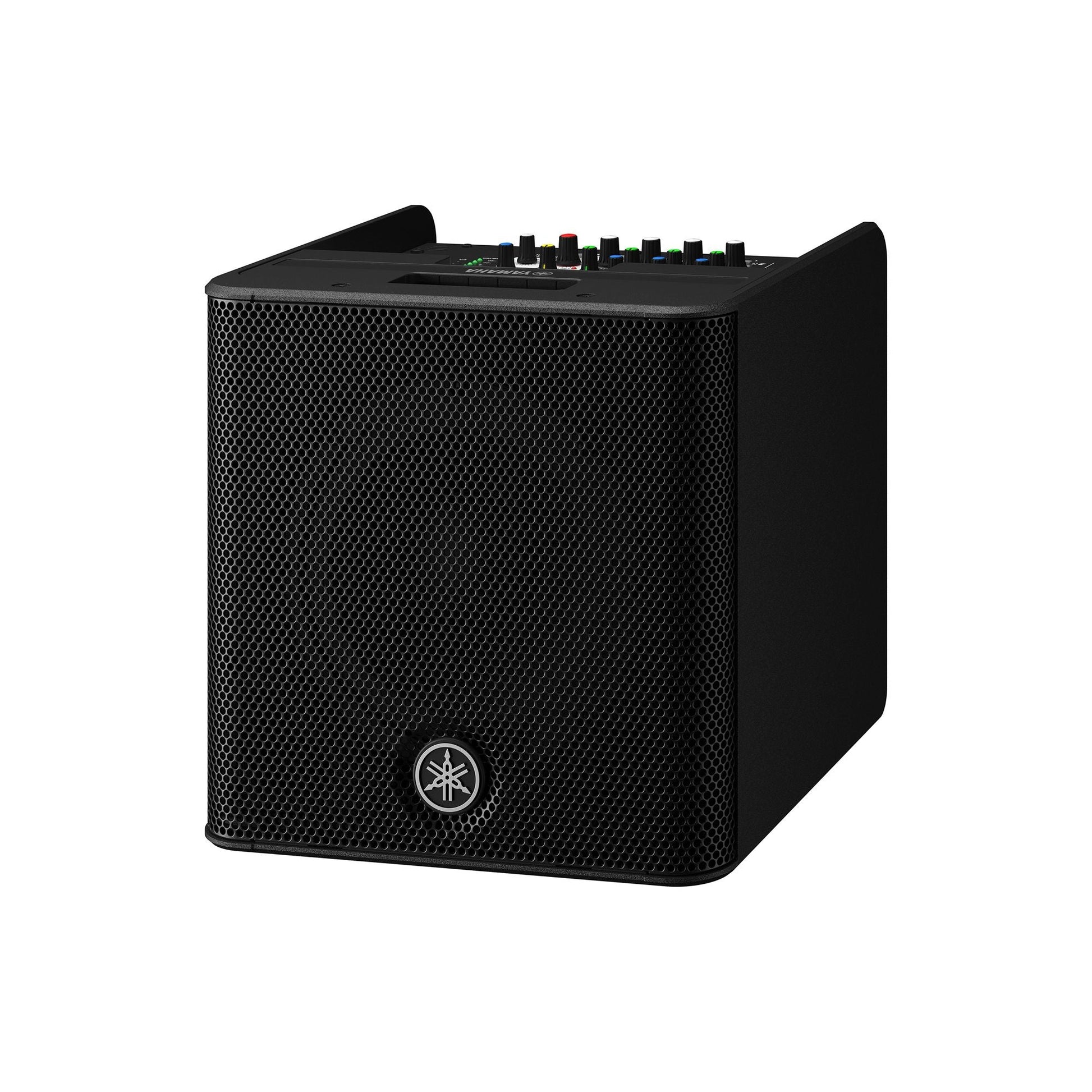

The Yamaha STAGEPAS 200BTR is an all-in-one portable PA in a 300 mm cube cabinet, combining a 180 W bi-amped speaker, a 5-channel digital mixer and the BTR-STP200 lithium-ion battery. It plays from mains power or runs for up to 10 hours on battery, so you can perform where there is no power point.
It is ideal for solo and duo performers, buskers, small bands of up to three people, teachers, presenters, worship groups and event hosts. The 200BTR is the version supplied with the battery; the STAGEPAS 200 is the same PA without it.
Key Features

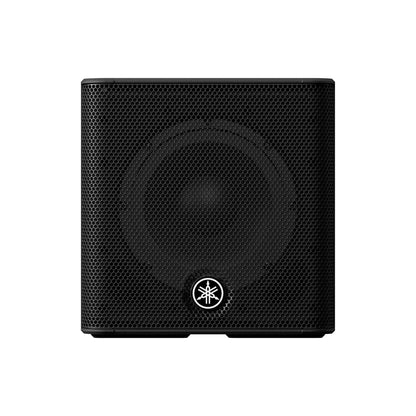

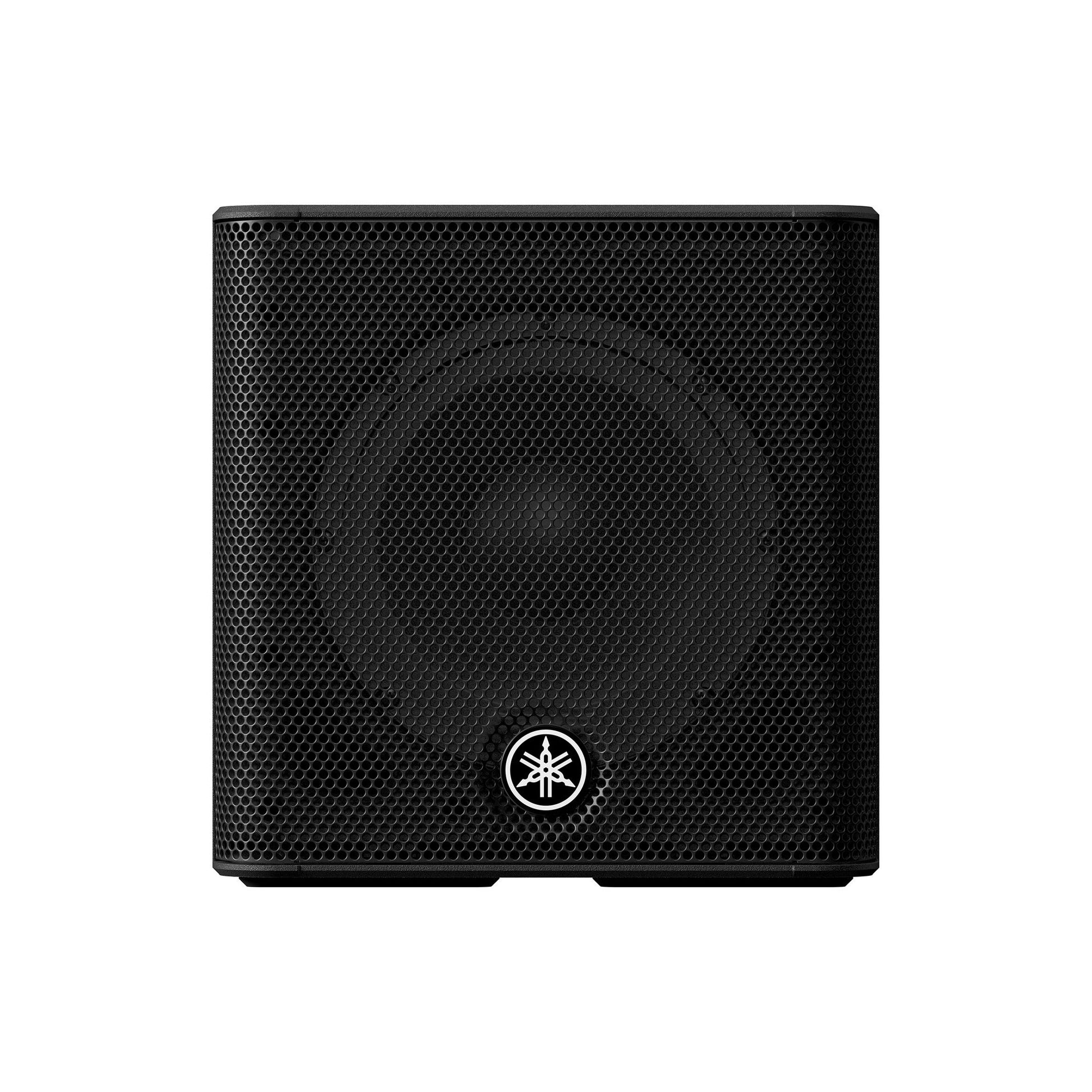

Coaxial 8-Inch Driver with 125 dB Output
A coaxial transducer places a 1-inch throat compression driver (1.4-inch voice coil) at the centre of an 8-inch woofer, acting as a near point source with natural high-frequency dispersion. Driven by a 180 W Class-D amplifier (150 W LF, 30 W HF), it reaches 125 dB SPL with 90° x 90° coverage.
5-Channel Digital Mixer on the STAGEPAS 200BTR
Three mono mic/line inputs and one stereo/mono line input handle vocals, guitars, keyboards and backing tracks. Channels 2 and 3 accept Hi-Z instruments such as acoustic guitars directly, and a MONITOR/LINK output feeds a monitor or a second speaker.
1-Knob EQ Presets, SPX Reverb and MODE
Every channel has a 1-knob EQ/preset, and channels 2-3 include microphone simulators for a more natural acoustic guitar sound. Yamaha's SPX reverb (4 programmes), delay and chorus add polish, while the master MODE compressor offers SPEECH, MUSIC and CLUB settings.
Priority Ducker and Feedback Suppressor
The Priority Ducker automatically lowers background music when the main microphone is used, which is ideal for announcements and teaching. An intelligent feedback suppressor works automatically to remove howling when a microphone picks up the speaker.
Up to 10 Hours on Battery
The included BTR-STP200 lithium-ion battery (79.92 Wh) gives up to 10 hours of operation, or about 8 hours continuous at 1/16 power, and charges in about 4 hours. The fanless design runs silently, so it suits quiet speech settings too.
Bluetooth and STAGEPAS Controller App
Stream backing tracks from a phone or tablet over Bluetooth 5.0, and use the STAGEPAS Controller app for iOS or Android to adjust levels, EQ, reverb, compressor, ducker and mic simulators remotely. Settings can be saved as scenes for quick recall.
Tilt Stand and Pole Mounting

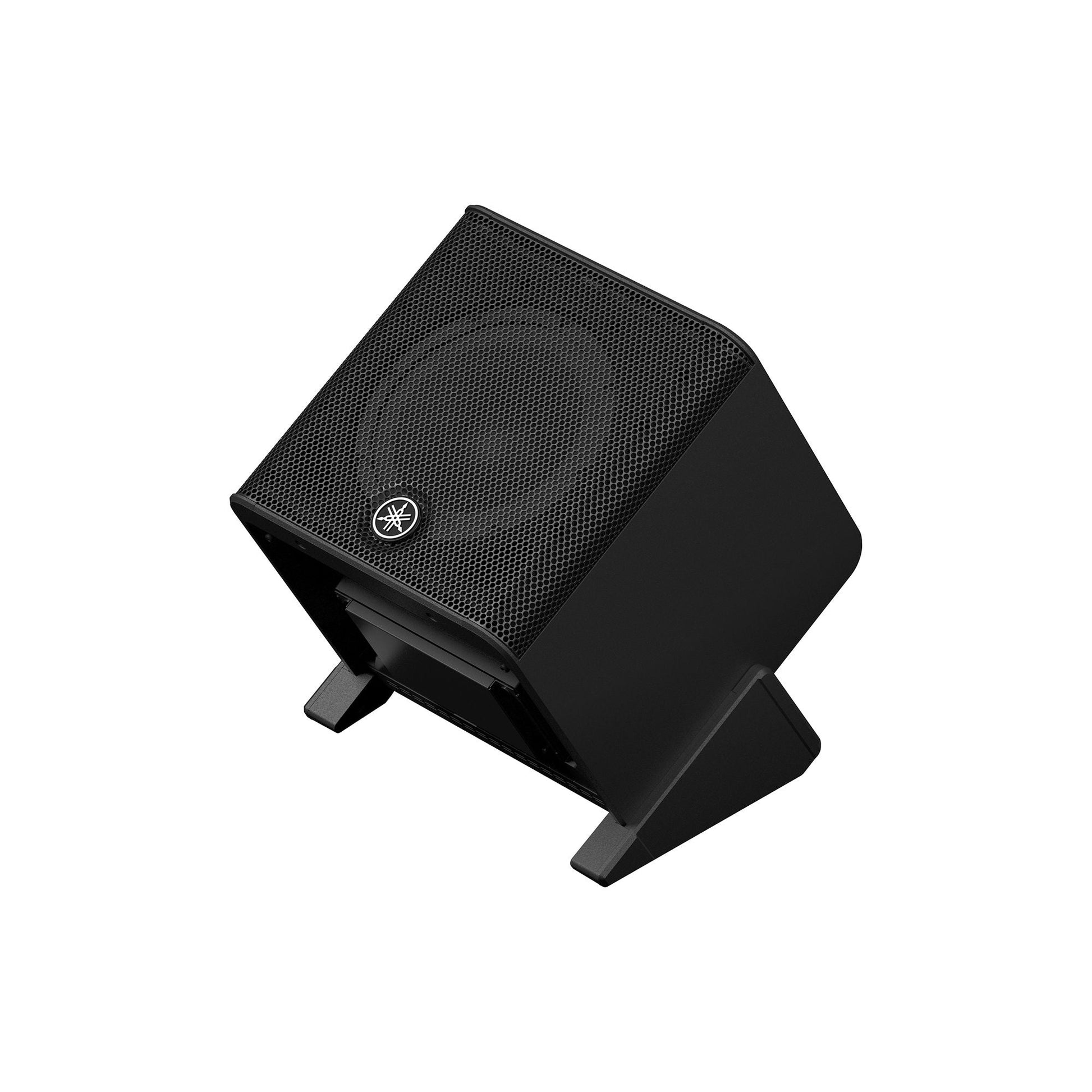

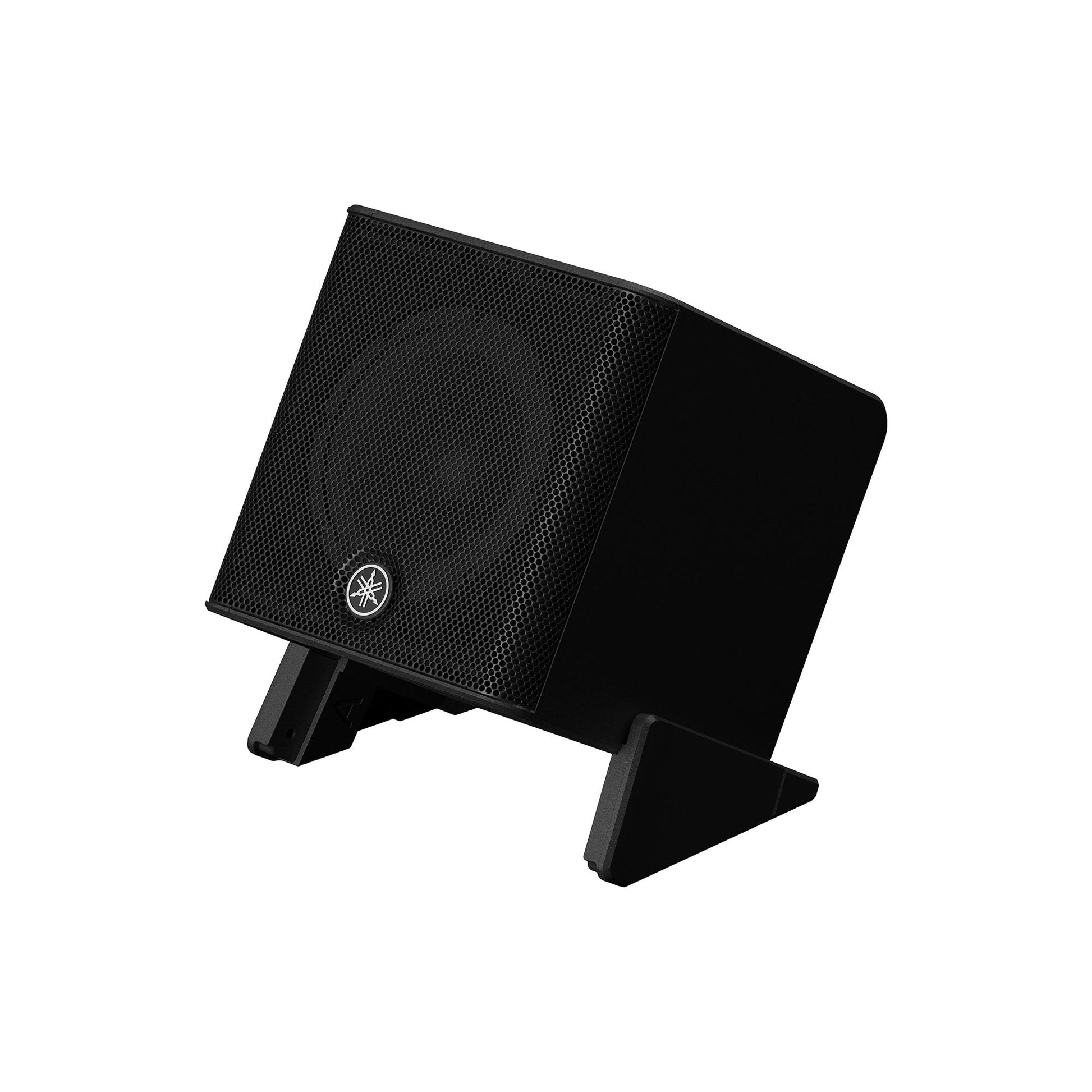

A rubber stand lets you tilt the cabinet at 30° or 60°, so it can face the audience as a main speaker or point back at you as a floor monitor. A 35 mm pole socket allows stand mounting, and the optional CASE-STP200 trolley case makes transport easy.
Frequently Asked Questions
STAGEPAS 200BTR or STAGEPAS 100BTR: which should I choose?
The 200BTR offers more power (180 W vs 100 W), an 8-inch driver, a 5-channel digital mixer with effects, app control and up to 10 hours of battery life. The 100BTR is lighter at 5.5 kg with a simpler 3-channel mixer, ideal for solo performers and speech.
What is in the box?
Yamaha lists a power cord and the BTR-STP200 battery. The CASE-STP200 carry case is available as an option.
How is it powered?
It runs from 100-240 V mains with the supplied power cord, or from the included BTR-STP200 battery for up to 10 hours. The battery takes approximately 4 hours to charge.
Can I plug in an acoustic guitar directly?
Yes. Channels 2 and 3 are Hi-Z compatible, so passive acoustic or electric instruments can connect without a DI box, and the built-in mic simulators help acoustic pickups sound more natural.
How loud is it, and how many people can it cover?
It produces up to 125 dB SPL at 1 m. Yamaha positions it for performances with one to three performers, small events, parties and presentations.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | Yamaha STAGEPAS 200BTR |
|---|---|
| Type | 2-way bi-amped powered speaker with mixer, battery included |
| Series | STAGEPAS Series |
Mixer
| Mixing Channels | 5 (mono x 3 + stereo x 1) |
|---|---|
| Inputs | Mono x 3 (mic/line) + stereo/mono x 1 (line) |
| Hi-Z | CH 2/3 |
| Channel Functions | 1-knob EQ/preset (CH 1-3, ST) |
| Master | MODE (SPEECH / MUSIC / CLUB) |
| Effects | SPX digital reverb (4 programs, parameter control), delay, chorus |
| Outputs | MONITOR/LINK OUT x 1 |
| Bluetooth | Ver. 5.0, A2DP (SBC, AAC), Class 1 |
| App Control | STAGEPAS Controller (iOS / Android) |
Speaker & Amplifier
| Speaker Type | Coaxial speaker with compression driver |
|---|---|
| LF | 8" cone, 2.0" voice coil |
| HF | 1" throat compression driver, 1.4" voice coil |
| Frequency Range (-10 dB) | 60 Hz - 20 kHz |
| Coverage | 90° H x 90° V |
| Crossover | 2.0 kHz |
| Maximum Output Level | 125 dB SPL (1 m, on axis) |
| Power Rating (Dynamic) | 180 W (LF: 150 W, HF: 30 W) |
| Amplifier | Class-D |
| Cooling | Natural convection (no fan) |
Battery
| Type | Rechargeable lithium-ion battery pack (BTR-STP200) |
|---|---|
| Capacity | 79.92 Wh (2700 mAh, 29.6 V) |
| Operating Time | Maximum 10 hours; 8 hours at 1/16 power continuous |
| Charging Time | Approx. 4 hours |
General
| Power Requirements | 100-240 V, 50/60 Hz, or 29.6 V DC |
|---|---|
| Power Consumption | 20 W (idle), 39 W (1/8 power) |
| Cabinet | Plastic (ABS) |
| Handle | Top x 1 |
| Pole Socket | 35 mm x 1 |
| Floor Monitor Angle | 30° or 60° |
| Dimensions (W x H x D) | 300 x 308 x 301 mm |
| Weight | 12.5 kg (including battery) |
| Included | Power cord, BTR-STP200 battery |
| Optional | CASE-STP200 carry case |
The STAGEPAS 200BTR is supplied with the BTR-STP200 battery. Specifications from Yamaha India's STAGEPAS 200 specifications and product pages; subject to change by Yamaha.
Similar products

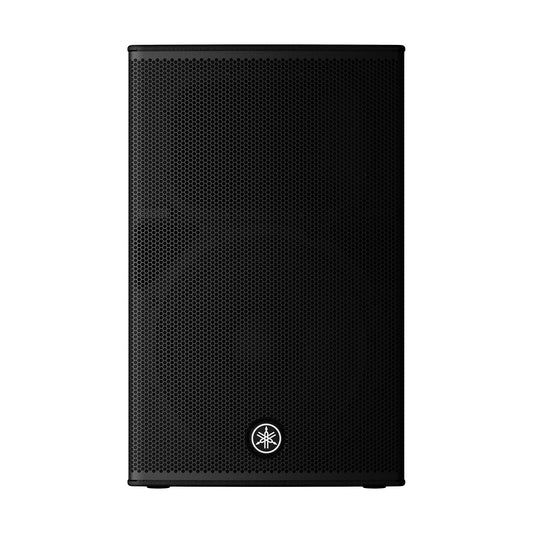

Yamaha DHR15 15-Inch Powered PA Speaker

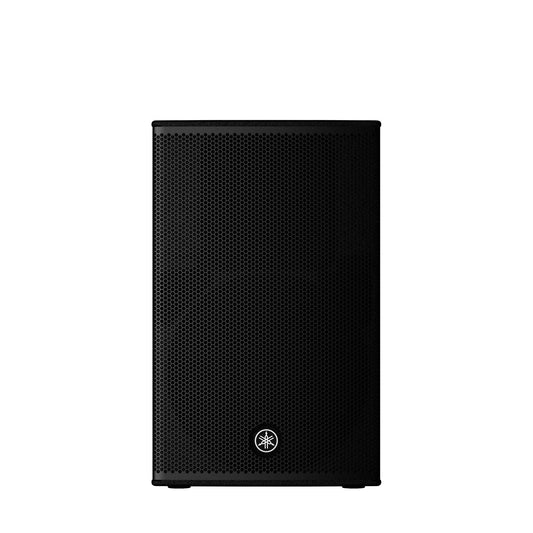

MRP₹80,10030% OFFYMS Price₹56,069Yamaha DHR12 12-Inch Powered PA Speaker

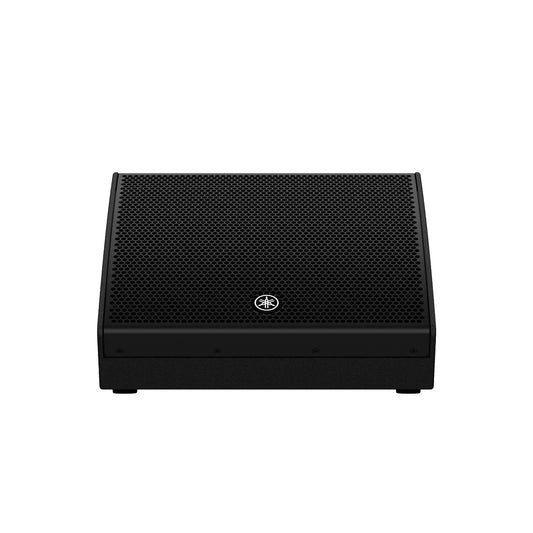

MRP₹75,70030% OFFYMS Price₹52,989Yamaha DHR12M 12-Inch Powered Floor Monitor
