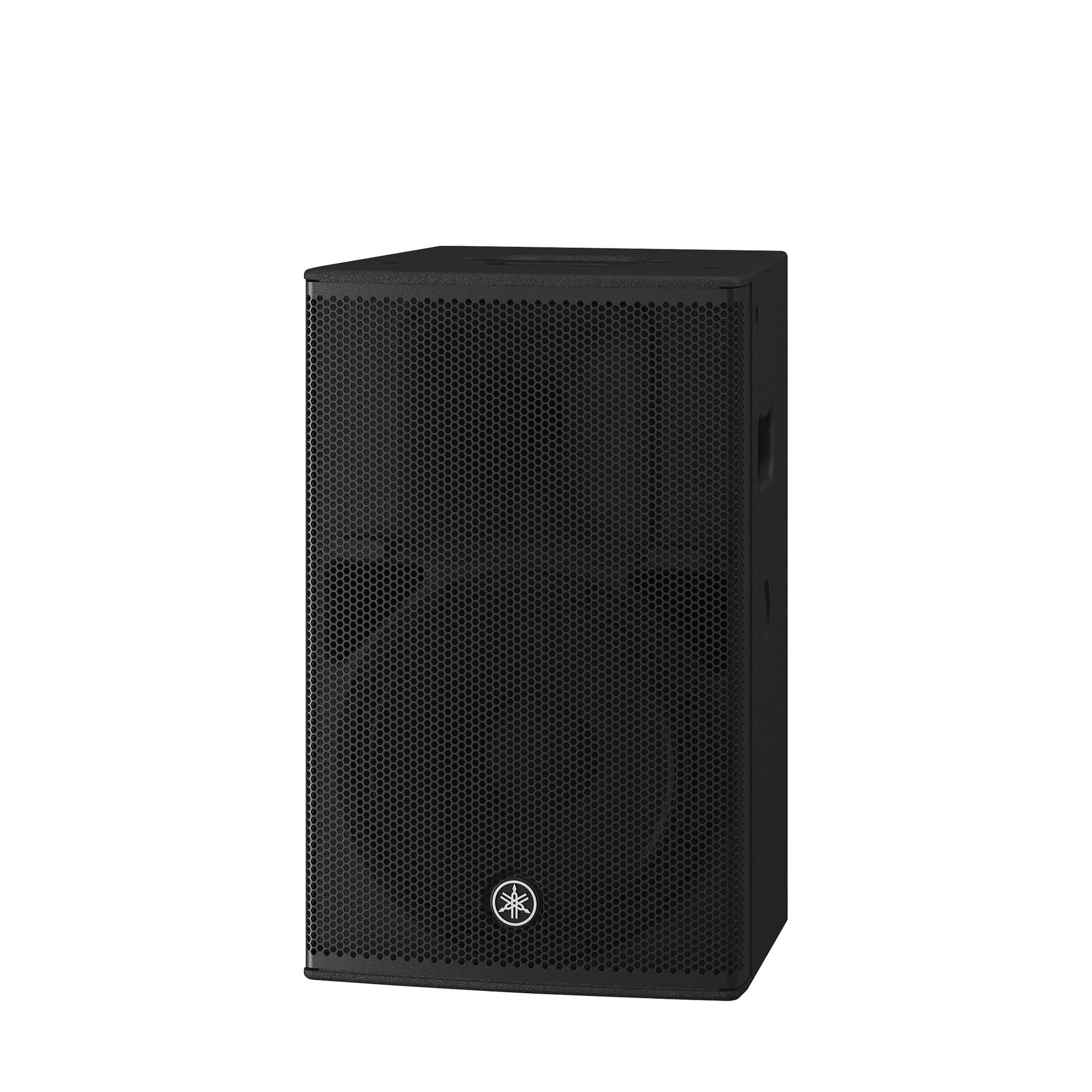

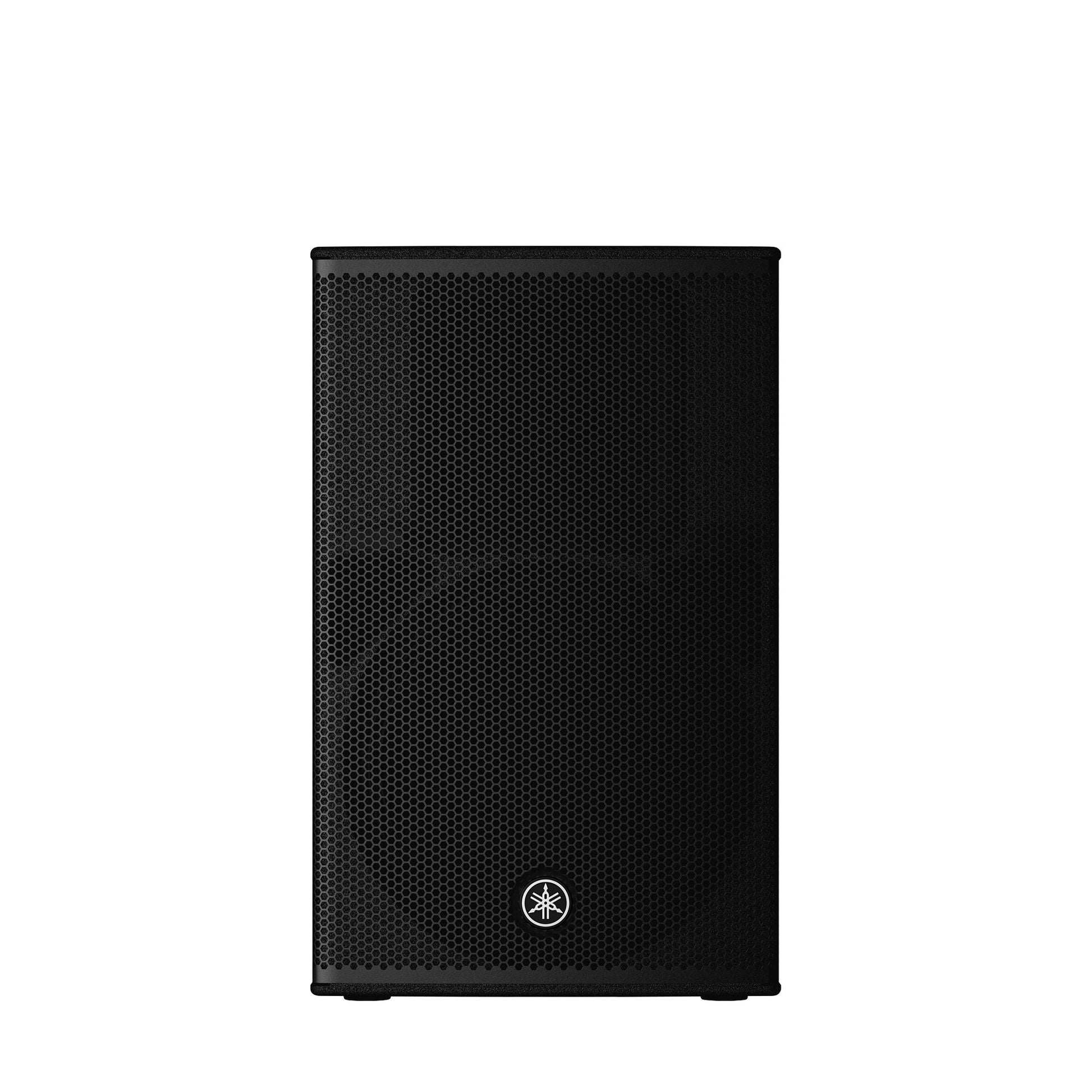

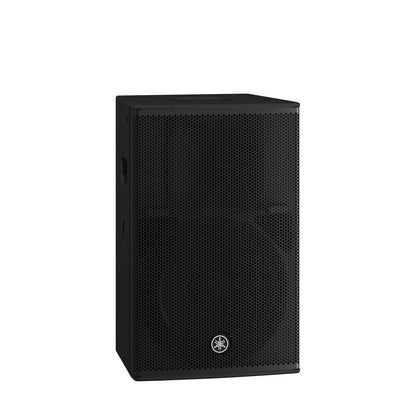

Yamaha DHR12 12-Inch Powered PA Speaker
Plywood-built 12-inch power for installs, utility and main PA
- 1000 W bi-amped Class-D power with up to 130 dB maximum SPL
- 12-inch woofer and 1.4-inch compression driver, 48 Hz-20 kHz range
- FIR-X tuning, D-CONTOUR and switchable 100/120 Hz high-pass filter
- Rotatable horn for vertical or horizontal installation
- Polyurea-coated plywood cabinet with dual-angle pole sockets
Taxes included.
Yamaha DHR12 12-Inch Powered PA Speaker
The Yamaha DHR12 is a 12-inch 2-way bi-amped powered loudspeaker that pairs a 1000 W Class-D amplifier and high-performance DSP with the same type of polyurea-coated plywood cabinet used on Yamaha's DZR series. It reaches 130 dB SPL with a frequency range down to 48 Hz.
Yamaha designed it as a main or utility speaker, and its rotatable horn and optional U-bracket make it well suited to fixed installations in churches, auditoriums, restaurants and conference halls. Dual-angle pole sockets also let it work as a portable main speaker for events.
Key Features
1000 W Class-D Amplification on the DHR12
A bi-amped Class-D amplifier delivers 1000 W dynamic (800 W LF, 200 W HF) and 465 W continuous. That gives the DHR12 up to 130 dB SPL with clean dynamics for speech and music.

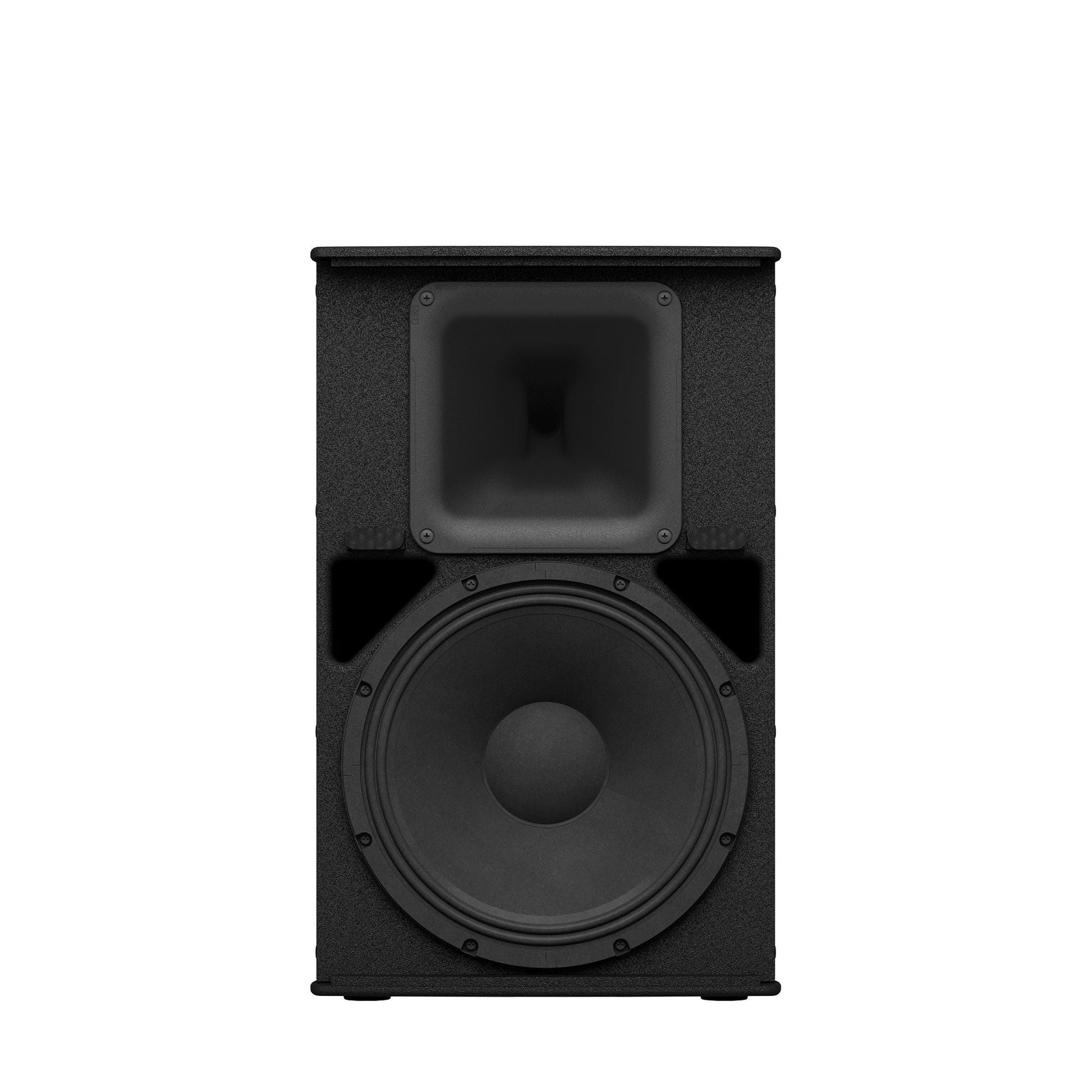

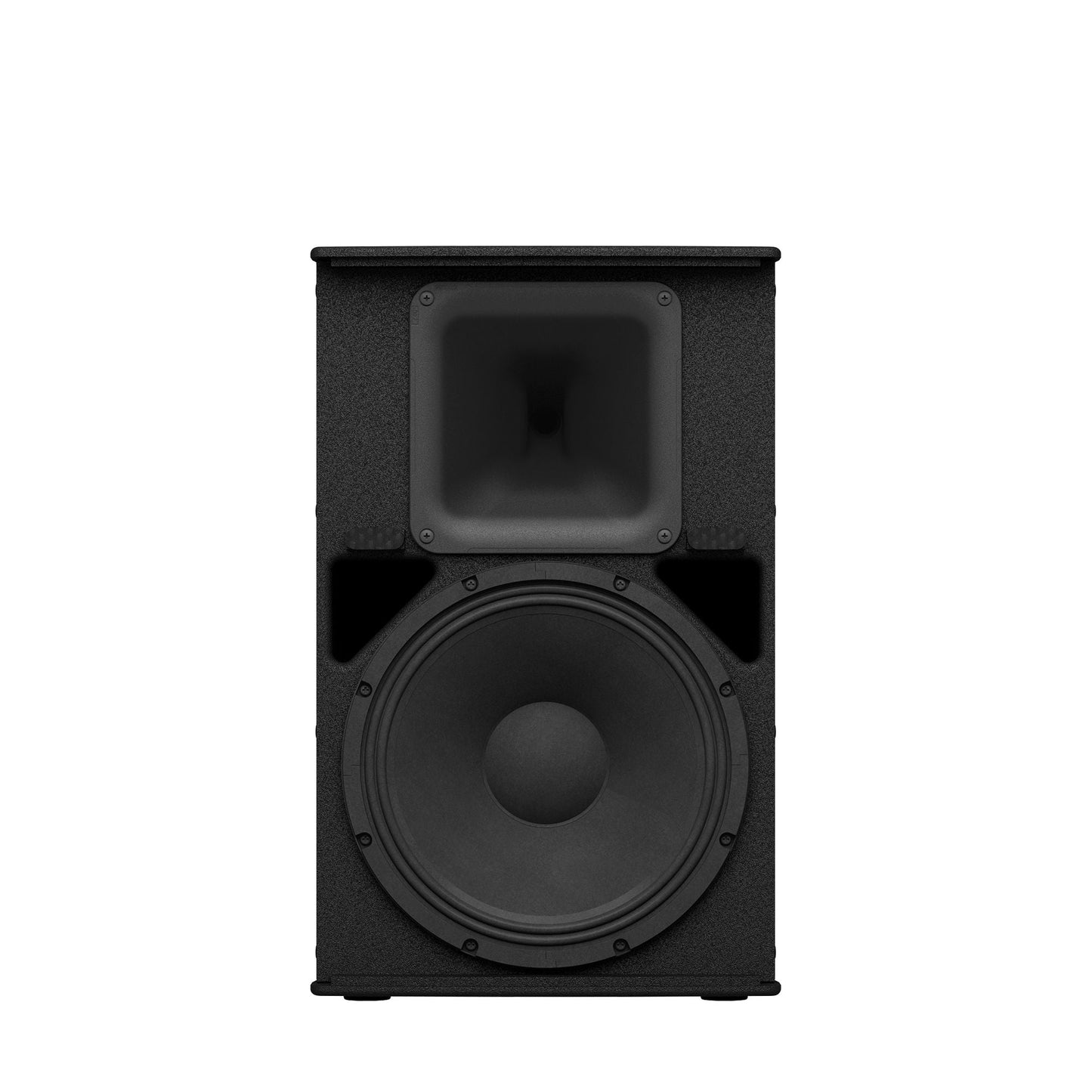

Custom 12-Inch Woofer and 1.4-Inch Driver

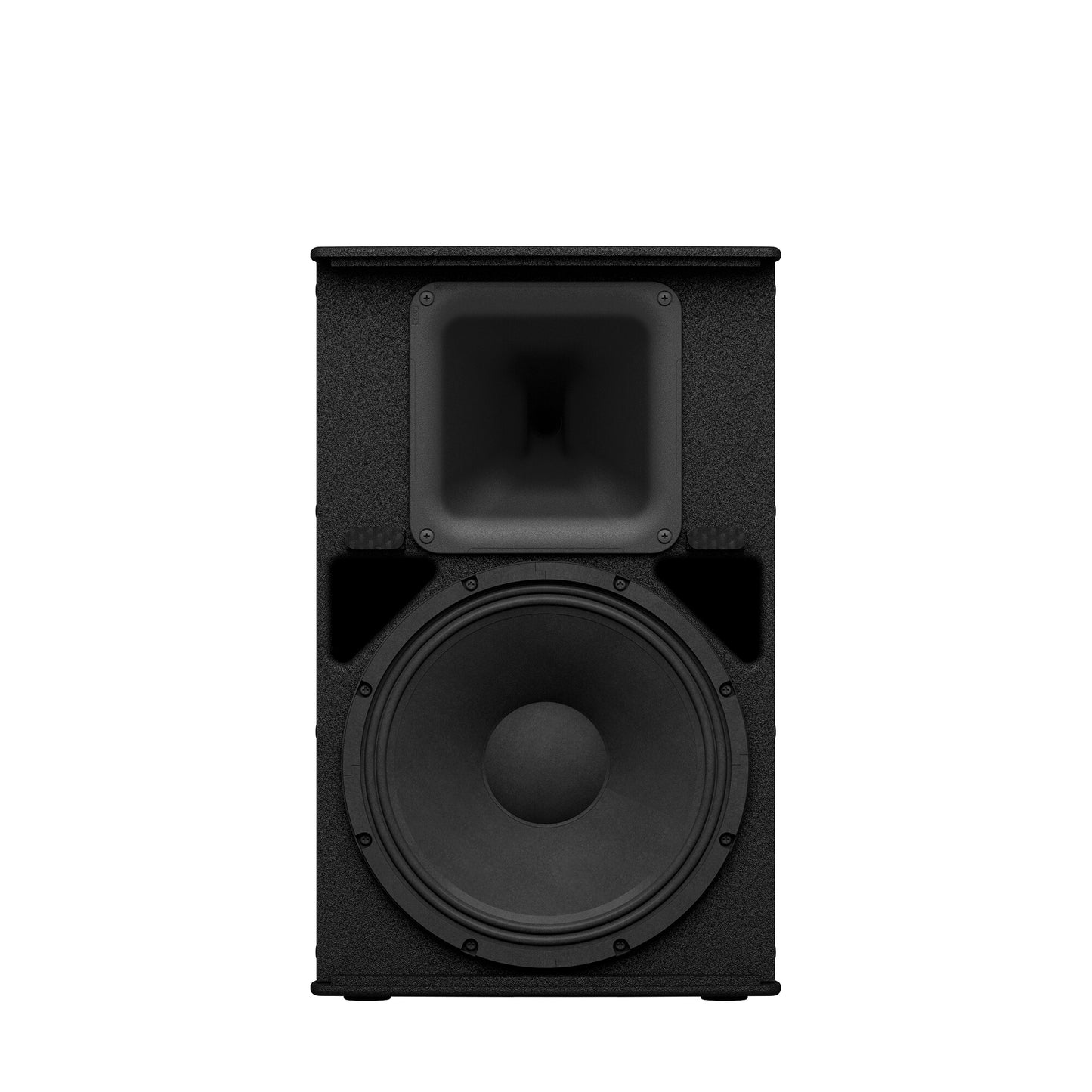

A 12-inch ferrite woofer with a 2.5-inch voice coil handles the lows, and a 1-inch throat compression driver with a 1.4-inch diaphragm delivers clear mids and highs. Coverage is 90° x 60°, and the frequency range spans 48 Hz to 20 kHz (-10 dB).
FIR-X Tuning and 24-Bit Converters
Yamaha's FIR-X tuning uses linear-phase FIR filters at the 1.8 kHz crossover and aligns the timing of the woofer and horn. Combined with 24-bit A/D and D/A conversion, this gives a smooth response through the crossover with better clarity and imaging.
D-CONTOUR and Switchable High-Pass Filter
D-CONTOUR offers FOH/MAIN and MONITOR modes to keep the sound clear at any level, while a high-pass filter (100 Hz or 120 Hz, 24 dB/oct) lets you hand the low end to a subwoofer. DSP protection monitors the power supply, amplifiers and drivers for reliable operation.
Built-In 2-Channel Mixer

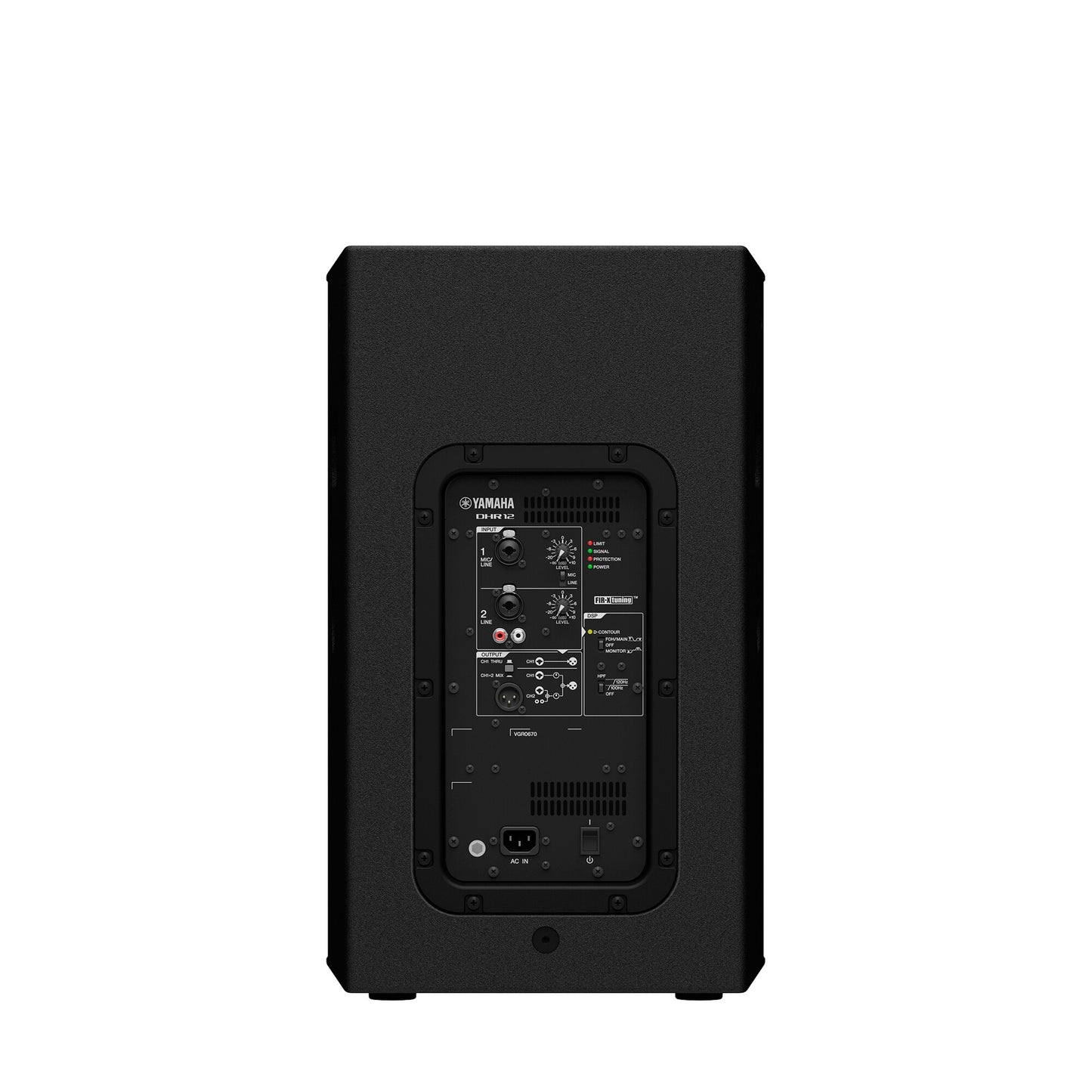

CH1 accepts a mic or line signal on a combo jack, and CH2 offers a combo jack plus RCA inputs for playback devices. The XLR output can pass CH1 through or send the CH1+CH2 mix to the next speaker.
Rotatable Horn and Installation Options
The HF horn rotates so the DHR12 can be installed vertically or horizontally, with the optional UB-DXRDHR12 U-bracket. It also has top and rear points for M10 eyebolts (30-50 mm), dual 35 mm pole sockets at 0° or -7°, and top and side handles.
Durable Plywood Cabinet

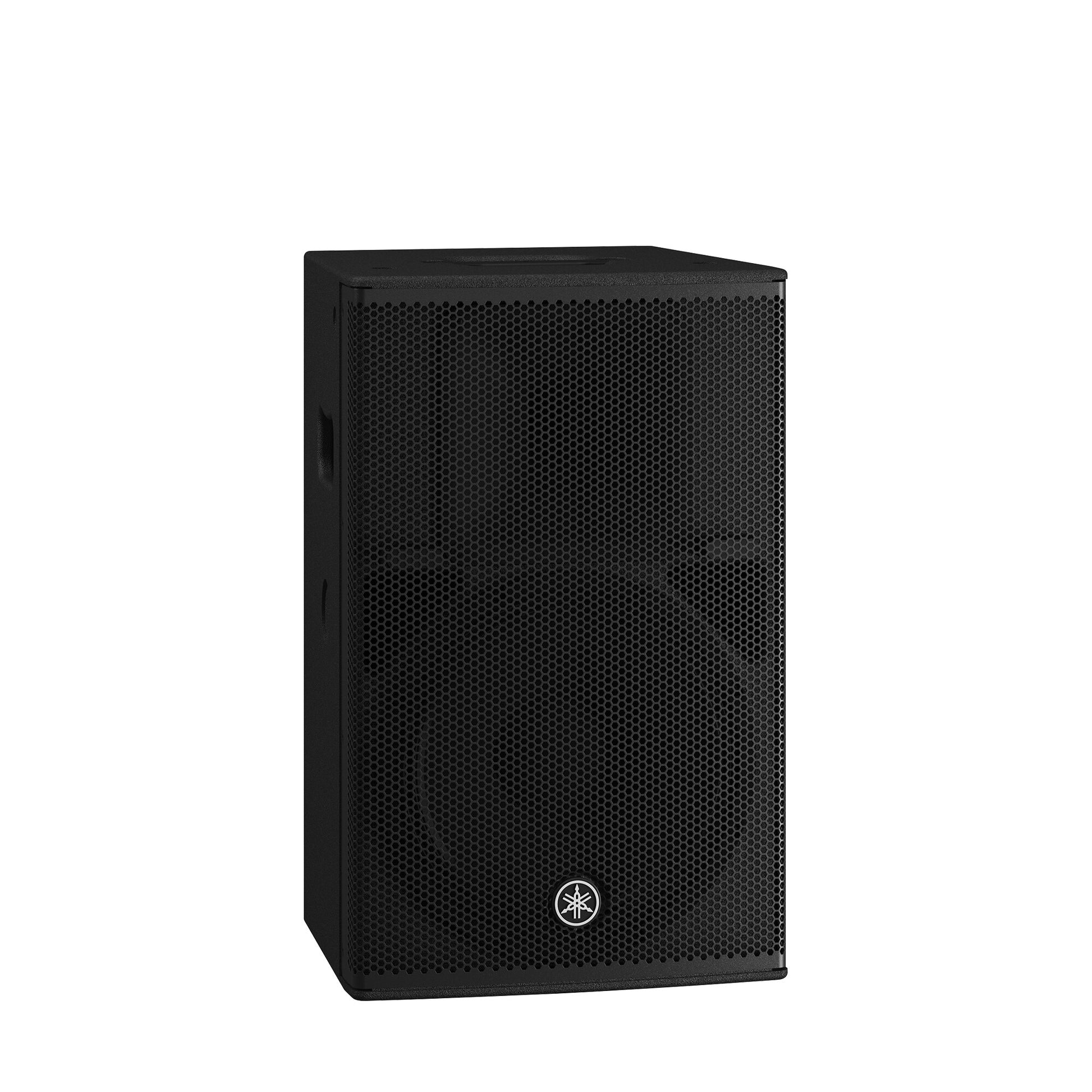

The plywood enclosure with durable polyurea painting gives a robust, scratch-resistant surface for years of use. At 359 x 578 x 340 mm and 19.2 kg, it stays compact for a 12-inch speaker.
Watch & Hear It
Frequently Asked Questions
DHR12 or DBR12: which should I choose?
Both have 1000 W and a 12-inch woofer. The DHR12 adds a plywood cabinet, a rotatable horn, a switchable high-pass filter and M10 rigging points for installation, and reaches lower (48 Hz vs 52 Hz). The DBR12 is lighter with a plastic cabinet and 50° monitor angle, ideal for portable use.
DHR12 or DHR12M?
The DHR12 is a main or utility speaker with a rotatable horn. The DHR12M is a low-profile floor monitor with a 1.75-inch coaxial driver and a 57° monitor angle.
Can I use it with a subwoofer?
Yes. Switch on the 100 Hz or 120 Hz high-pass filter so the DHR12 handles the mids and highs while a subwoofer such as the DXS15XLF covers the low end.
Can I plug a microphone straight in?
Yes. CH1's combo jack accepts mic or line level, so you can run a speech mic alongside music on CH2 without a separate mixer.
Which mounting accessories are available?
Yamaha offers the optional UB-DXRDHR12 U-bracket for vertical or horizontal installation. The top and rear rigging points fit M10 x 30-50 mm eyebolts, which are not included.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | Yamaha DHR12 |
|---|---|
| Type | 2-way bi-amped powered loudspeaker, bass-reflex |
| Series | DHR Series |
Acoustics
| Frequency Range (-10 dB) | 48 Hz - 20 kHz |
|---|---|
| Coverage | 90° H x 60° V (rotatable) |
| Maximum Output Level | 130 dB SPL (measured peak, IEC noise @ 1 m) |
| LF Driver | 12" cone, 2.5" voice coil, ferrite magnet |
| HF Driver | 1" throat compression driver, 1.4" diaphragm, ferrite magnet |
| Crossover | 1.8 kHz, FIR-X tuning (linear-phase FIR filter) |
Amplifier & Processing
| Power Rating - Dynamic | 1000 W (LF: 800 W, HF: 200 W) |
|---|---|
| Power Rating - Continuous | 465 W (LF: 400 W, HF: 65 W) |
| Amplifier | Class-D |
| A/D, D/A Converters | 24-bit, 48 kHz sampling |
| High-Pass Filter | OFF, 100 Hz, 120 Hz (24 dB/oct) |
| D-CONTOUR | FOH/MAIN, MONITOR, OFF |
| Cooling | Fan cooling, 4 speeds |
Inputs & Outputs
| INPUT 1 | Combo x 1 (mic/line) |
|---|---|
| INPUT 2 | Combo x 1 + RCA pin x 2 (unbalanced) |
| OUTPUT | XLR3-32 x 1 (CH1 parallel THRU or CH1+CH2 MIX) |
General
| Power Requirements | 100 V, 100-120 V, 220-240 V or 110/127/220 V (Brazil), 50/60 Hz, depending on region |
|---|---|
| Power Consumption | 74 W (1/8 power), 18 W (idle) |
| Cabinet | Plywood, durable polyurea painting, black |
| Handles | Top x 1, side x 2 |
| Pole Socket | 35 mm x 2 (bottom, 0° or -7°) |
| Rigging | Top x 2, rear x 1 (fit for M10 x 30-50 mm eyebolts) |
| Dimensions (W x H x D) | 359 x 578 x 340 mm (H with rubber feet) |
| Net Weight | 19.2 kg |
| Optional | UB-DXRDHR12 U-bracket |
Specifications from Yamaha India's DHR Series specifications and product pages; subject to change by Yamaha.
Similar products
Yamaha DHR12M 12-Inch Powered Floor Monitor
MRP₹74,70030% OFFYMS Price₹52,289Yamaha STAGEPAS 200BTR Battery-Powered Portable PA System

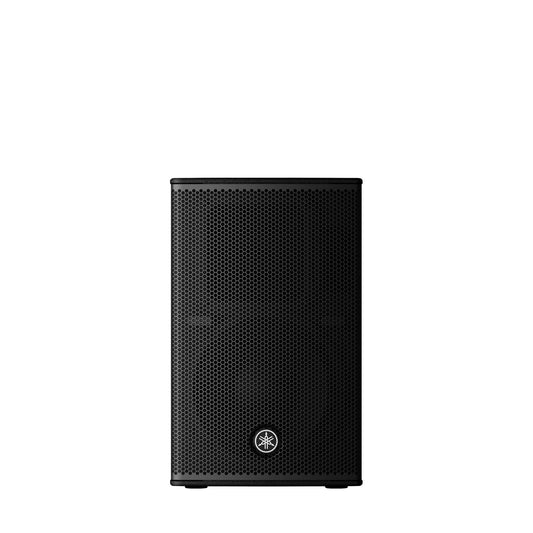

MRP₹69,40030% OFFYMS Price₹48,579Yamaha DHR10 10-Inch Powered PA Speaker

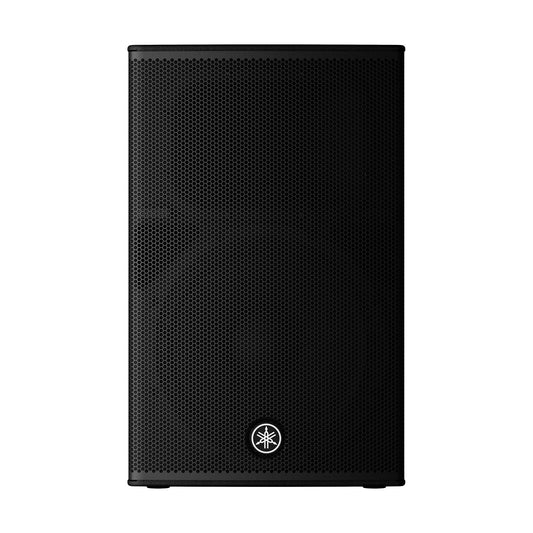

MRP₹60,60030% OFFYMS Price₹42,419Yamaha DHR15 15-Inch Powered PA Speaker
