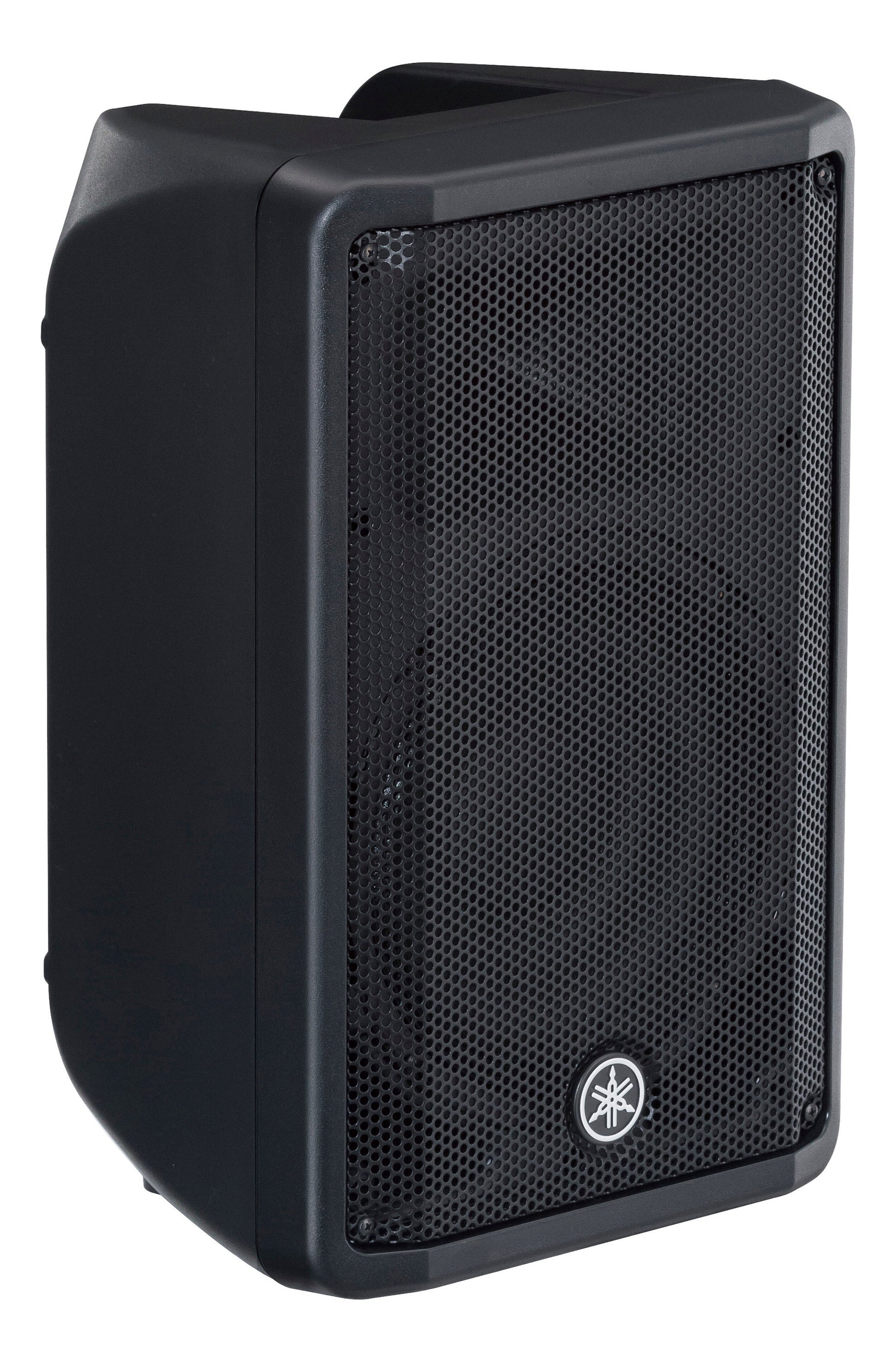

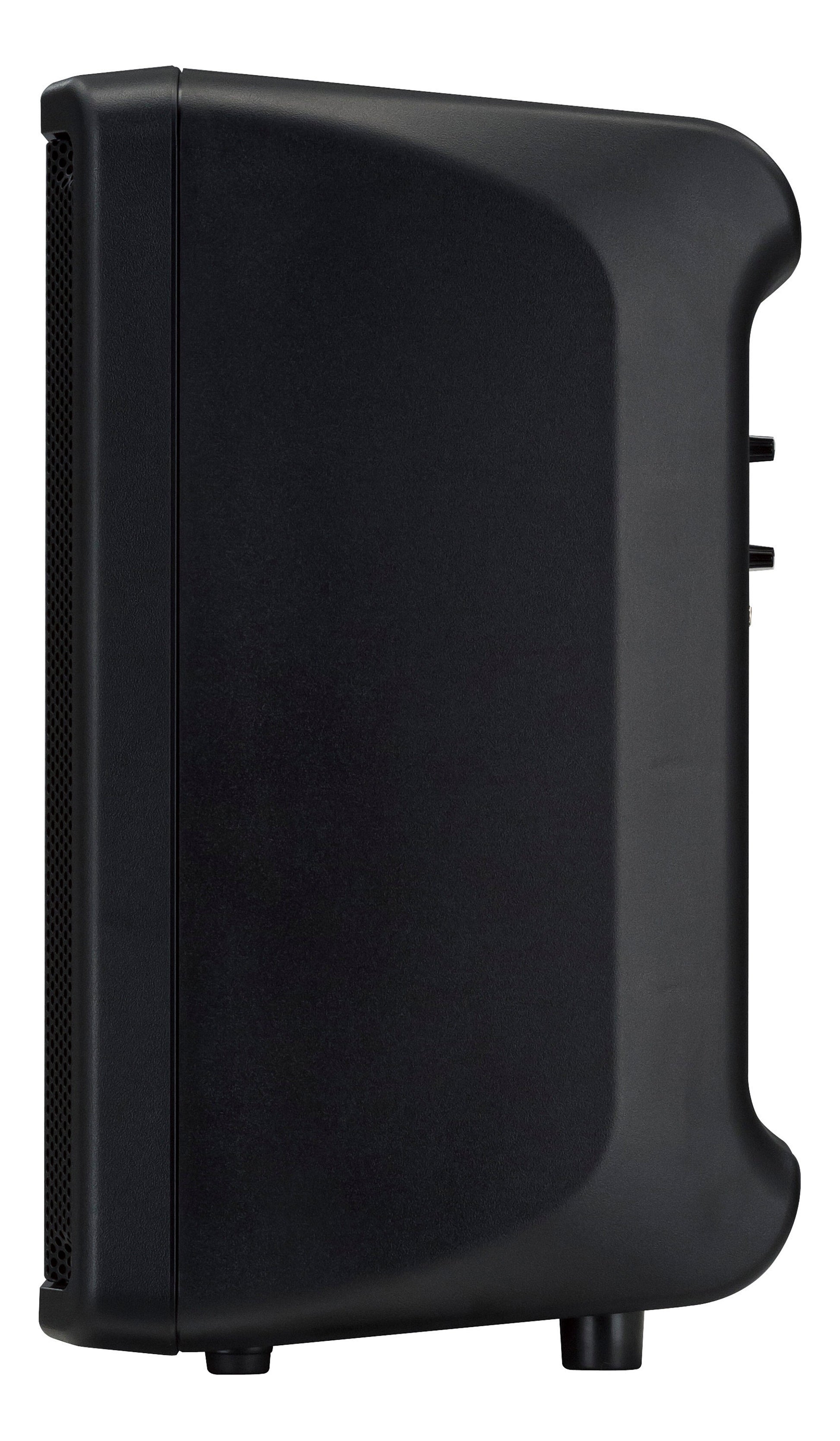

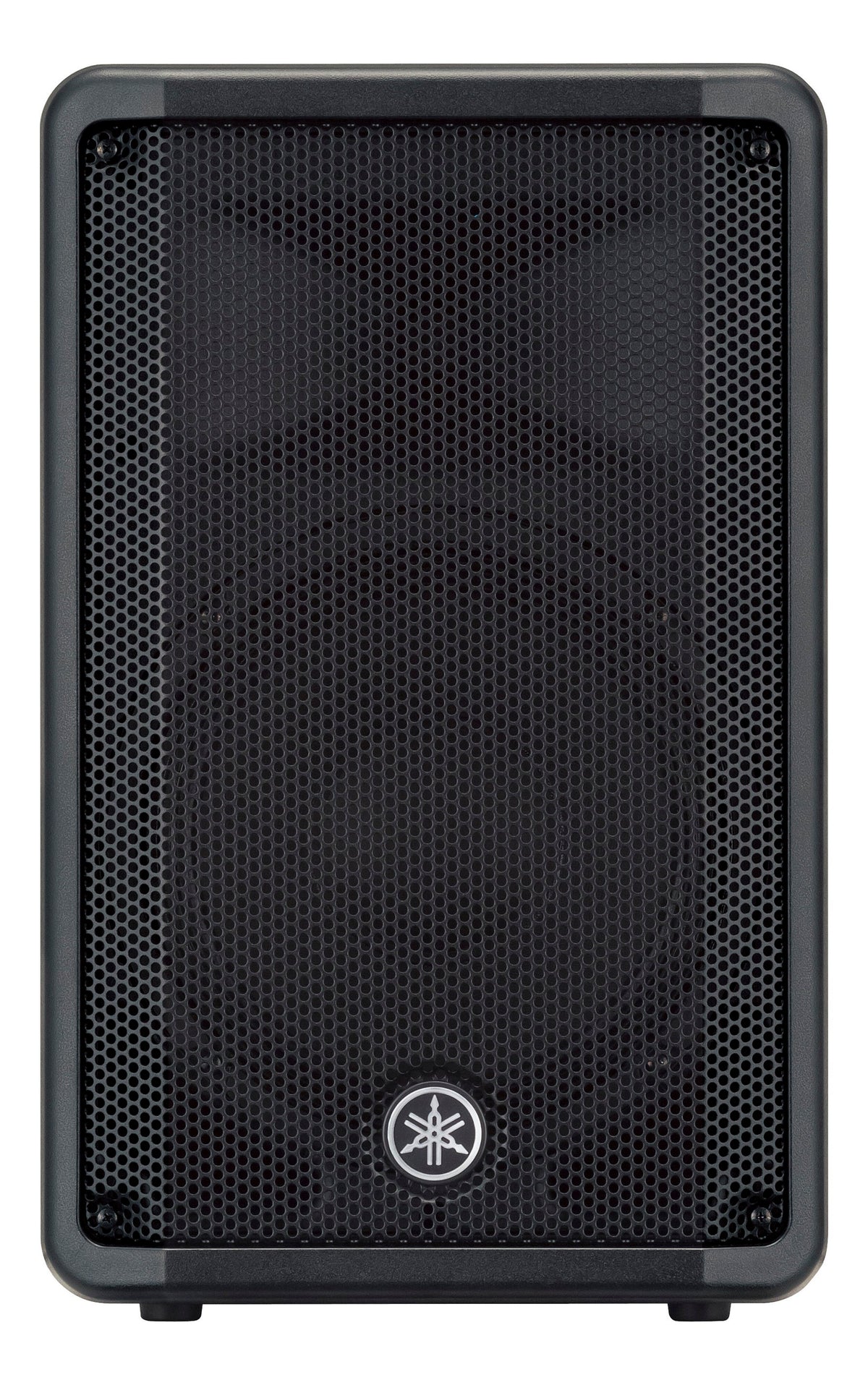

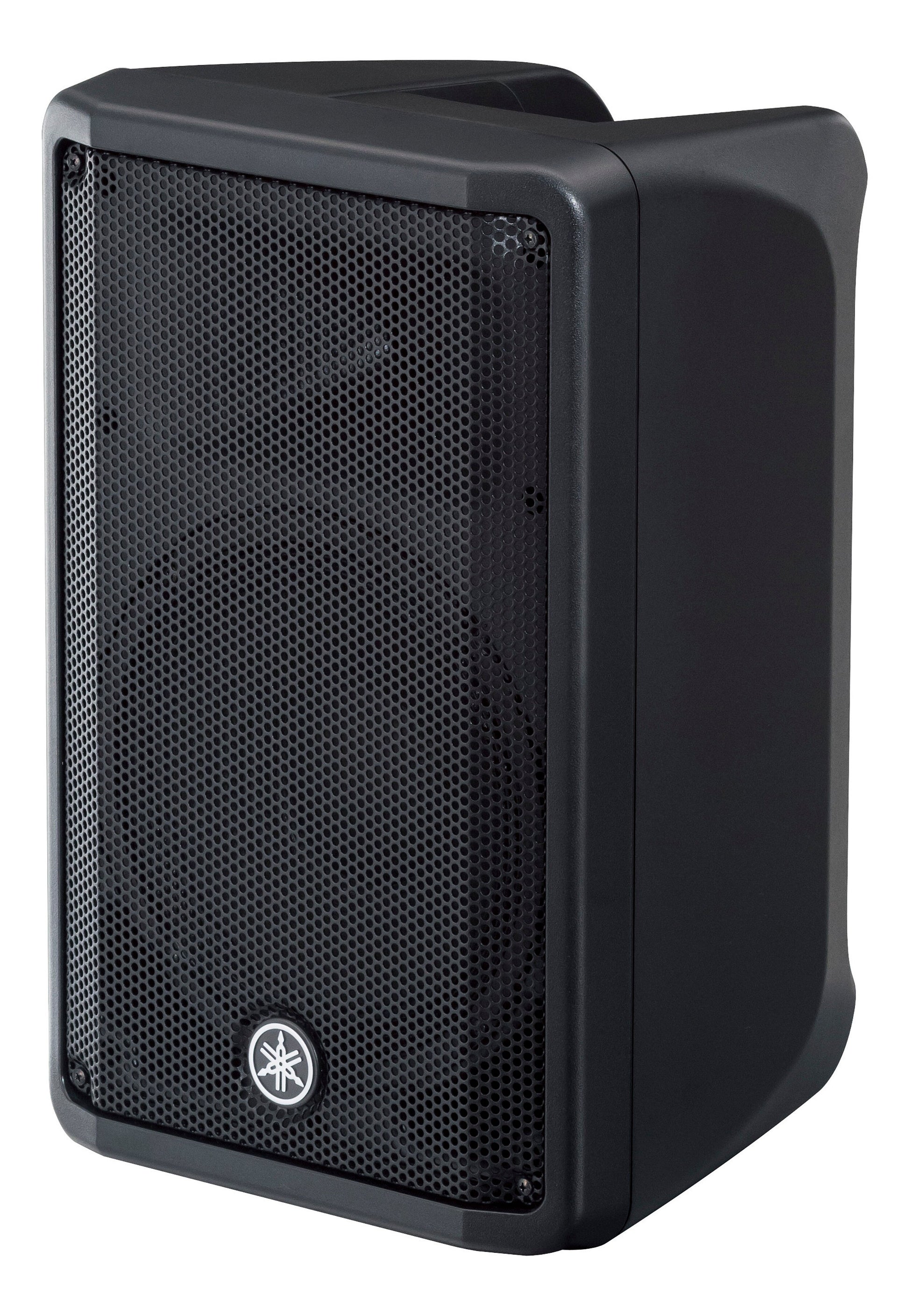

Yamaha DBR10 10-Inch Powered PA Speaker
Compact 10-inch power that goes anywhere
- 700 W bi-amped Class-D power with up to 129 dB maximum SPL
- Custom 10-inch woofer and compression driver, 55 Hz-20 kHz range
- FIR-X tuning and D-CONTOUR (FOH/MAIN or MONITOR) processing
- Built-in 2-channel mixer with combo and RCA inputs and XLR output
- Lightweight 10.5 kg cabinet with 50° monitor angle and M8 rigging points
Taxes included.

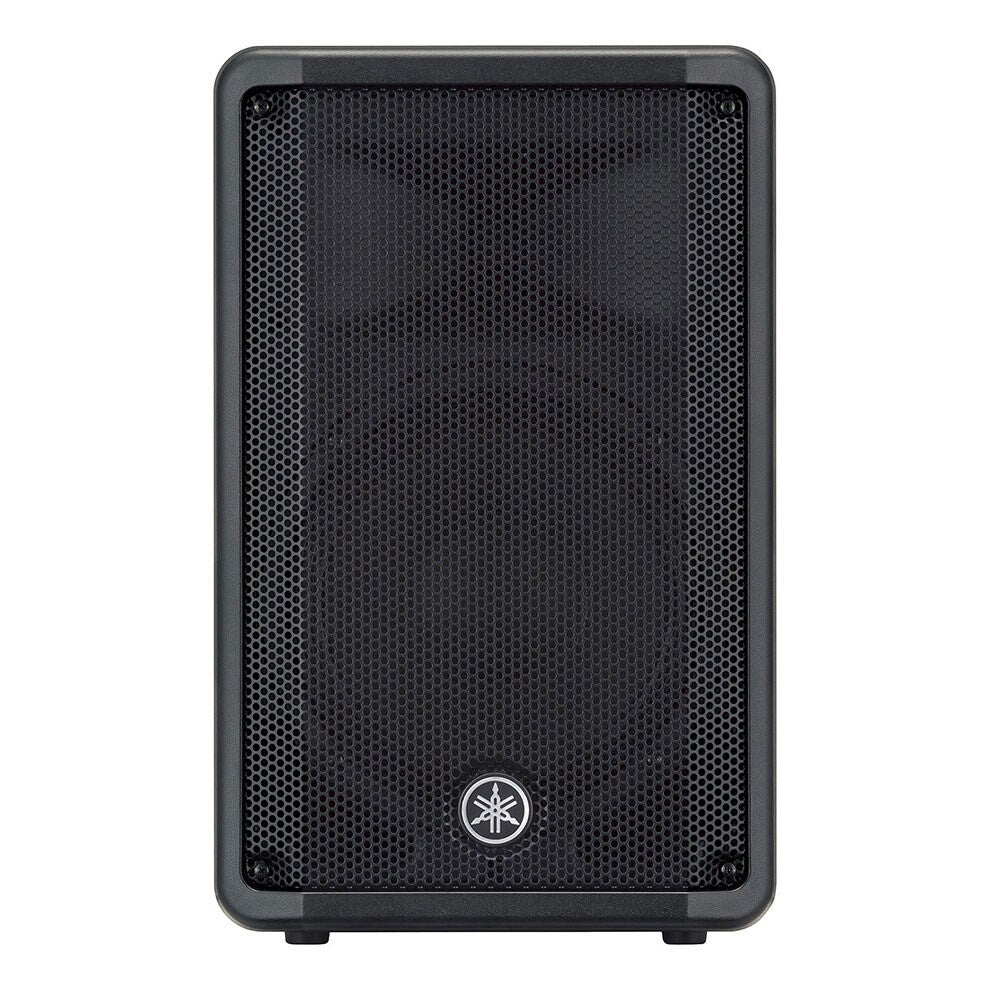

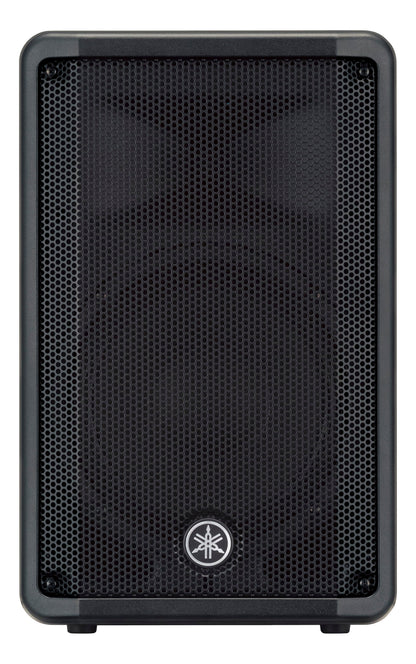

Yamaha DBR10 10-inch Powered PA Speaker
The Yamaha DBR10 is a 10-inch 2-way bi-amped powered loudspeaker with 700 W of Class-D power and a maximum output of 129 dB SPL. It uses DSP and amplifier technology developed for Yamaha's DSR and DXR series in a lightweight plastic cabinet built for quick setups.
As the most compact model in the DBR range, it works as a main speaker for small events, a utility fill or a floor monitor. Bands, DJs, schools, presenters and houses of worship get dependable sound from a 10.5 kg cabinet with a single top handle.
Key Features
700 W Class-D Amplification on the DBR10
A bi-amped Class-D amplifier delivers 700 W (LF: 500 W, HF: 200 W) dynamic, with separate amplification for the woofer and compression driver. That power gives the DBR10 up to 129 dB SPL with clean transients for live music and DJ sets.
Custom 10-inch Woofer and Compression Driver
A 10-inch ferrite woofer with a 2-inch voice coil handles the lows, and a 1-inch throat compression driver with a 1-inch diaphragm handles the mids and highs. Together they cover 55 Hz to 20 kHz (-10 dB) across a 90° x 60° dispersion pattern.
FIR-X Tuning for Clear, Phase-Accurate Sound
Yamaha's FIR-X tuning uses a linear-phase FIR filter at the 2.1 kHz crossover. This keeps the woofer and horn in phase through the crossover region, so vocals stay clear and natural even at high levels.
D-CONTOUR for Mains or Monitors
The D-CONTOUR switch offers FOH/MAIN, MONITOR and OFF settings. FOH/MAIN suits stand-mounted or flown speakers, while MONITOR mode tames the low frequencies that build up when the speaker lies on the stage floor.

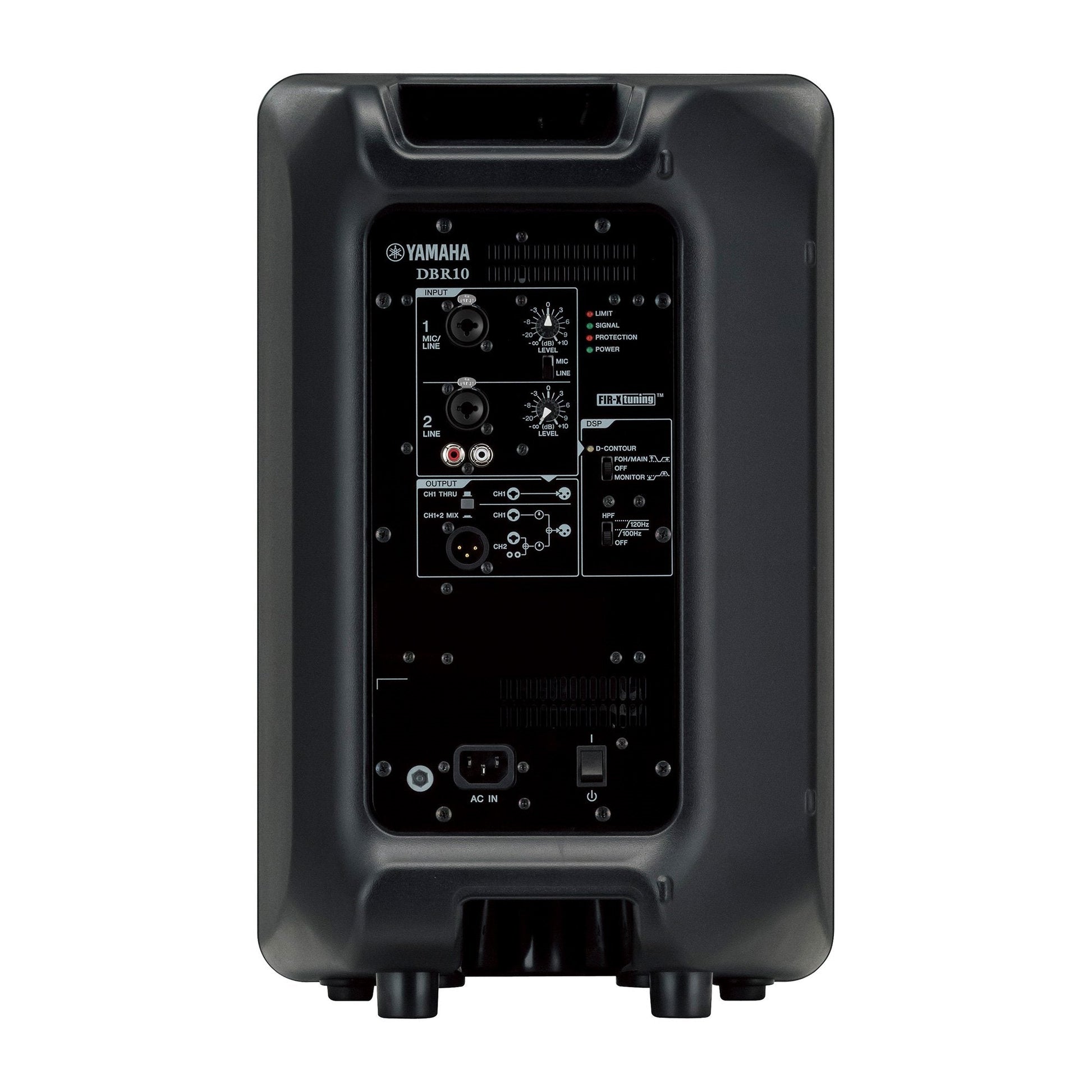

Built-In 2-Channel Mixer
CH1 takes a mic or line signal on a combo XLR/TRS jack, and CH2 has a combo jack plus RCA inputs for phones, laptops or CD players. The XLR output can pass CH1 through or send the CH1+CH2 mix to another speaker.

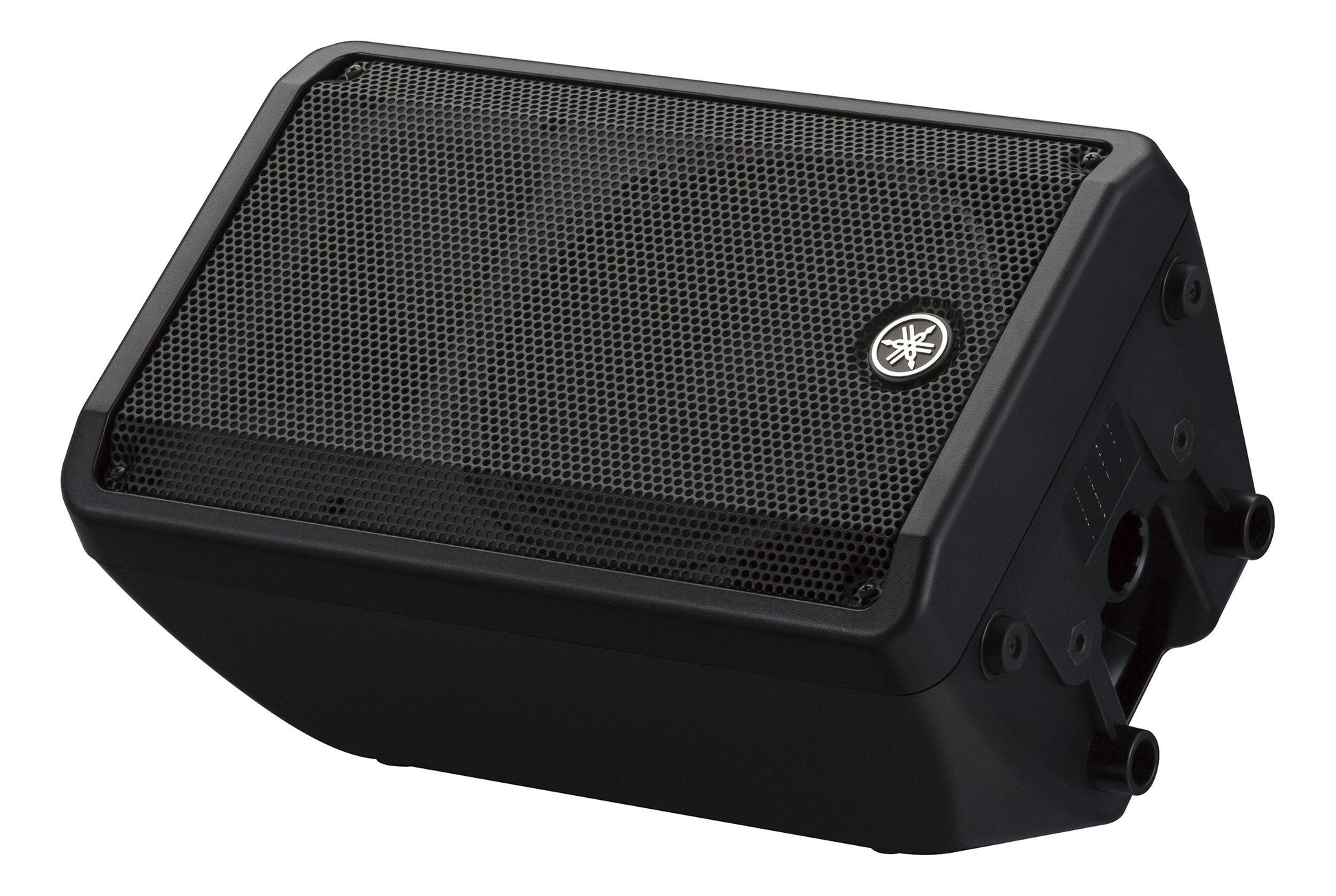

Floor Monitor Angle and Easy Mounting
A 50° wedge angle lets the DBR10 double as a stage monitor. It also has a 35 mm pole socket for stands, M8 rigging points for optional brackets or eyebolts, and a top handle for carrying.
Watch & Hear It
Frequently Asked Questions
DBR10, DBR12 or DBR15: which should I choose?
The DBR10 is the lightest at 10.5 kg with 700 W and 129 dB SPL. The DBR12 (1000 W, 131 dB) and DBR15 (1000 W, 132 dB, deepest bass to 50 Hz) suit bigger rooms and fuller music playback.
How is the DBR series different from the DZR series?
The DZR series steps up to 2000 W, 96 kHz DSP with an LCD screen for presets, EQ and delay, neodymium drivers and a plywood cabinet. The DBR series is lighter and simpler to operate, with a built-in 2-channel mixer.
Can I plug a microphone straight in?
Yes. CH1 accepts a microphone or line-level signal on its combo jack, so you can run a speech or announcement mic alongside music on CH2 without a separate mixer.
Can I add a subwoofer?
Yes. Use the XLR output to feed another speaker, or feed the speaker and a subwoofer from a mixer. The DXS15XLF powered subwoofer is a common partner for extra low end.
What mounting options are there?
A 35 mm pole socket fits standard speaker stands, and M8 threaded points accept optional Yamaha brackets or M8 x 15 mm eyebolts (not included). Yamaha also offers an optional speaker cover for transport.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | Yamaha DBR10 |
|---|---|
| Type | 2-way bi-amped powered loudspeaker, bass-reflex |
| Series | DBR Series |
Acoustics
| Frequency Range (-10 dB) | 55 Hz - 20 kHz |
|---|---|
| Nominal Coverage | 90° H x 60° V |
| Maximum Output Level | 129 dB SPL (1 m, on axis) |
| LF Driver | 10" cone, 2" voice coil, ferrite magnet |
| HF Driver | 1" throat compression driver, 1" diaphragm, ferrite magnet |
| Crossover | 2.1 kHz, FIR-X tuning (linear-phase FIR filter) |
Amplifier & Processing
| Output Power | Dynamic: 700 W (LF: 500 W, HF: 200 W) / Continuous: 325 W (LF: 260 W, HF: 65 W) |
|---|---|
| Amplifier | Class-D, bi-amped |
| Processing | D-CONTOUR: FOH/MAIN, MONITOR, OFF |
| Cooling | Fan cooling, 4 speeds |
Inputs & Outputs
| INPUT 1 | Combo (XLR/TRS phone) x 1, mic/line |
|---|---|
| INPUT 2 | Combo x 1 + RCA pin x 2 (unbalanced) |
| OUTPUT | XLR3-32 x 1 (CH1 parallel THRU or CH1+CH2 MIX) |
General
| Power Requirements | 100 V, 100-120 V, 220-240 V or 110/127/220 V (Brazil), 50/60 Hz, depending on region |
|---|---|
| Power Consumption | 60 W (1/8 power), 18 W (idle) |
| Cabinet | Plastic, black |
| Handles | Top x 1 |
| Rigging Points | Bottom x 2 (fit for M8 x 15 mm eyebolts) |
| Pole Socket | 35 mm (bottom x 1) |
| Floor Monitor Angle | 50° |
| Dimensions (W x H x D) | 308 x 493 x 289 mm |
| Net Weight | 10.5 kg |
| Optional | BBS251, BCS251, BWS251-300, BWS251-400 speaker brackets; SPCVR speaker cover |
Specifications from Yamaha India's DBR Series specifications and product pages; subject to change by Yamaha.
