Yamaha STAGEPAS 1K mkII Portable PA System

Wide 170° coverage and deep bass from one slim column

1100 W Class-D amplifier with up to 125 dB SPL
12-inch powered subwoofer plus a 10 x 1.5-inch J-curve line array
170° horizontal x 30° vertical coverage for even sound across the audience
5-channel digital mixer with two Hi-Z inputs, SPX reverb and Priority Ducker
Bluetooth 5.0 audio and STAGEPAS Controller app with 4-band PEQ per channel

MRP~~₹1,32,700~~30% OFF

YMS Price₹92,889

Taxes included.

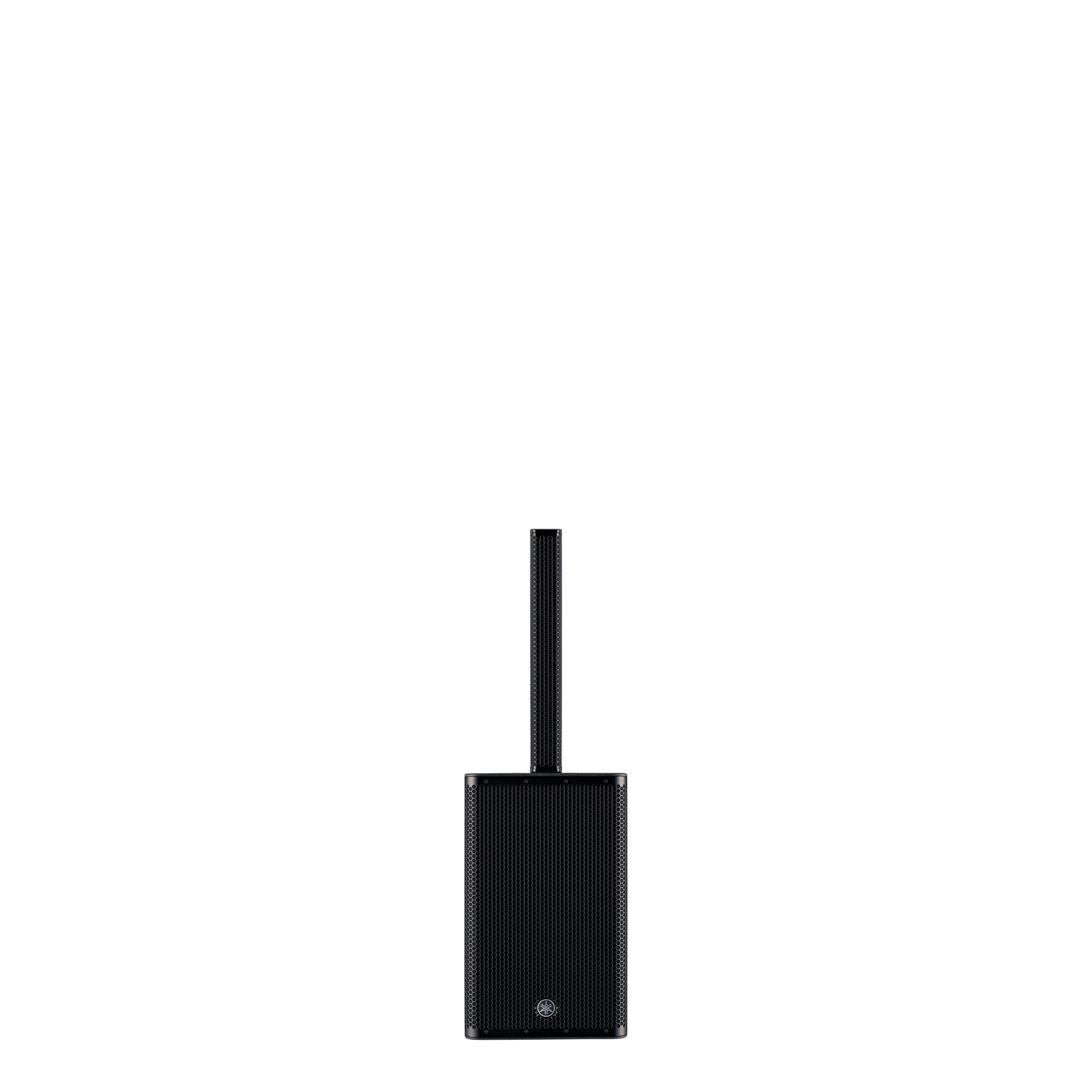

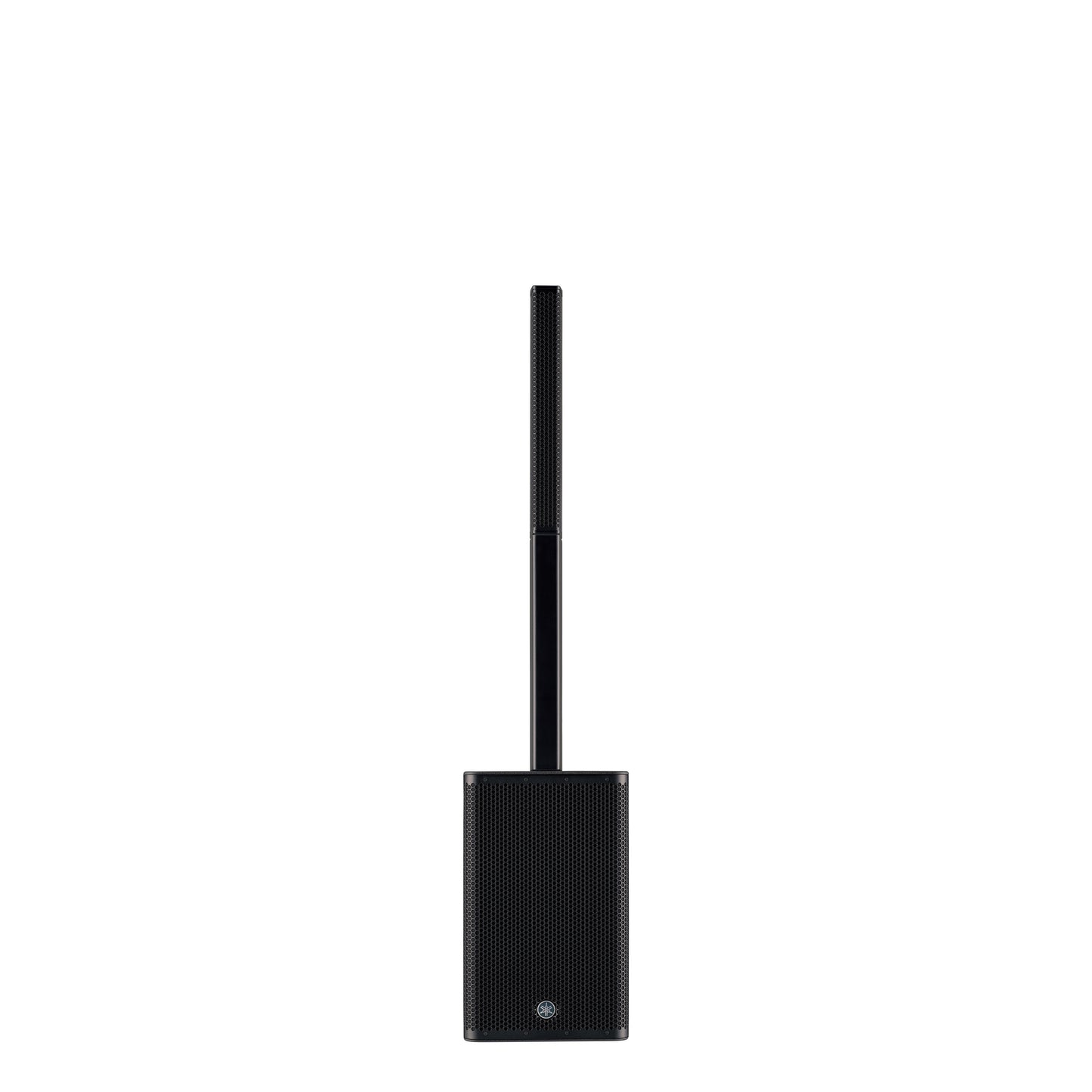

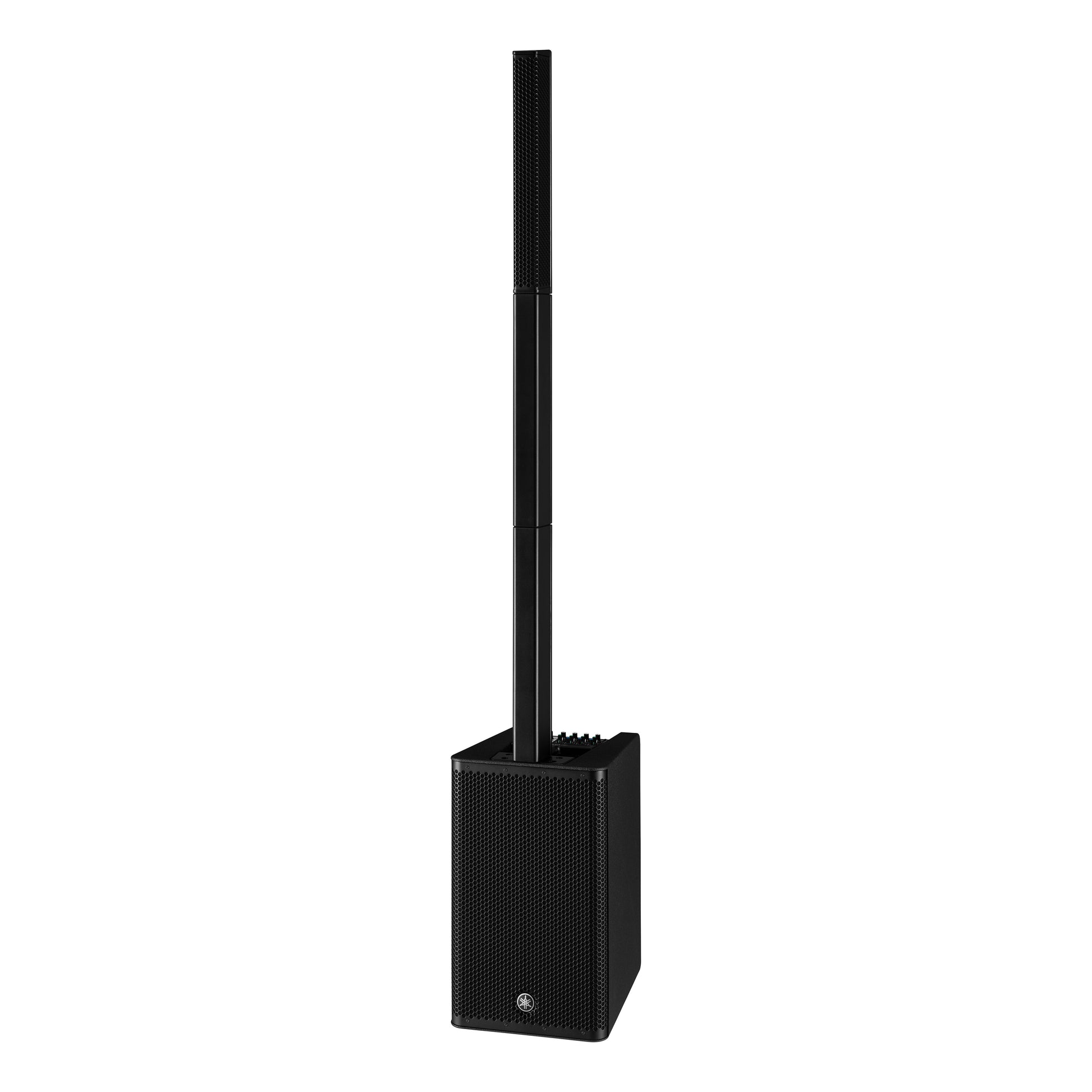

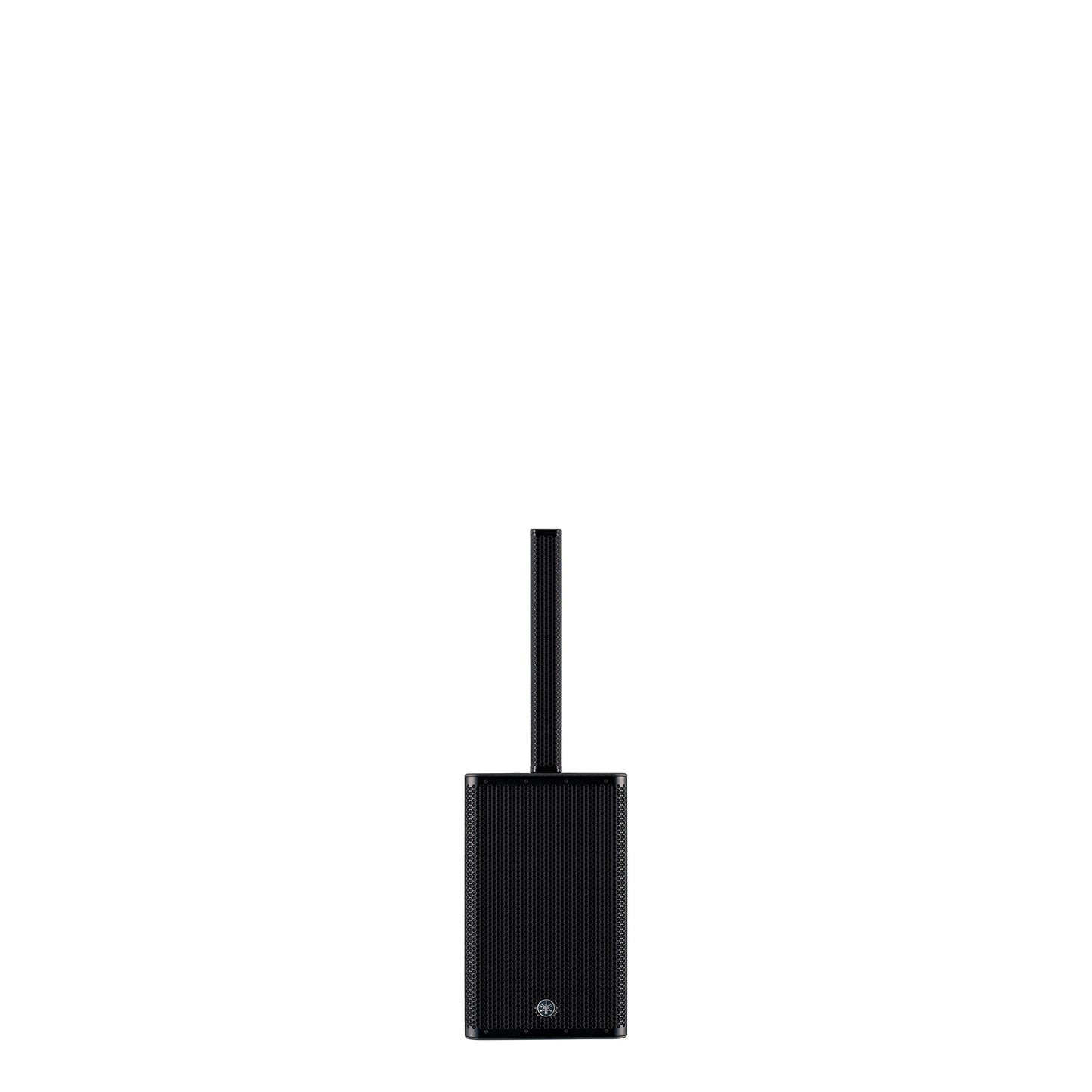

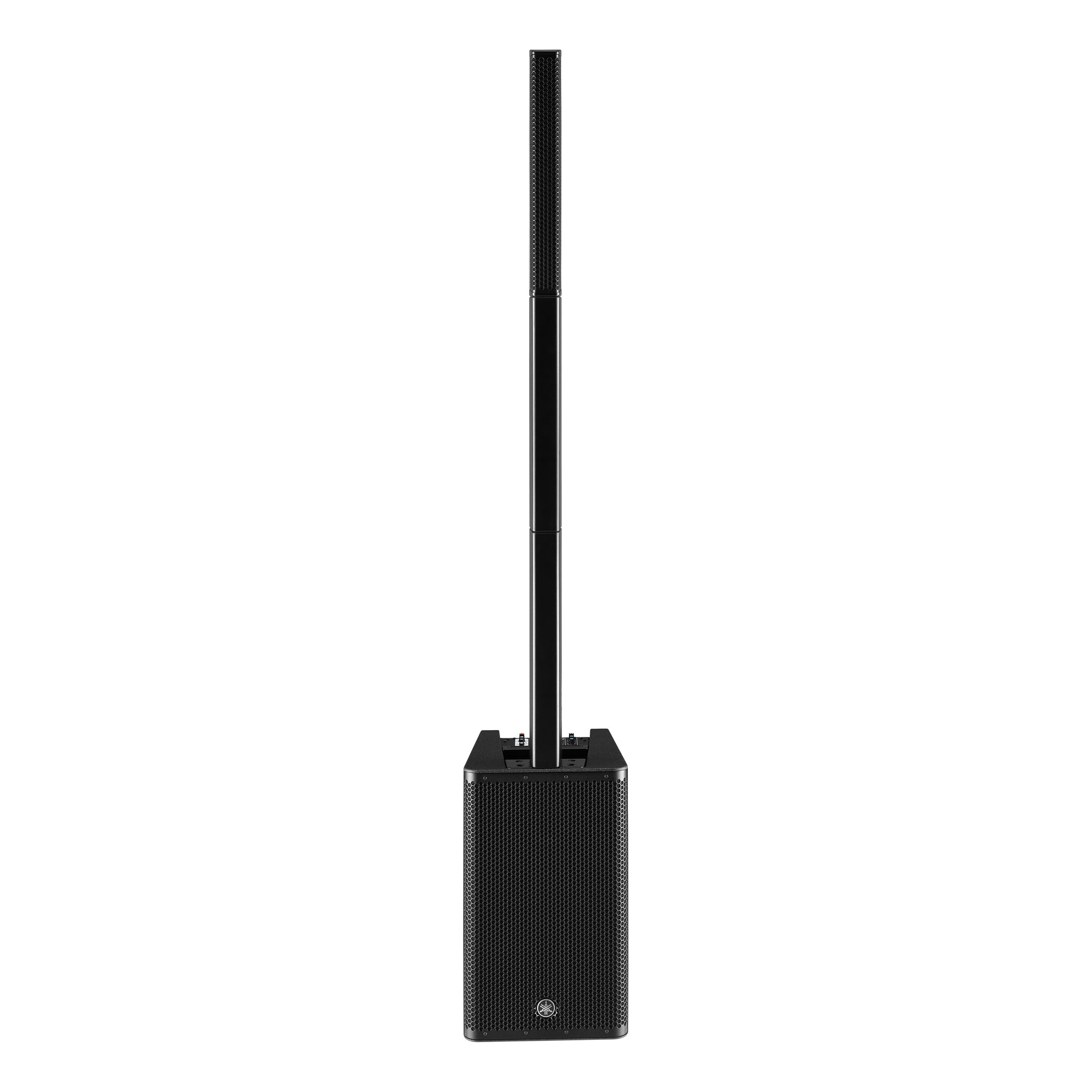

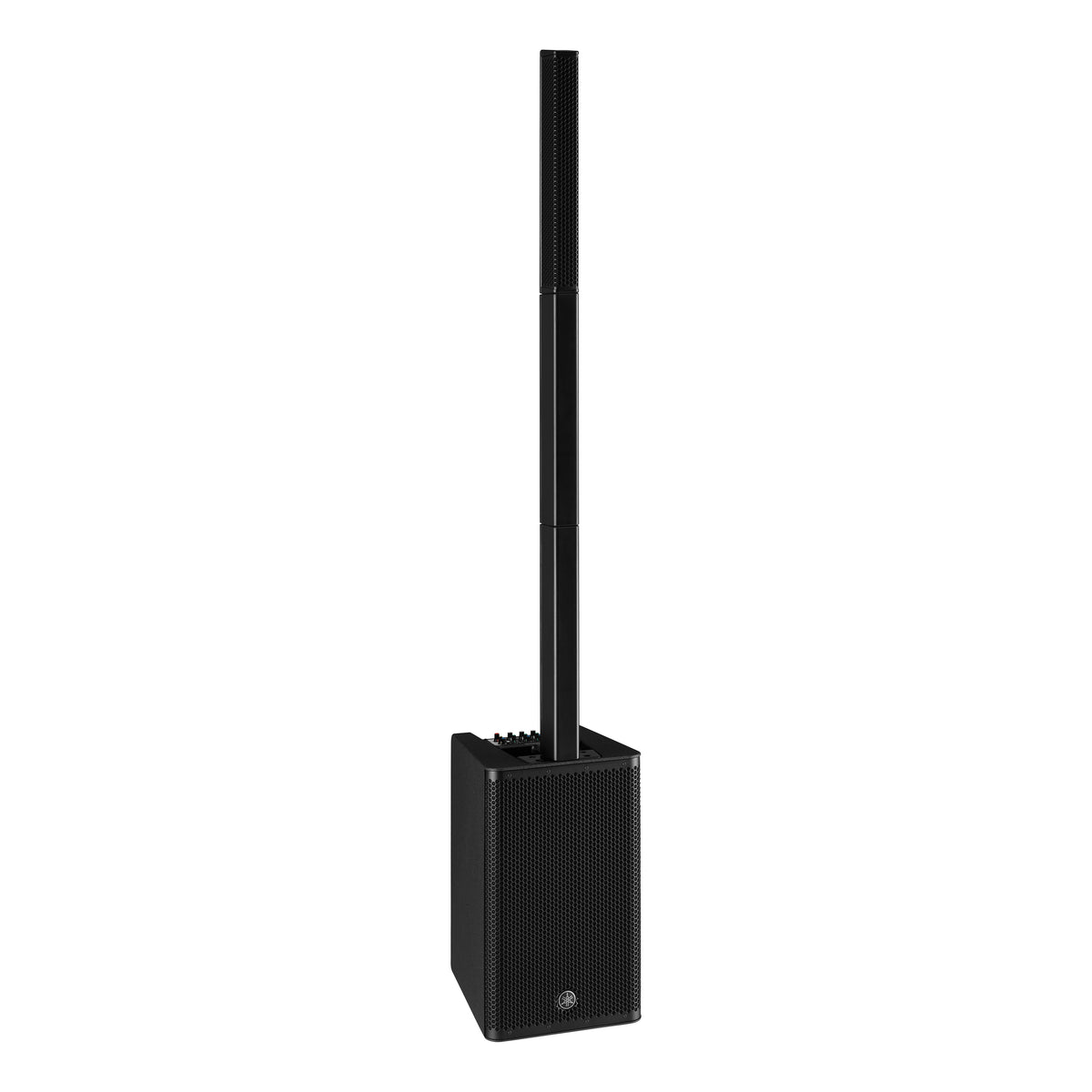

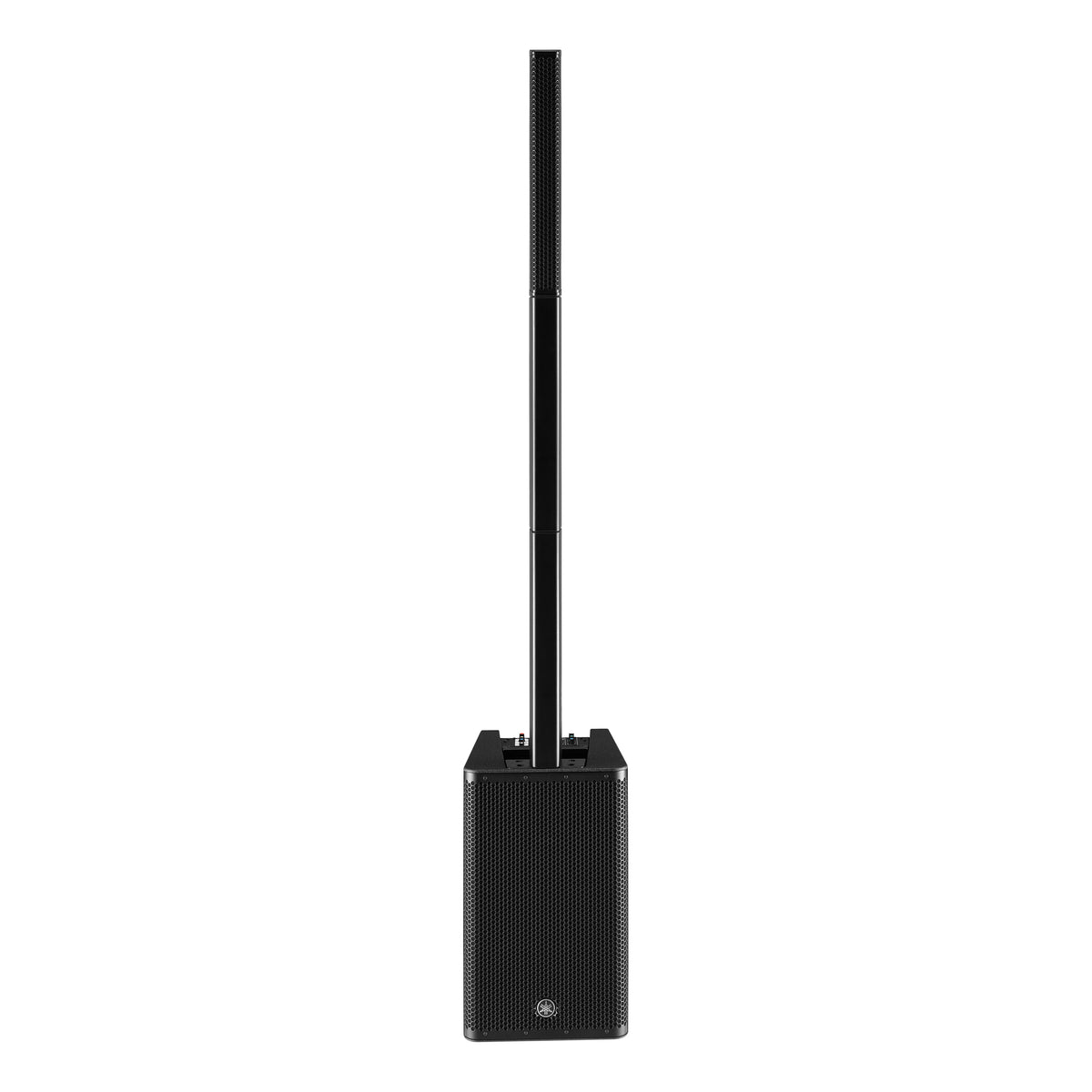

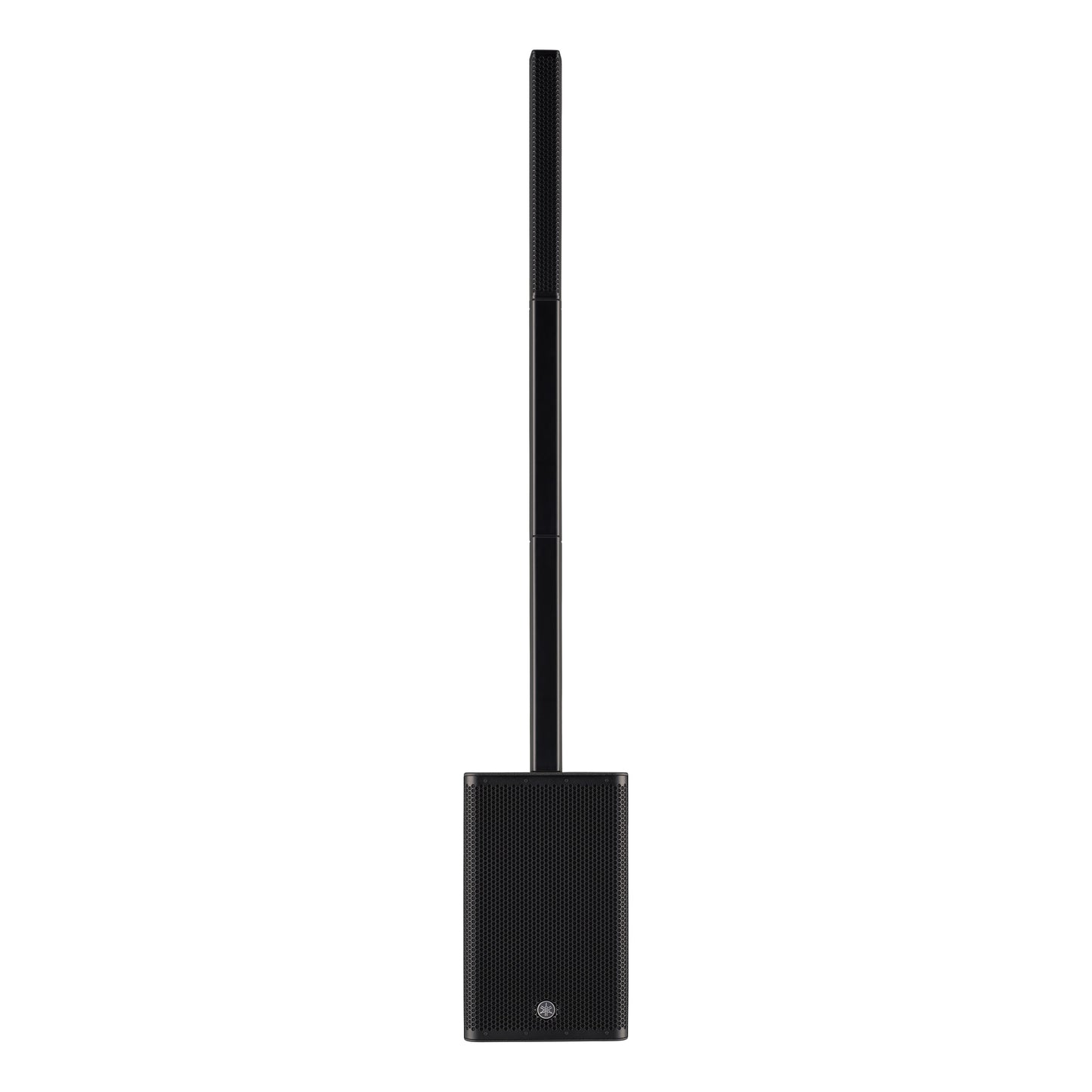

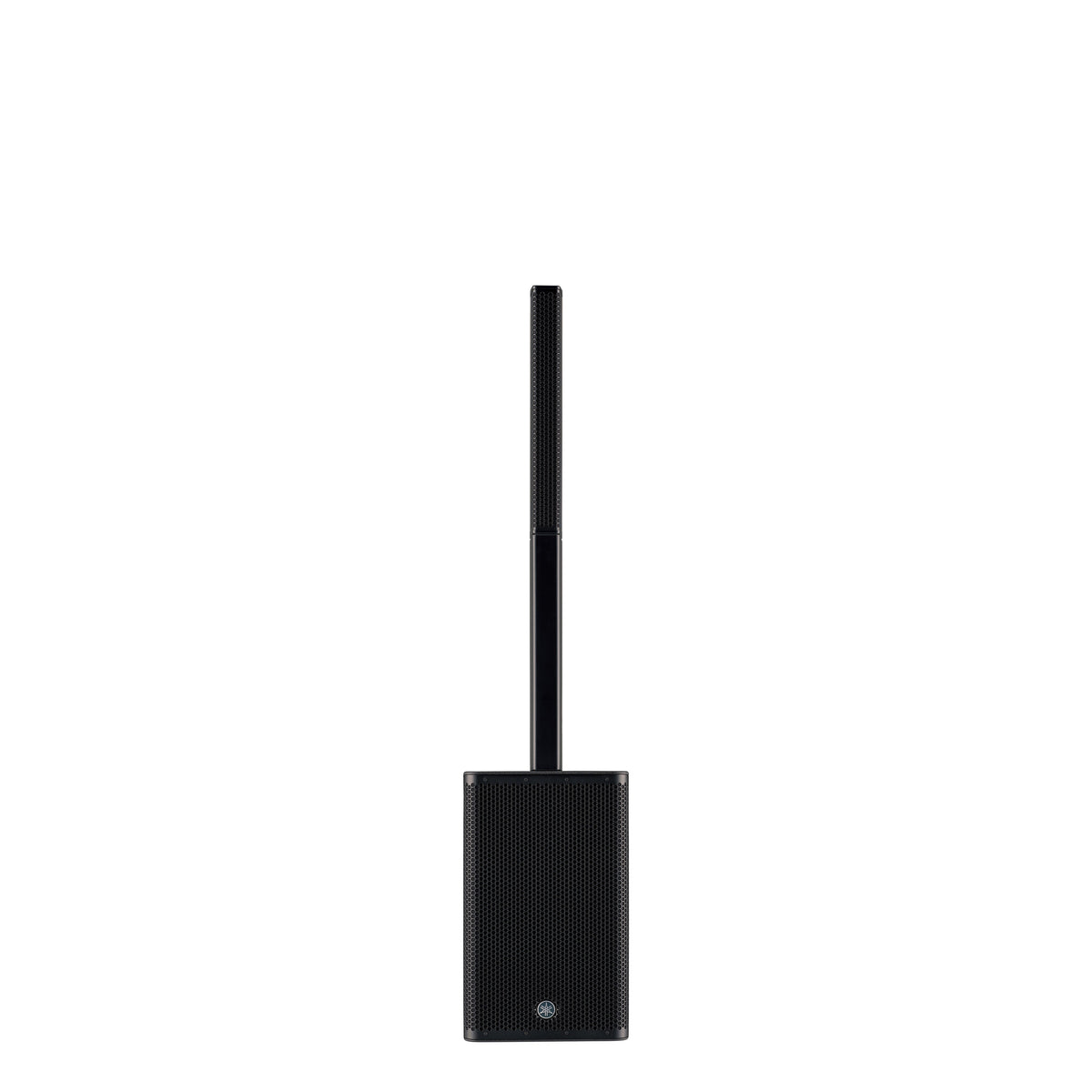

Yamaha STAGEPAS 1K mkII Portable Column PA System

The Yamaha STAGEPAS 1K mkII is an all-in-one column PA: a 12-inch powered subwoofer with a built-in 5-channel digital mixer, topped by a slim line array of ten 1.5-inch drivers. An 1100 W Class-D amplifier drives the system to 125 dB SPL with 170° of horizontal coverage, and Bluetooth, SPX reverb and app control are built in.

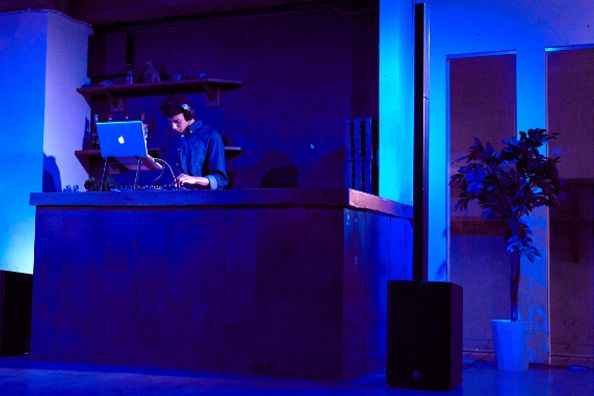

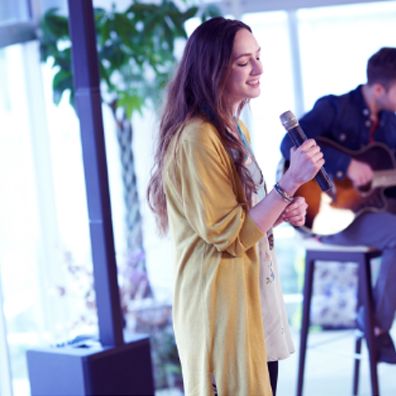

It is designed for solo artists, duos and small bands, mobile DJs and corporate AV, where a discreet system with deep bass and wide, even coverage is more practical than a pair of speakers on stands. Setup takes about a minute, with no speaker cables or stands needed.

Key Features

Yamaha STAGEPAS 1K mkII J-curve line array speaker with ten 1.5-inch drivers, front and side views

J-curve line array with 170° coverage

Ten 1.5-inch drivers are arranged in a J-curve array that covers 170° horizontally and 30° vertically. This spreads clear, consistent sound from the front row to the back of the room, so the audience hears much the same mix wherever they sit.

Yamaha STAGEPAS 1K mkII powered subwoofer with 12-inch woofer and bass-reflex ports

12-inch powered subwoofer in a compact cabinet

The bass-reflex subwoofer houses a 12-inch woofer, which Yamaha describes as the largest in its class, in a compact cabinet. Yamaha's Twisted Flare Port reduces port noise, so the system reaches down to 37 Hz with deep, clean bass.

1100 W Class-D amplifier

A 1100 W (dynamic) Class-D amplifier powers both the array and the subwoofer, producing up to 125 dB SPL at 1 m. The 240 Hz crossover hands the low end to the subwoofer, giving a full 37 Hz to 20 kHz frequency range.

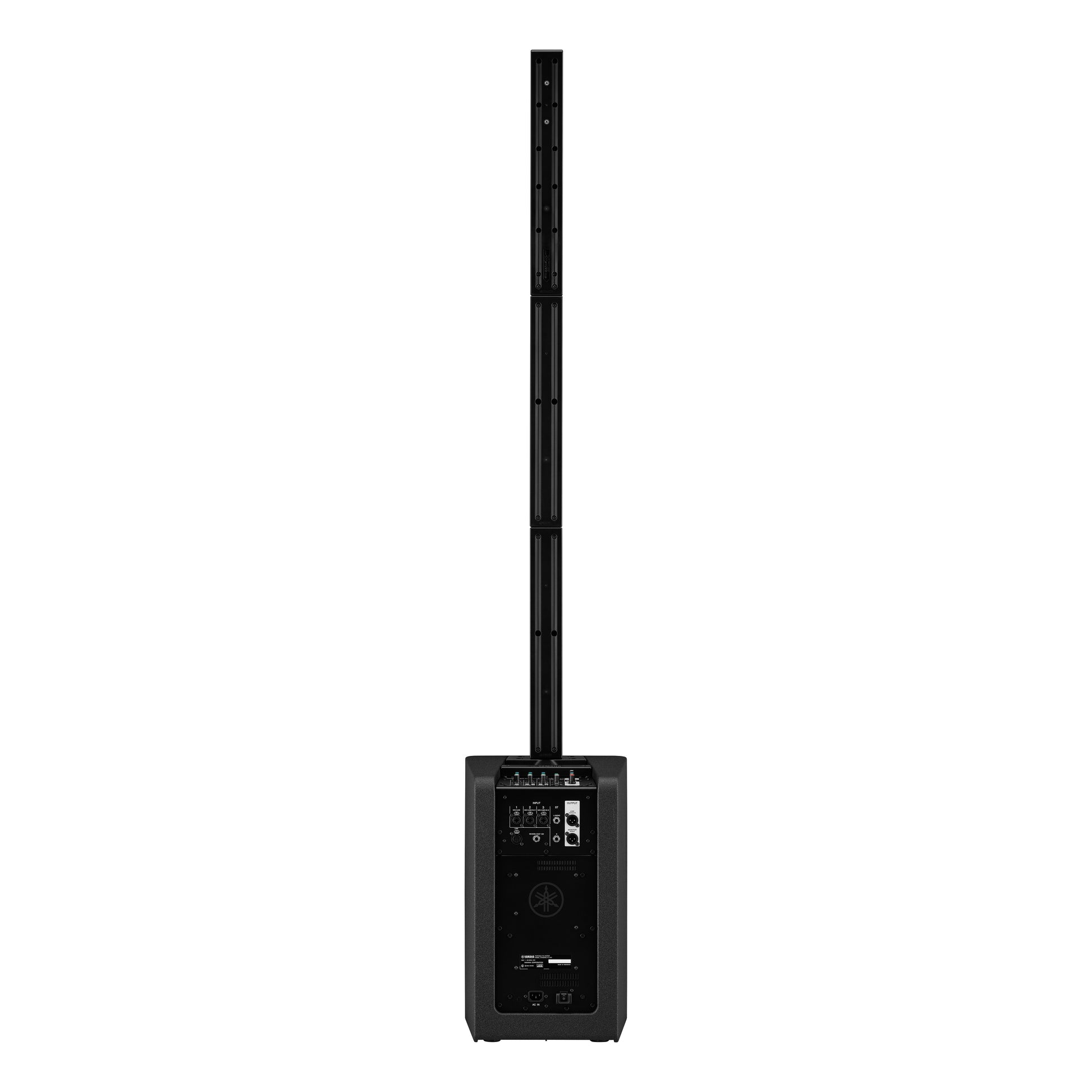

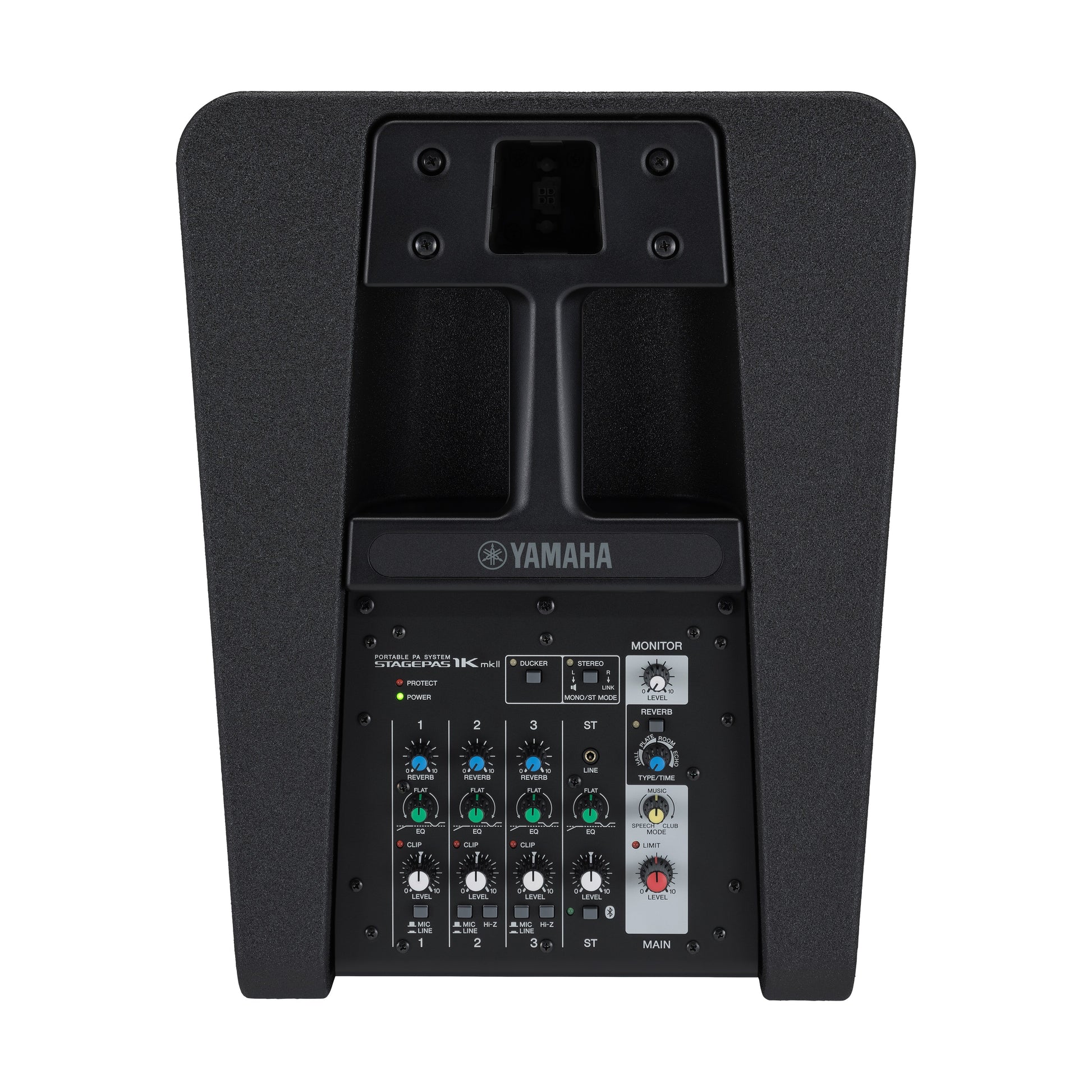

Yamaha STAGEPAS 1K mkII rear mixer panel showing three mic/line inputs, stereo input, link and monitor outputs

5-channel digital mixer built into the STAGEPAS 1K mkII

Three mono mic/line inputs take microphones and instruments, and channels 2 and 3 have Hi-Z inputs for acoustic-electric guitars and basses, with no DI box needed. A stereo line input, usable as two mono inputs, and Bluetooth handle playback, while Link and Monitor outputs let you expand the system.

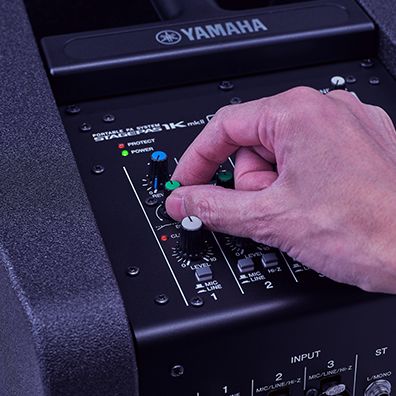

One-knob EQ, MODE compression and SPX reverb

1-knob EQ on each channel adjusts several EQ bands at once: turn it left to cut low end for speech or right to add body for music. The master MODE control applies multiband compression optimised for Speech, Music or Club, and four SPX reverb types add ambience to vocals and acoustic instruments.

Priority Ducker and STAGEPAS Controller app

Priority Ducker automatically lowers background music on the stereo channel when someone speaks into a microphone, then brings it back when they stop. The STAGEPAS Controller app for iOS and Android adjusts levels, 1-knob EQ or 4-band PEQ over Bluetooth, saves settings for reuse, and can control several units.

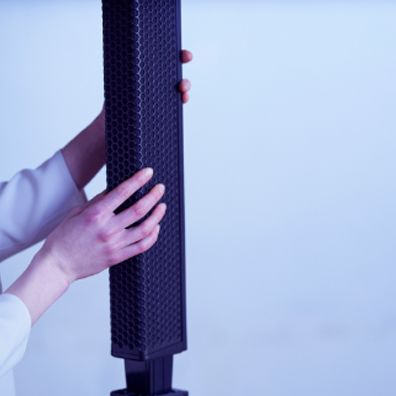

Hand fitting the Yamaha STAGEPAS 1K mkII line array section into its column during setup

Setup in about a minute, with no cables or stands

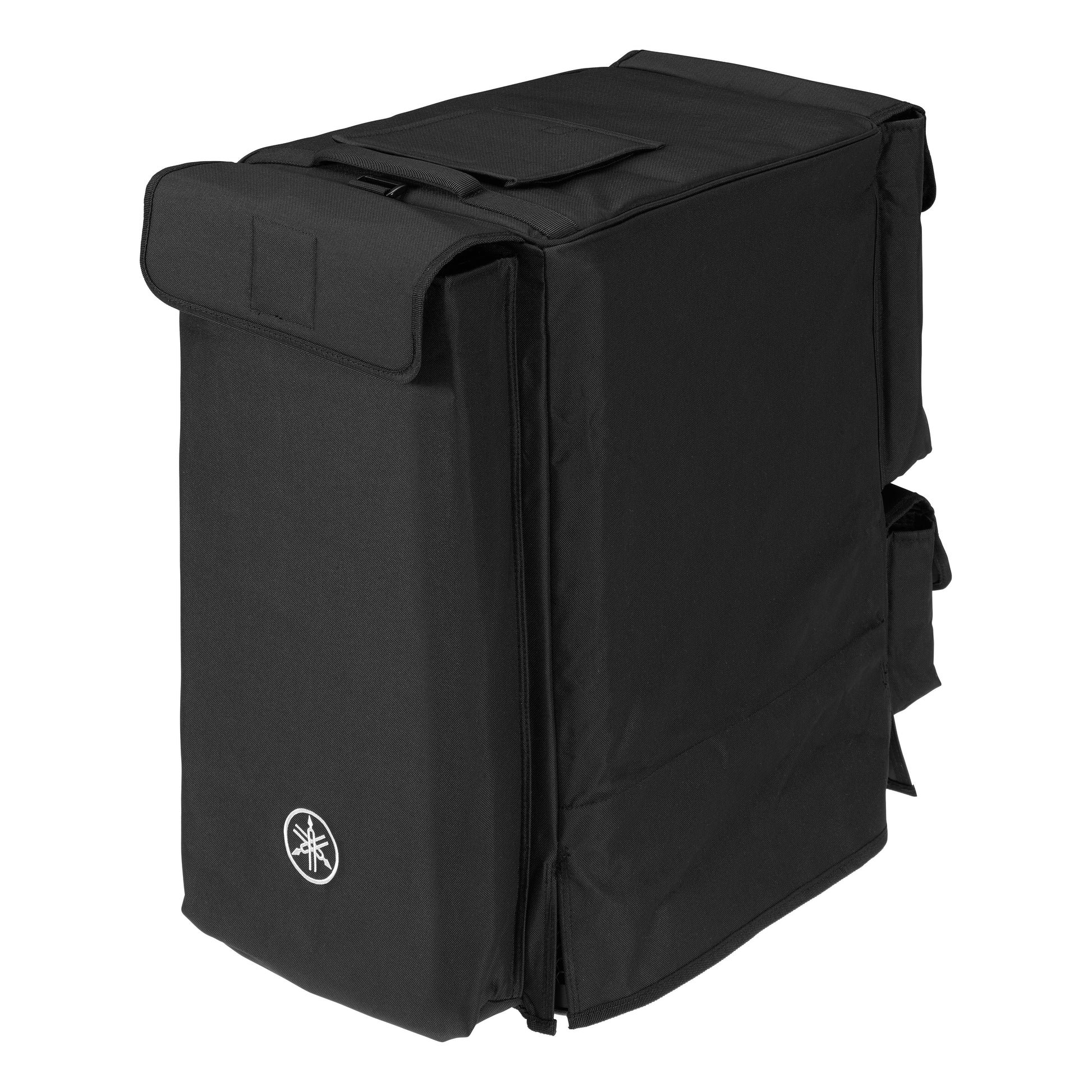

Slot the two spacers and the array speaker into the subwoofer and the system is ready, with no speaker cables or stands required. The ABS subwoofer cabinet has a hard-wearing polyurea coating, and the included fitted cover has pouches for the spacers and array.

Link two systems for bigger events

Link two STAGEPAS 1K mkII units, or one with a Yamaha DXL1K, for wider coverage and more output in stereo or mono. In mono, both units' inputs remain available, giving up to six mono and two stereo inputs with two 1K mkII systems. The optional DL-SP1K dolly and FC5 reverb footswitch add convenience.

Watch & Hear It

Frequently Asked Questions

How does the STAGEPAS 1K mkII differ from the STAGEPAS 600BT?

The 1K mkII is a single column with a 12-inch powered subwoofer and ten-driver line array, 1100 W dynamic power, 37 Hz low-end extension, 170° horizontal coverage and app control, but a smaller 5-channel mixer. The 600BT uses two separate 10-inch box speakers with a 10-channel detachable mixer and 680 W dynamic power, which suits larger input counts and left/right speaker placement.

Do I need speaker stands or speaker cables?

No. The two spacers and the array speaker slot directly into the subwoofer, so the system needs no separate stand or speaker cable. Fully assembled it stands up to 2,000 mm tall and weighs up to 23.0 kg.

What is in the box?

Yamaha lists a power cord and a fitted cover as included accessories, along with the subwoofer, the array speaker and two spacers that make up the system. The DL-SP1K dolly and FC5 footswitch are optional.

Can I plug in a guitar and play music from my phone?

Yes. Channels 2 and 3 have Hi-Z inputs for acoustic-electric guitars and basses. Music can stream over Bluetooth 5.0 (A2DP with SBC and AAC) or connect to the stereo input, which takes standard phone jacks and a 3.5 mm mini jack.

What is the power rating?

Yamaha specifies a Class-D amplifier with a dynamic power rating of 1100 W and a maximum output level of 125 dB SPL at 1 m on axis. Yamaha does not publish a separate continuous power figure for this model.

Why Buy from YMS?

Authorised Yamaha Premium Retailer
Genuine stock with full manufacturer warranty
Demo units at our Bengaluru and Mangaluru stores
Secure delivery across India
Free domestic shipping on all orders

Specifications

Overview

Model	Yamaha STAGEPAS 1K mkII
Type	Powered subwoofer with a line array speaker
Series	STAGEPAS

Acoustic

Speaker type	Powered subwoofer: bass-reflex; Line array speaker: enclosed
Frequency range (-10 dB)	37 Hz - 20 kHz
Coverage	170° H x 30° V
Crossover	240 Hz
Maximum output level (1 m, on axis)	125 dB SPL
LF driver	Powered subwoofer: 12" (30 cm) cone
HF drivers	Line array speaker: 10 x 1.5" (3.8 cm) cone

Amplifier

Amplifier class	Class-D
Power rating	1100 W (dynamic)

Mixer

Mixing channels	5 (mono x 3 + stereo x 1)
Input channel functions	Hi-Z: CH2/3; 1-knob EQ: CH1-3/ST
Output channel functions	MODE (SPEECH/MUSIC/CLUB)
Effects	SPX digital reverb (4 programs, parameter control)
App control	STAGEPAS Controller (iOS/Android), 4-band PEQ per channel

Inputs & Outputs

Inputs	Mono x 3 (mic/line) + stereo x 1 (line) / mono x 2 (line); Link in x 1
Outputs	Link out x 1, Monitor out x 1
Bluetooth	Ver. 5.0, A2DP (SBC, AAC)
Control	Reverb footswitch input

General

Power requirements	Varies by area of purchase: 100 V 50/60 Hz, 110-120 V 60 Hz, or 220-240 V 50/60 Hz
Power consumption	25 W (idle), 91 W (1/8 power)
Handle	Top of powered subwoofer x 1
Dimensions (W x H x D)	System: 334 x 2,000 x 418 mm (maximum); Line array speaker: 67 x 582 x 86 mm; Powered subwoofer: 334 x 550 x 418 mm; Spacer: 67 x 555 x 86 mm (each)
Weight	System: 23.0 kg (maximum); Line array speaker: 1.8 kg; Powered subwoofer: 20.0 kg; Spacer: 0.6 kg (each)

Included Accessories

Included	Power cord x 1, cover x 1
Options	Yamaha DL-SP1K dedicated dolly, FC5 footswitch (reverb on/off)

Specifications from Yamaha India's STAGEPAS 1K mkII specifications page; subject to change by Yamaha.
