Yamaha
Yamaha STAGEPAS 100BTR Battery-Powered Portable PA System
A 5.5 kg battery PA you can carry in one hand
- 100 W Class-D amp with 6.5-inch coaxial driver and FIR-X crossover
- 3-channel mixer: two combo mic/line inputs and a stereo mini input
- Built-in lithium-ion battery for up to 6 hours of play
- Bluetooth audio streaming from your phone or tablet
- Handle doubles as a tilt stand, with a 3/8-inch thread for mic stands
Taxes included.
Yamaha STAGEPAS 100BTR Battery-Powered Portable PA System

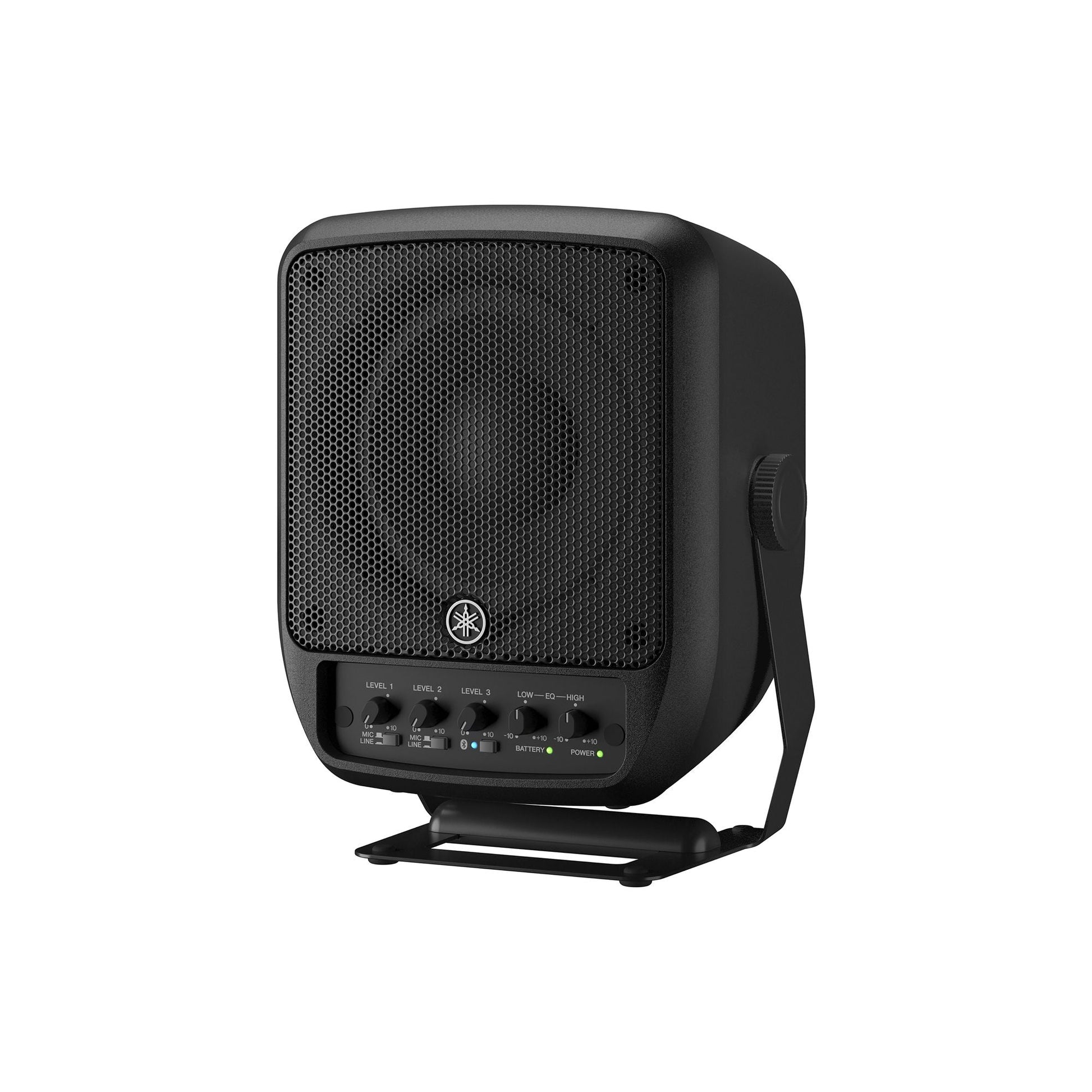

The Yamaha STAGEPAS 100BTR is a compact battery-powered PA system that weighs just 5.5 kg. It combines a 100 W bi-amped Class-D amplifier, a 6.5-inch coaxial driver, a simple 3-channel mixer and an internal lithium-ion battery good for up to 6 hours.
It is designed for solo singers and guitarists, buskers, teachers, tour guides, fitness instructors and presenters who want to set up in seconds anywhere. Just switch on, plug in a mic and instrument, stream backing tracks over Bluetooth and perform.
Key Features
Coaxial Driver with FIR-X Crossover
A 1-inch throat compression driver with a 1.4-inch voice coil sits at the centre of a 6.5-inch woofer, working as a near point source. Yamaha's FIR-X filters handle the 1.8 kHz crossover for accurate phase and natural dispersion over a 90° x 90° area, up to 120 dB SPL.
3-Channel Mixer on the STAGEPAS 100BTR

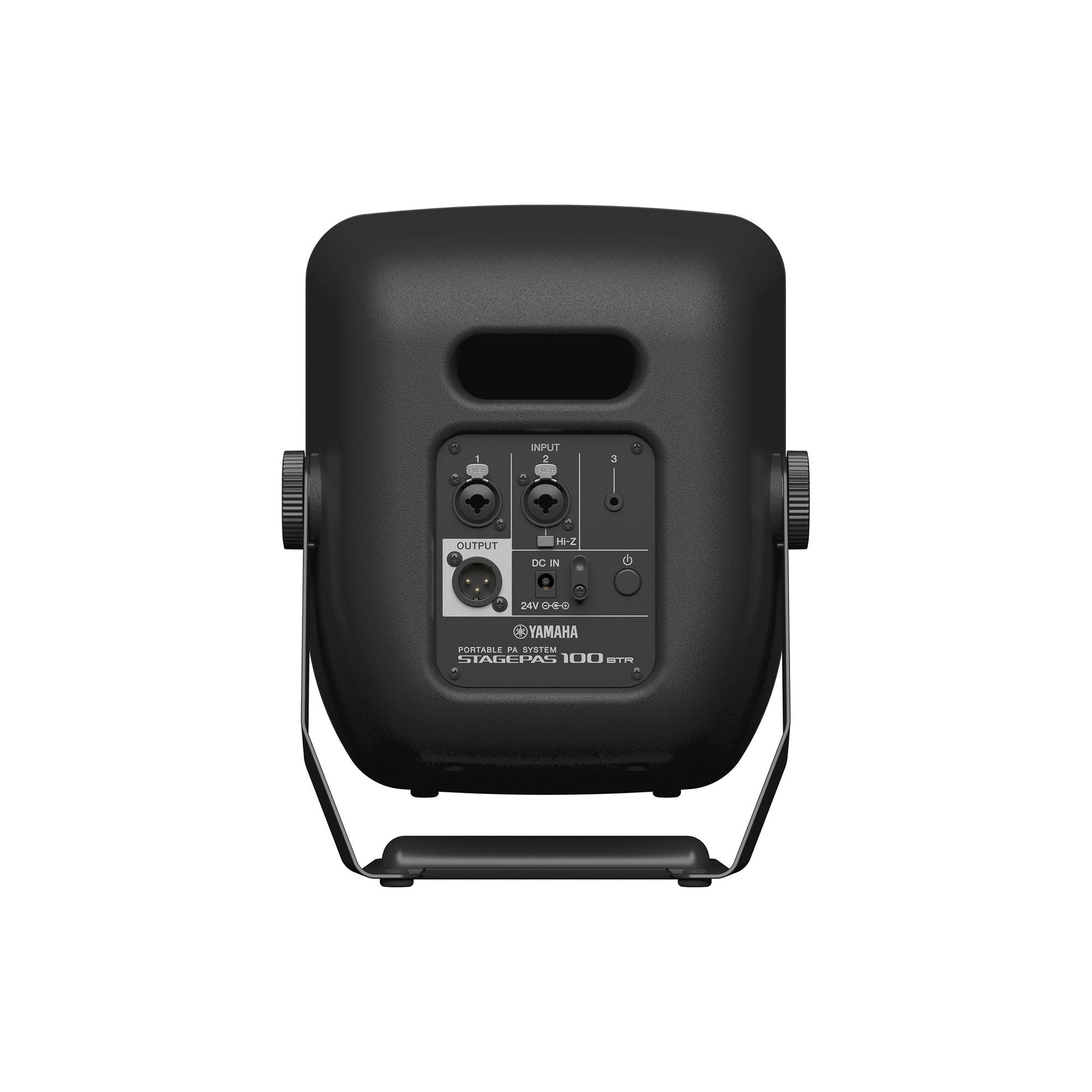

Inputs 1 and 2 are combo jacks for microphones or line sources, with Hi-Z support on channel 2 for guitars, and input 3 is a stereo mini jack for a phone or player. A 2-band master EQ on the front panel lets you shape the sound quickly, and an XLR output sends the mix to another speaker or recorder.
Up to 6 Hours on Battery
The built-in 60 Wh lithium-ion battery runs for up to 6 hours, or about 5 hours continuously at 1/16 power, and recharges in about 2.5 hours. You can also run it from mains power with the supplied PA-500 AC adaptor.
Bluetooth Audio Playback
Bluetooth 5.0 with AAC and SBC support lets you stream backing tracks or background music wirelessly from a smartphone or tablet, so you need fewer cables on stage.
Handle That Doubles as a Stand

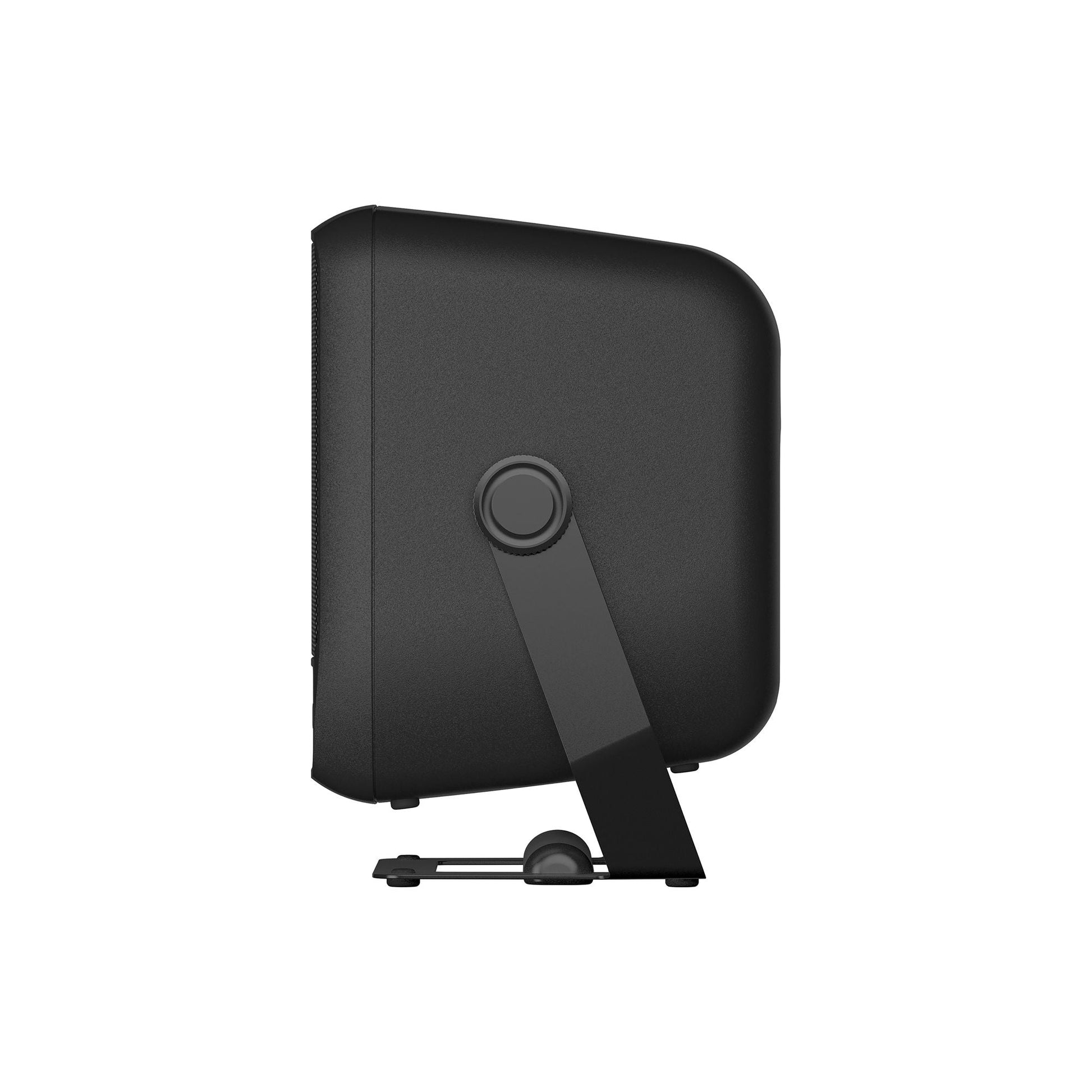

The rotatable carrying handle works as a stand when the PA sits on the floor, and its angle can be adjusted to aim the sound at the audience or back at you as a monitor.
Mic-Stand Mounting and Silent Operation
A 3/8-inch threaded hole in the centre of the handle lets you mount the STAGEPAS 100BTR on a microphone stand for better coverage. Natural convection cooling means there is no fan noise during quiet speech or acoustic sets.
Frequently Asked Questions
STAGEPAS 100BTR or STAGEPAS 200BTR: which should I choose?
The 100BTR is lighter (5.5 kg) and simpler, with 100 W and a 3-channel mixer, ideal for one performer or a speaker. The 200BTR adds 180 W, an 8-inch driver, a 5-channel digital mixer with SPX reverb and app control, and up to 10 hours of battery life.
What is in the box?
Yamaha lists a power cord and the PA-500 AC adaptor; the lithium-ion battery is built in. The BAG-STP100 carrying bag is optional.
Does it have built-in reverb?
No. The STAGEPAS 100BTR focuses on simple operation with a 2-band master EQ. If you want reverb and more channels, choose the STAGEPAS 200BTR.
Can I connect a guitar directly?
Yes. Channel 2 supports Hi-Z input, so you can plug in an acoustic-electric or electric guitar without a DI box.
Can I mount it on a stand?
Yes. The handle has a 3/8-inch threaded hole that fits a standard microphone stand, or you can stand it on the floor using the handle as an angled stand.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | Yamaha STAGEPAS 100BTR |
|---|---|
| Type | 2-way bi-amped powered speaker with mixer, built-in battery |
| Series | STAGEPAS Series |
Mixer
| Mixing Channels | 3 |
|---|---|
| Inputs | INPUT 1: combo (mic/line); INPUT 2: combo (mic/line); INPUT 3: stereo mini x 1 (line) |
| Hi-Z | CH 2 |
| Master | 2-band EQ |
| Output | XLR3-32 (INPUT 1-3 mix) |
| Bluetooth | Ver. 5.0, A2DP (SBC, AAC), Class 1 |
Speaker & Amplifier
| Speaker Type | Coaxial speaker with compression driver |
|---|---|
| LF | 6.5" cone, 1.7" voice coil |
| HF | 1" throat compression driver, 1.4" voice coil |
| Frequency Range (-10 dB) | 70 Hz - 20 kHz |
| Coverage | 90° H x 90° V |
| Crossover | 1.8 kHz (FIR-X) |
| Maximum Output Level | 120 dB SPL (1 m, on axis) |
| Power Rating (Dynamic) | 100 W (LF: 93 W, HF: 7 W) |
| Amplifier | Class-D |
| Cooling | Natural convection (no fan) |
Battery
| Type | Rechargeable lithium-ion battery pack (built in) |
|---|---|
| Capacity | 60 Wh |
| Operating Time | Maximum 6 hours; 5 hours at 1/16 power continuous |
| Charging Time | Approx. 2.5 hours |
General
| Power Requirements | 100-240 V, 50/60 Hz (via PA-500 AC adaptor) |
|---|---|
| Power Consumption | 10 W (idle), 30 W (1/8 power), 50 W (rated) |
| Cabinet | Plastic (PP) |
| Handle | Bottom x 1 (rotatable) |
| Mounting | 1 x 3/8" thread, 12 mm deep (centre of handle) |
| Dimensions (W x H x D) | 239 x 310 x 215 mm (with handle) |
| Weight | 5.5 kg (without AC adaptor) |
| Included | Power cord, PA-500 AC adaptor |
| Optional | BAG-STP100 carrying bag |
Specifications are for the STAGEPAS 100BTR; Yamaha has since added a STAGEPAS 100BTR mkII with USB audio and USB-C power delivery. Specifications from Yamaha India's STAGEPAS 100 specifications and product pages; subject to change by Yamaha.
Similar products

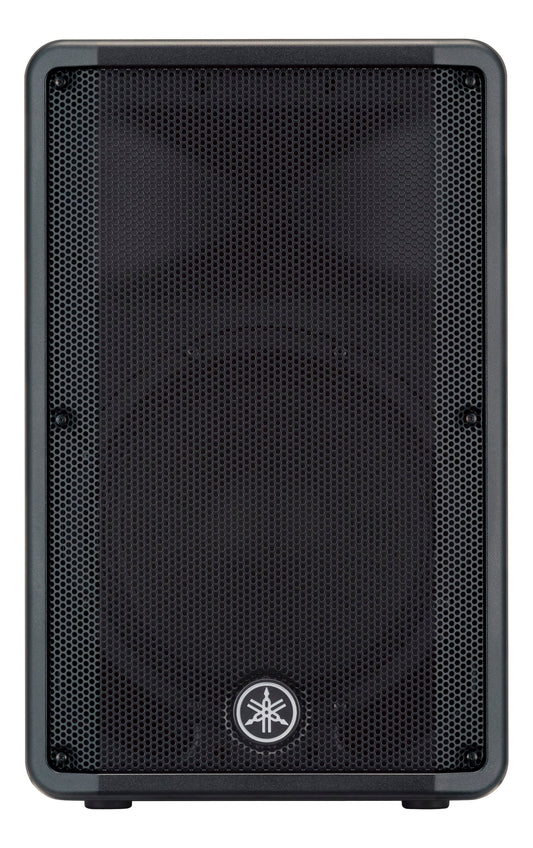

Yamaha DBR12 12-Inch Powered PA Speaker

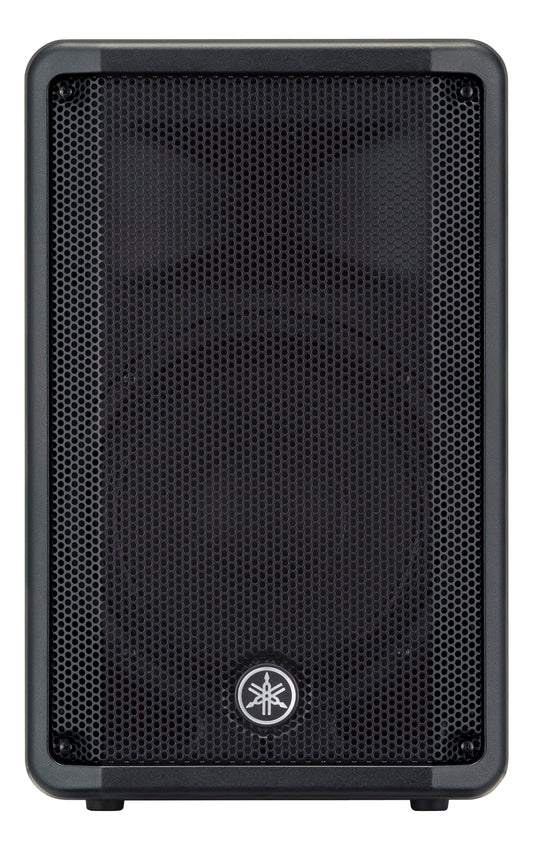

MRP₹58,50030% OFFYMS Price₹40,949Yamaha DBR10 10-Inch Powered PA Speaker

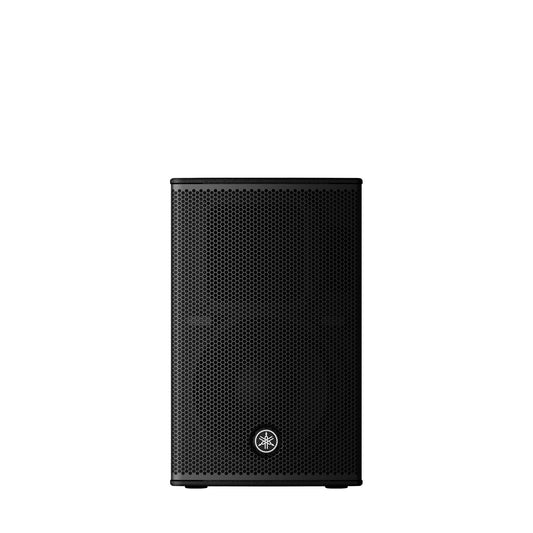

MRP₹54,30030% OFFYMS Price₹38,009Yamaha DHR10 10-Inch Powered PA Speaker
