Yamaha PX8 Power Amplifier

High-output Class-D power with onboard speaker DSP

800 W x 2 at 8 Ω and 1,050 W x 2 at 4 Ω (1 kHz, non-clip, 20 ms burst)
Drives loads down to 2 Ω at 600 W x 2; Class-D engine in a 2U, 7.2 kg chassis
Onboard crossover, HPF/LPF, delay, limiter, 6-band PEQ and D-CONTOUR processing
Config Wizard with presets for Yamaha passive speakers such as CBR and Club series
XLR/TRS inputs; speakON, binding post and 1/4-inch outputs; 8 presets with USB backup

MRP~~₹78,000~~30% OFF

YMS Price₹54,599

Taxes included.

Yamaha PX8 2-Channel Class-D Power Amplifier with DSP

The Yamaha PX8 is a two-channel, 2U rack-mount power amplifier built on a Class-D engine and fitted with its own speaker processing. Yamaha rates it at 800 W x 2 into 8 Ω and 1,050 W x 2 into 4 Ω, and it is the second most powerful PX model.

It suits rental companies, bands, venues, schools, places of worship and installers who drive passive speakers and want crossover, EQ, delay and limiting inside the amplifier rather than in separate outboard units. Basic and Advanced setup modes cater to both newcomers and experienced engineers.

Key Features

PX8 output power into 8, 4 and 2 Ω

Yamaha specifies the PX8 at 800 W x 2 into 8 Ω, 1,050 W x 2 into 4 Ω and 600 W x 2 into 2 Ω, all measured at 1 kHz, non-clip, 20 ms burst, both channels driven. These are the figures for the 220–240 V version sold in India. The wide load range lets you run a single pair of cabinets or several speakers in parallel.

Class-D engine on a single custom LSI

The amplifier engine concentrates its key functions into one custom LSI chip and uses PLL technology to control transfer characteristics in real time. The result is a light yet robust design: the PX8 weighs 7.2 kg and occupies 2U, cooled by two 16-step variable-speed fans with front-to-rear airflow.

Flexible Amp Mode routing

Amp Mode sets up the amplifier by choosing an input routing (Dual, Parallel, Single or SUM) and a speaker structure such as FULL+FULL, SUB+SUB, FULL+SUB or Bi-Amp. That covers a stereo pair of tops, a pair of subwoofers, a sub-and-top combination or one bi-amped cabinet without external crossovers.

Protection for amplifier and speakers

An over-voltage limiter that you can set by wattage or speaker preset helps keep connected speakers within safe limits. Thermal, over-current and integrated power-limit protection act on the amplifier stage and recover automatically, while a DC fault shuts the power supply down.

Built-in speaker processing in the PX8

Each unit includes input summing, high- and low-pass filters adjustable from 20 Hz to 20 kHz with polarity control, delay of up to 74 ms and a speaker processor combining 6-band PEQ, limiter and delay. Yamaha's D-CONTOUR multi-band dynamic processing (FOH/Main or Monitor) keeps the sound clear and consistent, and analogue-in to speaker-out latency is 1.5 ms. Editing of the 6-band PEQ requires firmware V1.5 or later in Advanced mode.

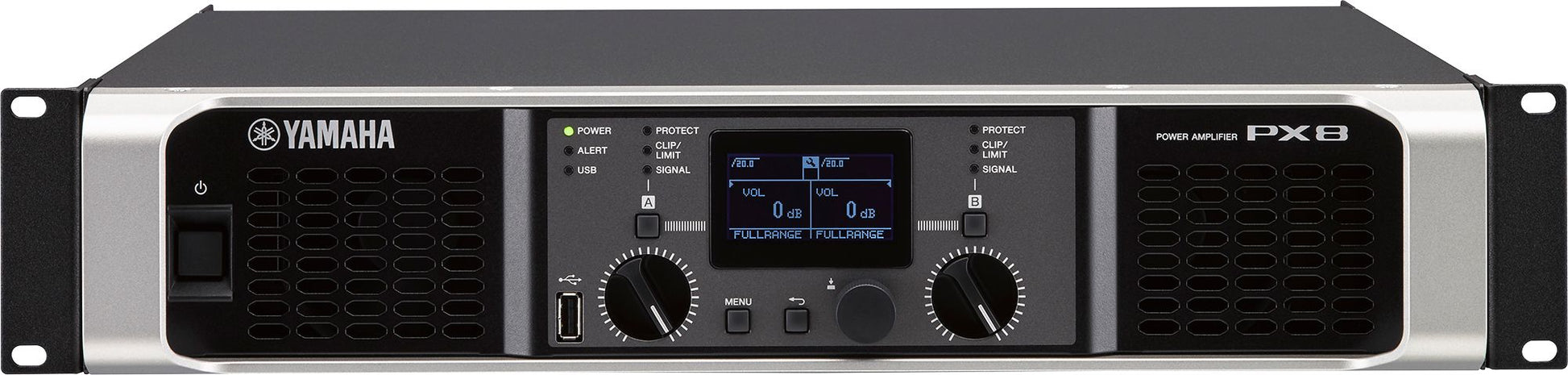

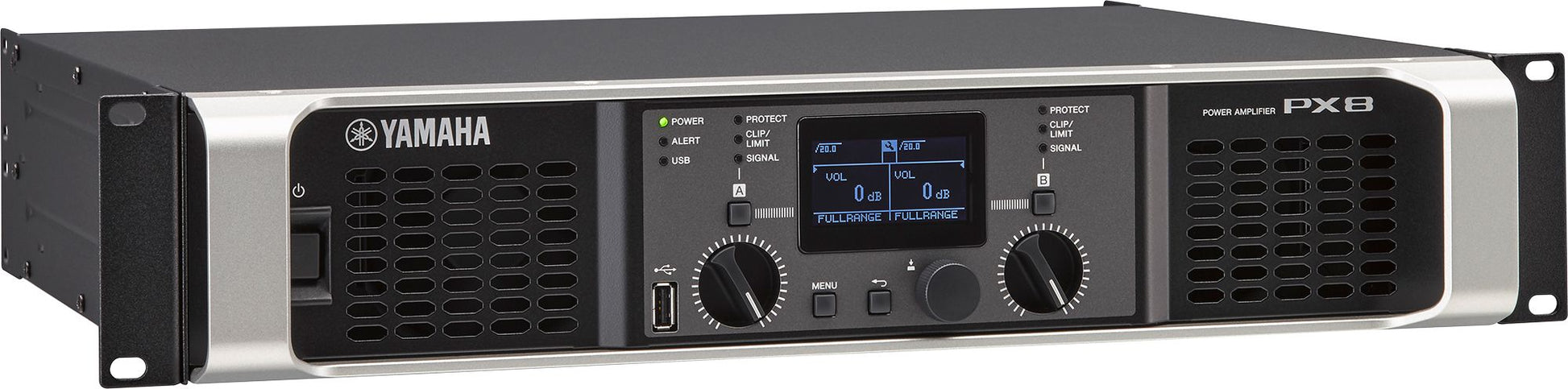

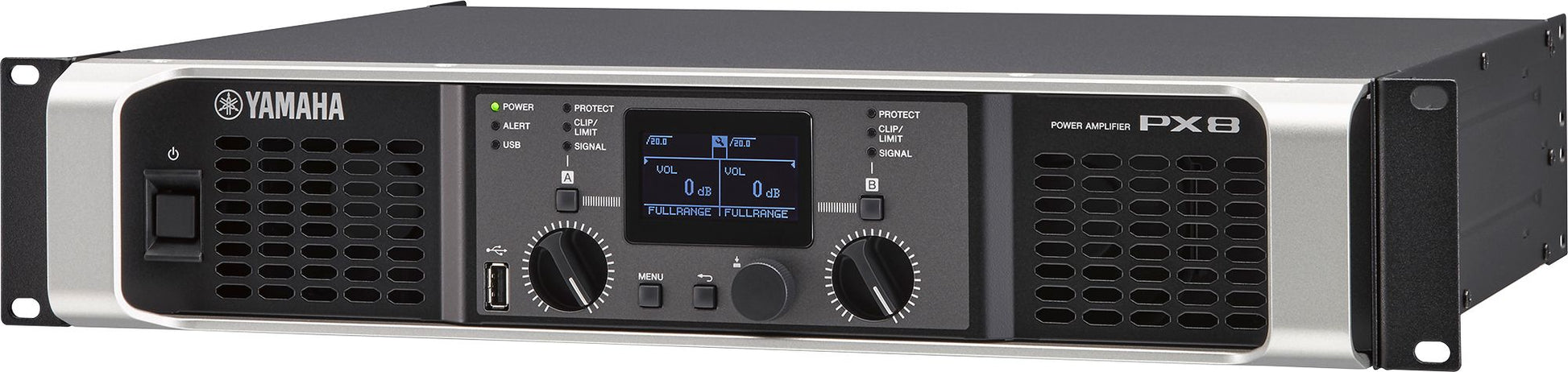

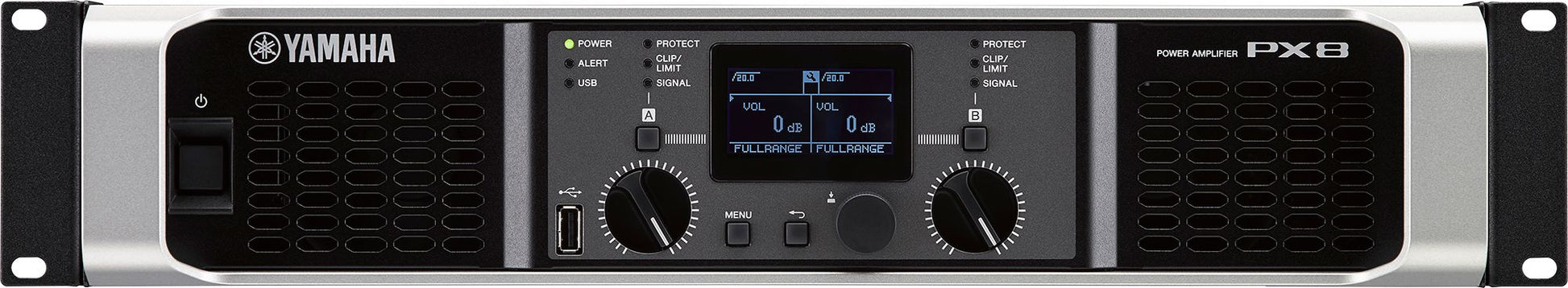

Front panel of the Yamaha PX8 power amplifier showing the LCD screen, channel volume knobs, status LEDs and USB port

Config Wizard and Yamaha speaker presets

A Basic mode guides less experienced users, while Advanced mode exposes input routing, input sensitivity, amp gain and speaker impedance. Config Wizard applies optimised filter and crossover settings, with presets tuned for Yamaha passive speakers including the CBR, Club, Installation and VXS/VXC series. Yamaha adds presets through firmware updates, such as V1.66, which added the CXR mk3 and CXS mk3 series.

Eight presets, USB transfer and panel lock

Eight user presets can be recalled instantly, saved to a USB thumb drive and shared with other PX amplifiers. The front USB port also handles speaker preset and firmware updates, and can export device and log data for troubleshooting. A panel lock prevents accidental changes once the system is tuned.

Rear panel of the Yamaha PX8 with XLR and TRS inputs, Neutrik speakON outputs, binding posts, 1/4-inch outputs and AC inlet

Professional inputs, outputs and road-ready build

Each channel has an XLR and a 1/4-inch TRS input wired in parallel, accepting up to +24 dBu. Speaker outputs are provided on Neutrik speakON NL4, binding posts and 1/4-inch TS jacks, and the sturdy chassis with carrying handles is designed for regular touring.

Frequently Asked Questions

How does the PX8 compare with the other PX models sold on YMS?

All four PX models share the same 2U chassis, DSP, presets and connections; they differ in output power. Per Yamaha, at 8 Ω / 4 Ω (1 kHz, non-clip, 20 ms burst, both channels driven): PX3 300 W / 500 W x 2, PX5 500 W / 800 W x 2, PX8 800 W / 1,050 W x 2 and PX10 1,000 W / 1,200 W x 2. Only the PX3 and PX5 add Power Boost mode.

Does the PX8 have a bridge or Power Boost mode?

No. Yamaha offers Power Boost mode only on the PX3 and PX5. The PX8 is used as a two-channel amplifier, and its Amp Mode can still feed two tops, two subs, a sub and a top, or one bi-amped speaker.

What comes in the box?

Yamaha lists a USB cover, the Owner's Manual, a specification sheet and a 2.0 m AC cable. Speaker and signal cables are not included.

Which speakers can I use with it?

Any passive speakers whose impedance and power handling suit the PX8; Yamaha rates it down to 2 Ω. Config Wizard has factory presets for Yamaha passive series such as CBR (for example the CBR15), Club, Installation and VXS/VXC. For other speakers, such as the CHR series, check Yamaha's current preset list or set the filters, PEQ and limiter manually.

What mains power does it need in India?

Indian units run on 220–240 V, 50/60 Hz. Yamaha quotes power consumption of 280 W at 1/8 of maximum power (4 Ω, pink noise on all channels) and 60 W when idling at 4 Ω.

Do I need a mixer to use it?

Yes, a power amplifier needs a line-level source. Connect a mixer such as a Yamaha MG or DM3 series console to the balanced XLR or TRS inputs, which accept signals up to +24 dBu.

Why Buy from YMS?

Authorised Yamaha Premium Retailer
Genuine stock with full manufacturer warranty
Demo units at our Bengaluru and Mangaluru stores
Secure delivery across India
Free domestic shipping on all orders

Specifications

Overview

Model	Yamaha PX8
Type	2-channel power amplifier with DSP
Series	PX Series
Amplifier Class	Class D, balanced output circuit (BTL)
Rack Size	2U

Output Power (1 kHz, non-clip, 20 ms burst, both channels driven)

8 Ω	800 W x 2
4 Ω	1,050 W x 2
2 Ω	600 W x 2

Performance

Total Harmonic Distortion	0.1% (1 kHz, 10 W); 0.3% (1 kHz, half power)
Frequency Response	±1.0 dB (1 W, 8 Ω, 20 Hz to 20 kHz)
S/N Ratio	101 dB (A-weighted, 8 Ω, gain setting +14 dBu)
Crosstalk	Less than -60 dB (half power, 8 Ω, 1 kHz, volume max, input 150 Ω shunt)
Voltage Gain / Sensitivity (8 Ω, volume max)	32.0 dB / +8.3 dBu (gain setting 32 dB); 26.0 dB / +14.3 dBu (26 dB); 36.3 dB / +4 dBu (+4 dBu); 26.3 dB / +14 dBu (+14 dBu)
Maximum Input Voltage	+24 dBu
Input Impedance	20 kΩ (balanced), 10 kΩ (unbalanced)

Processing

Sampling Frequency	48 kHz (internal)
A/D and D/A Converters	24-bit linear, 128x oversampling
Processors	Input summing; D-CONTOUR (FOH/Main, Monitor, Off); delay (0–74 ms); HPF/LPF (20 Hz–20 kHz cutoff, polarity control); speaker processor (6-band PEQ + limiter + delay)
Latency	1.5 ms (analogue input to speakers)
Presets	8 user amplifier presets; factory speaker presets for Yamaha passive speakers

Inputs & Outputs

Line Inputs	XLR-3-31 x 2, 1/4-inch TRS phone x 2
Speaker Outputs	Neutrik speakON NL4 x 2, binding posts x 2 pairs, 1/4-inch TS phone x 2
Other	USB 2.0 Type-A (female) for save/load, speaker preset and firmware updates; AC inlet x 1 with cord clamp
Indicators	Power, Alert, USB, Protect x 2, Clip/Limit x 2, Signal x 2; auto LED-off feature

Protection

Load Protection	Output mute at power on/off; over-voltage limiter, user-configurable by wattage and speaker preset; DC fault: power supply shutdown (not restored automatically)
Amplifier Protection	Thermal: output limiter then output mute (auto restore); over-current: output mute (auto restore); over-voltage and integrated power limit: output limiter (auto restore)
Power Supply Protection	Thermal: output limiter then power supply shutdown; over-voltage and over-current: power supply shutdown

General

Cooling	2 x 16-step variable-speed fans, front-to-rear airflow
Power Requirements	220–240 V, 50/60 Hz (India); 100 V and 120 V versions sold elsewhere
Power Consumption	280 W (1/8 max power, 4 Ω, pink noise, all channels); 60 W (4 Ω, idling)
Dimensions (W x H x D)	480 x 88 x 388 mm (18-7/8 x 3-7/16 x 15-2/8 in)
Net Weight	7.2 kg (15.87 lb)
Operating Temperature	0 °C to +40 °C
Storage Temperature	-20 °C to +60 °C

Included Accessories

In the Box	USB cover, Owner's Manual, specification sheet, AC cable (2.0 m) x 1

Specifications from Yamaha India's PX Series specs page (220–240 V model); subject to change by Yamaha.
