Yamaha MG10XUF 10-Channel Analog Mixing Console with Effects, USB & Faders
Ten channels, SPX effects and USB audio, with real faders
- Channel faders for hands-on live mixing - the only 10-channel MG with faders
- Built-in USB audio interface, 2-in/2-out, up to 24-bit/192 kHz
- Yamaha SPX effects with 24 programmes and a foot-switch jack
- Four D-PRE mic preamps with +48V phantom power, 26 dB pad and 80 Hz HPF
- 1-knob compressor on channels 1-2, three-band EQ and Cubase AI download
Taxes included.
Yamaha MG10XUF 10-Channel Analog Mixing Console with USB and Faders

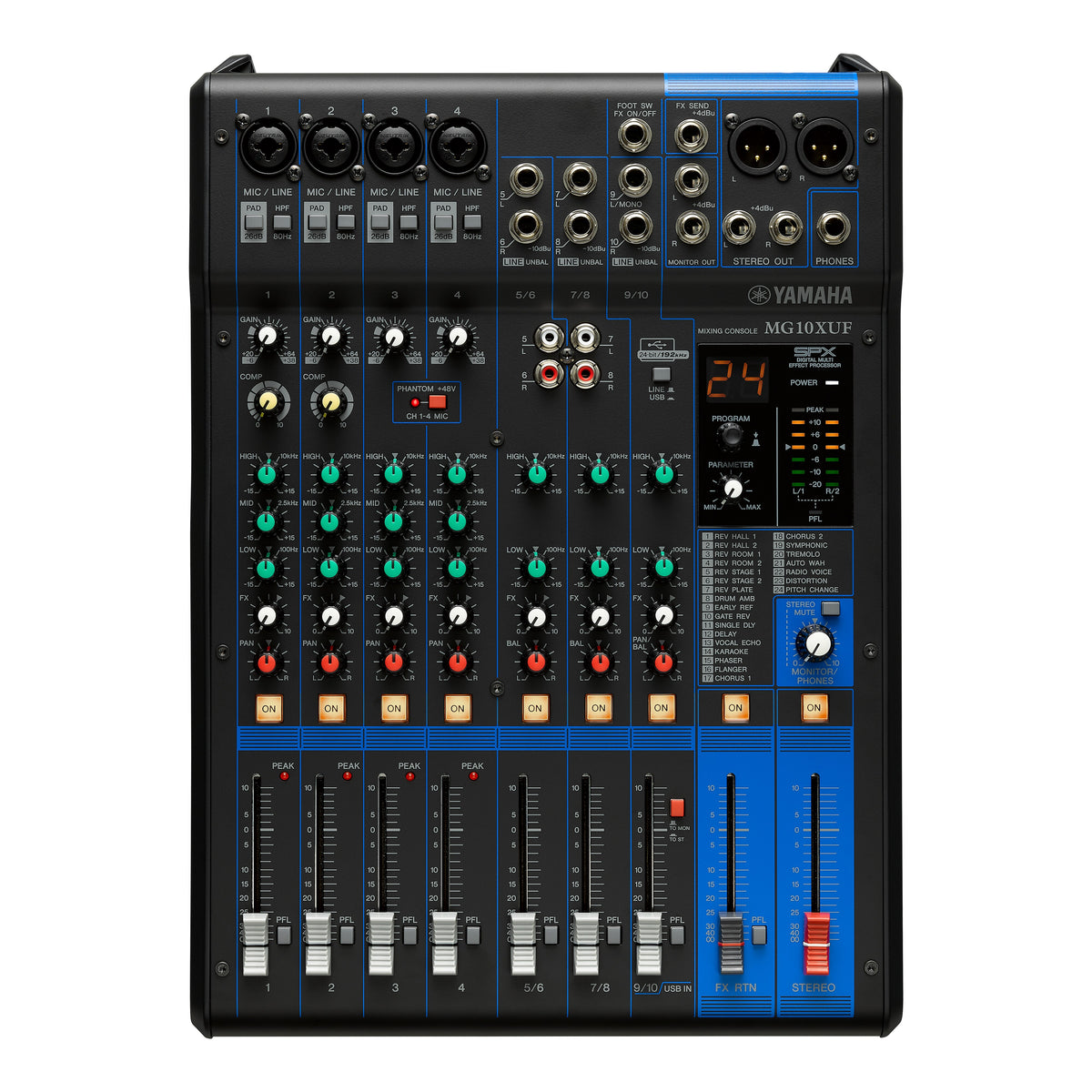

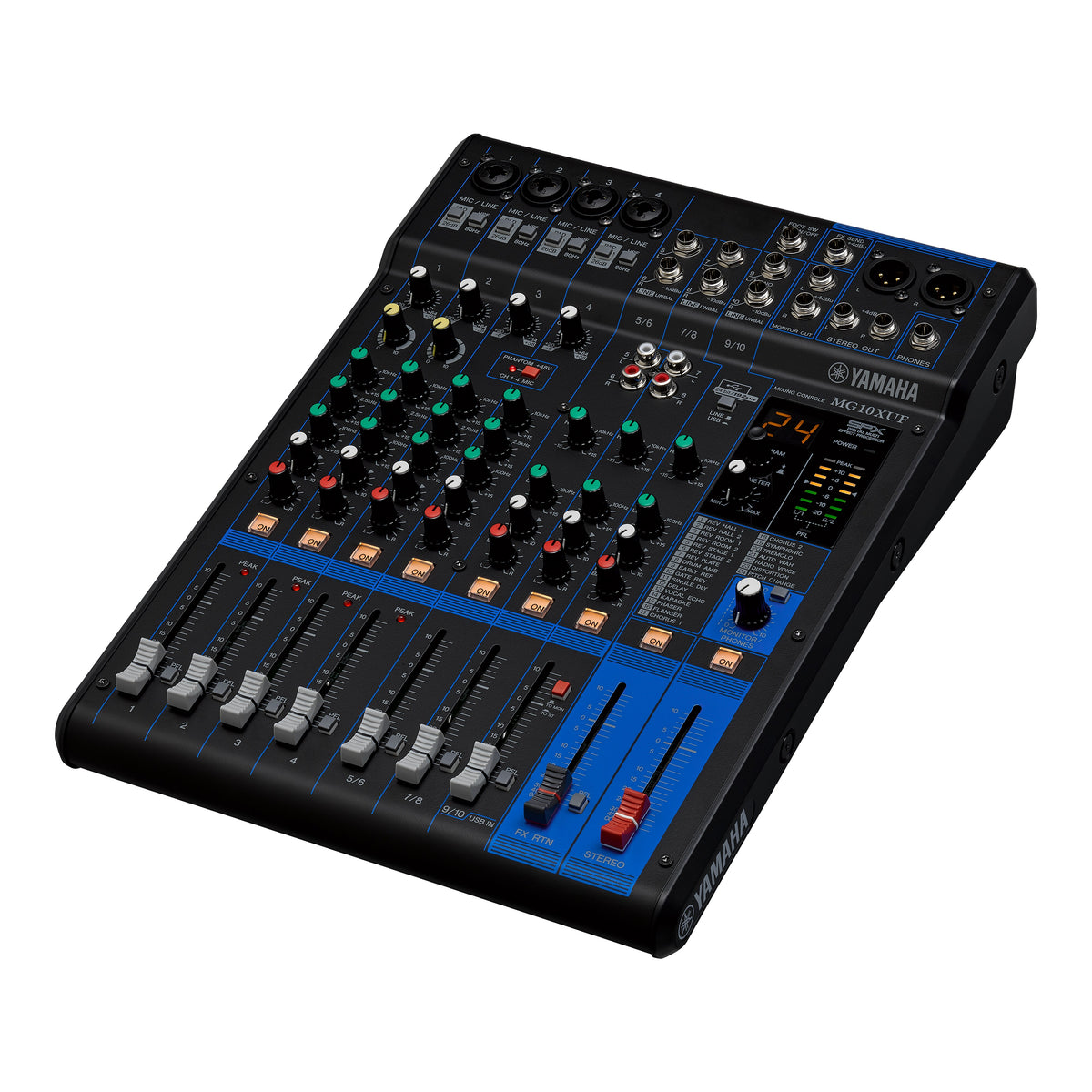

The MG10XUF brings together everything in the 10-channel MG range: four D-PRE mic channels, three stereo line channels, a 1-knob compressor, three-band EQ, 24 SPX effect programmes and a 24-bit/192 kHz USB audio interface. What sets it apart from the MG10XU is its control surface, with faders on the channels, the stereo master and the effect return instead of rotary level knobs.

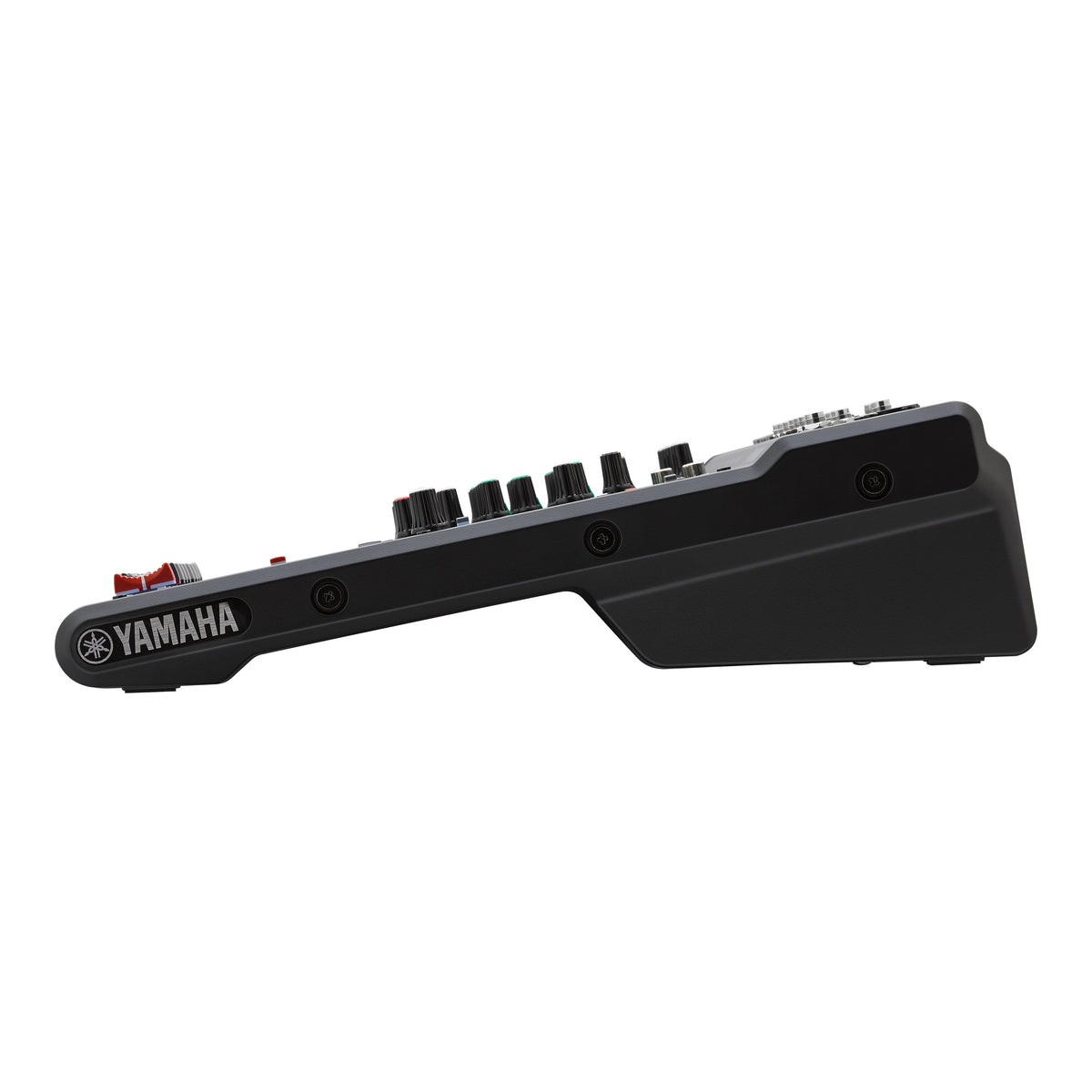

Faders make it easier to ride levels during a live set and to read the whole mix at a glance, which suits worship teams, live bands, events and streamers who mix while they perform. The trade-off is size: at 3.3 kg and 390 mm deep it is larger than the knob-based MG10XU.
Key Features
Channel Faders on the MG10XUF Mixer
Each channel, the stereo master and the effect return are controlled with faders rather than knobs. Faders are quicker and more precise to adjust during a performance, and their positions show the balance of the mix at a glance.
24-bit/192 kHz USB Audio Interface

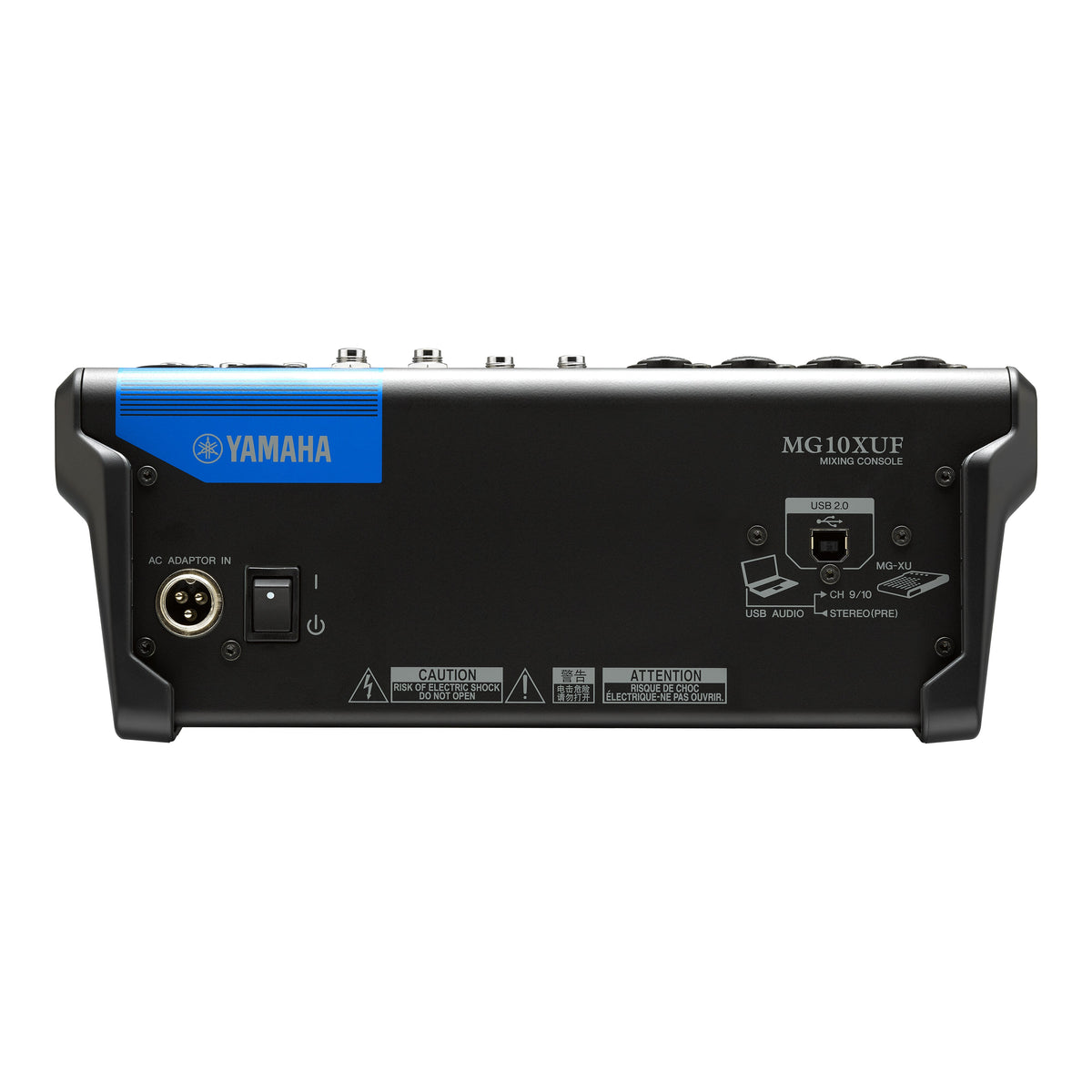

The USB 2.0 port provides 2-in/2-out audio at up to 24-bit/192 kHz and is USB Audio Class 2.0 compliant. Record the stereo mix to a computer, or play audio back into channels 9/10 using the LINE/USB selector. It also works with an iPad or iPhone using Apple's camera adapter. A USB cable is not included.
SPX Effects with 24 Programmes
Yamaha's SPX processor offers 24 programmes, including hall, room and plate reverbs, delays, vocal echo, chorus, flanger and pitch change. A PARAMETER knob tweaks the selected programme, and an optional FC5 foot switch turns the effect on and off hands-free.
Four D-PRE Mic Preamps
Channels 1-4 use discrete Class-A D-PRE preamps with an inverted Darlington circuit, on balanced combo jacks. One +48V switch powers condenser mics, and each mono channel has a 26 dB pad and an 80 Hz high-pass filter.
1-Knob Compressor and Three-Band EQ
Channels 1 and 2 have Yamaha's 1-knob compressor for steady vocals or instruments. Every channel gets a three-band EQ with 10 kHz and 100 Hz shelving and a 2.5 kHz peaking mid, each +/-15 dB.
Flexible Outputs for the MG10XUF Analog Mixer
Balanced XLR and TRS stereo outputs feed the main speakers, an FX send drives an external effects unit or a performer monitor, and a separate monitor output plus headphone jack serve the operator. A TO MON/TO ST switch sends channels 9/10 to either the monitor feed or the main mix, which is handy for streaming.
Cubase AI Software Included
The MG10XUF comes with download information for Steinberg's Cubase AI recording software, and the Cubasis LE app for iPad is available from the App Store, so you can start recording straight away.
Frequently Asked Questions
What is the difference between the MG10XUF and the MG10XU?
Both have four mic channels, three stereo line channels, 24 SPX effect programmes and a 24-bit/192 kHz USB interface. The MG10XUF uses faders for the channel, master and effect-return levels, while the MG10XU uses rotary knobs. The MG10XUF is larger and heavier (275 x 110 x 390 mm, 3.3 kg) than the MG10XU (244 x 71 x 294 mm, 2.1 kg).
MG10XUF or MG10X - which should I buy?
Choose the MG10X if you only mix live and are happy with knobs. Choose the MG10XUF if you want faders and the ability to record or stream through USB.
What comes in the box?
Yamaha lists an AC adaptor, the Owner's Manual, Cubase AI download information and the Technical Specifications sheet. A USB cable and the FC5 foot switch are not included.
Can I use the MG10XUF for live streaming?
Yes. Connect it to a computer by USB and it acts as a 2-in/2-out audio interface. Playback from the computer can be routed into channels 9/10, and the TO MON/TO ST switch lets you choose whether that audio goes to the main mix or only to your monitoring.
Does it work with an iPad?
Yes. Yamaha states the XU models work with an iPad (2 or later) or iPhone through Apple's iPad Camera Connection Kit or Lightning to USB Camera Adapter, which is sold separately.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | Yamaha MG10XUF |
|---|---|
| Type | 10-channel analog mixing console with SPX effects, USB audio and faders |
| Series | MG Series |
Channels
| Total Input Channels | 10 |
|---|---|
| Mono MIC/LINE | 4 (combo jack, balanced) |
| Stereo LINE | 3 (unbalanced) |
| Mic Preamps | Discrete Class-A D-PRE, inverted Darlington circuit |
| Phantom Power | +48V |
| PAD | 26 dB (mono channels) |
Processing
| Effects | SPX algorithm, 24 programs, PARAMETER control: 1, FOOT SW: 1 (FX RTN on/off) |
|---|---|
| Compressor | 1-knob compressor (CH 1-2) - Threshold +22 to -8 dBu, Ratio 1:1 to 4:1, Output level 0 to 7 dB, Attack approx. 25 ms, Release approx. 300 ms |
| High-Pass Filter | 80 Hz, 12 dB/oct (mono) |
| EQ High | +/-15 dB, 10 kHz shelving |
| EQ Mid | +/-15 dB, 2.5 kHz peaking |
| EQ Low | +/-15 dB, 100 Hz shelving |
| USB Audio | USB Audio Class 2.0 compliant, 2-in/2-out, max 192 kHz, 24-bit (USB Standard-B) |
Outputs & Buses
| Bus | Stereo: 1, AUX[FX]: 1 |
|---|---|
| STEREO OUT | 2 (XLR + phone jack, balanced) |
| FX SEND | 1 |
| MONITOR OUT | 1 (L/R phone jacks, impedance balanced) |
| PHONES | 1 |
| Level Meter | 2 x 7-segment LED [PEAK, +10, +6, 0, -6, -10, -20 dB] |
| Level Controls | Faders (channels, STEREO master, FX RTN) |
General
| Dimensions (W x H x D) | 275 x 110 x 390 mm |
|---|---|
| Net Weight | 3.3 kg |
| Power | PA-10 external adapter (AC 38 VCT, 0.62 A) |
| Power Consumption | 22.9 W |
| Frequency Response | +0.5 dB / -1.5 dB, 20 Hz to 48 kHz |
| Total Harmonic Distortion | 0.03% @ +14 dBu (20 Hz to 20 kHz) |
| Equivalent Input Noise | -128 dBu |
| Crosstalk | -83 dB |
| Operating Temperature | 0 to +40 C |
| Software | Cubase AI download included |
| Included | AC adaptor, Owner's Manual, Cubase AI Download Information, Technical Specifications |
| Optional | FC5 foot switch |
Same feature set as the MG10XU but with faders in a larger chassis. Specifications from Yamaha India's MG Series specifications page and the Yamaha owner's manual; subject to change by Yamaha.
