Yamaha MG16 16-Channel Analog Mixing Console
Ten mics, four groups and four AUX sends for serious live mixing
- Up to ten mic inputs on discrete Class-A D-PRE preamps with +48V phantom power
- Four group buses and four AUX sends for monitors, zones and recording feeds
- Three-band EQ with sweepable mid on mono channels, plus 1-knob compressors
- Channel and group faders, PFL and 12-segment stereo metering
- Internal 100-240 V power supply and rack-mount kit included
Taxes included.
Yamaha MG16 16-Channel Analog Mixing Console

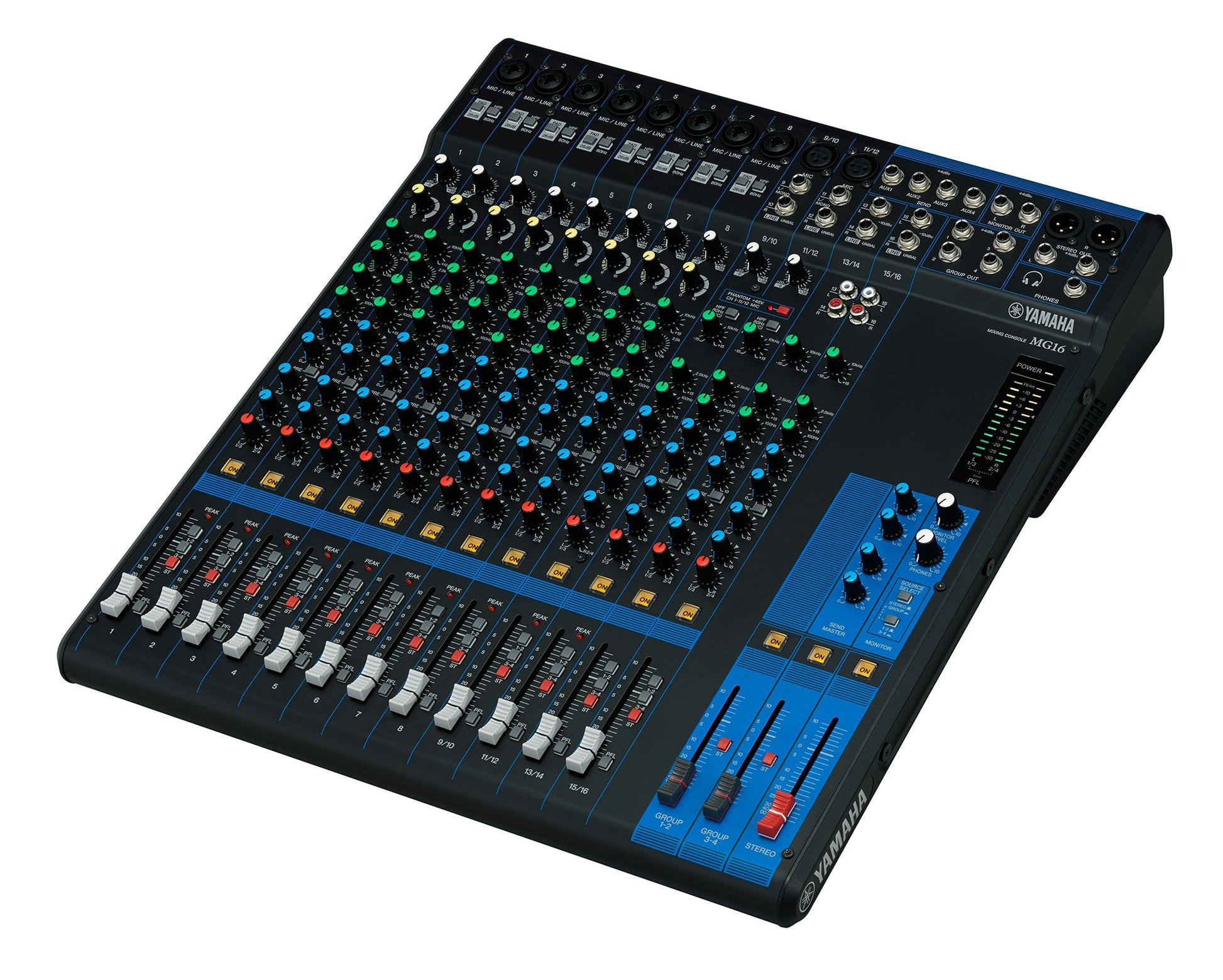

The Yamaha MG16 is a 16-channel analog mixing console with up to ten D-PRE mic inputs, four group buses and four AUX sends. It is a clean, effects-free desk built for venues and bands that rely on outboard processing or simply need straightforward, reliable analog mixing.
It suits churches, auditoriums, schools, conference venues and bands that run several monitor mixes. The rack-mount kit comes included, so the MG16 works equally well on a table or installed in a rack.
Key Features
Ten D-PRE Mic Inputs on the MG16
Channels 1-8 have balanced combo jacks, and channels 9/10 and 11/12 add XLR mic inputs beside their line jacks, giving up to ten microphones. All mic inputs use Yamaha's discrete Class-A D-PRE preamps with an inverted Darlington circuit, with +48V phantom power for condenser mics.
Four Groups and Four AUX Sends
Four group buses with GROUP OUT jacks let you sub-mix drums, vocals or instruments, or feed separate zones and recorders. Four AUX sends cover monitor mixes and external processing, and AUX 1 and AUX 2 have PRE switches for pre- or post-fader sends.
Sweepable Mid EQ and 1-Knob Compressors
The mono channels get a three-band EQ whose mid band sweeps from 250 Hz to 5 kHz, giving you more precise tone shaping than the fixed-mid MG12 range. Add Yamaha's 1-knob compressors, 26 dB pads and 80 Hz high-pass filters for clean, controlled sources.
Faders, PFL and Monitoring

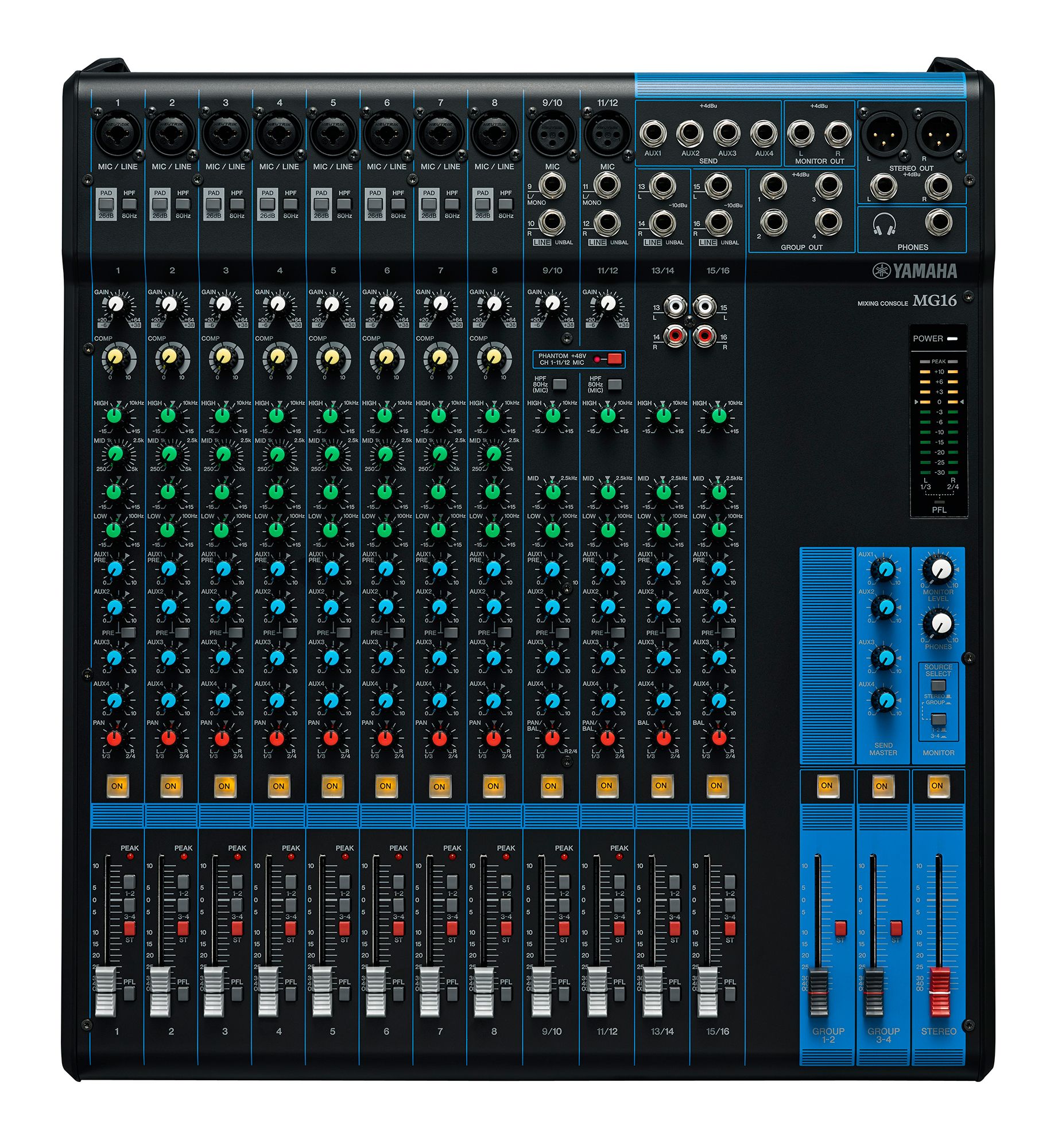

Channel faders, group faders and a STEREO master give you a clear view of the mix. PFL switches send any channel to headphones and MONITOR OUT, the monitor source switch picks the stereo or group buses, and a 2 x 12-segment LED meter shows output levels.
Stereo Inputs for Keyboards and Playback
Channels 13/14 and 15/16 are stereo line inputs with phone and RCA jacks for keyboards, laptops and media players. Channels 9/10 and 11/12 also take stereo line sources when their mic inputs are not in use.
Rack Ears, Internal Power and Metal Chassis

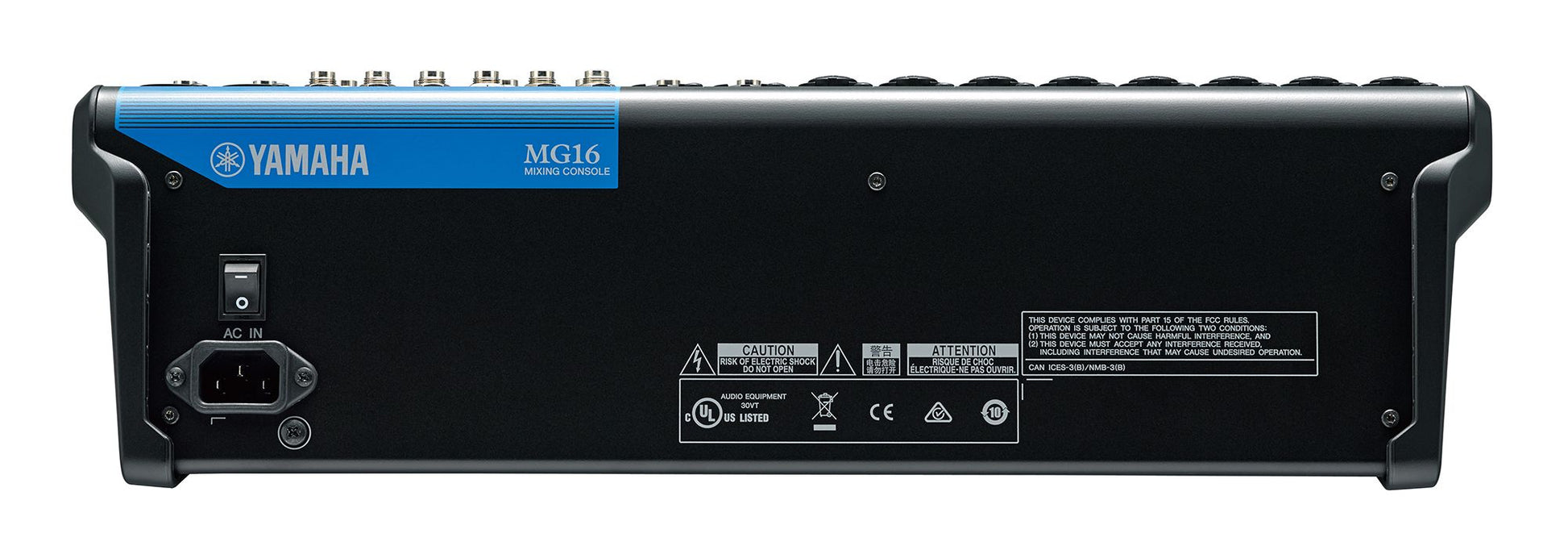

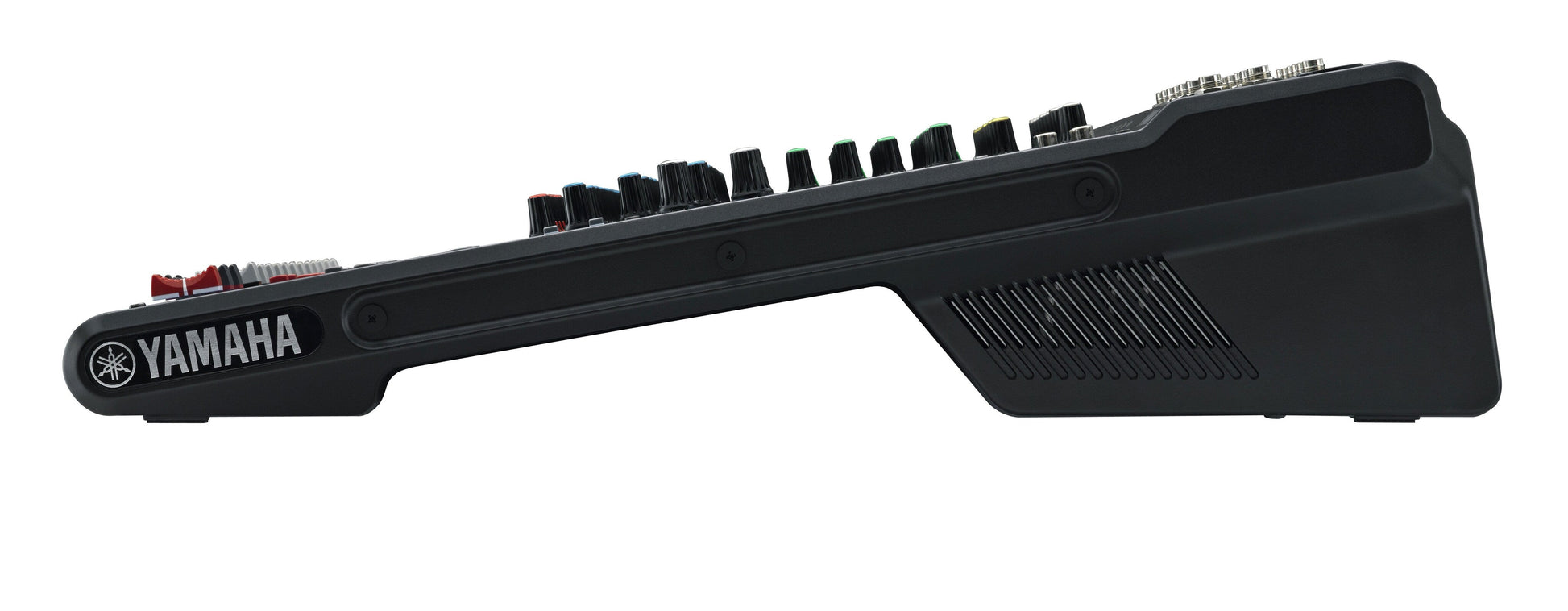

The MG16 comes with a rack-mount kit, so it can sit on a table or in a 19-inch rack. Its internal universal 100-240 V supply avoids an external adaptor, and the powder-coated metal chassis is built for regular gigging.
Frequently Asked Questions
How do the MG16, MG16X and MG16XU differ?
All three share the same 16-channel layout, preamps, four groups, four AUX sends, sweepable mid EQ and rack kit. The MG16X adds 24 SPX effects, and the MG16XU adds those effects plus a 24-bit/192 kHz USB audio interface.
Should I choose the MG16 or the MG12?
The MG16 adds four more mic inputs (ten in total), four groups instead of two, four AUX sends instead of two, a sweepable mid EQ and an included rack kit. Choose the MG12 if six mics and two monitor mixes are enough.
Does the MG16 have built-in effects or USB?
No. For built-in SPX effects choose the MG16X, and for effects plus USB recording choose the MG16XU.
What comes in the box?
Yamaha lists the Owner's Manual, Technical Specifications, AC power cord and rack-mount kit.
Who is the MG16 best suited to?
Installations and live setups that need up to ten microphones, several monitor or zone feeds and dependable analog sound, especially where effects are handled by external processors.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | Yamaha MG16 |
|---|---|
| Type | 16-channel analog mixing console |
| Series | MG Series |
Channels
| Total Input Channels | 16 |
|---|---|
| Mono MIC/LINE | 8 (combo jack, balanced) |
| Mono/Stereo MIC/LINE | 2 (XLR mic or stereo line on phone jacks) |
| Stereo LINE | 2 (phone and RCA, unbalanced) |
| Mic Inputs (max.) | 10 |
| Mic Preamps | Discrete Class-A D-PRE, inverted Darlington circuit |
| Phantom Power | +48V |
| PAD | 26 dB (mono channels) |
Processing
| Compressor | 1-knob compressor - Threshold +22 to -8 dBu, Ratio 1:1 to 4:1, Output level 0 to 7 dB, Attack approx. 25 ms, Release approx. 300 ms |
|---|---|
| High-Pass Filter | 80 Hz, 12 dB/oct (mono and mono/stereo: MIC only) |
| EQ High | +/-15 dB, 10 kHz shelving |
| EQ Mid | +/-15 dB, mono 250 Hz-5 kHz peaking (sweepable), stereo 2.5 kHz peaking |
| EQ Low | +/-15 dB, 100 Hz shelving |
| Effects | Not fitted - see MG16X |
| USB Audio | Not fitted - see MG16XU |
Outputs & Buses
| Bus | Stereo: 1, GROUP: 4, AUX: 4 |
|---|---|
| STEREO OUT | 2 (XLR + phone jack, balanced) |
| GROUP OUT | 4 (phone jack, impedance balanced) |
| AUX SEND | 4 (phone jack, impedance balanced) |
| MONITOR OUT | 1 (L/R phone jacks, impedance balanced) |
| PHONES | 1 |
| Level Meter | 2 x 12-segment LED [PEAK, +10, +6, +3, 0, -3, -6, -10, -15, -20, -25, -30 dB] |
General
| Dimensions (W x H x D) | 444 x 130 x 500 mm |
|---|---|
| Net Weight | 6.6 kg |
| Power | Internal universal supply, AC 100-240 V, 50/60 Hz |
| Power Consumption | 30 W |
| Total Harmonic Distortion | 0.03% @ +14 dBu (20 Hz-20 kHz), 0.005% @ +24 dBu (1 kHz), GAIN min |
| Frequency Response | +0.5 dB / -1.5 dB, 20 Hz to 48 kHz |
| Equivalent Input Noise | -128 dBu (mono input channel, Rs: 150 ohm, GAIN max) |
| Residual Output Noise | -102 dBu (STEREO OUT) |
| Crosstalk | -78 dB |
| Operating Temperature | 0 to +40 °C |
| Included | Owner's Manual, Technical Specifications, AC power cord, rack-mount kit |
The MG16 has no SPX effects and no USB audio interface. Level meter per the Yamaha owner's manual. Specifications from Yamaha India's MG Series specifications page and the Yamaha owner's manual; subject to change by Yamaha.
