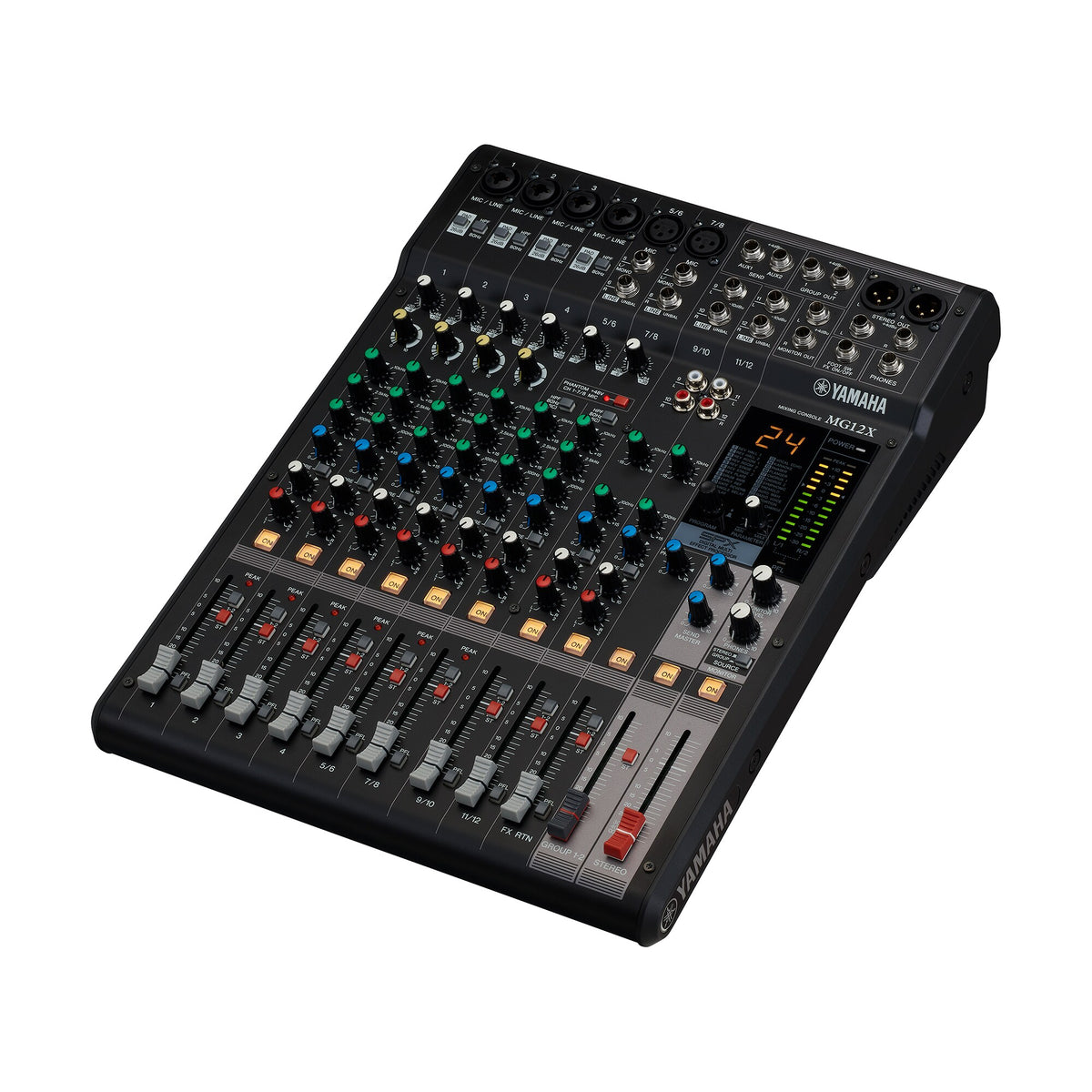

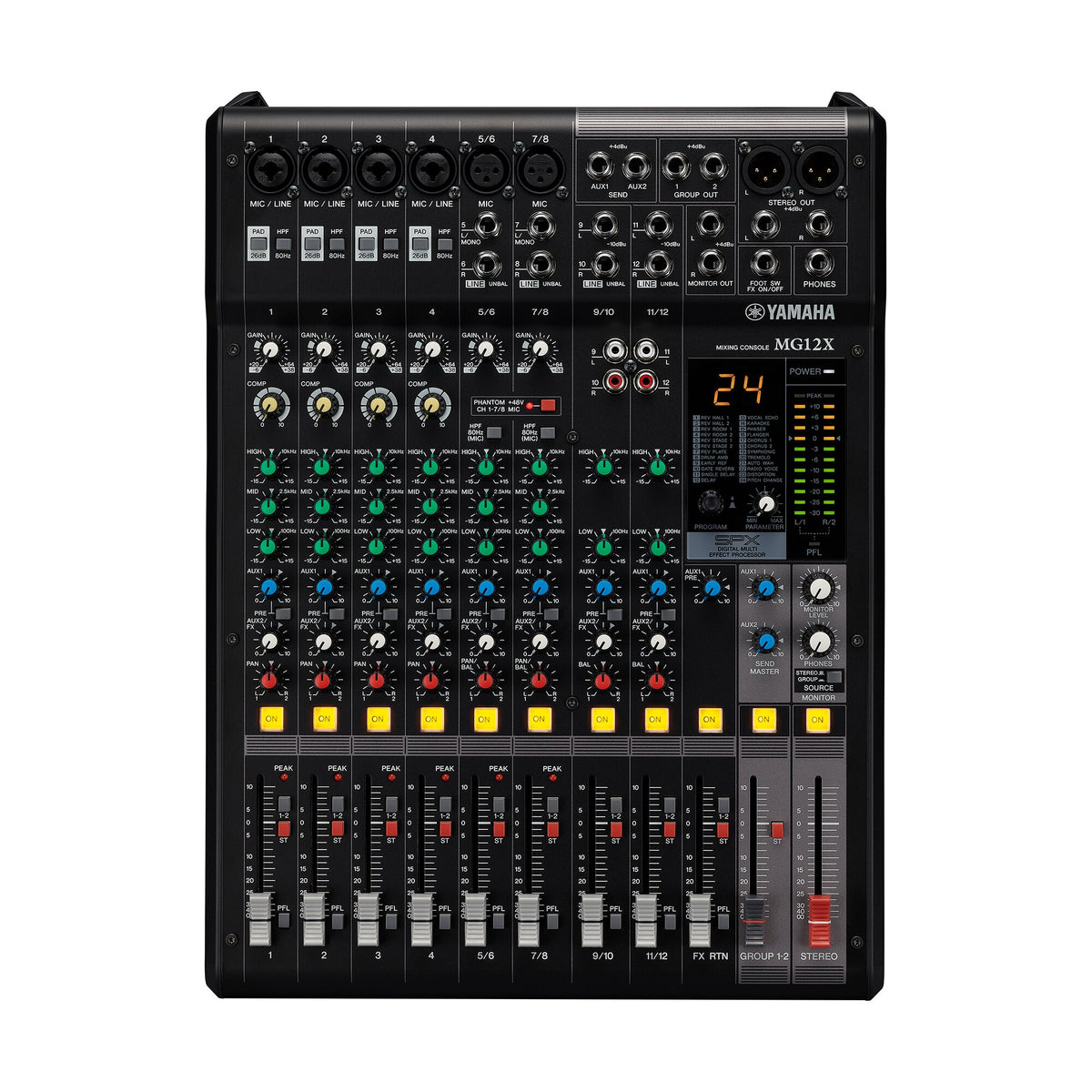

Yamaha MG12X 12-Channel Analog Mixing Console with SPX Effects

Yamaha MG12X 12-Channel Analog Mixing Console with SPX Effects

Twelve channels, two groups, onboard reverb.

SPX digital effects with 24 programmes and a foot-switch jack
6 mic inputs on discrete Class-A D-PRE preamps
Two subgroups and two AUX sends for real live routing
Sweepable 250 Hz-5 kHz mid EQ on the mono channels
Internal universal 100-240V power supply - no external adapter

MRPRs. 40,600.00

YMS PriceRs. 30,450.0025% OFF

Taxes included.

View full details

Product details

Twelve Channels, Two Groups, Onboard Reverb

The MG12X is the MG12 with Yamaha's SPX effects engine — 24 programmes of reverb, delay and modulation, a parameter control and a foot-switch jack. Everything else carries over: six mic inputs on D-PRE preamps, two subgroups, two AUX sends, one-knob compressors, sweepable-mid EQ, faders and an internal universal power supply.

For most bands, churches and school halls this is the sweet spot of the analog MG range — enough inputs for a full band, real routing, and reverb built in so nothing extra has to be carried or patched.

At a Glance

Channels12 total

Mic inputs6 × D-PRE

EffectsSPX, 24 programmes

AUX sends2 (incl. FX)

Subgroups2

USB audioNone

What You Get

SPX effects, 24 programmes, with a parameter knob and an FC5 foot-switch jack for muting the return between songs.
Six mic inputs on D-PRE preamps — four combo mic/line channels plus two that take an XLR mic or a stereo line pair.
Two subgroups and two AUX sends (one of which feeds the effects), so you can group the drums and still run a monitor mix.
One-knob compressors and three-band EQ with a sweepable 250 Hz–5 kHz mid on the mono channels — the band where vocal boxiness and guitar honk live.

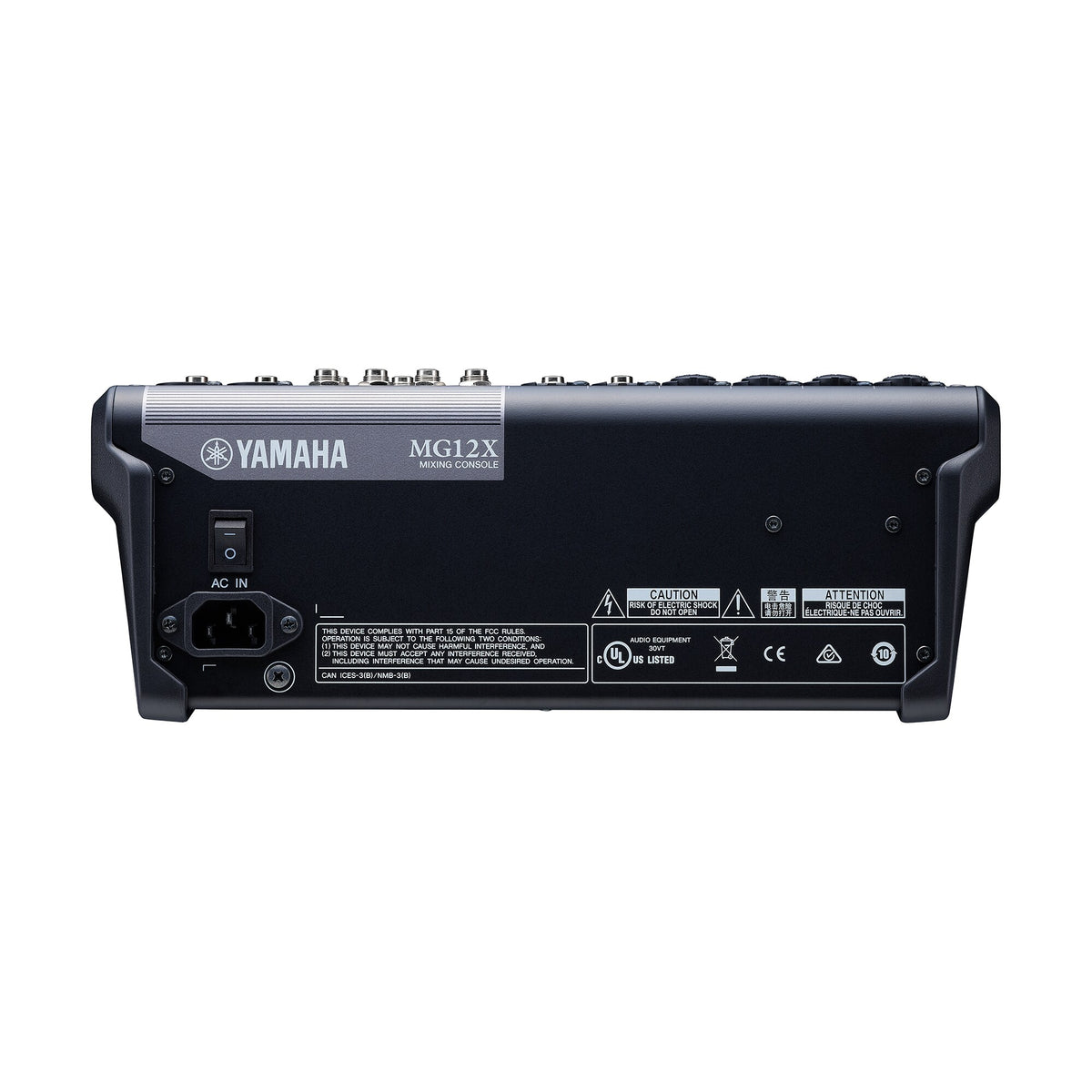

Internal universal power supply, 100–240V, with a standard IEC mains lead rather than an adapter.

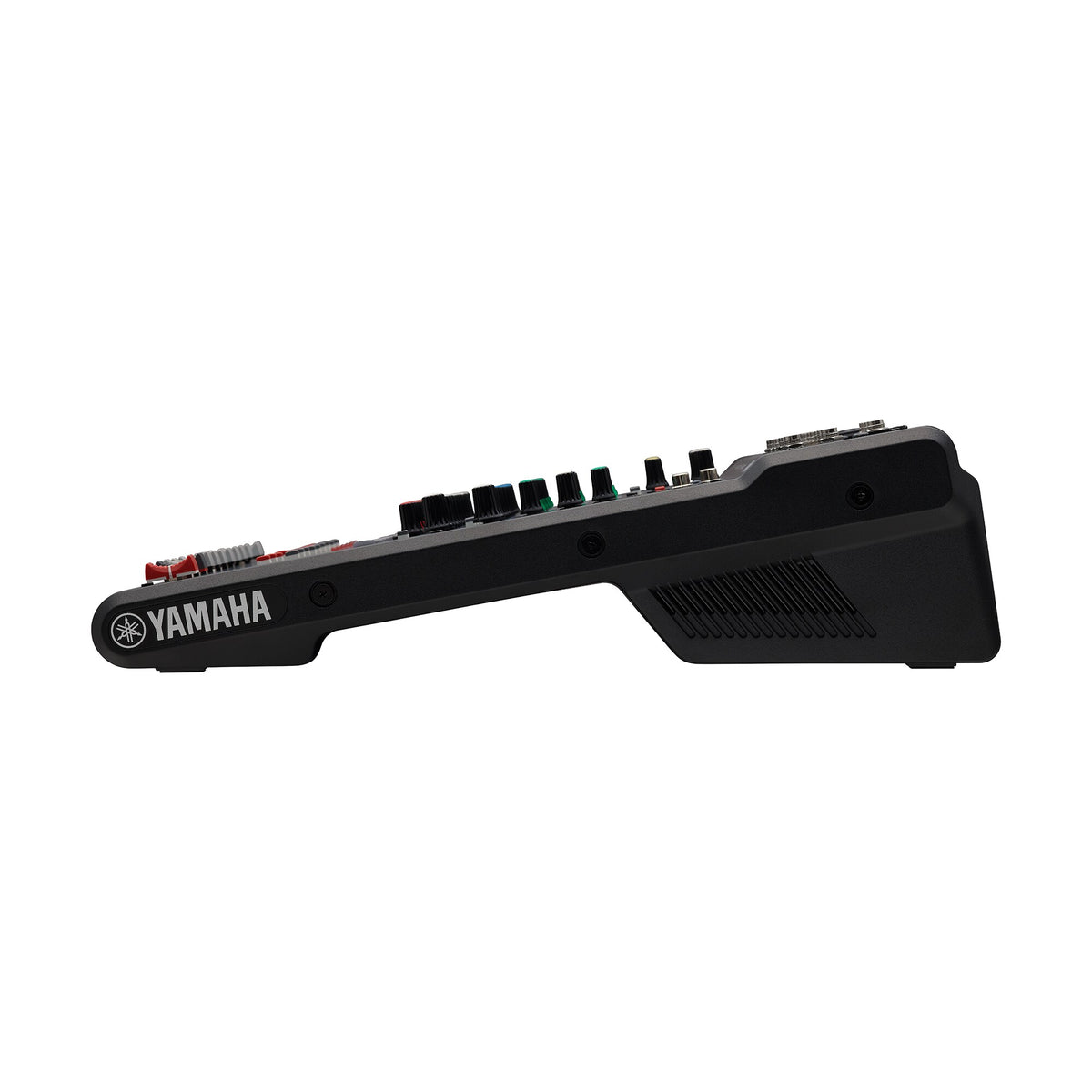

2 × 12-segment LED metering, channel faders, 308 × 118 × 422 mm, 4.2 kg. Optional RK-MG12 rack kit.

Reading the MG Model Names

Yamaha's MG names are a code, and once you know it the whole range makes sense at a glance:

The number is the channel count — 06, 10, 12, 16, 20.
X adds the SPX digital effects processor (reverbs, delays, chorus).
U adds a USB audio interface for recording straight to a computer.
F means channel faders instead of rotary knobs.
K means the reverse — knobs instead of faders, for a shallower, lighter console.

So the MG12X is twelve channels with effects and no USB. The MG12XU is the identical desk with a USB interface added — the only difference between them.

The Full MG Range at YMS

Every analog MG console we stock, smallest to largest. "4 + 2" means four mono mic/line channels plus two that switch between mono mic and stereo line.

Model	Ch	Mono mic/line	Stereo line	Effects	USB	AUX	Groups	Levels	Power
MG06	6	2	2	—	—	—	—	Knobs	Adapter
MG06X	6	2	2	SPX ×6	—	—	—	Knobs	Adapter
MG10	10	4	3	—	—	1	—	Knobs	Adapter
MG10X	10	4	3	SPX ×24	—	1	—	Knobs	Adapter
MG10XU	10	4	3	SPX ×24	Yes	1	—	Knobs	Adapter
MG10XUF	10	4	3	SPX ×24	Yes	1	—	Faders	Adapter

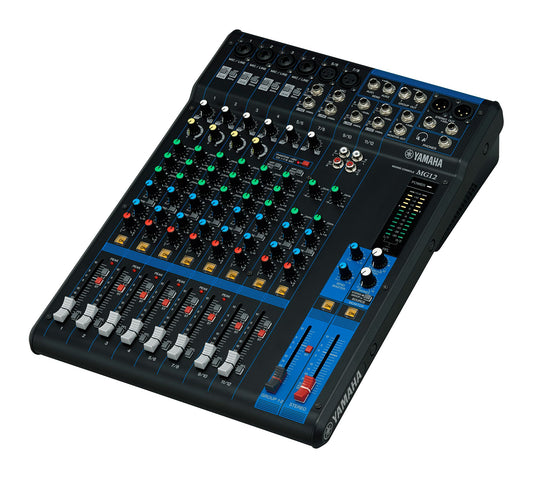

MG12	12	4 + 2	2	—	—	2	2	Faders	Built-in
MG12X	12	4 + 2	2	SPX ×24	—	2	2	Faders	Built-in
MG12XU	12	4 + 2	2	SPX ×24	Yes	2	2	Faders	Built-in
MG12XUK	12	6	3	SPX ×24	Yes	1 (FX)	—	Knobs	Adapter
MG16	16	8 + 2	2	—	—	4	4	Faders	Built-in
MG16X	16	8 + 2	2	SPX ×24	—	4	4	Faders	Built-in
MG16XU	16	8 + 2	2	SPX ×24	Yes	4	4	Faders	Built-in
MG20XU	20	12 + 4	—	SPX ×24	Yes	4	4	Faders	Built-in

FAQ

Q. What is the difference between the MG12X and the MG12XU?

The USB audio interface, and nothing else. Same preamps, effects, EQ, compressors, chassis and routing. If the desk will never be connected to a computer, the MG12X saves money with no compromise.

Q. Does using the effects cost me an AUX send?

Yes — one of the two sends feeds the internal SPX processor. So in practice you have one send for a monitor wedge and one for reverb. If you need two independent monitor mixes and effects, the MG16X or MG16XU give you four sends.

Q. How many microphones fit?

Six. Channels 1–4 are combo mic/line; channels 5/6 and 7/8 take either an XLR mic or a stereo line pair; channels 9/10 are line only.

Q. Can it be rack-mounted?

Yes, with the optional RK-MG12 kit. The MG16 and MG20XU include theirs in the box.

Why Buy from YMS?

YMS For Music is an authorised Yamaha Premium Retailer. Every MG console is genuine Yamaha stock with full manufacturer warranty, sold and supported by people who use these desks on real jobs.

Honest advice on which model you actually need, demo units in Bengaluru and Mangaluru, and secure delivery across India. Not sure whether you need effects or USB? Ask us before you spend.

Specifications

Overview

Model	Yamaha MG12X
Type	12-channel analog mixing console with SPX effects
Series	MG Series

Channels

Total Input Channels	12
Mono MIC/LINE	4 (combo jack, balanced)
Mono/Stereo MIC/LINE	2 (XLR mic or stereo line)
Stereo LINE	2
Mic Inputs (total)	6
Mic Preamps	Discrete Class-A D-PRE, inverted Darlington circuit
Phantom Power	+48V

Processing

Effects	SPX algorithm, 24 programs, 1 parameter control, foot-switch jack
Compressor	1-knob compressor - Threshold +22 to -8 dBu, Ratio 1:1 to 4:1
High-Pass Filter	80 Hz, 12 dB/oct
EQ High	+/-15 dB, 10 kHz shelving
EQ Mid	+/-15 dB, 2.5 kHz peaking
EQ Low	+/-15 dB, 100 Hz shelving
USB Audio	Not fitted - see MG12XU

Outputs & Buses

Bus	Stereo: 1, GROUP: 2, AUX: 2 (incl. FX)
STEREO OUT	2 (XLR + phone jack, balanced)
GROUP OUT	2
AUX SEND	2
MONITOR OUT	1
PHONES	1
Level Meter	2 x 12-segment LED
Level Controls	Channel faders

General

Dimensions (W x H x D)	308 x 118 x 422 mm
Net Weight	4.2 kg
Power	Internal universal supply, AC 100-240V, 50/60 Hz
Power Consumption	22 W
Included	Owner's Manual, Technical Specifications, AC power cord
Optional	RK-MG12 rack-mount kit, FC5 foot switch

One of the two AUX sends feeds the internal SPX processor. Identical to the MG12XU except for the USB interface. Specifications from Yamaha official product data.
