Product details
Exceptional 139 dB Output with Versatile 12-inch Performance

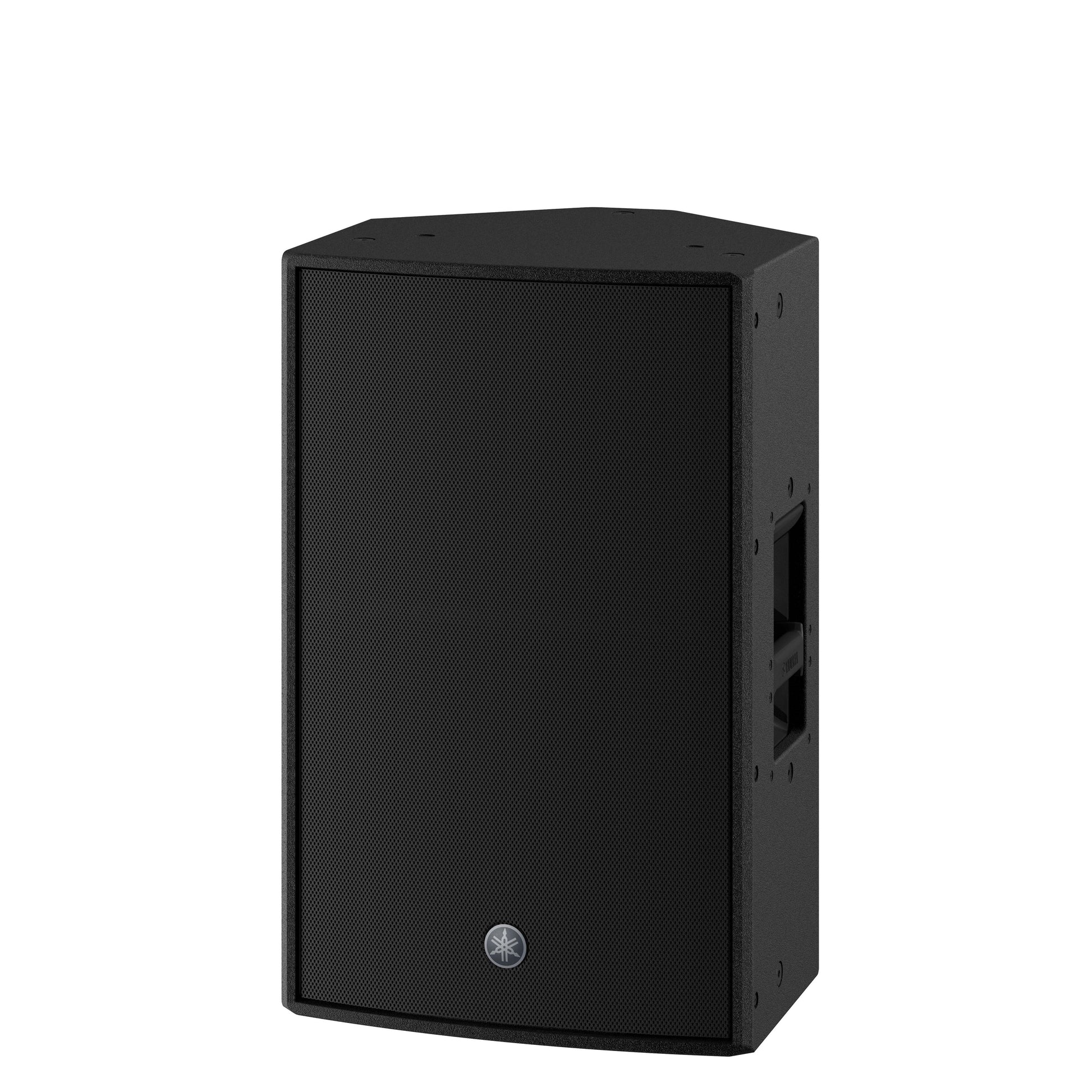

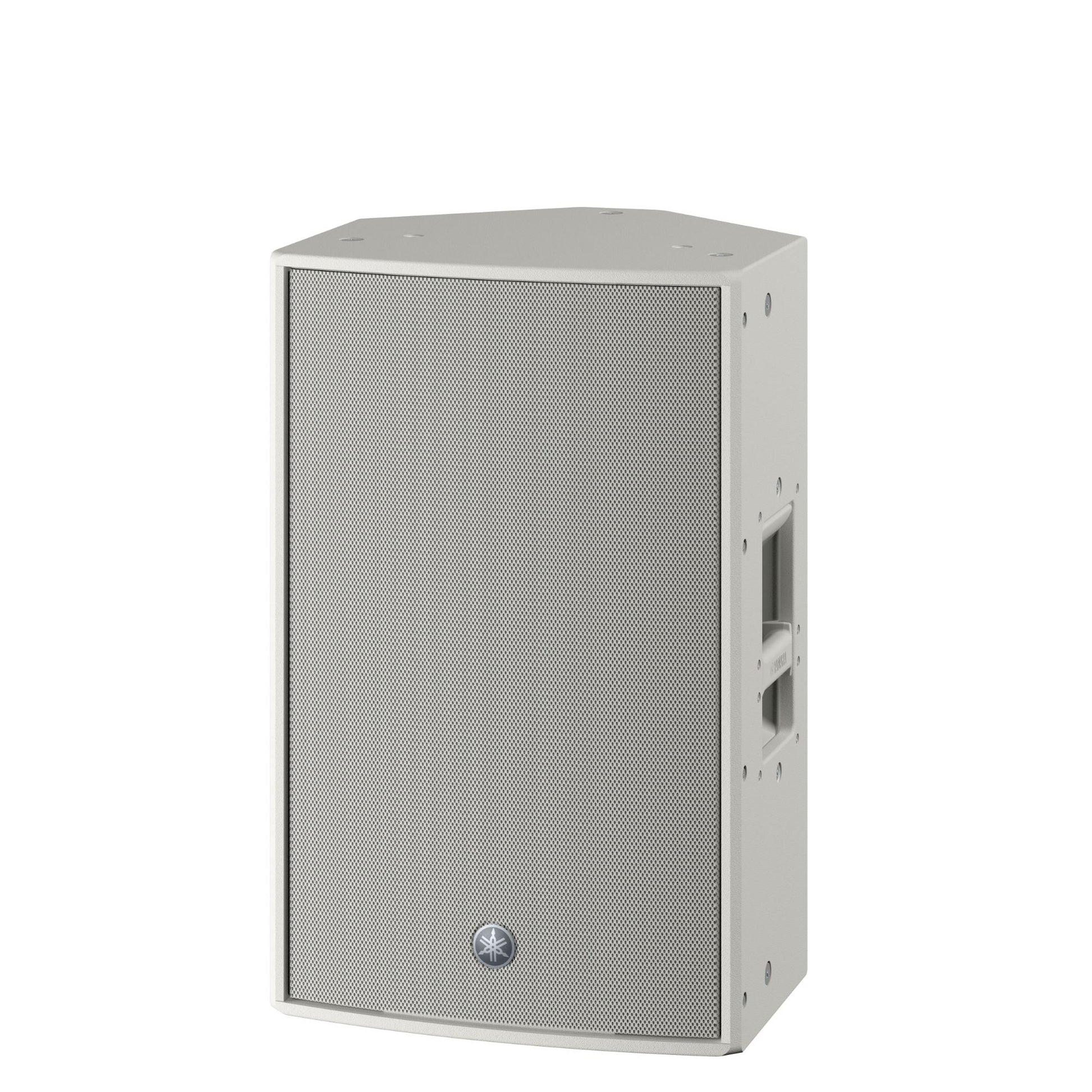

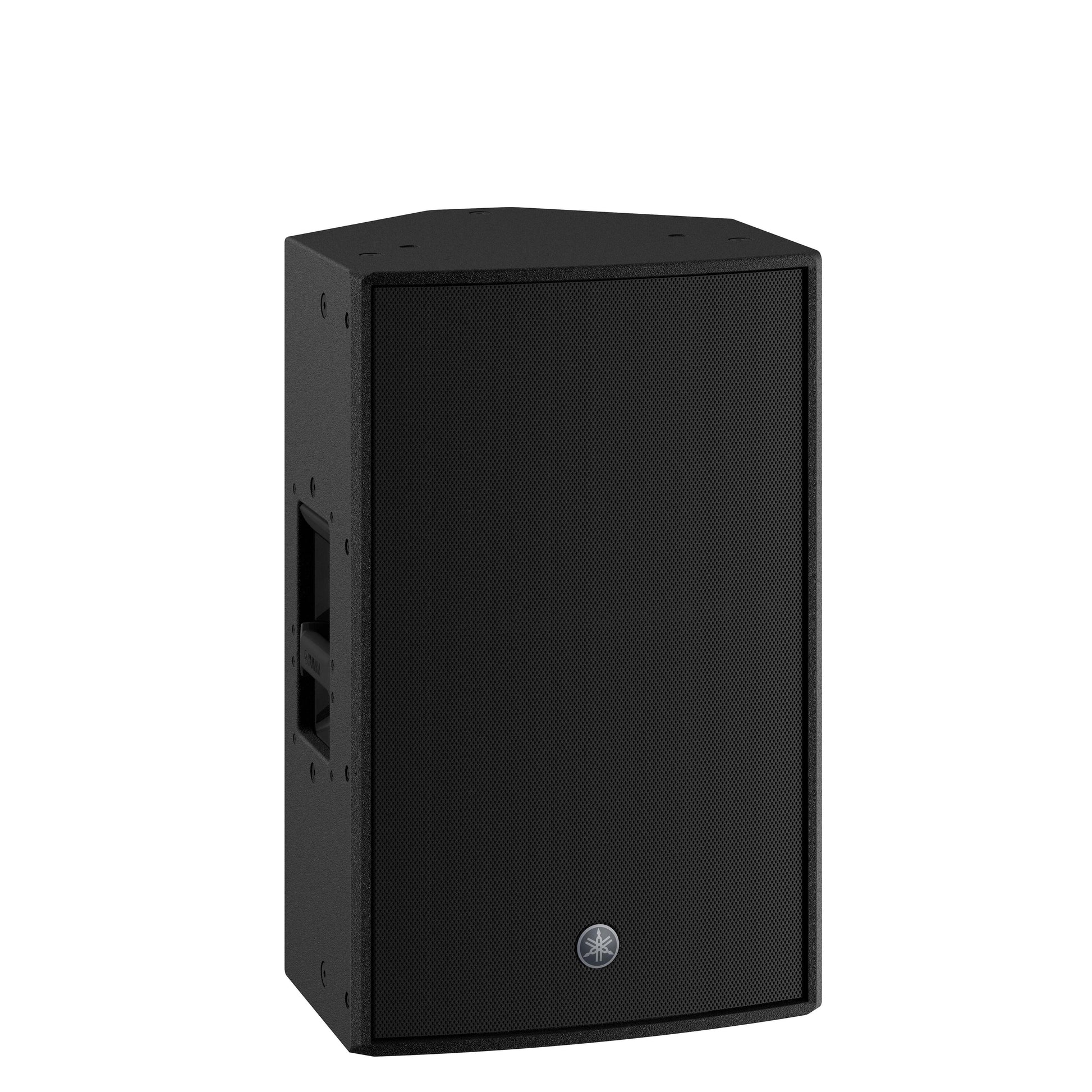

The Yamaha DZR12 combines the speed and definition of a premium 12-inch transducer with extraordinary professional output. Its 2,000 W Class-D amplifier, 96 kHz DSP, Advanced FIR-X tuning and robust plywood enclosure deliver authoritative full-range sound for front-of-house, high-output monitoring, fills and permanent installations.
High-Resolution Sound at Professional Levels
2,000 W Class-D Amplification
The bi-amplified power module provides exceptional headroom and transient response, enabling a remarkable maximum output of 139 dB SPL.

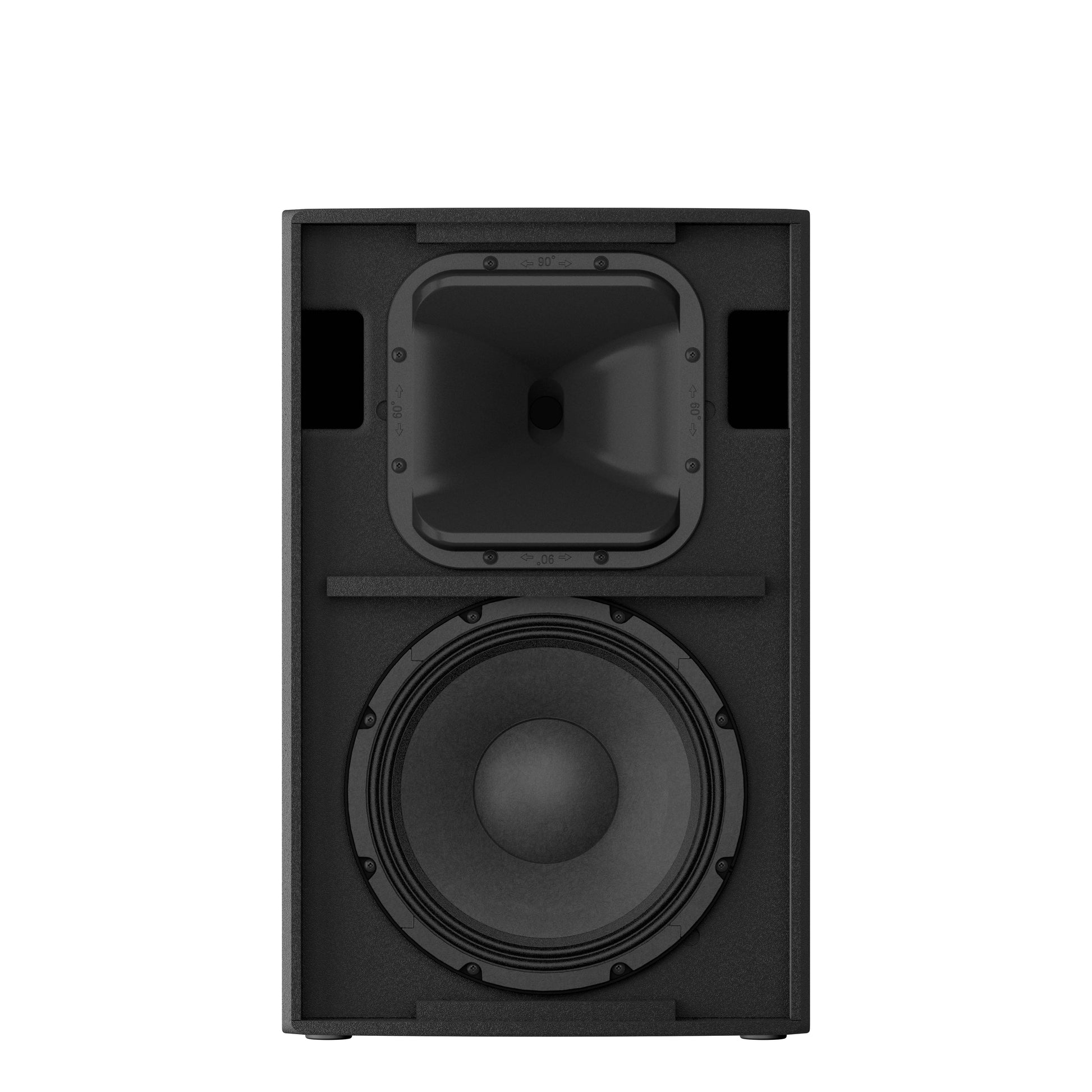

Premium 12-inch Neodymium Woofer
A 3-inch voice coil and neodymium motor deliver controlled low-frequency response down to 39 Hz, balancing impact, accuracy and portability.
Titanium HF Compression Driver
The neodymium high-frequency driver uses a titanium diaphragm and 2-inch voice coil for detailed projection and clear reproduction under demanding conditions.
96 kHz DSP and Advanced FIR-X
High-resolution processing combines FIR filtering, corrective EQ and time-alignment optimisation for smooth response and precise imaging around the crossover.

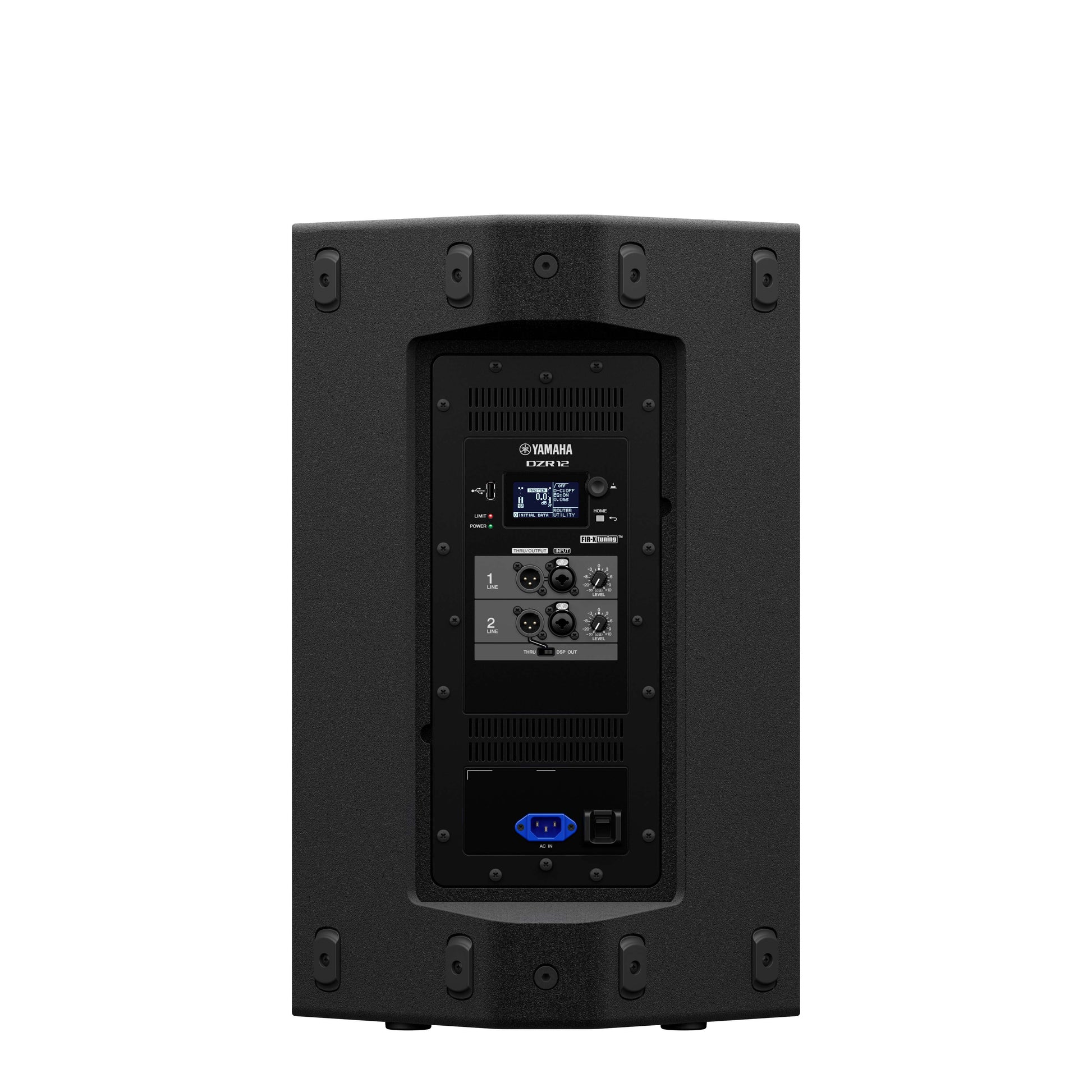

Detailed LCD-Based Control

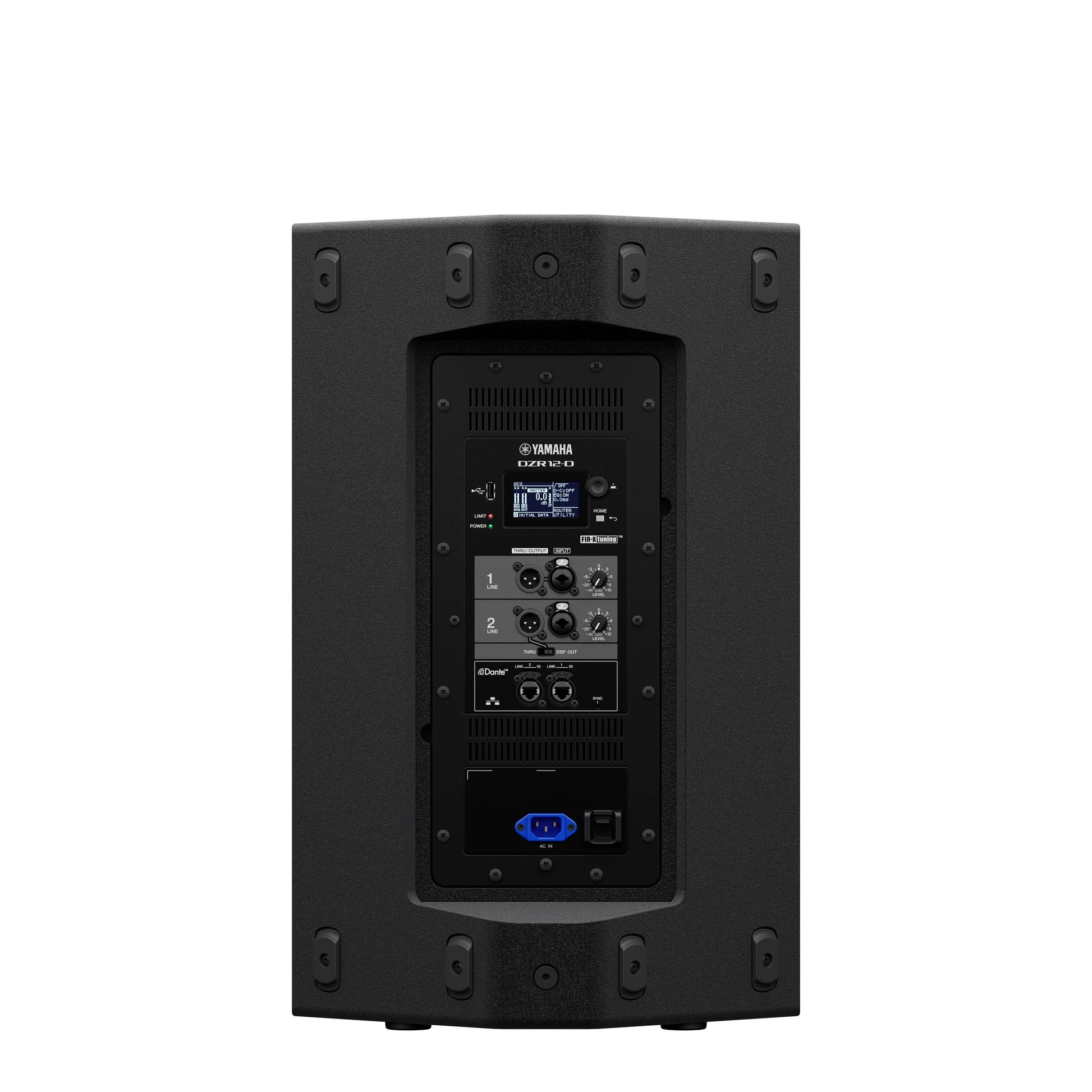

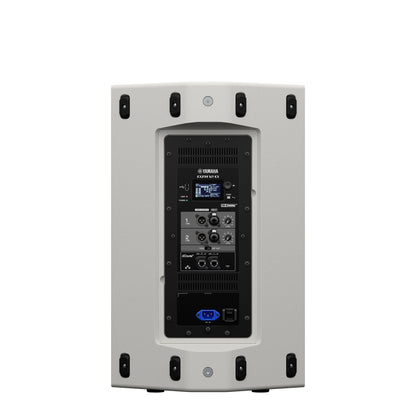

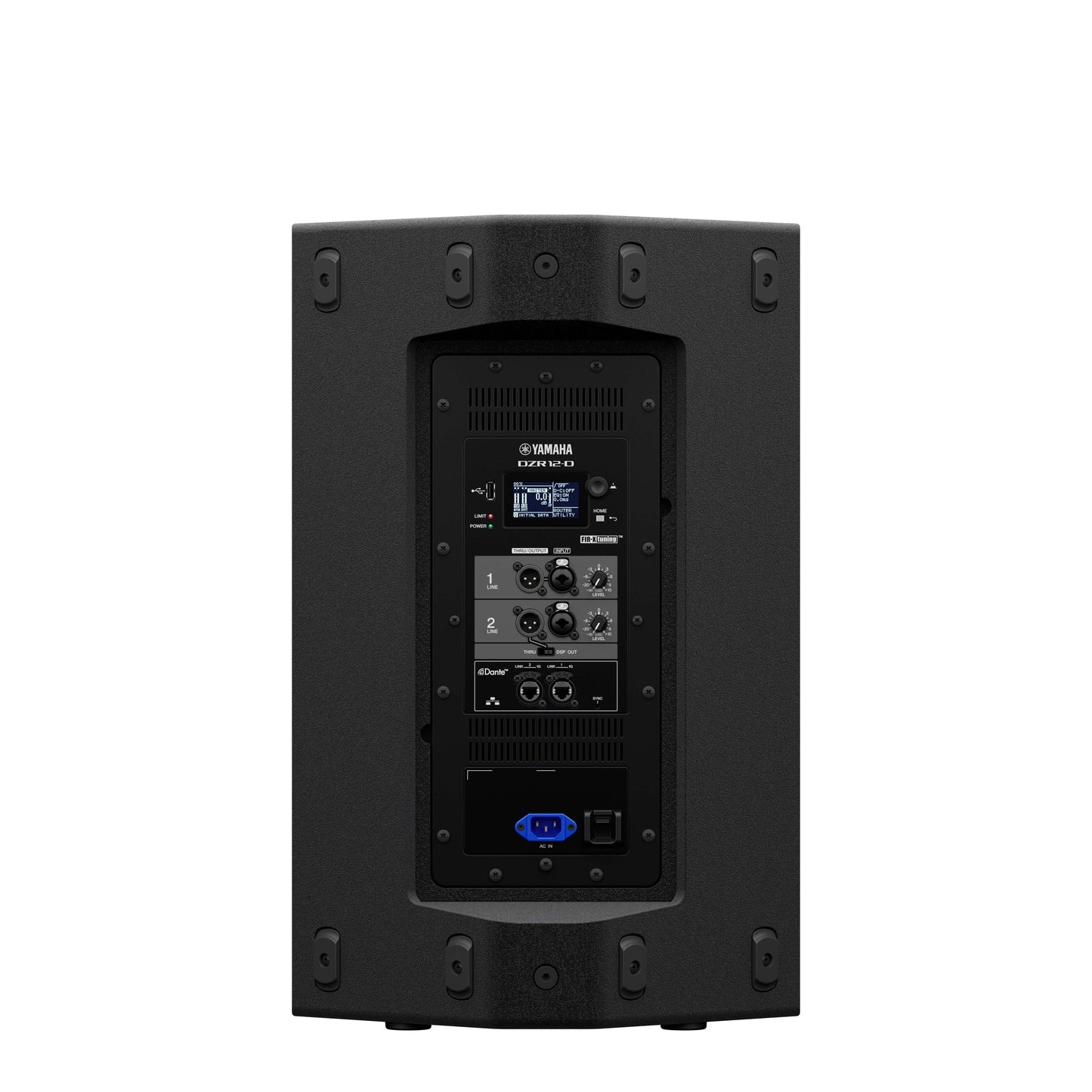

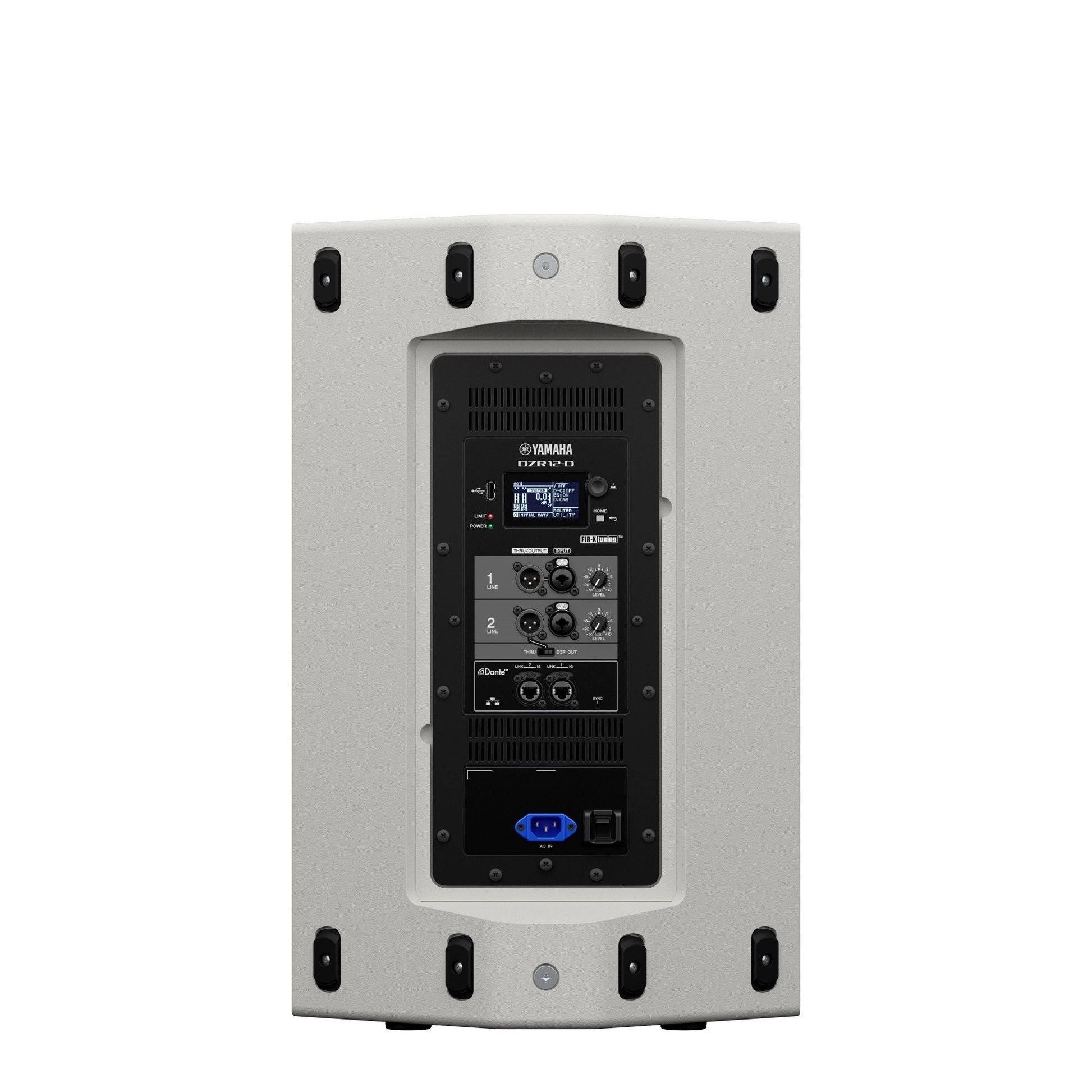

Recall presets or configure PEQ, delay, routing and system parameters directly from the rear-panel display, with USB memory support for storing and loading data.
Professional Analogue Connectivity

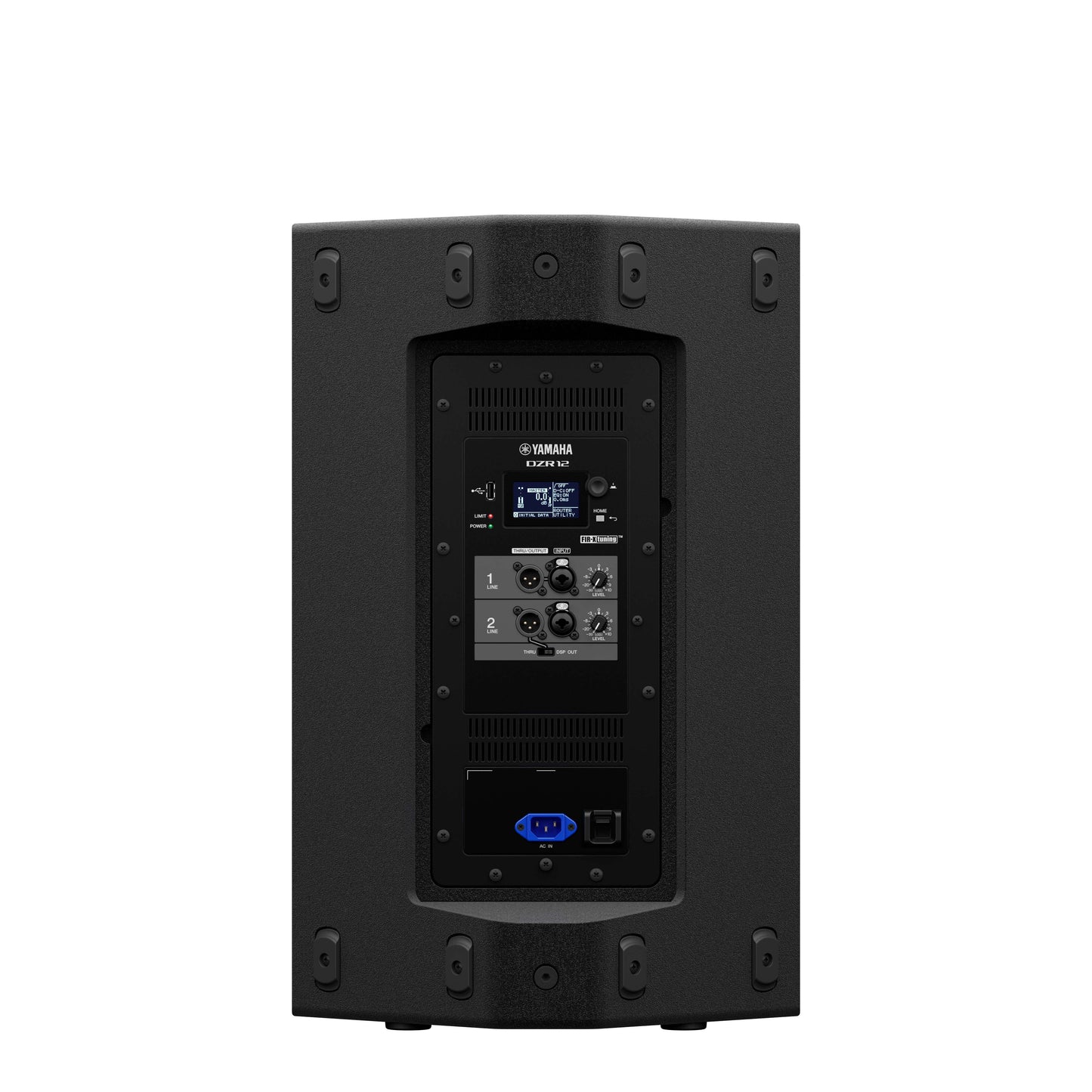

Two line-level XLR/TRS combo inputs and dual XLR outputs support fixed through connections and a configurable DSP-processed output.
Adaptable for FOH, Monitoring and Installation

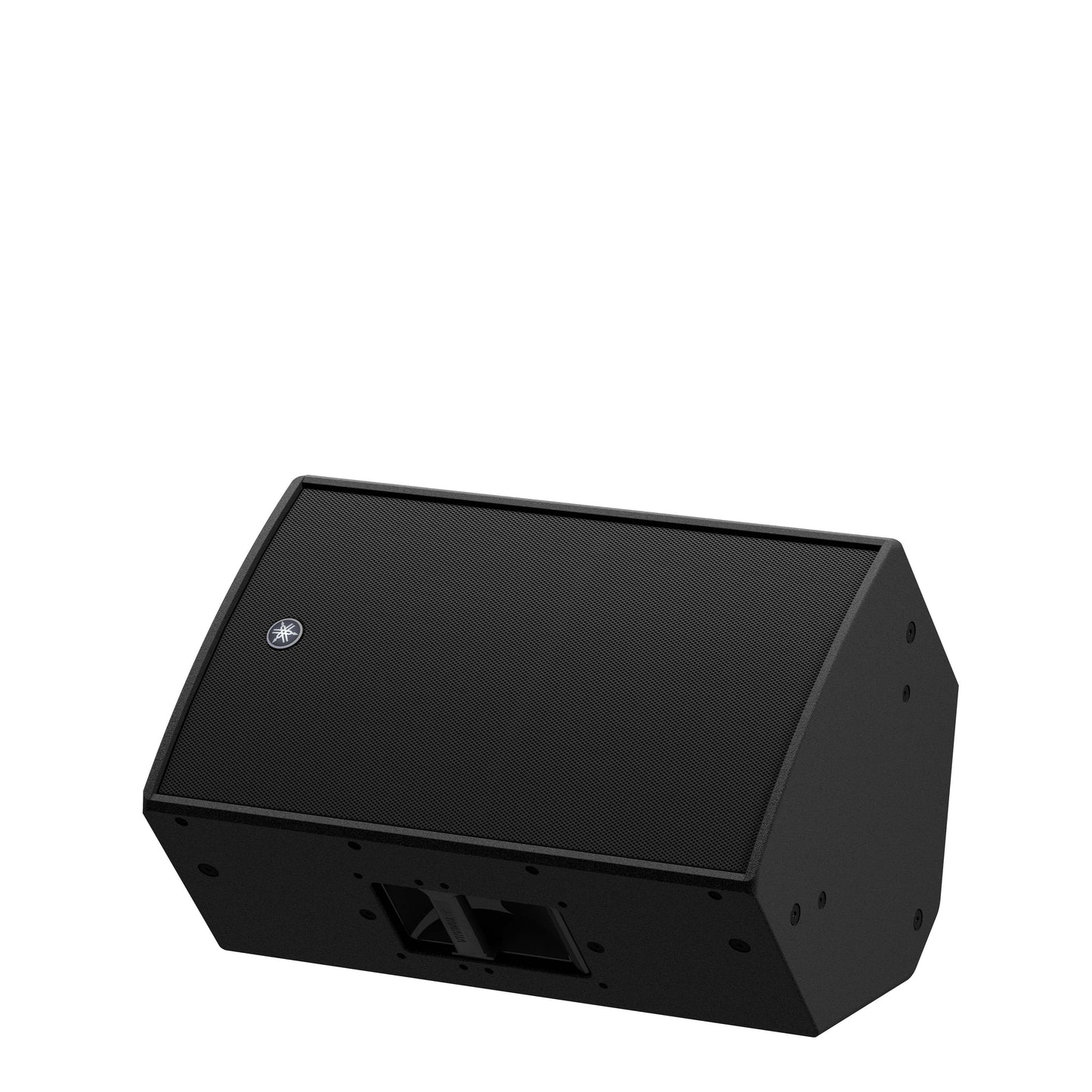

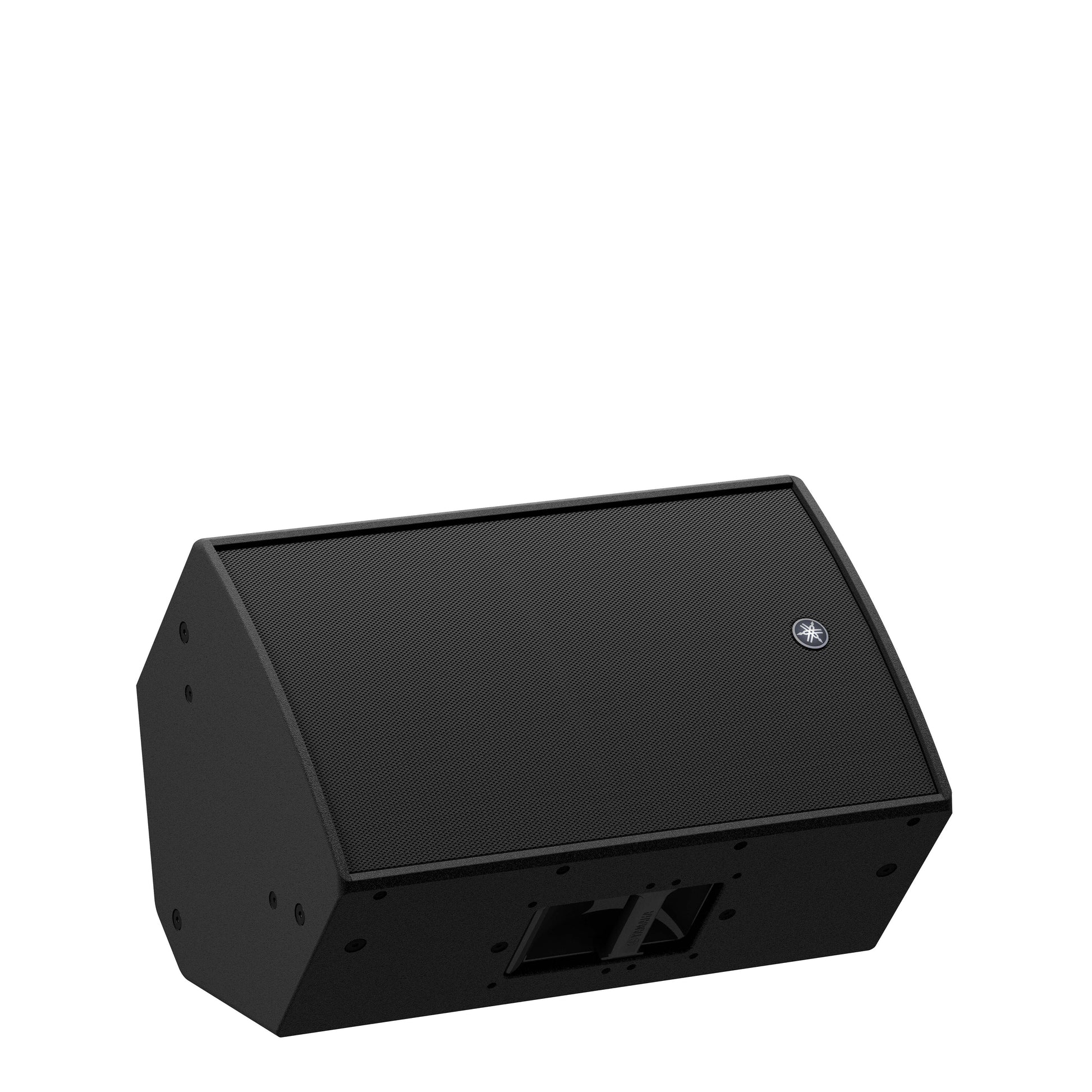

The DZR12’s rotatable 90° × 60° horn supports vertical or horizontal placement. Its symmetrical 50° monitor geometry allows left- or right-side stage positioning, while dual 35 mm sockets provide 0° or -7° pole mounting. Twelve M10 rigging points and optional horizontal or vertical U-brackets extend its installation flexibility.
Ideal Applications
- Professional front-of-house systems for live music, DJs and event production
- High-output floor monitoring with symmetrical positioning
- Delay, side-fill and distributed reinforcement
- Fixed installations requiring high SPL, precise DSP and flexible orientation
Frequently Asked Questions
Is this the Dante-equipped DZR12-D?
No. This listing is for the standard analogue DZR12. It provides two analogue combo inputs, two XLR outputs and USB memory support, but does not include Dante network audio.
Does the DZR12 need an external amplifier?
No. It includes an integrated 2,000 W dynamic Class-D bi-amplifier.
Can it be used as a floor monitor?
Yes. Its symmetrical 50° enclosure allows use on either side of the stage, supported by onboard monitor processing.
Can the horn be rotated?
Yes. The 90° × 60° horn can be rotated to maintain the intended dispersion pattern in vertical or horizontal installations.
Are the mounting brackets and cover included?
No. Compatible Yamaha UB-DZR12H/V brackets and the SPCVR-DZR12 functional cover are optional accessories sold separately.
Why Buy from YMS?
Choose YMS for genuine Yamaha professional audio products, informed system-design guidance and dependable after-sales support. Our team can help assess output, coverage, mounting, DSP and system-matching requirements before purchase.
Specifications
Overview
| Model | Yamaha DZR12 |
|---|---|
| Speaker type | 2-way bi-amped professional powered loudspeaker; bass-reflex |
| Network audio | Not included; this is the standard analogue DZR12, not the DZR12-D |
| Primary applications | Front-of-house, floor monitoring, fills, fixed installation and portable professional PA |
| Cabinet | Plywood with durable black polyurea coating |
Amplifier and acoustic performance
| Amplifier class | Class-D |
|---|---|
| Dynamic output power | 2,000 W: LF 1,000 W + HF 1,000 W |
| Burst output power | 1,100 W: LF 1,000 W + HF 100 W; 20 ms |
| Continuous output power | 950 W: LF 850 W + HF 100 W |
| Maximum output level | 139 dB SPL at 1 m, measured peak with pink noise |
| Frequency range | 39 Hz–20 kHz (-10 dB) |
| Coverage | 90° horizontal × 60° vertical; horn rotatable |
| Crossover | 1.8 kHz with Advanced FIR-X tuning |
Drivers and processing
| Low-frequency driver | 12-inch cone; 3-inch voice coil; neodymium magnet |
|---|---|
| High-frequency driver | 1-inch-throat compression driver; 2-inch voice coil; titanium diaphragm; neodymium magnet |
| DSP and conversion | 96 kHz DSP with 96 kHz A/D and D/A conversion |
| User control | Rear-panel LCD with presets and adjustment of PEQ, delay, routing and system parameters |
| Processing | Advanced FIR-X tuning, D-CONTOUR and protection functions |
| Cooling | Variable-speed fan cooling |
Connections
| Analogue inputs | 2 XLR/TRS combo inputs; line level; maximum +24 dBu; 20 kΩ input impedance |
|---|---|
| Analogue outputs | 2 XLR outputs; Channel 1 fixed through, Channel 2 through or DSP output |
| USB | USB 2.0 host, 5 V / 500 mA, for USB-memory data storage and loading |
| AC inlet | 1 V-Lock IEC inlet |
Mounting, dimensions and power
| Floor-monitor angle | 50° symmetrical |
|---|---|
| Pole sockets | 2 × 35 mm; 0° or -7° |
| Rigging points | 12 × M10 |
| Optional mounting hardware | Yamaha UB-DZR12H or UB-DZR12V U-bracket, sold separately |
| Compatible cover | Yamaha SPCVR-DZR12 functional speaker cover, sold separately |
| Carry handles | 2 die-cast aluminium side handles |
| Dimensions | 410 × 646 × 394 mm (W × H × D), including rubber feet |
| Net weight | 21.4 kg |
| Power consumption | 45 W idle; 150 W at 1/8 power |
Specifications are based on Yamaha India’s published DZR12 data and may change without notice.
View specification source Opens in a new window.Videos
Similar products
-
Yamaha DZR10 10-inch Professional Powered Loudspeaker
Regular price Rs. 63,525.00 INRRegular priceRs. 84,700.00 INRSale price Rs. 63,525.00 INR -
Yamaha DZR15 15-inch Professional Powered Loudspeaker
Regular price Rs. 74,175.00 INRRegular priceRs. 98,900.00 INRSale price Rs. 74,175.00 INRSold out -

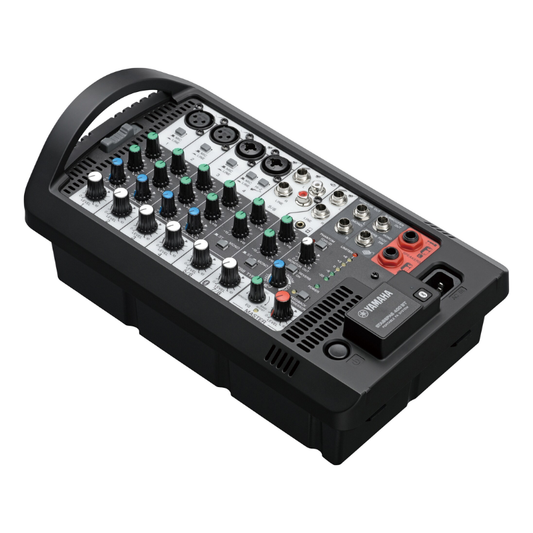

Yamaha STAGEPAS 400BT 400 W Portable PA System
