Yamaha DTX6K5-M Electronic Drum Kit
All-mesh DTX kit with the DTX-PRO module and HS650A hi-hat stand
- REMO two-ply mesh heads on the 12-inch snare and three 10-inch tom pads
- DTX-PRO module: 712 voices, 40 preset kits and AMBIENCE, COMP and EFFECT knobs
- Three-zone 13-inch crashes and 15-inch ride with positional sensing and choke
- RHH135 13-inch hi-hat pad on a Yamaha HS650A stand, on the sturdy RS6 rack
- KP90 kick pad suits double pedals; bass drum pedal sold separately
Taxes included.
Required accessory
One adaptor per instrument is added to your cart and charged separately.
Yamaha DTX6K5-M Electronic Drum Kit with Mesh Pads

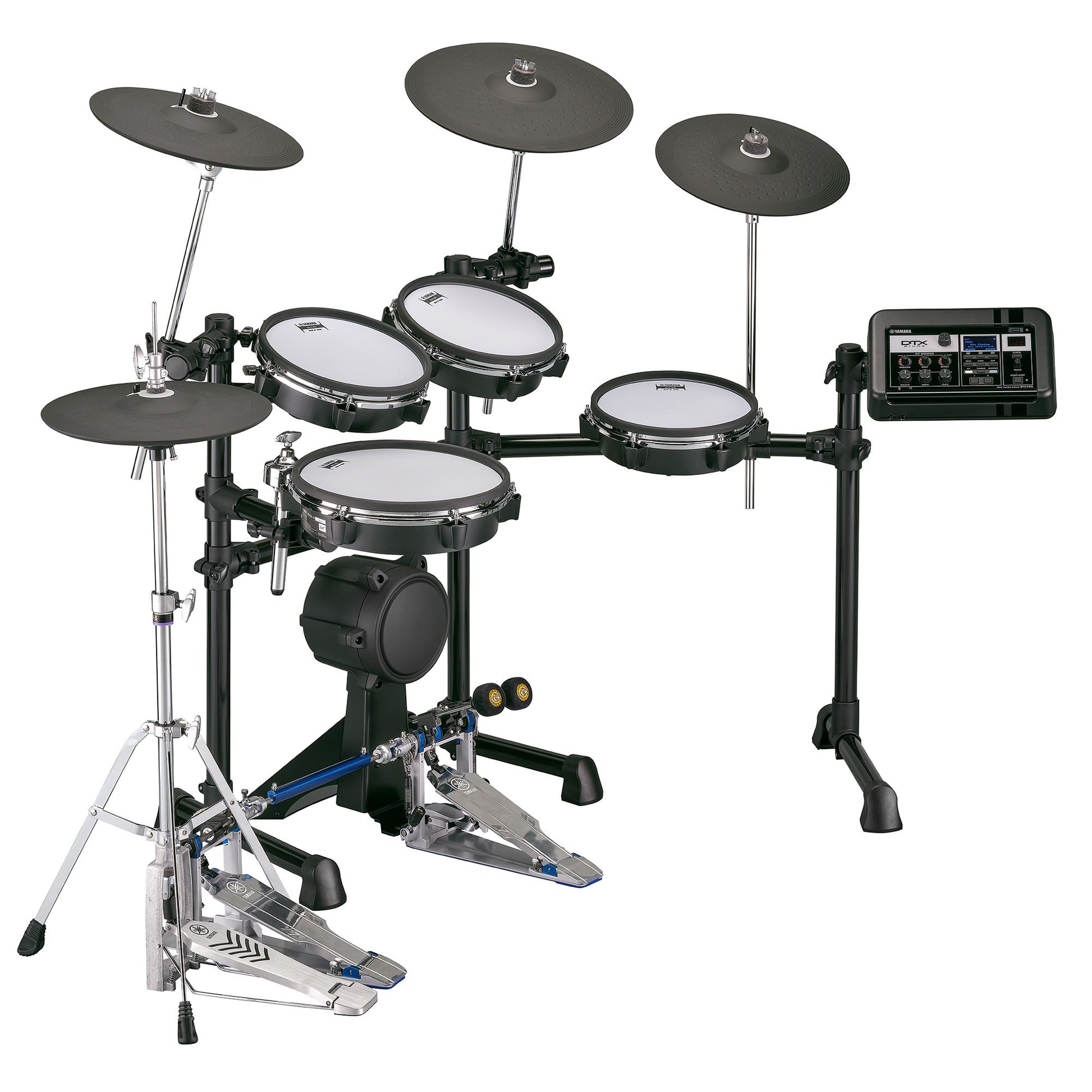

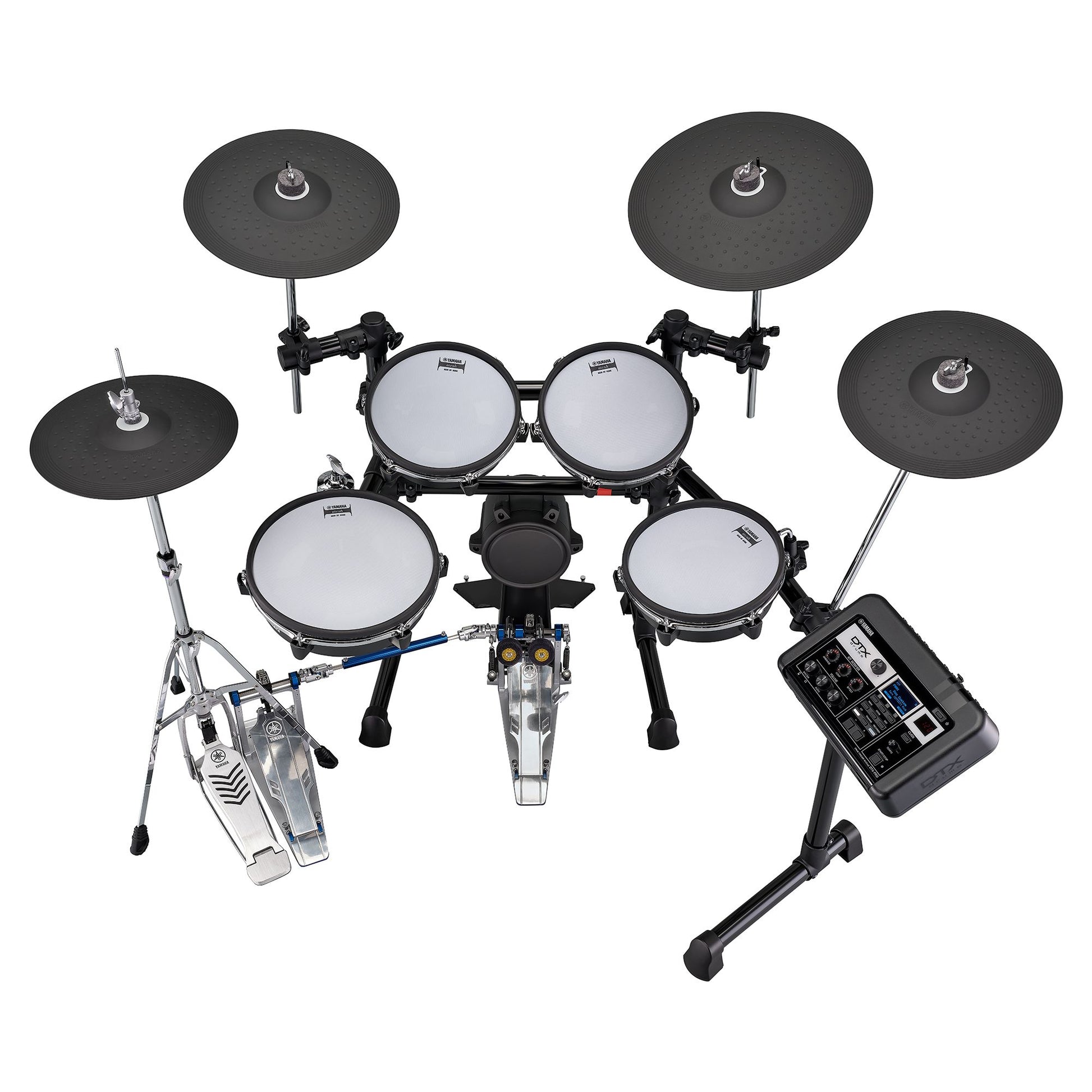

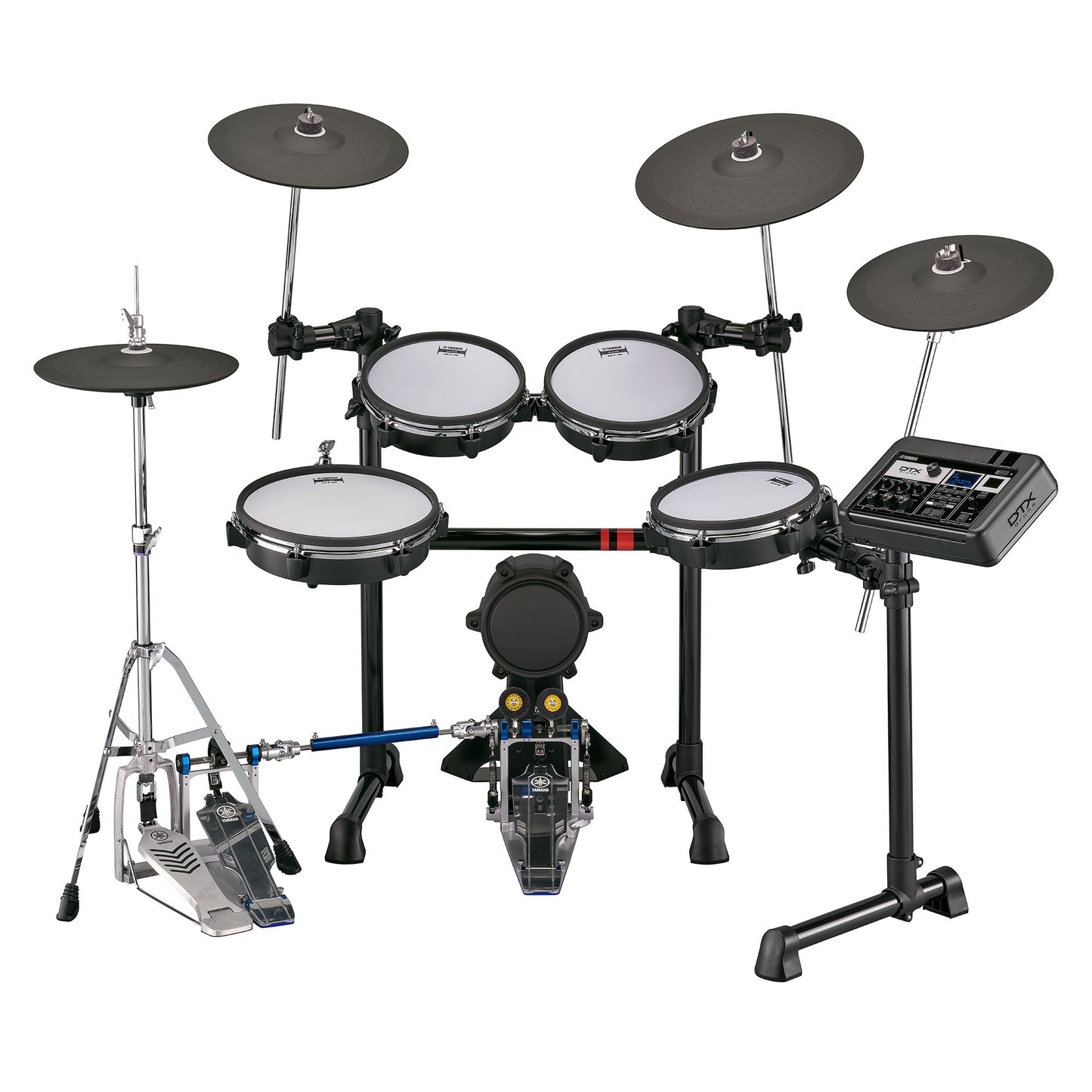

The Yamaha DTX6K5-M is the all-mesh kit in the DTX6 Series. It pairs the DTX-PRO module with REMO two-ply mesh heads on a 12-inch snare and three 10-inch toms, an RHH135 hi-hat on an HS650A stand, two 13-inch crashes, a 15-inch ride with positional sensing and the KP90 kick pad on the RS6 rack.
It suits drummers moving on from an entry-level kit who want mesh-head feel, studio-quality sounds and real hi-hat technique for home practice and recording. The 10 training functions and 37 songs support steady progress, and up to 14 pads can be connected as your setup grows.
Key Features
REMO Mesh Heads on Snare and Toms

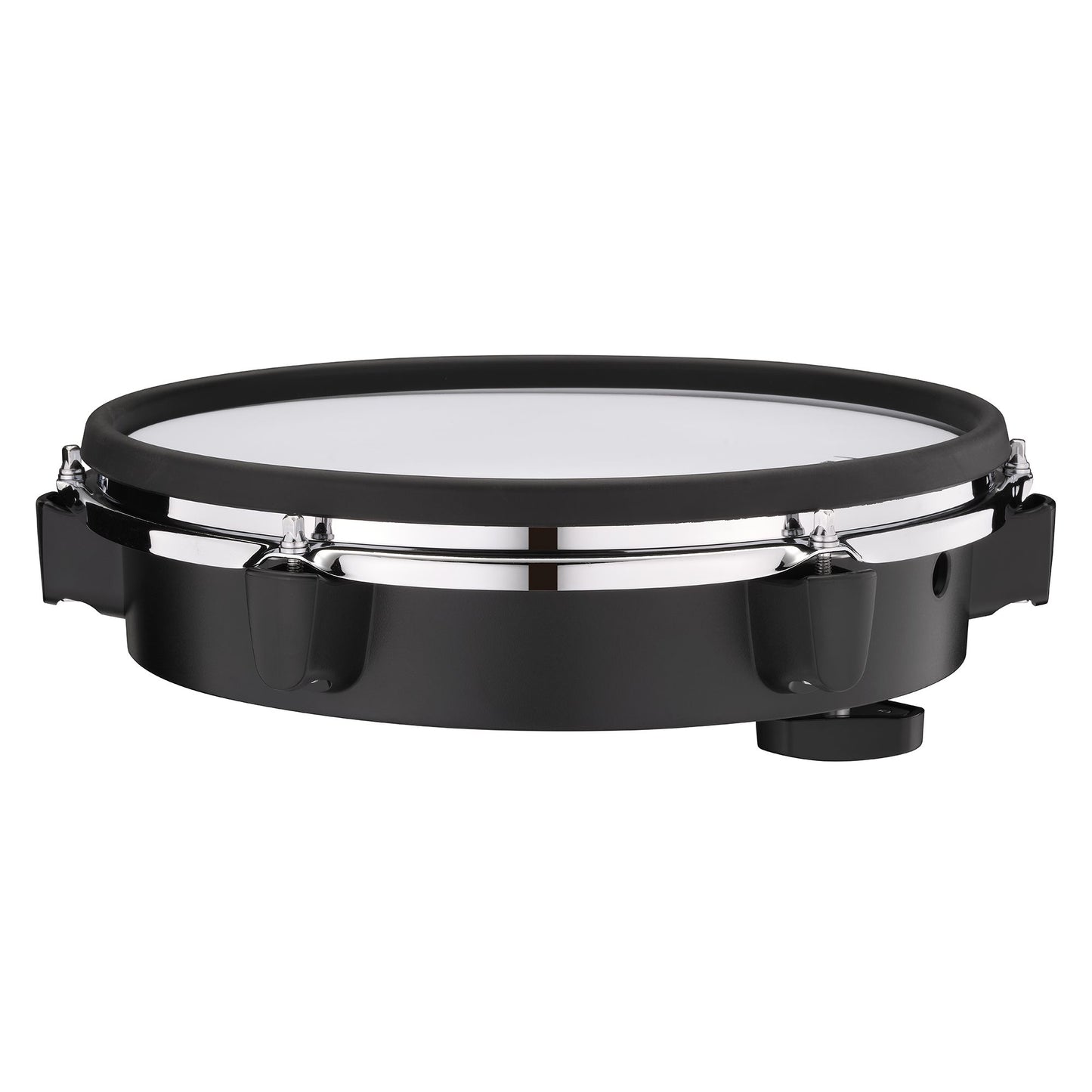

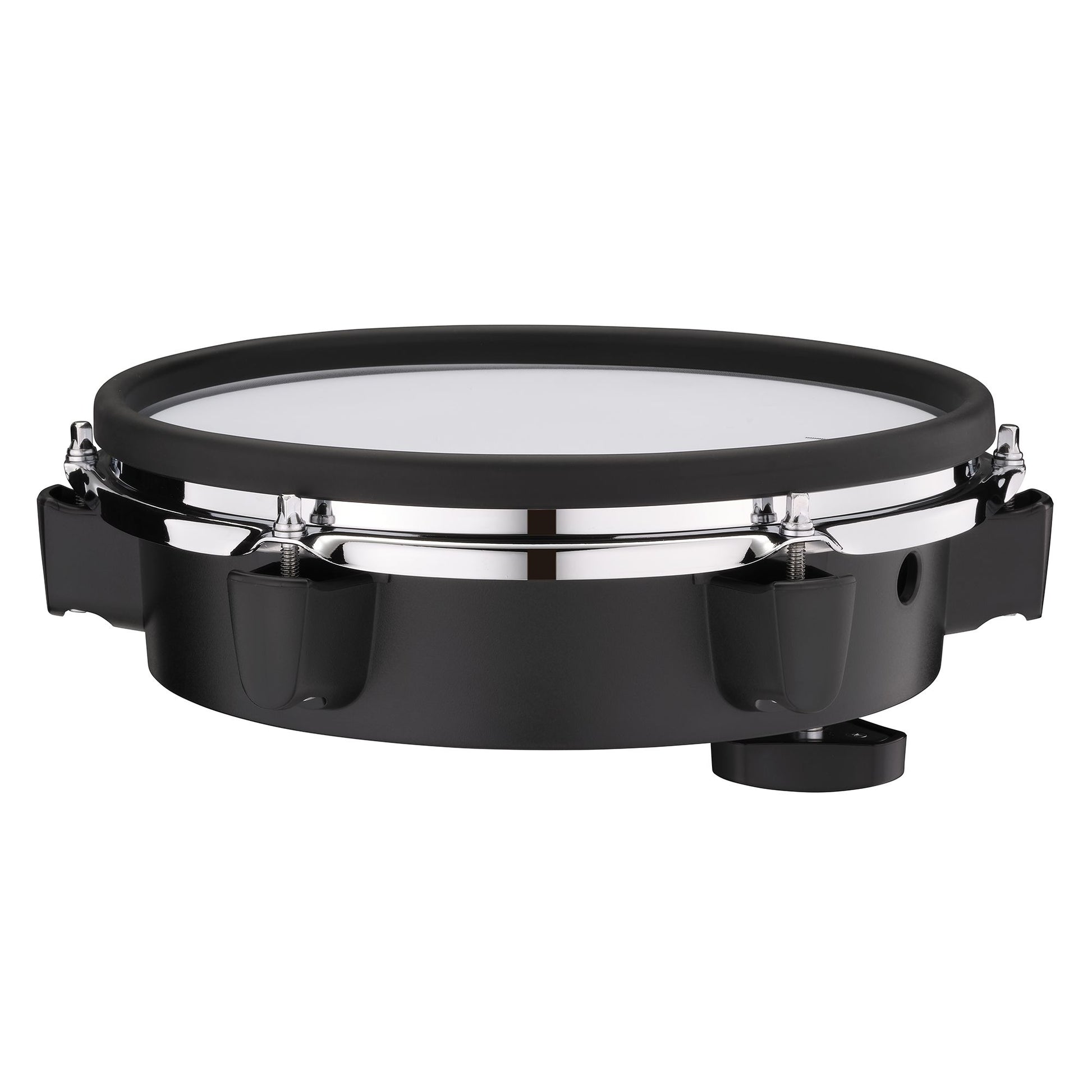

The DTX6K5-M uses REMO two-ply mesh heads on its XP120L-M 12-inch snare and three XP100L-M 10-inch toms. Yamaha chose them for their low noise, durability and lively rebound, and the heads can be tuned to suit your touch. The snare and toms are two-zone pads, and the snare mounts on Yamaha's traditional ball clamp for fine angle adjustment.

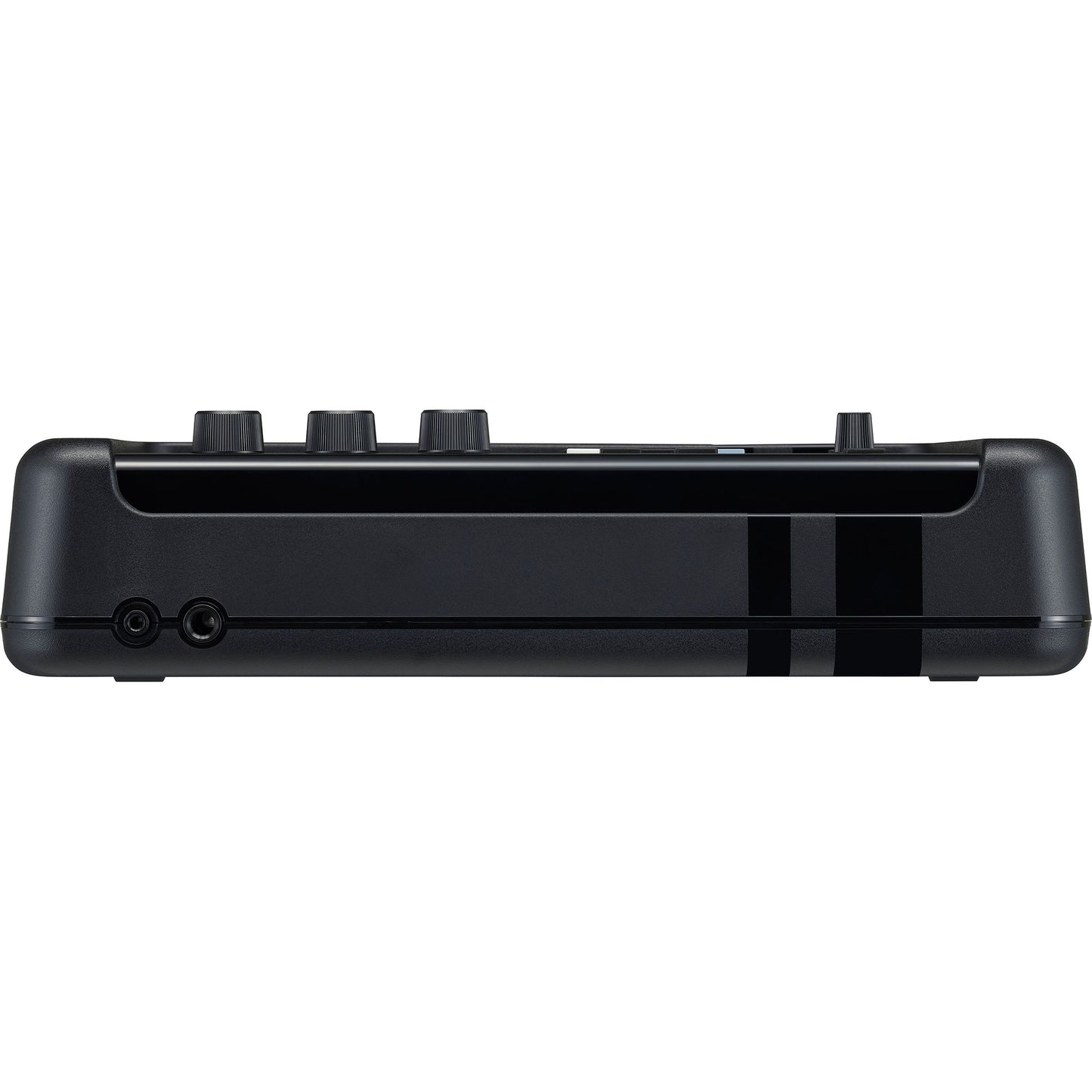

DTX-PRO Module with Studio-Recorded Sounds
The DTX-PRO module holds 712 voices, 40 preset kits and room for 200 user kits, with acoustic drum sounds recorded in world-renowned studios with the help of renowned recording engineers. Every channel has EQ, compression, transient control and insertion effects, and the free V2 update adds 30 preset kits including Yamaha's Recording Custom kit.

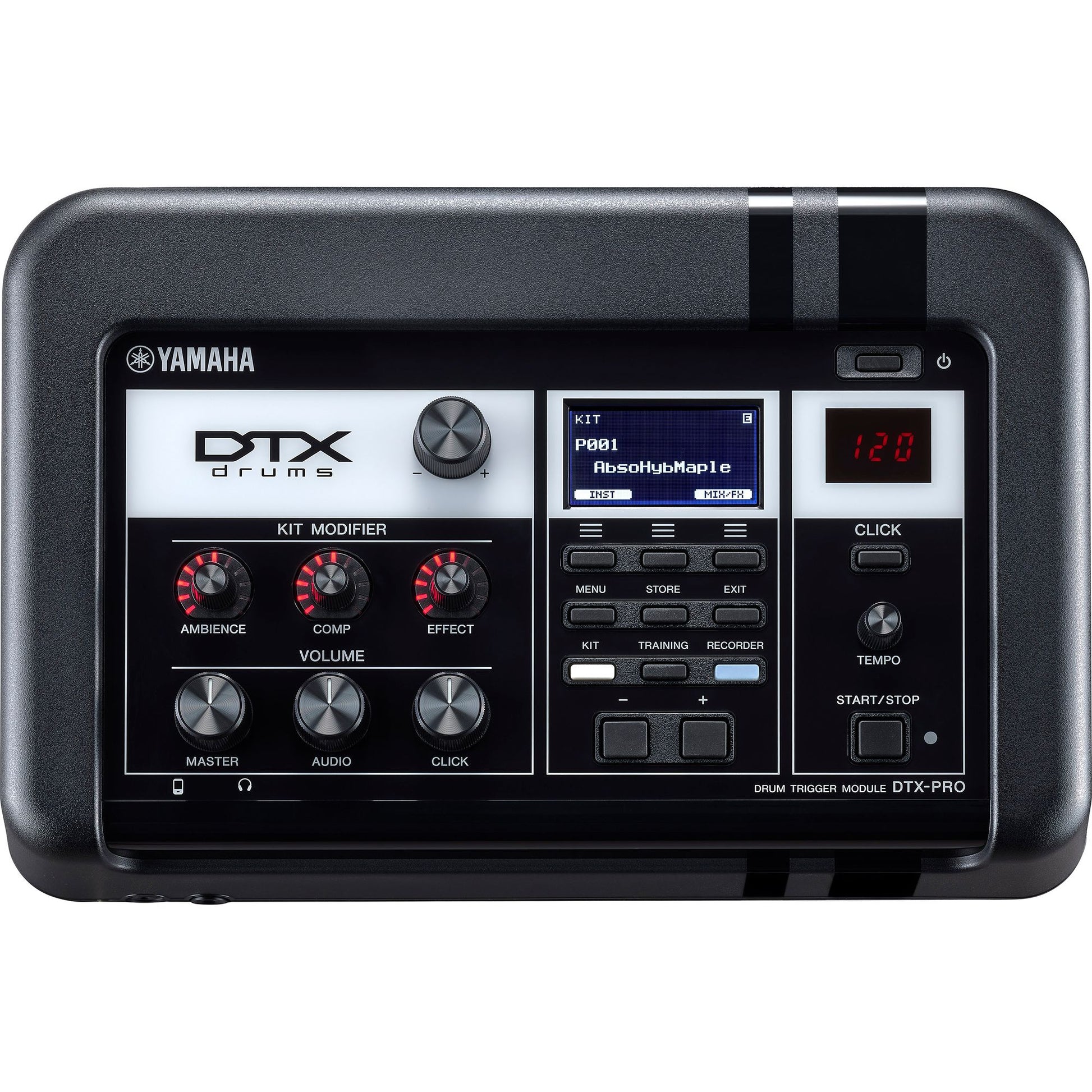

KIT MODIFIER: Ambience, Comp and Effect
Three KIT MODIFIER knobs change the whole kit at once. AMBIENCE blends in real studio room sound up to 50% and adds digital reverb beyond that, COMP brings the sound forward, and EFFECT controls an effect matched to each preset kit. On some kits from the free V2 firmware, EFFECT can add realistic shell resonance and snare wire sounds (Bleed function).

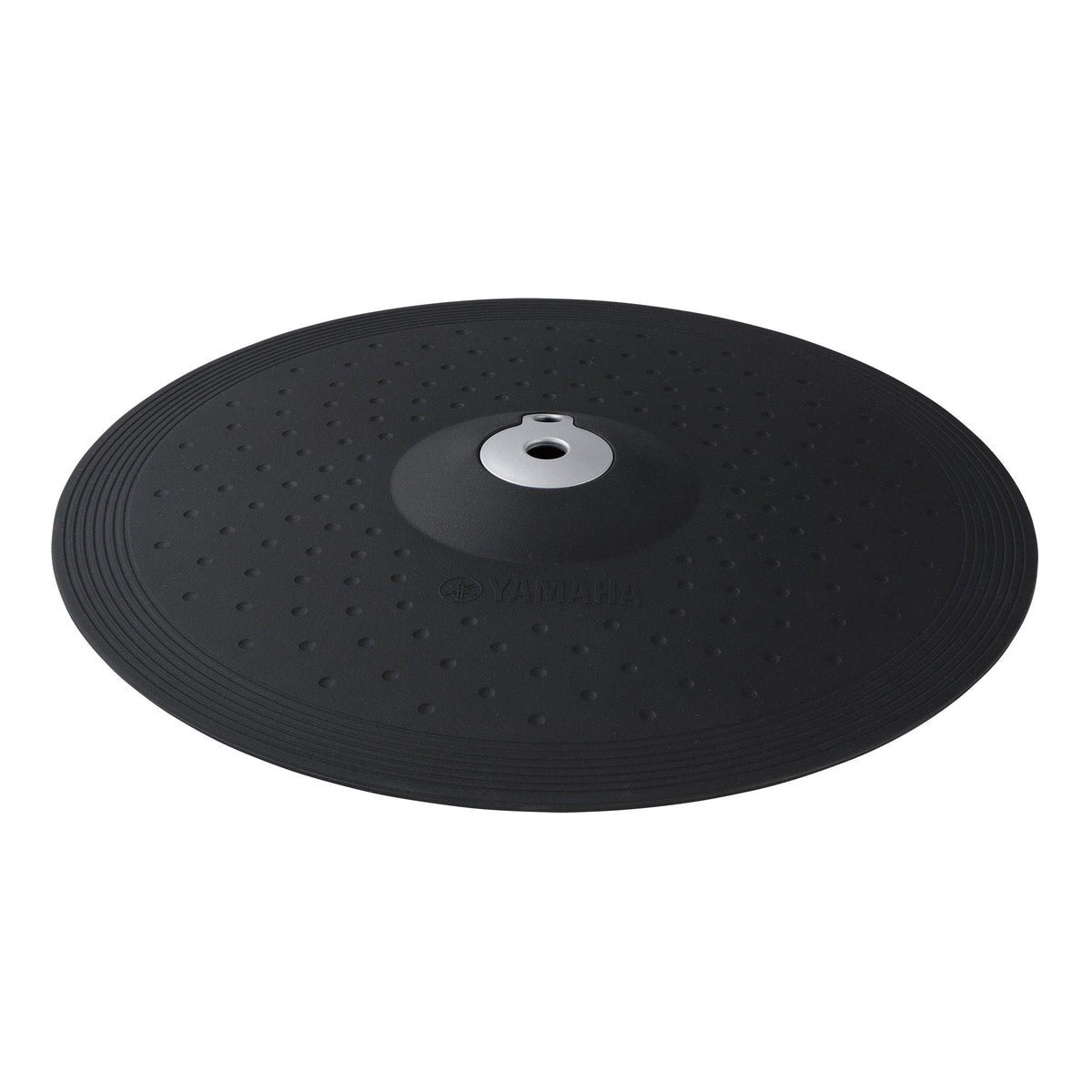

15-inch Ride with Positional Sensing

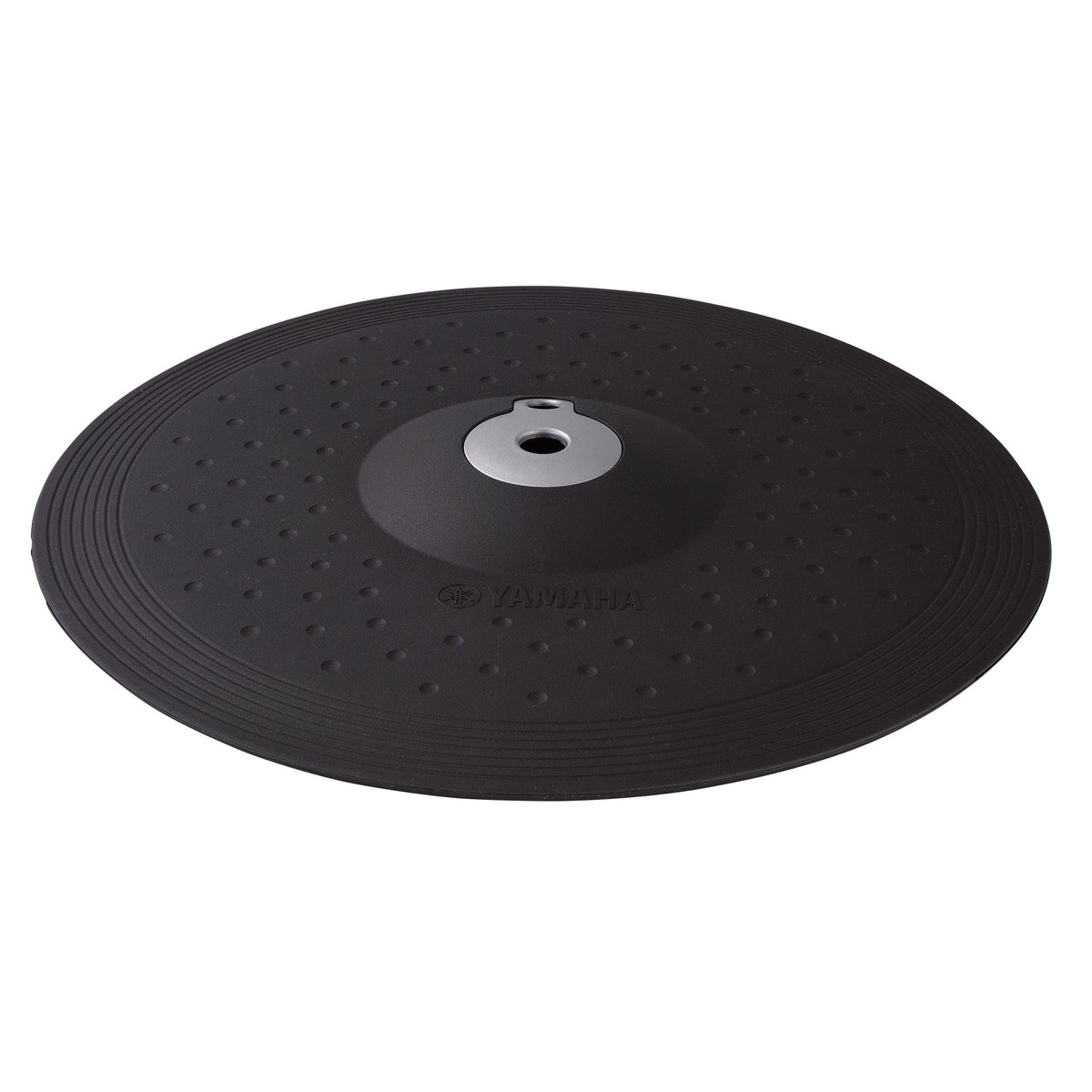

The PCY155 ride and two PCY135 13-inch crashes are three-zone pads with separate edge, bow and cup sounds, and all can be choked or muted by grabbing the edge. The ride also has hit-point detection, so its sound changes with where you strike it, helped by long, high-definition cymbal samples.

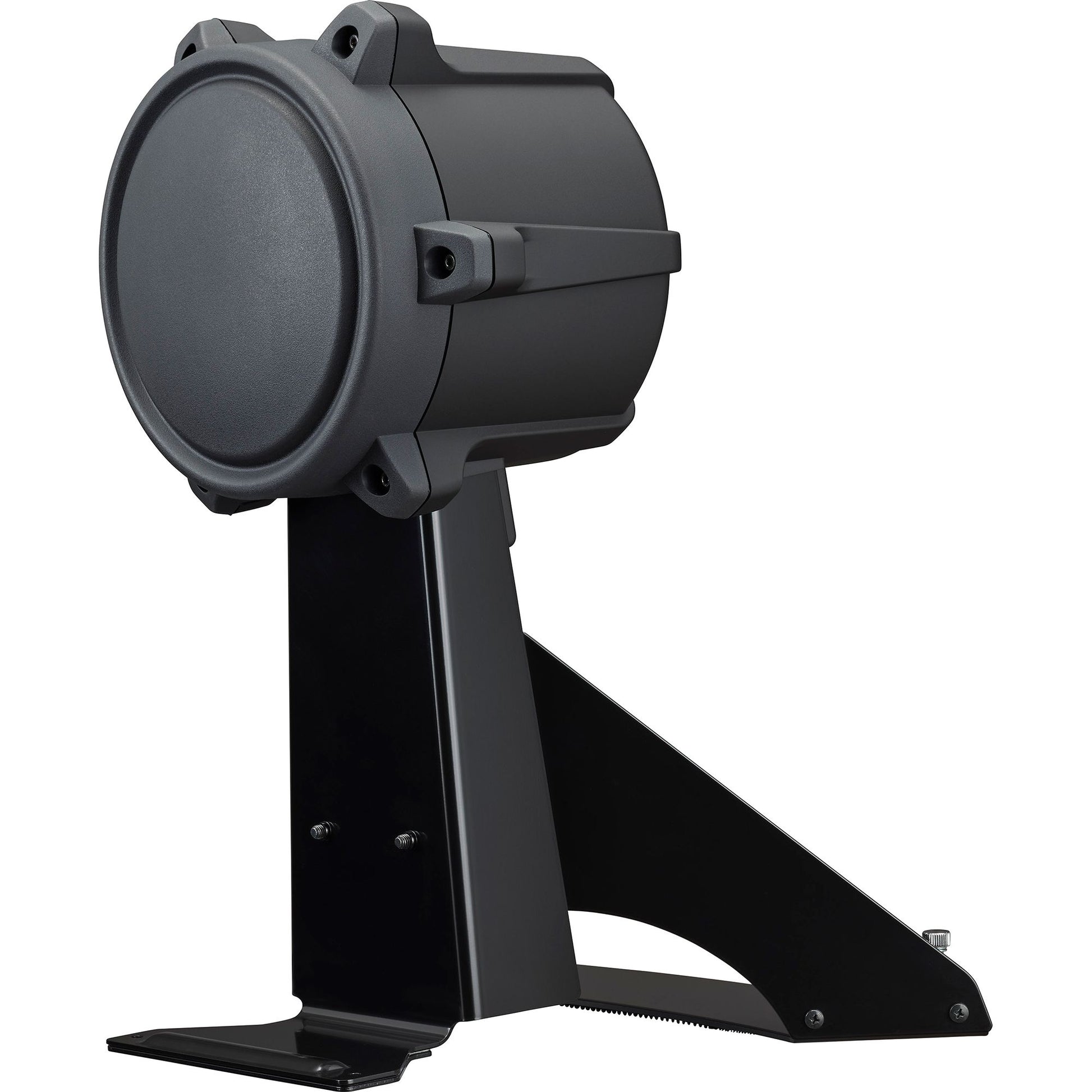

KP90 Kick Pad
The 7.5-inch KP90 kick pad uses Yamaha's multi-layer cushion for a comfortable feel at any stroke strength. It is suitable for double bass drum pedals and has a wide stance, large anti-slip spurs and a carpet-grabbing mechanism. The pedal itself is sold separately.

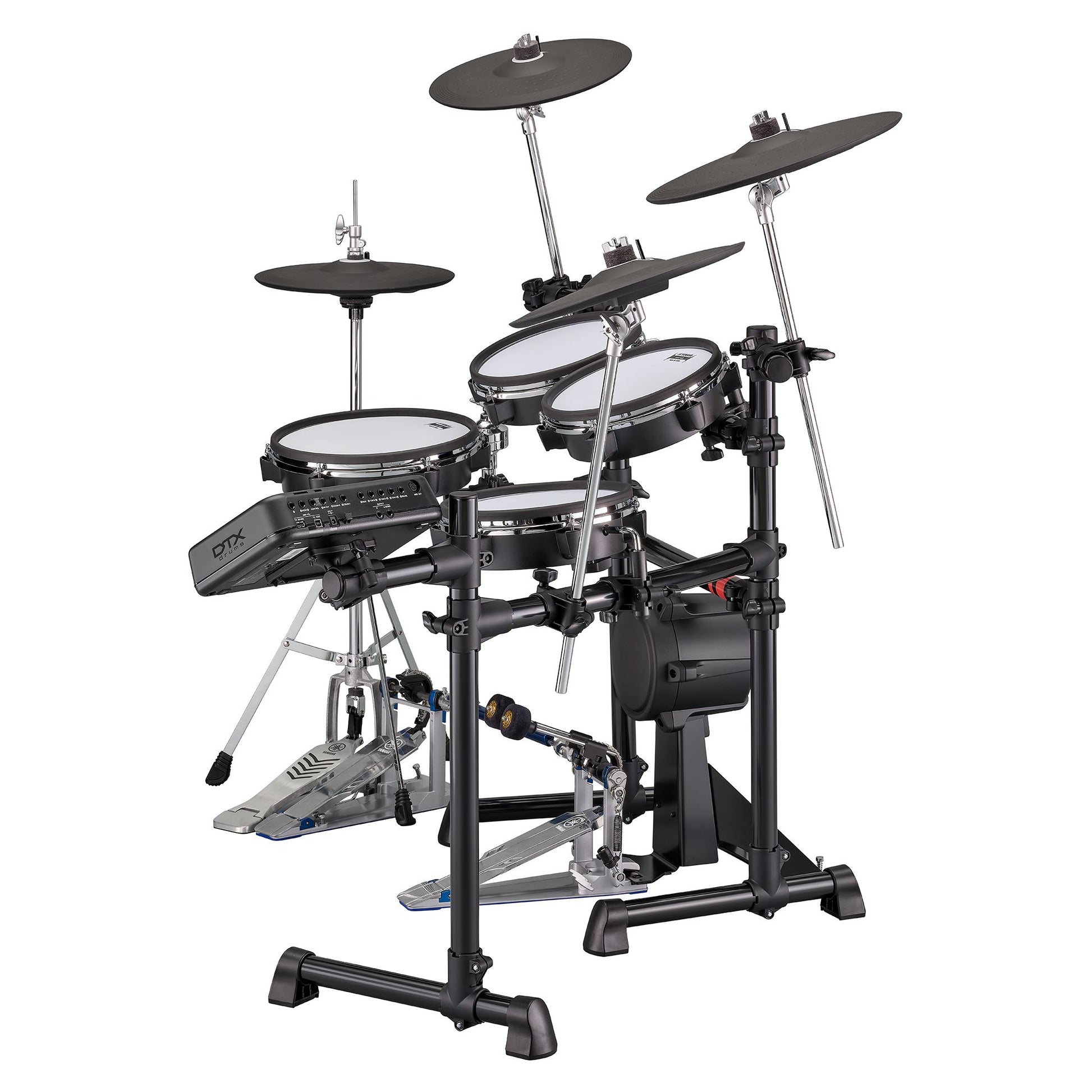

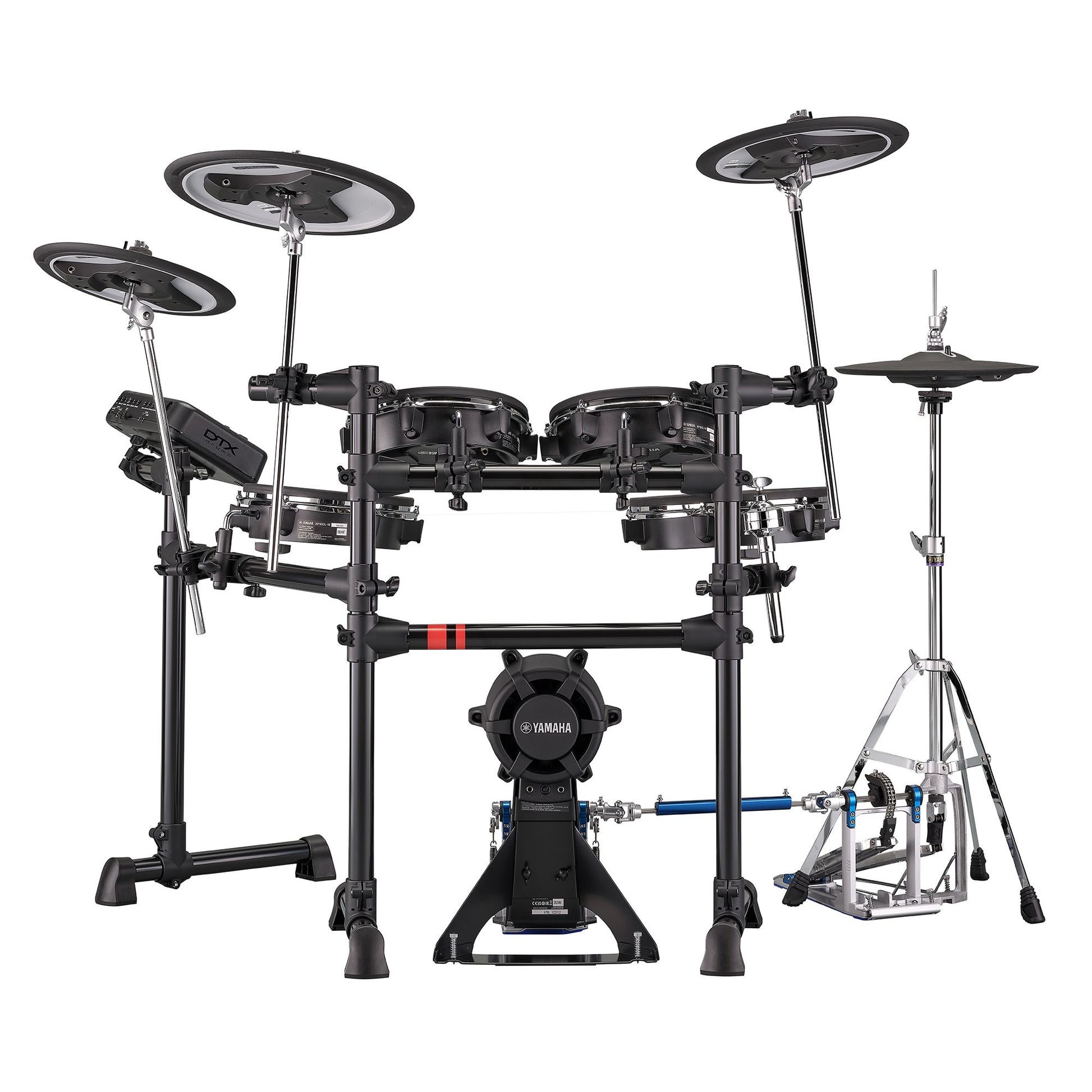

RS6 Rack, HS650A Stand and RHH135 Hi-hat

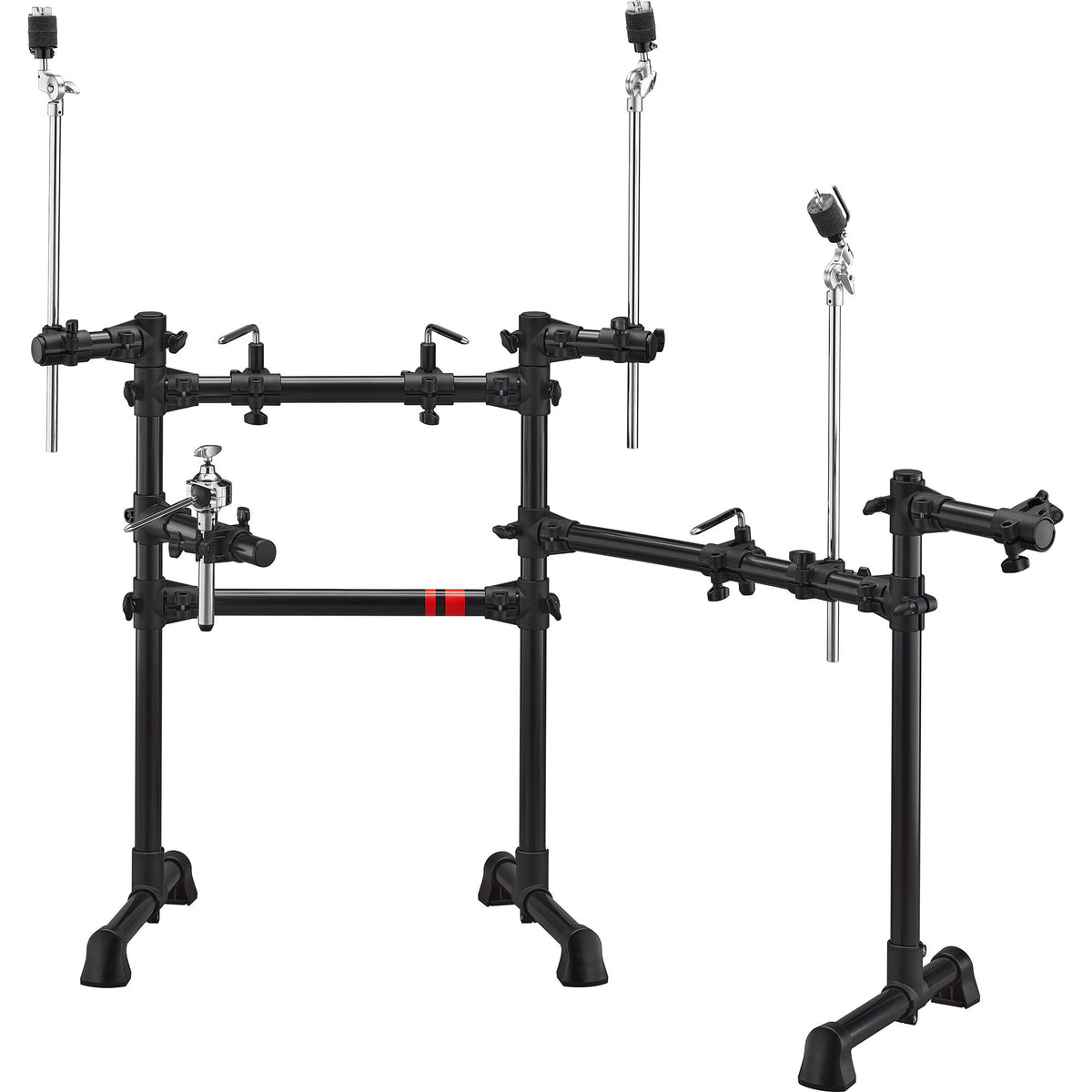

The DTX6K5-M is built on the RS6 rack, whose open left side leaves room for the hi-hat stand and a double pedal, with acoustic-style L-shaped legs for stability. The 13-inch RHH135 two-zone hi-hat pad sits on a Yamaha HS650A hi-hat stand, so your foot technique works as it would on an acoustic kit.
10 Training Functions and 37 Songs
The DTX-PRO includes a programmable metronome, a recorder, 10 training functions such as Rhythm Gate, Measure Break and Change Up, and 37 training songs in various genres. Its high-power, low-noise headphone amplifier was developed specifically for electronic drums.
Watch & Hear It
Frequently Asked Questions
Does the DTX6K5-M come with a bass drum pedal?
No. The KP90 kick pad is included, but Yamaha sells the foot pedal separately. The KP90 is suitable for single or double pedals.
How is the DTX6K5-M different from the DTX402-series kits?
The DTX402K, DTX432K and DTX452K use the DTX402 module with 10 kits and 7.5-inch drum pads, and the DTX432K and DTX452K include a KP65 kick pad and FP6110A pedal. The DTX6K5-M moves up to the DTX-PRO module with 712 voices and KIT MODIFIER, REMO mesh snare and toms, 13-inch and 15-inch three-zone cymbals, an RHH135 hi-hat on an HS650A stand and the KP90 kick pad.
What does the DTX8 add over the DTX6K5-M?
Both use the DTX-PRO module with the same pad and cymbal sizes. The DTX8 adds birch-shell pads in Real Wood or Black Forest, a choice of TCS or mesh heads, snare hit-point detection on the DTX8K-X, the RS8 rack and a separate SS662 snare stand.
Is the snare a three-zone pad?
No. Yamaha specifies the DTX6K5-M's XP120L-M snare as a 12-inch two-zone mesh pad. The crash and ride cymbal pads are three-zone.
What comes in the box?
Yamaha lists the DTX-PRO module, XP120L-M snare, three XP100L-M toms, KP90 kick pad, RHH135 hi-hat pad, two PCY135 and one PCY155 cymbal pads, RS6 rack, HS650A hi-hat stand, a ten-channel cable, cable ties, module bracket, drum key, Cubase AI download information and manuals.
Can I connect it to a computer or phone?
Yes. USB carries audio and MIDI to a computer or smart device for recording, MIDI OUT connects other MIDI gear and a Cubase AI download code is included. The kit works with Rec'n'Share and DTX Touch; DTX Touch needs a USB cable and adapter. Up to 14 pads or triggers can be connected with Y-cables.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | DTX6K5-M |
|---|---|
| Type | Electronic drum kit with REMO mesh pads |
| Series | DTX6 Series |
| Drum Module | DTX-PRO |
Pads & Cymbals
| Snare | XP120L-M 12-inch mesh, 2-zone |
|---|---|
| Tom 1, 2 | XP100L-M 10-inch mesh, 2-zone |
| Floor Tom | XP100L-M 10-inch mesh, 2-zone |
| Kick | KP90 7.5-inch rubber pad with multi-layer cushion |
| Hi-hat | RHH135 13-inch, 2-zone |
| Crash 1, 2 | PCY135 13-inch, 3-zone |
| Ride | PCY155 15-inch, 3-zone, with hit-point detection (positional sensing) |
Hardware
| Rack | RS6 |
|---|---|
| Hi-hat Stand | HS650A |
| Snare Mount | Ball clamp on rack |
| Bass Drum Pedal | Not included (sold separately) |
DTX-PRO Tone Generator
| Maximum Polyphony | 256 notes |
|---|---|
| Voices | 712 |
| Drum Kits | Preset: 40; User: 200 (free V2.0 update adds 30 new preset kits, per Yamaha) |
| Kit Modifier | AMBIENCE, COMP, EFFECT |
| Effects | Per instrument: EQ, Comp, Transient, Insertion; per kit: Ambience, Effect 1, Effect 2, Master Comp, Master Effect; overall: Master EQ, Phones EQ |
Click, Training & Recorder
| Click | 30 click sets; 30-300 BPM; tap tempo |
|---|---|
| Training | 10 types; 37 preset songs, 1 user song |
| Audio Files | WAV, up to 1,000 files imported |
| Recorder | WAV 44.1 kHz/16-bit stereo; internal up to 90 seconds; USB flash drive up to 90 minutes per file |

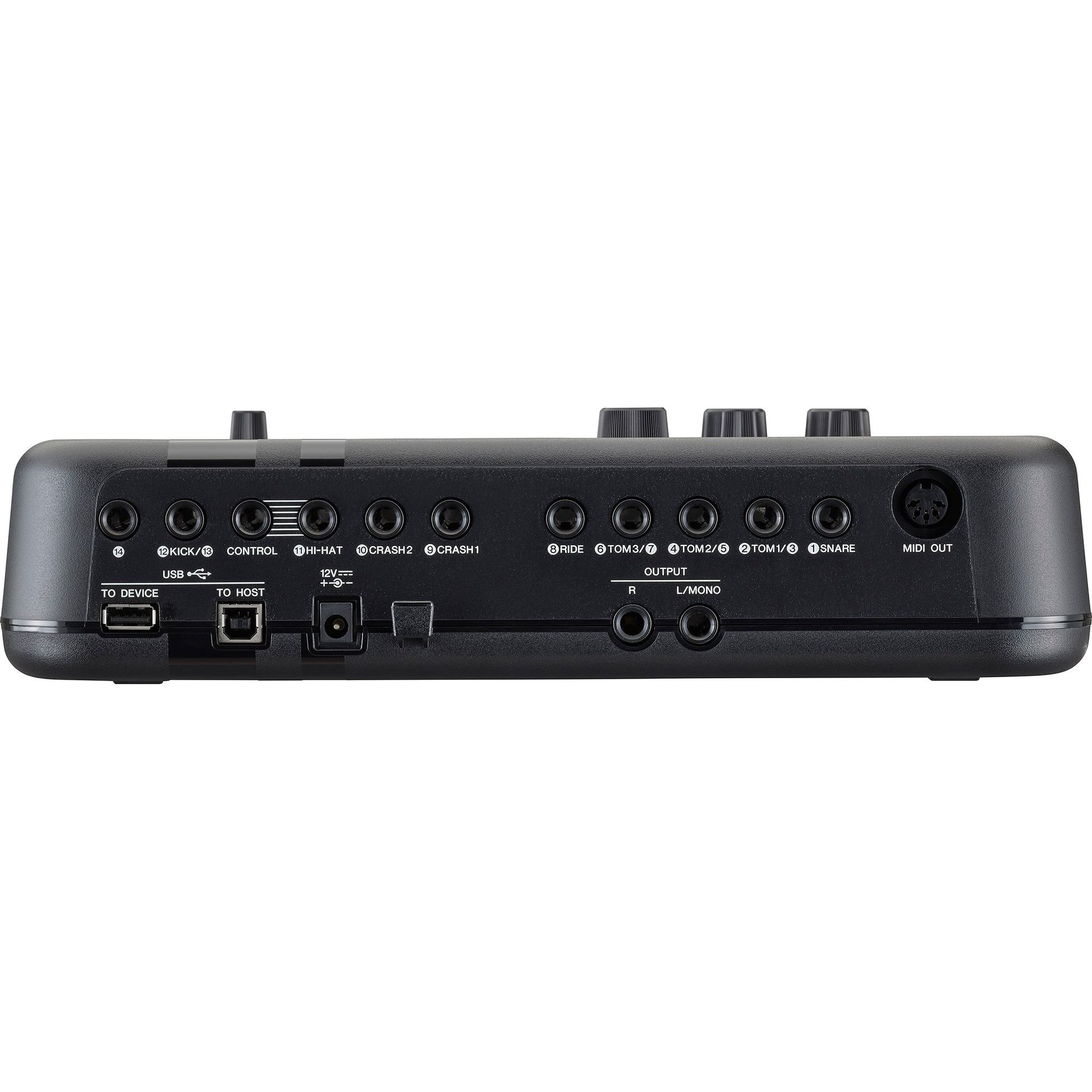

Connectivity
| Outputs | OUTPUT L/MONO, R (standard phone jacks) |
|---|---|
| Headphones | Standard stereo phone jack x1 |
| AUX IN | Stereo mini jack x1 |
| USB | USB TO DEVICE, USB TO HOST |
| MIDI | MIDI OUT |
| Trigger Inputs | Up to 14 pads with Y-cables |
| Display | 128 x 64 dot full-dot LCD |
General
| Module Dimensions (W x H x D) | 303 x 196 x 66 mm |
|---|---|
| Module Weight | 1.5 kg |
| Kit Weight | 32.2 kg |
| Footprint (average) | 1,100 x 1,400 mm |
| Power Supply | PA-150 AC adaptor or Yamaha-recommended equivalent |
| Included Accessories | Ten-channel cable, cable ties, module bracket with screws, drum key, Cubase AI download information, owner's and assembly manuals |
| Compatible Apps | Rec'n'Share, DTX Touch |
Specifications from Yamaha India's DTX6 Series pages, Yamaha's DTX-PRO spec sheet and the DTX6K5-M assembly manual; subject to change by Yamaha.
