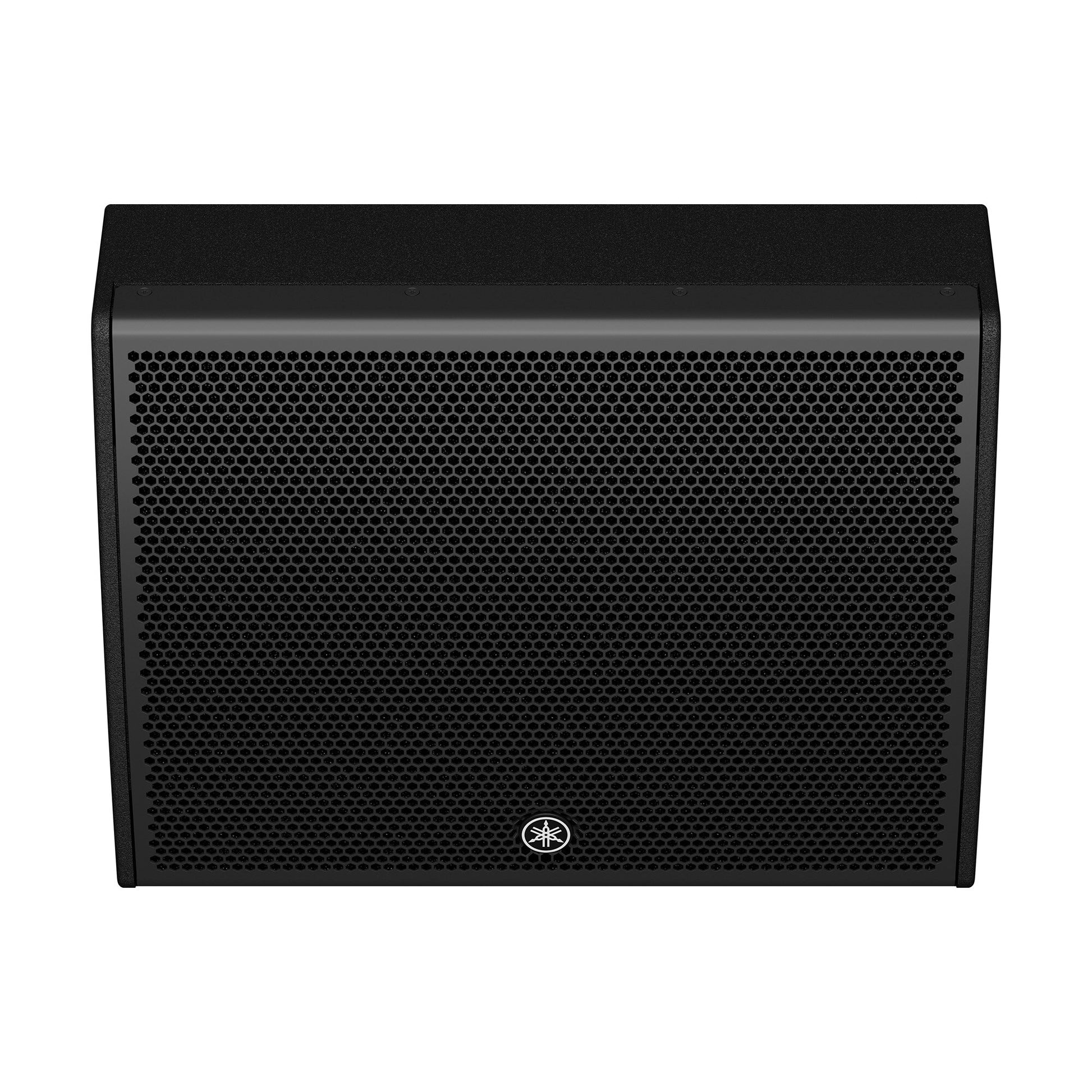

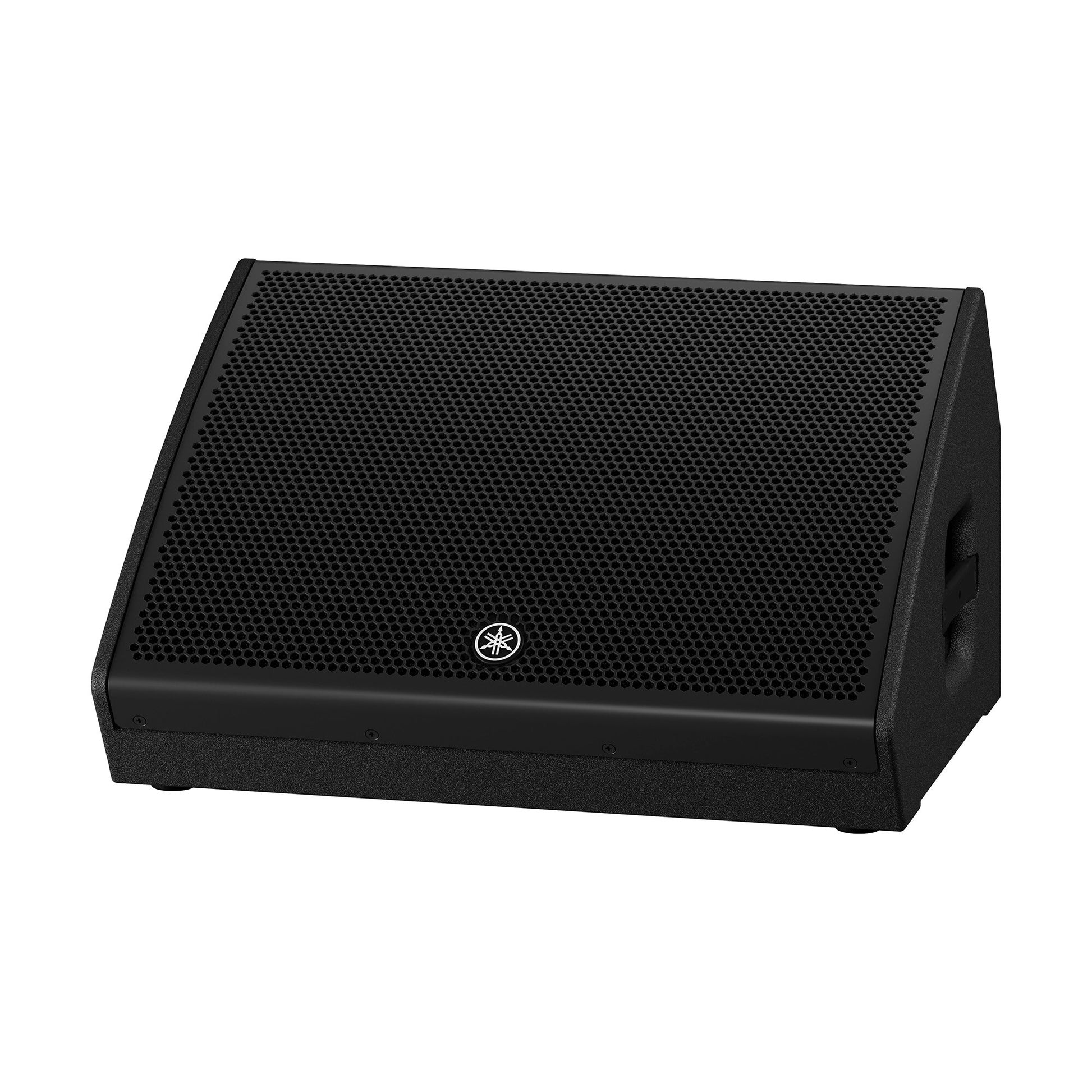

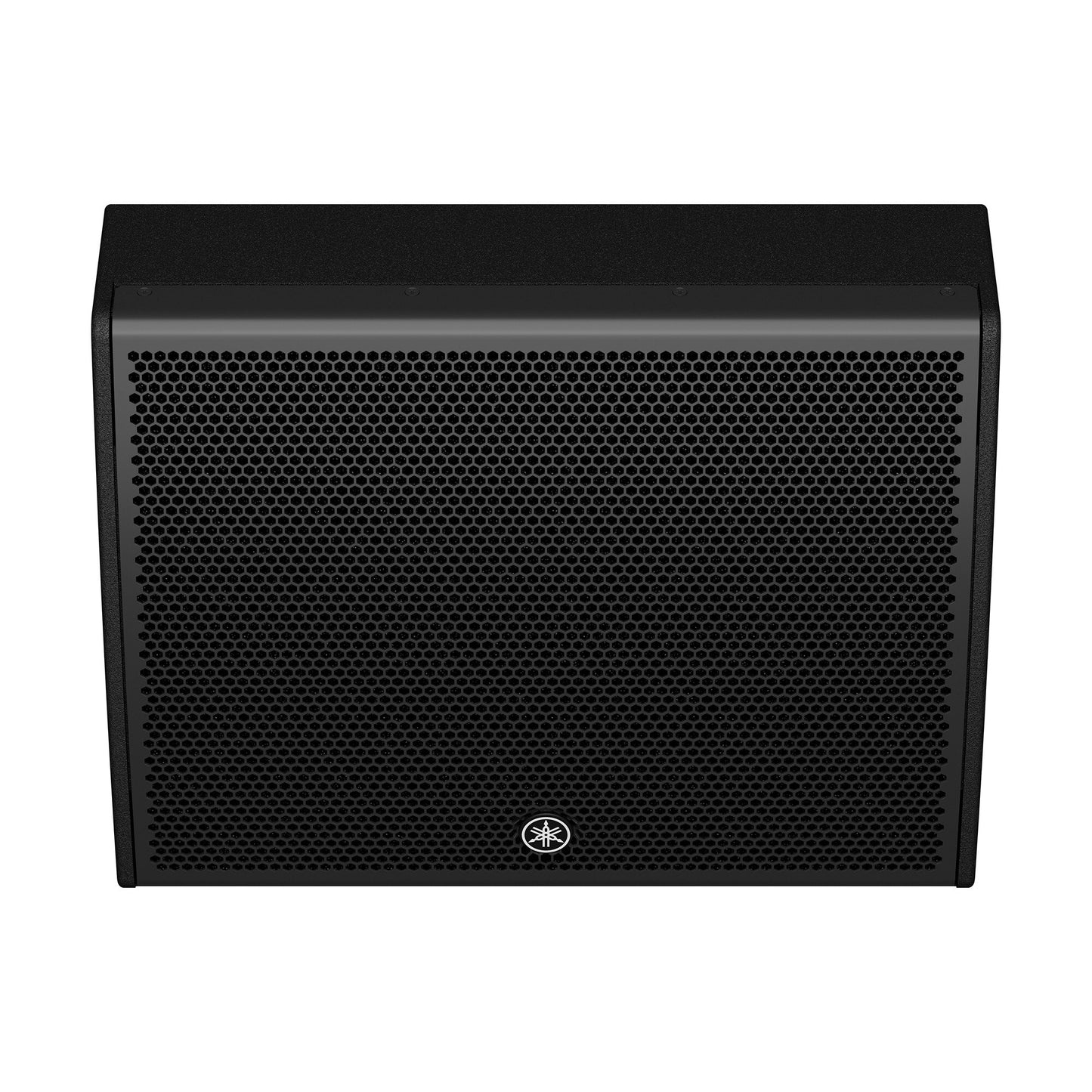

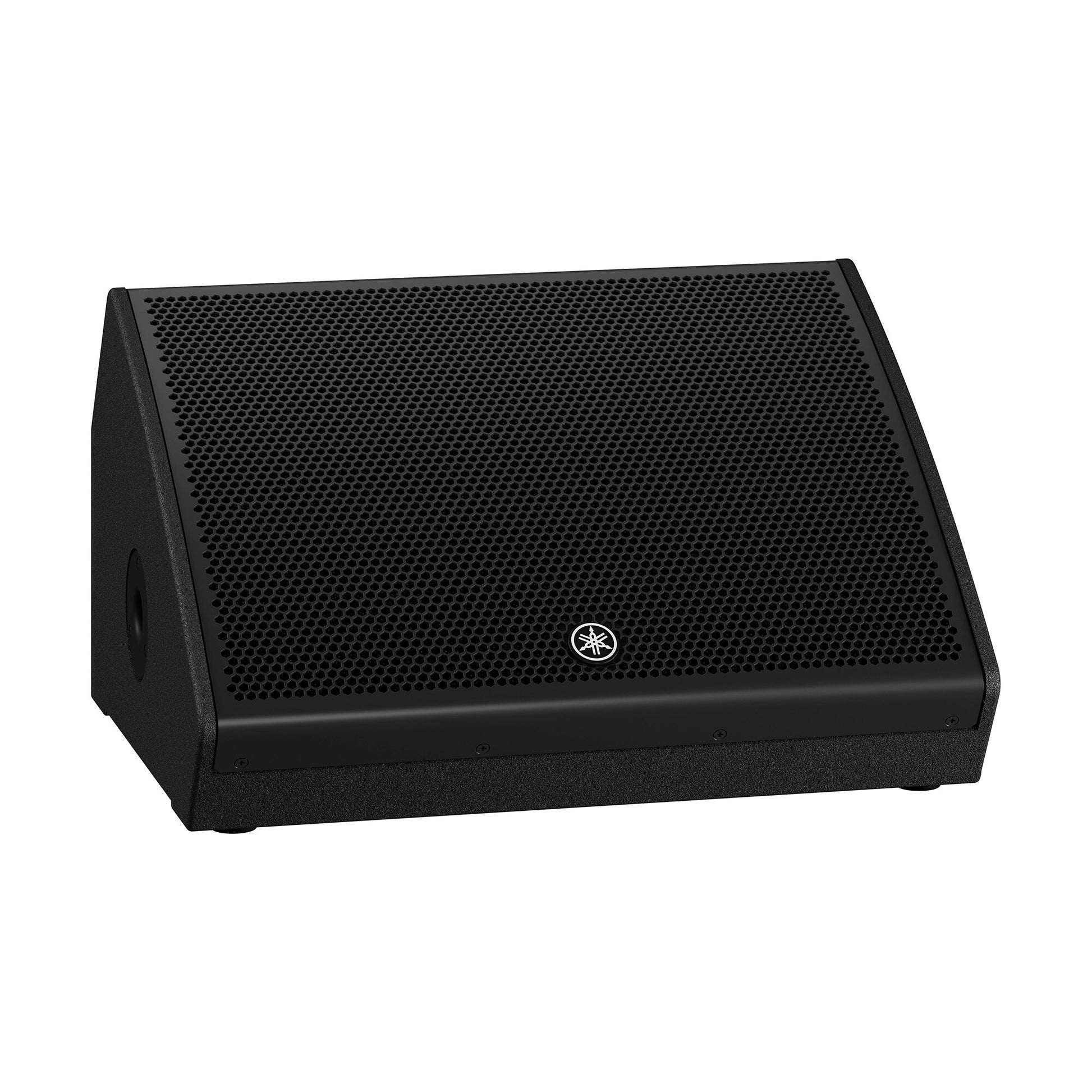

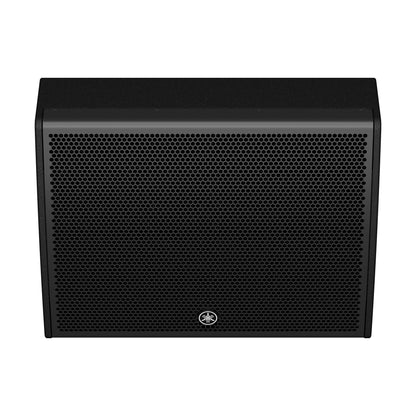

Yamaha DHR15M 15-inch Powered Floor Monitor

Yamaha DHR15M 15-inch Powered Floor Monitor

High-output 15-inch coaxial powered floor monitor.

  • 15-inch coaxial monitor with 1,000 W dynamic bi-amplification
  • 50 Hz–20 kHz frequency range and 131 dB maximum SPL
  • 65° × 75° constant-directivity coverage with FIR-X tuning
  • Low-profile 57° plywood enclosure with polyurea coating
  • Side-mounted 35 mm pole socket for stand use
MRPRs. 82,600.00
YMS PriceRs. 61,950.0025% OFF
Taxes included.

This variant is currently out of stock, but we can usually source it within 1-2 weeks. Select Book now to send an enquiry, and we'll confirm availability and the expected delivery date before requesting any payment.

Product enquiry

Tell us how to contact you. We will confirm availability, expected delivery time, and any deposit before you pay.
View full details

Product details

High-output 15-inch coaxial powered floor monitor for professional stage use.

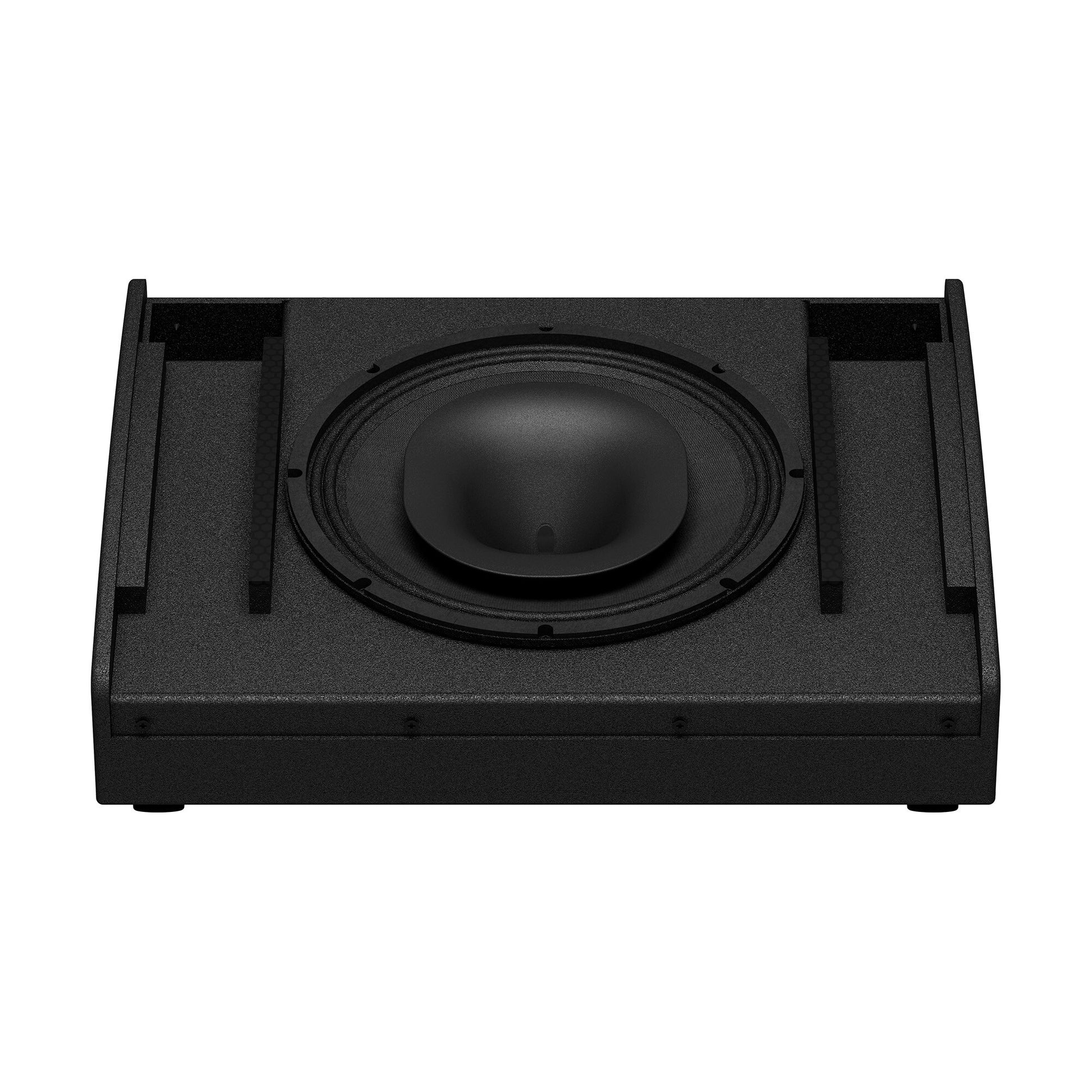

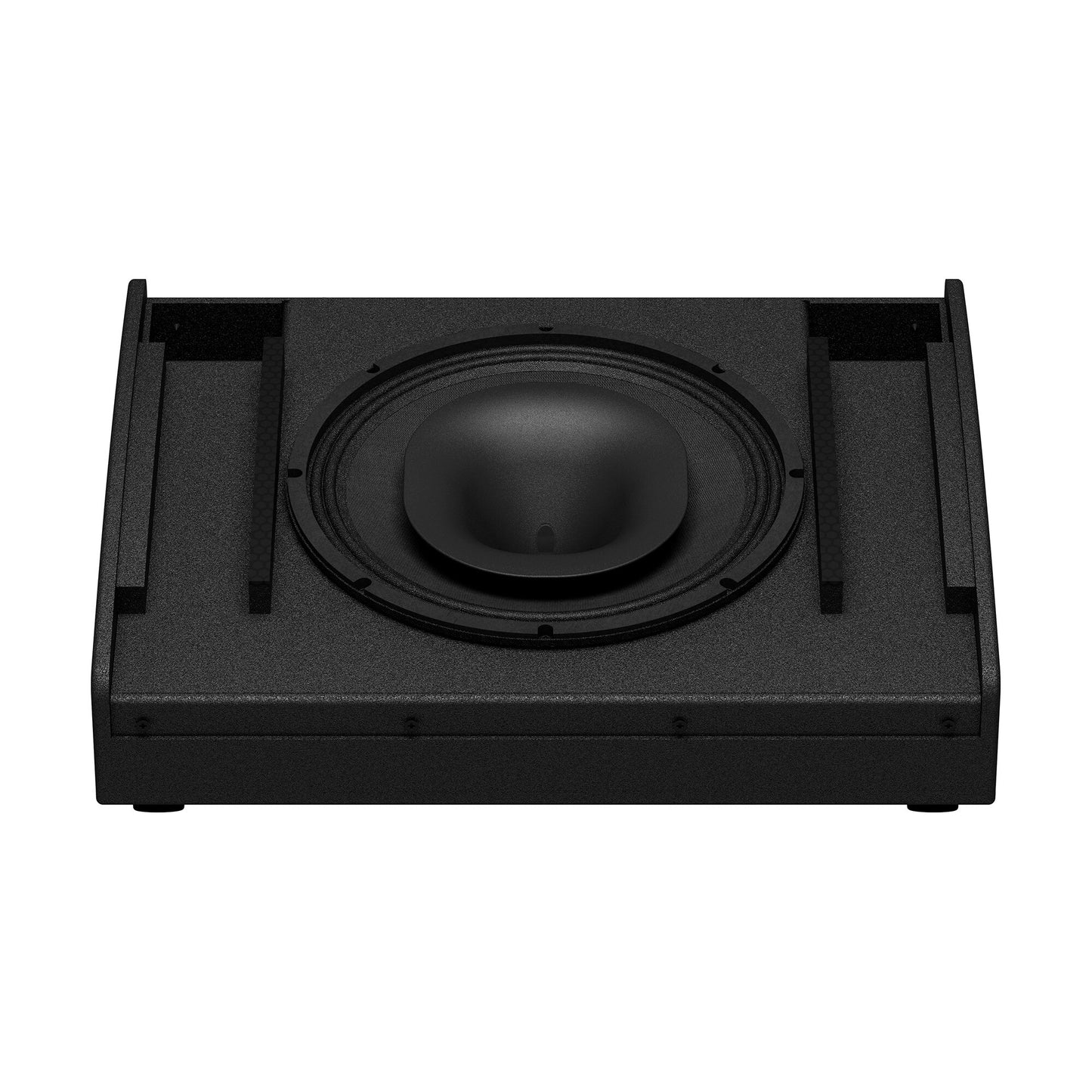

The Yamaha DHR15M combines a coaxial 15-inch LF and 1.75-inch HF diaphragm configuration with 1,000 W dynamic Class-D amplification. Its 57° low-profile plywood enclosure is finished with durable polyurea.

Key specifications

  • Amplifier: 1,000 W dynamic / 465 W continuous, bi-amped Class-D
  • Frequency range: 50 Hz–20 kHz
  • Maximum SPL: 131 dB
  • Coverage: 65° horizontal × 75° vertical
  • Drivers: 15-inch LF (3-inch voice coil); coaxial 1-inch throat HF (1.75-inch diaphragm)
  • Crossover: 1.8 kHz
  • DSP: FIR-X tuning, D-CONTOUR (FOH/Main, Monitor, Off), HPF (Off/100/120 Hz)

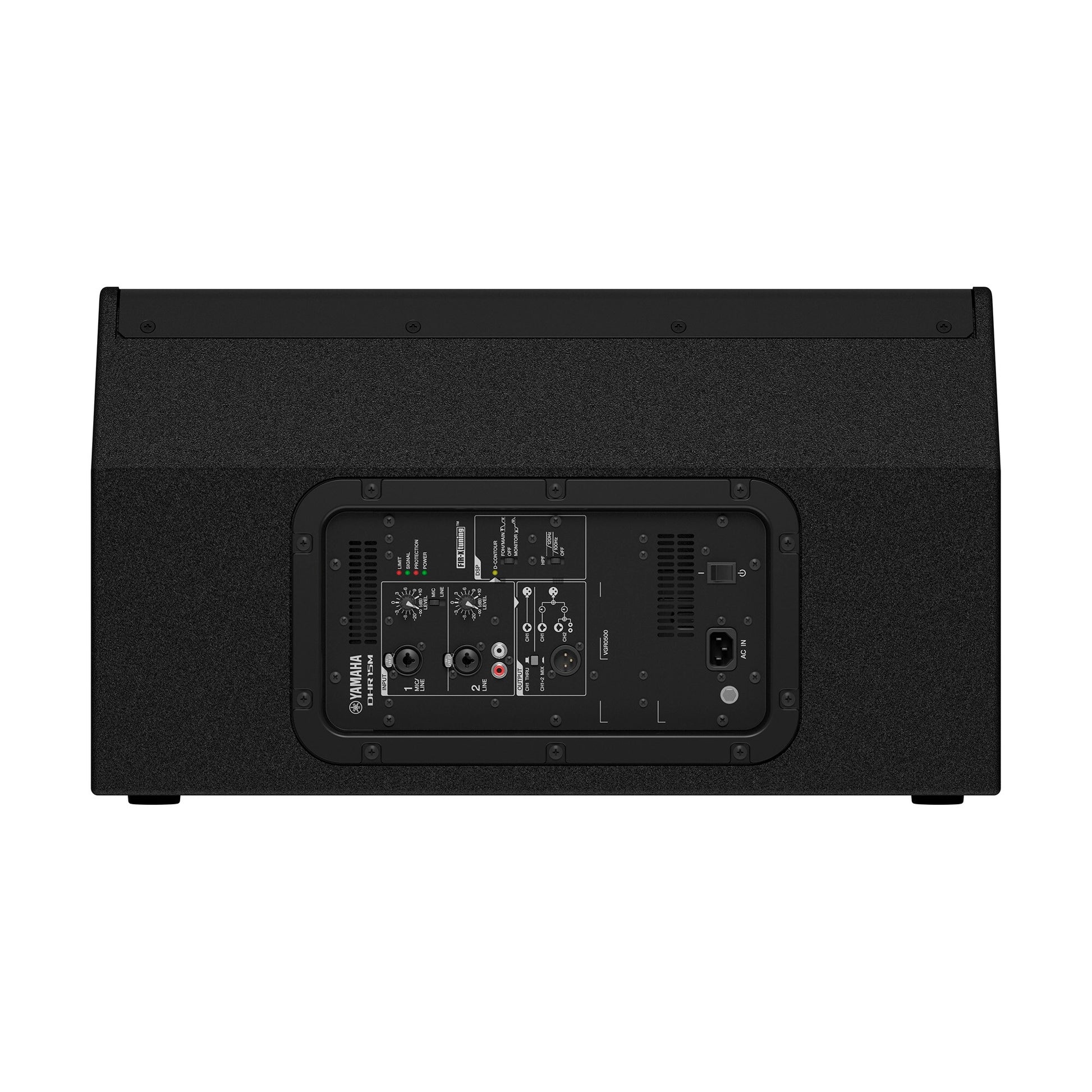

  • Inputs: CH1 XLR/TRS combo; CH2 XLR/TRS combo plus stereo RCA
  • Output: XLR, selectable CH1 parallel thru or CH1+CH2 mix

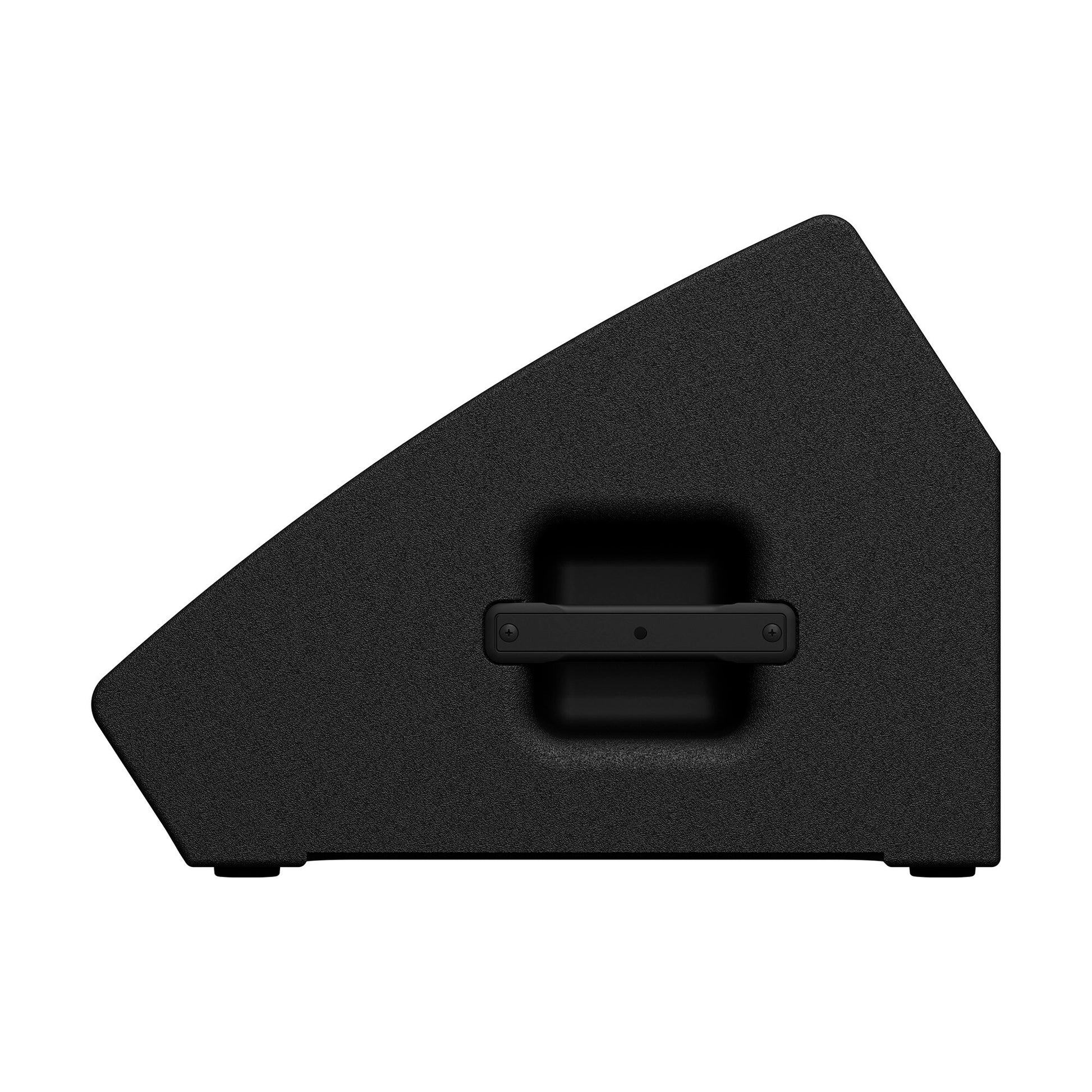

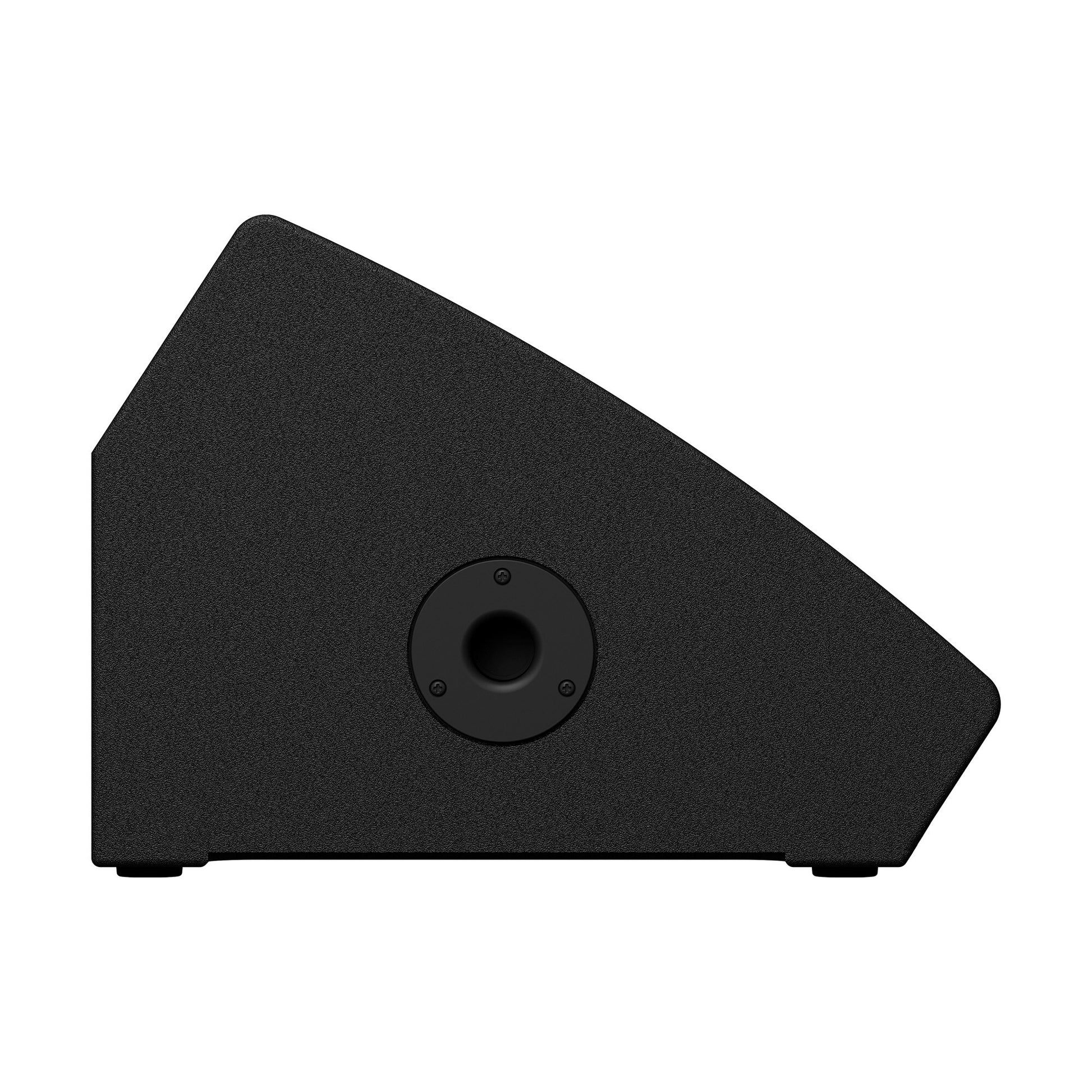

  • Mounting: Side-mounted 35 mm pole socket
  • Monitor angle: 57°
  • Dimensions: 642 × 369 × 505 mm
  • Weight: 23 kg

Application

Designed for high-output stage monitoring. The coaxial configuration provides controlled point-source coverage, while the side pole socket supports stand-mounted use.
