Product details
Flagship Arranger Sound. Expressive Voices. Complete Solo Performance.

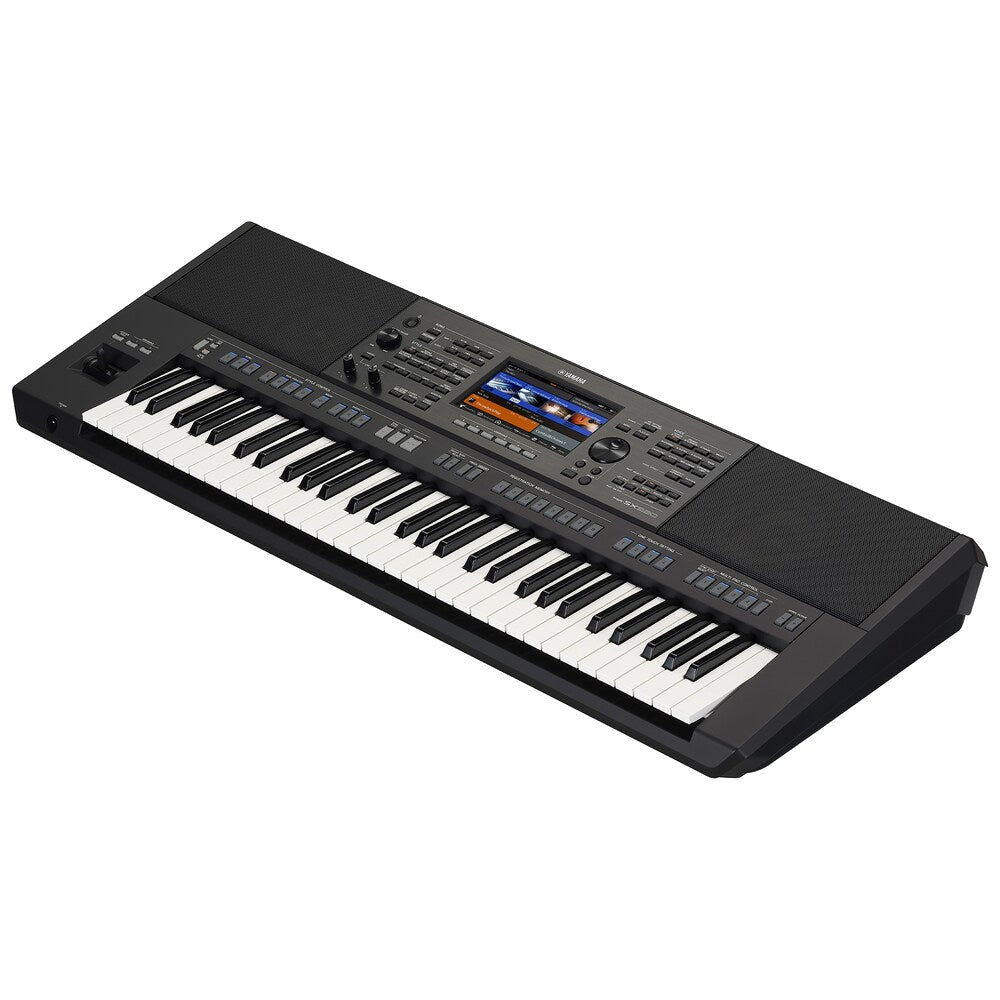

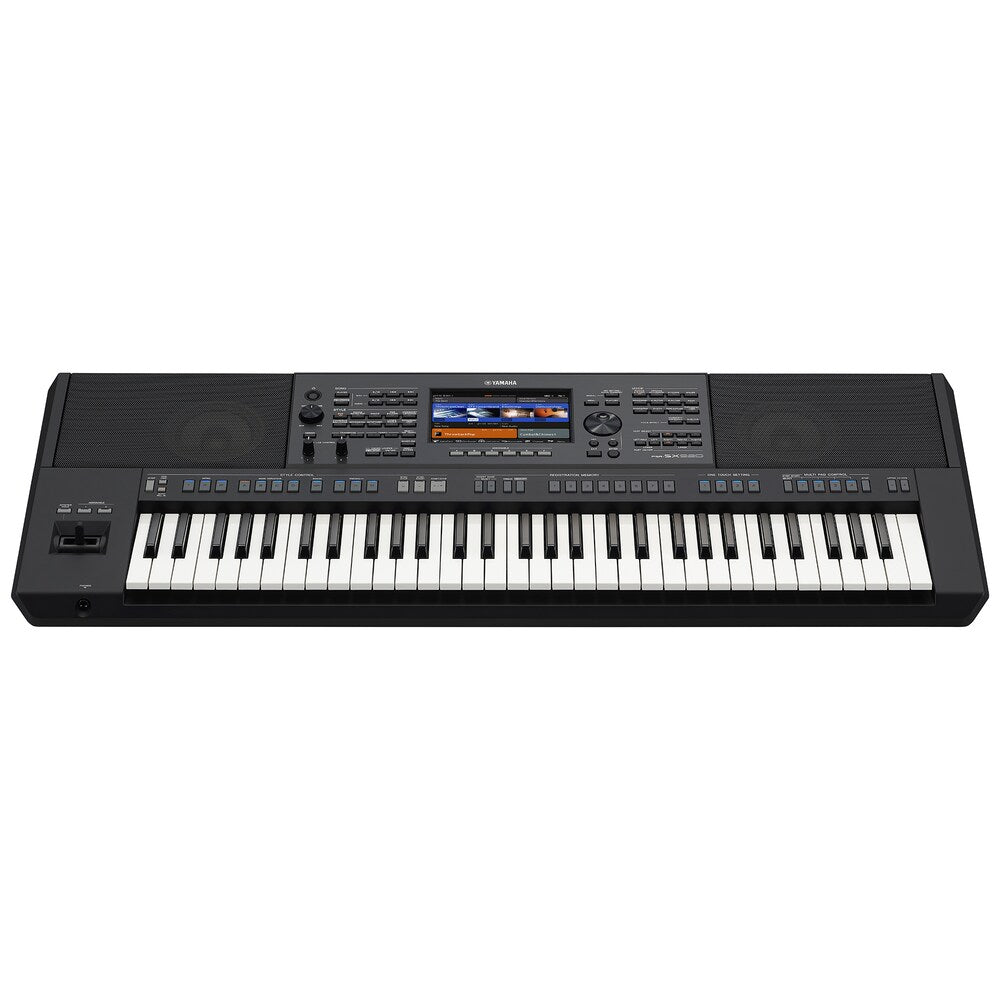

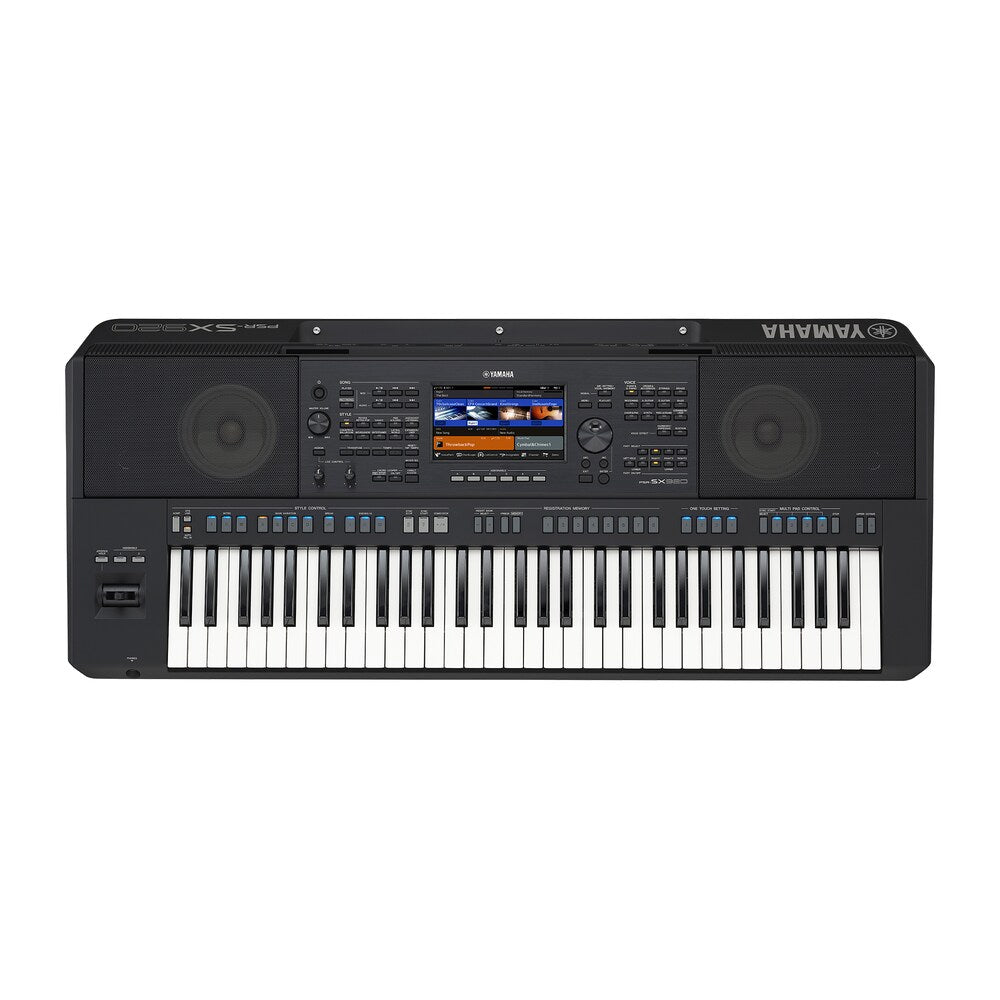

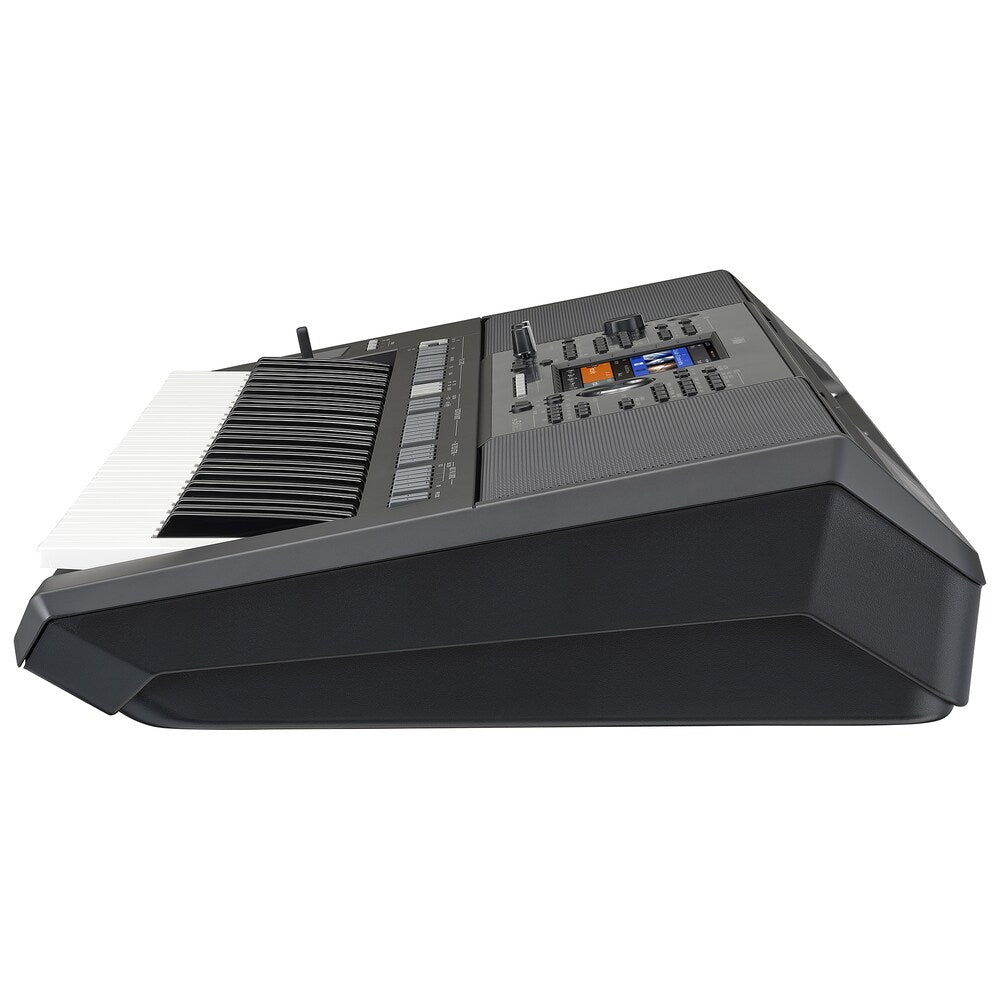

The Yamaha PSR-SX920 is the flagship PSR-SX arranger workstation for performers who want polished accompaniment, expressive solo Voices and production-ready control in one self-contained instrument. Its 61-note FSB keyboard, 7-inch touchscreen and powerful speaker system are designed for fast, confident live operation.
With 1,587 preset Voices, 575 accompaniment Styles, Super Articulation2 technology, Chord Looper, Style Dynamics Control, microphone processing and comprehensive recording, PSR-SX920 can support a complete performance—from the first rehearsal to the stage and finished audio.
Key Features
61-note FSB keyboard built for arranger performance
The responsive organ-style FSB action supports initial touch and five selectable touch curves. It is quick for melody lines, organ parts, layered voices and accompaniment control while providing enough resistance for confident two-handed performance.
More than 1,500 Voices with Super Articulation2 realism
Choose from 1,587 preset Voices, 63 Drum/SFX Kits and 480 XG Voices. Twelve Super Articulation2 Voices, 15 Super Articulation+ Voices and 340 Super Articulation Voices reproduce lifelike performance details, while Crossfade Portamento creates smooth pitch transitions between notes.
575 professional Styles with dynamic, controllable backing

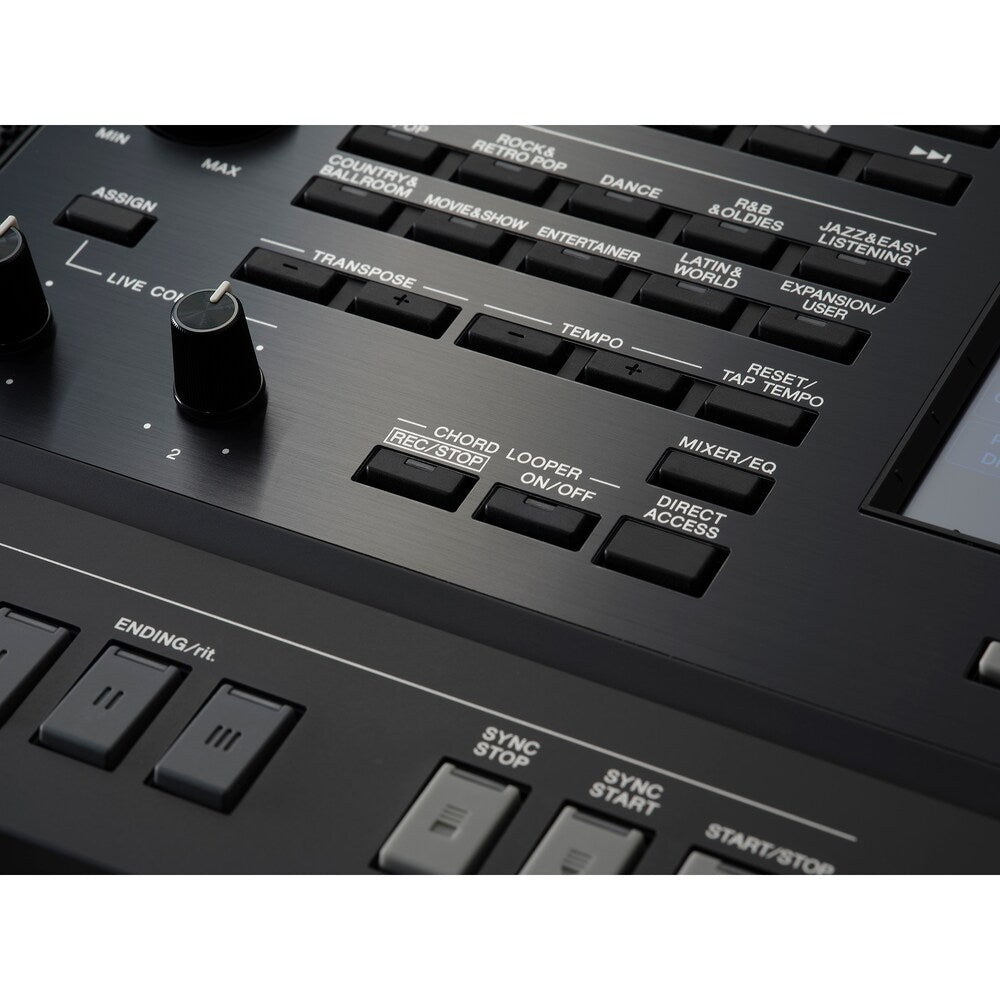

The accompaniment library includes 520 Pro, 49 Session and 6 Free Play Styles, each with four One Touch Settings. Chord Looper frees your left hand from repeating a progression, while Style Dynamics Control changes the energy of the backing in real time.

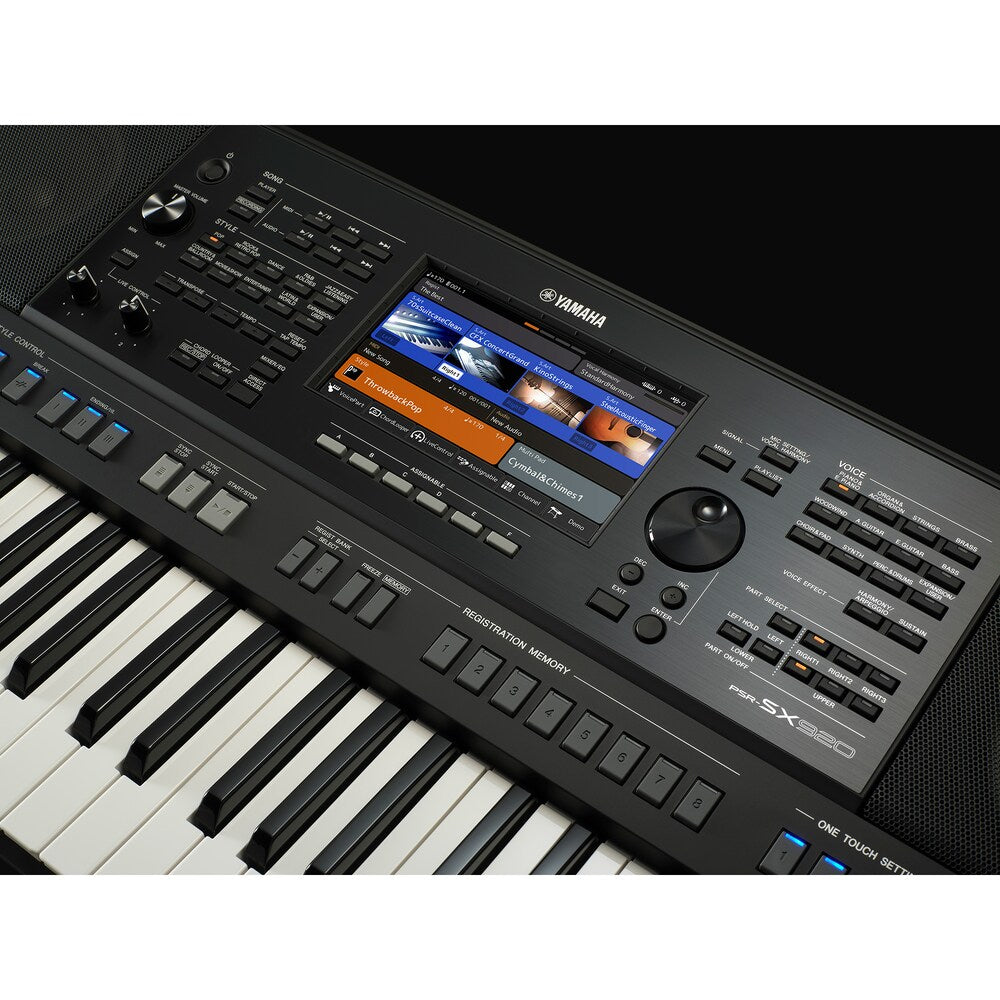

7-inch touchscreen with performance-ready controls

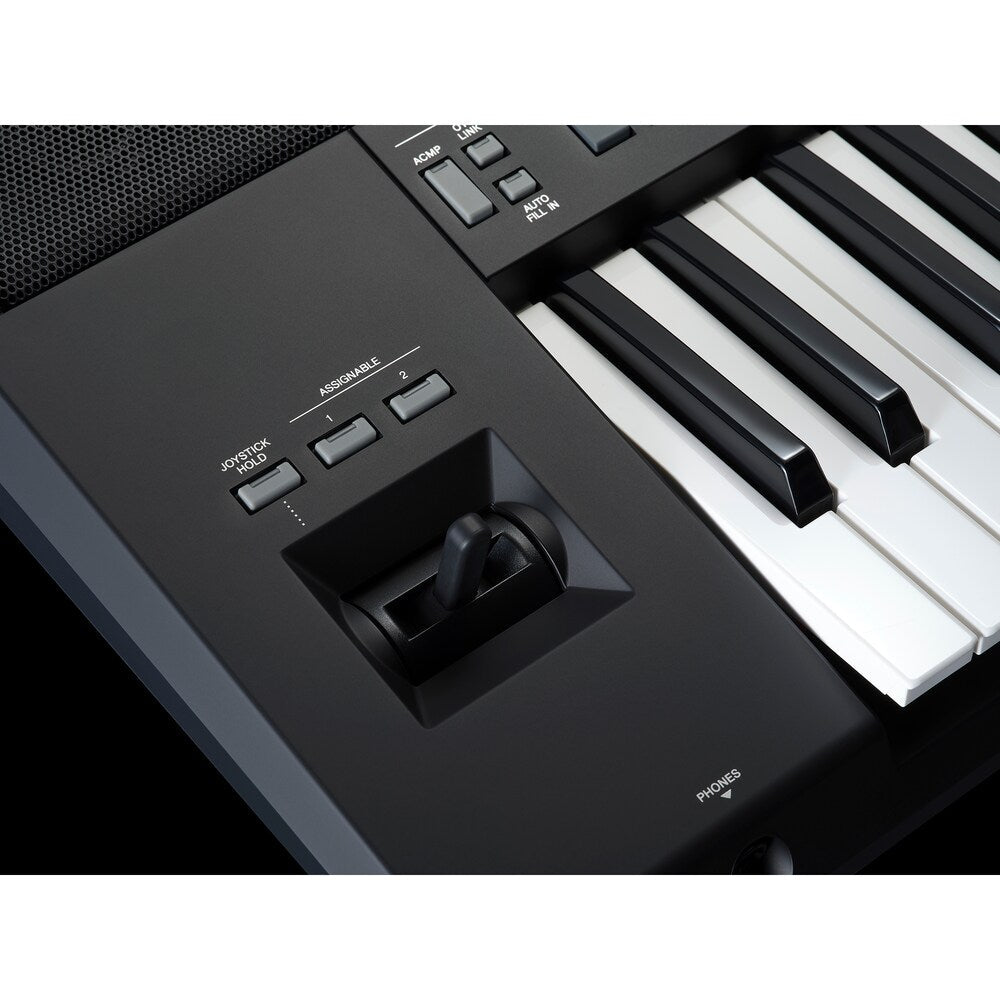

The 800 × 480 colour touchscreen makes Voices, Styles, mixer settings, registrations and song functions easy to reach. An assignable joystick, two Live Control knobs, eight assignable buttons and six Home-screen shortcuts let you tailor the instrument around your performance.
Vocal Harmony, Synth Vocoder and flexible recording
Connect a microphone or guitar and use input processing, 54 Vocal Harmony presets, 20 Synth Vocoder presets and dedicated vocal effects. Record 16-track MIDI arrangements or capture stereo WAV and MP3 audio directly from the instrument.
Four-speaker amplification with clarity and impact
The integrated system combines two 15 W and two 10 W amplifier channels with 13 cm main speakers and 2.5 cm dome tweeters, giving performers clear full-range sound without requiring external amplification for every setting.
FAQ
Q. Who is the PSR-SX920 best suited to?
It is ideal for professional solo performers, singers, worship musicians, composers, entertainers and home studios that want the most complete PSR-SX feature set.
Q. What is the main difference between PSR-SX920 and PSR-SX720+?
PSR-SX920 provides the larger Voice and Style libraries, Super Articulation2, Vocal Harmony and Synth Vocoder, more DSP insertion blocks, 2 GB expansion memory, sub outputs and the more powerful speaker system. PSR-SX720+ retains the core touchscreen workflow, Chord Looper and Style Dynamics Control at a lower price.
Q. Does it have built-in speakers?
Yes. Its four-speaker system uses (15 W + 10 W) × 2 amplification, two 13 cm speakers and two dome tweeters. Main and sub outputs are also provided for external sound systems.
Q. Can I connect a microphone?
Yes. The microphone/guitar input includes noise gate, compressor and three-band EQ, while Vocal Harmony, Synth Vocoder and vocal effects support complete singer-keyboardist performances.
Q. Can it record songs and audio?
Yes. It supports 16-track MIDI song recording plus stereo WAV and MP3 audio recording. Audio playback includes time stretch, pitch shift and vocal cancel functions.
Q. Can I add expansion Voices and Styles?
Yes. PSR-SX920 provides approximately 2 GB for Expansion Voices and supports Expansion Styles through internal memory.
Q. What is included in the box?
Yamaha lists the owner's manual, music rest and AC adaptor; included items may vary by region.
Why Buy from YMS?
- ✓ Authorised Yamaha Premium Retailer: Buy a genuine India-market Yamaha instrument with official manufacturer warranty support.
- ✓ Arranger-workstation guidance: Our team can help with Styles, registrations, microphone setup, amplification, pedals and performance workflows.
- ✓ Support beyond the keyboard: Ask us about suitable stands, benches, pedals, headphones, cases, microphones and cables.
- ✓ Pan-India delivery: Order from anywhere in India, subject to serviceability for your location.
- ✓ Physical-store support: YMS teams in Bengaluru and Mangaluru are available for product enquiries and after-sales guidance.
Specifications
Overview
| Model | Yamaha PSR-SX920 |
|---|---|
| Instrument type | Digital arranger workstation |
| Keyboard | 61-note organ-style FSB keyboard with initial touch |
| Touch response | Normal; Soft 1; Soft 2; Hard 1; Hard 2 |
| Display | 7-inch TFT colour Wide VGA LCD touchscreen (800 × 480) |
| Controllers | Assignable joystick; 2 assignable Live Control knobs; 8 assignable buttons |
Dimensions and weight
| Width | 1,017 mm (40-1/16 in) |
|---|---|
| Height | 139 mm (5-1/2 in) |
| Depth | 431 mm (17 in) |
| Weight | 11.6 kg (25 lb, 9 oz) |
Voices and effects
| Tone generation | AWM Stereo Sampling with AEM technology |
|---|---|
| Maximum polyphony | 128 notes |
| Preset Voices | 1,587 Voices + 63 Drum/SFX Kits + 480 XG Voices |
| Featured Voices | 12 S.Articulation2; 15 S.Articulation+; 340 S.Articulation; 55 OrganFlutes; 82 MegaVoice |
| Expansion Voice memory | Approx. 2 GB |
| Keyboard Parts | Right 1; Right 2; Right 3; Left |
| Reverb | 59 preset + 30 user |
| Chorus | 107 preset + 30 user |
| DSP | 358 preset with VCM + 30 user |
| Insertion effect blocks | 13 blocks |
| Vocal features | 54 Vocal Harmony presets; 20 Synth Vocoder presets; 23 Vocal Effects |
Accompaniment Styles
| Preset Styles | 575 |
|---|---|
| Featured Styles | 520 Pro; 49 Session; 6 Free Play |
| Style controls | 3 Intros; 4 Main Variations; 4 Fills; Break; 3 Endings |
| One Touch Setting | 4 for each Style |
| Chord Looper | Yes |
| Style Dynamics Control | Yes, using knobs or pedal |
| Style compatibility | SFF and SFF GE |
| Expansion Styles | Yes, using internal memory |
Songs, recording and performance
| MIDI recording | 16 tracks; Quick, Multi and Step Recording |
|---|---|
| MIDI formats | Playback: SMF 0/1 and XF; Recording: SMF 0 |
| Audio recording | WAV 44.1 kHz/16-bit stereo; MP3 44.1 kHz at 128/256/320 kbps |
| Maximum audio recording time | 80 minutes per Song |
| Audio playback tools | Time Stretch; Pitch Shift; Vocal Cancel |
| Registration Memory | 8 buttons; Registration Sequence and Freeze |
| Playlist | Up to 2,500 records per Playlist file |
| Tempo range | 5-500 BPM; Tap Tempo |

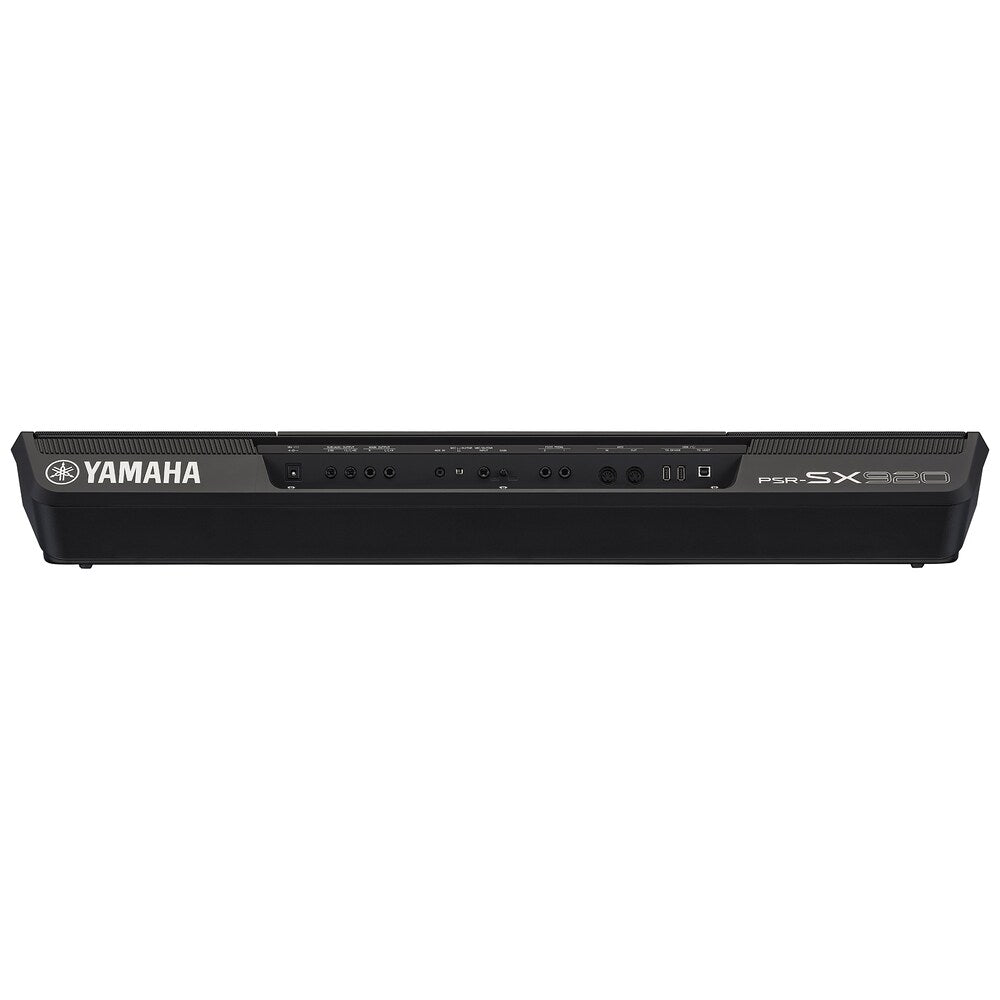

Storage and connectivity
| Internal memory | Approx. 4 GB |
|---|---|
| External storage | USB flash drive |
| Microphone/Guitar input | Yes |
| Headphones | 6.3 mm stereo phone jack |
| MIDI | MIDI IN and OUT |
| Aux input | 3.5 mm stereo mini jack |
| Line outputs | Main L/L+R and R; Sub/Aux outputs 1 and 2 |
| Foot pedals | 2 assignable pedal connections |
| USB | 2 × USB TO DEVICE; USB TO HOST |
| Bluetooth audio | Yes, depending on destination |
Amplification, power and accessories
| Amplifiers | (15 W + 10 W) × 2 |
|---|---|
| Speakers | 2 × 13 cm + 2 × 2.5 cm dome |
| Power supply | Yamaha PA-300C or equivalent recommended adaptor |
| Power consumption | 24 W |
| Auto power off | Yes |
| Included accessories | Owner's Manual; music rest; AC adaptor (regional inclusion may vary) |
Specifications are based on Yamaha India's published PSR-SX920 and PSR-SX720+ specifications and may change with firmware updates or vary by region.
