Product details
Professional Arranger Power. Inspiring Styles. Ready for the Stage.

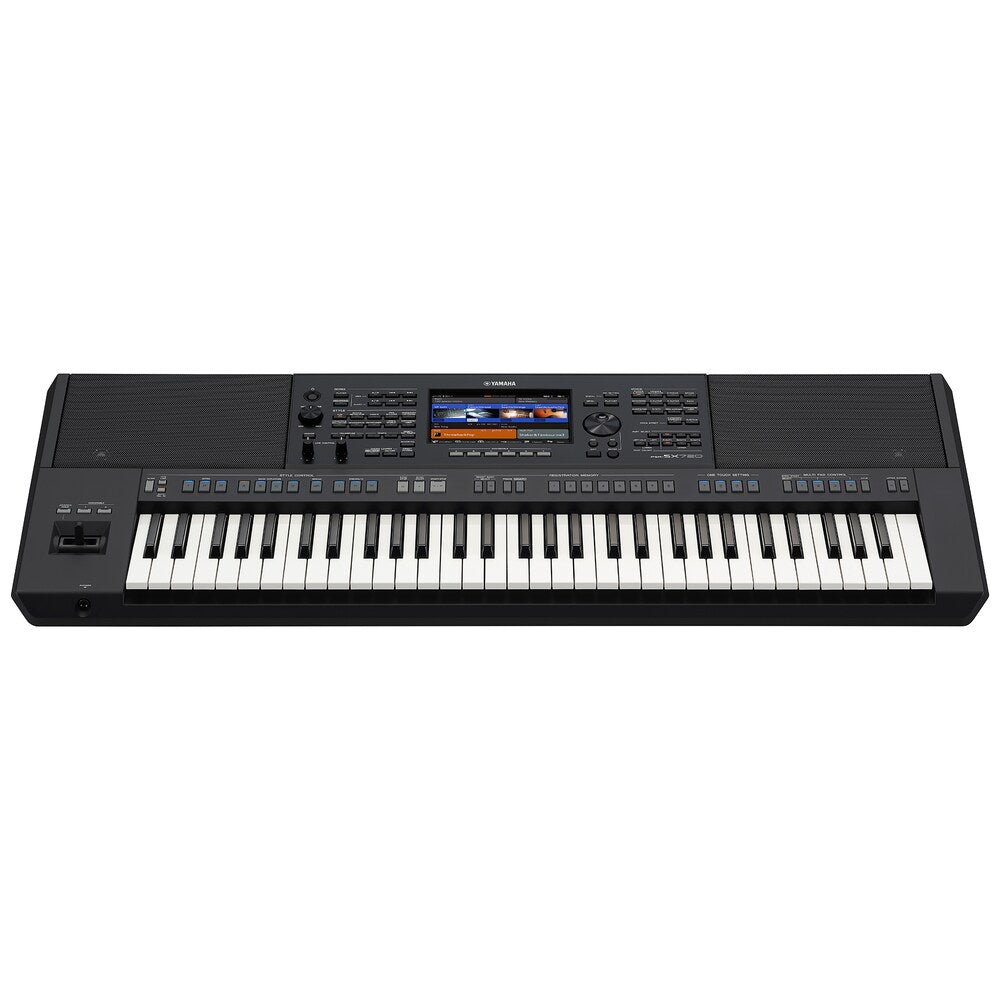

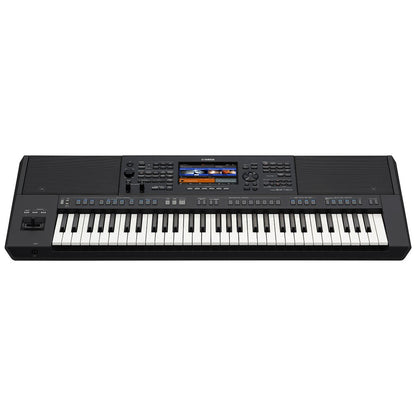

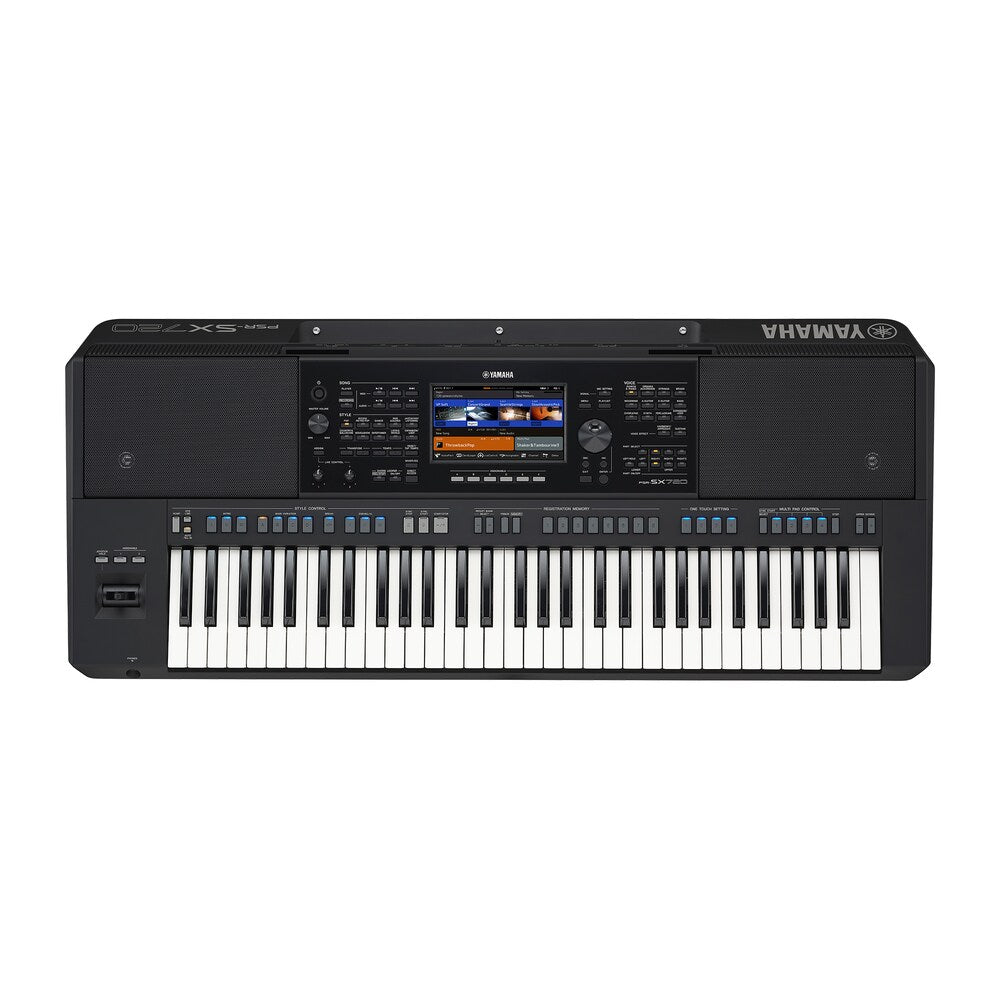

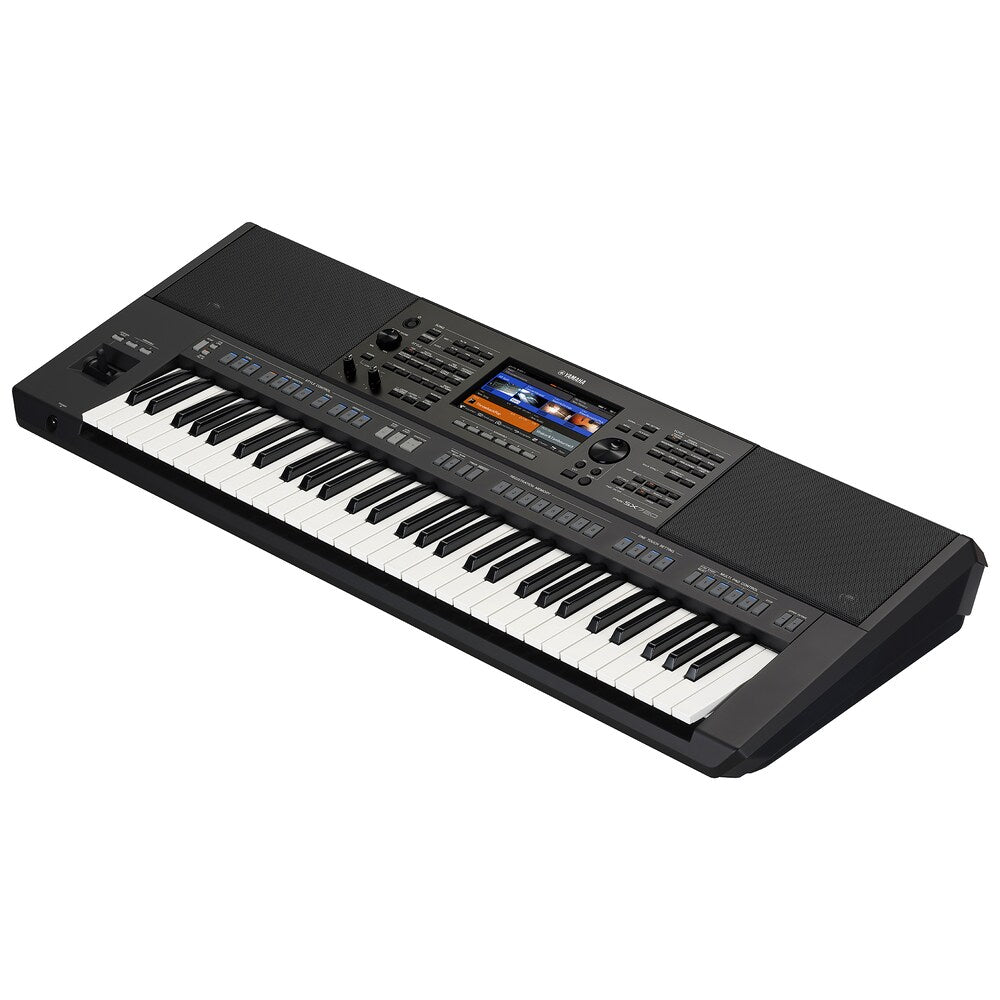

The Yamaha PSR-SX720+ brings the current PSR-SX performance workflow to musicians who want expressive Voices, professional accompaniment and fast stage control in a portable all-in-one instrument. Its 61-note FSB keyboard, 7-inch touchscreen and assignable controls make complex arranger functions easy to access while performing.
With 1,377 preset Voices, 450 accompaniment Styles, Super Articulation+ technology, Chord Looper, Style Dynamics Control, microphone/guitar input and comprehensive MIDI and audio recording, PSR-SX720+ is equipped for solo performance, songwriting, worship, teaching and home production.
Key Features
61-note FSB keyboard built for arranger performance
The responsive organ-style FSB action supports initial touch and five selectable touch curves. It is quick for melody lines, organ parts, layered voices and accompaniment control while providing enough resistance for confident two-handed performance.
More than 1,300 Voices with expressive articulation
Choose from 1,377 preset Voices, 56 Drum/SFX Kits and 480 XG Voices. Nine Super Articulation+ Voices and 252 Super Articulation Voices add convincing instrumental behaviour, while Crossfade Portamento creates smooth, musical pitch transitions.
450 accompaniment Styles with live dynamics control
The library includes 410 Pro, 37 Session and 3 Free Play Styles, each with four One Touch Settings. Chord Looper can repeat a chord progression automatically, while Style Dynamics Control lets you shape the energy of the backing using a knob or pedal.

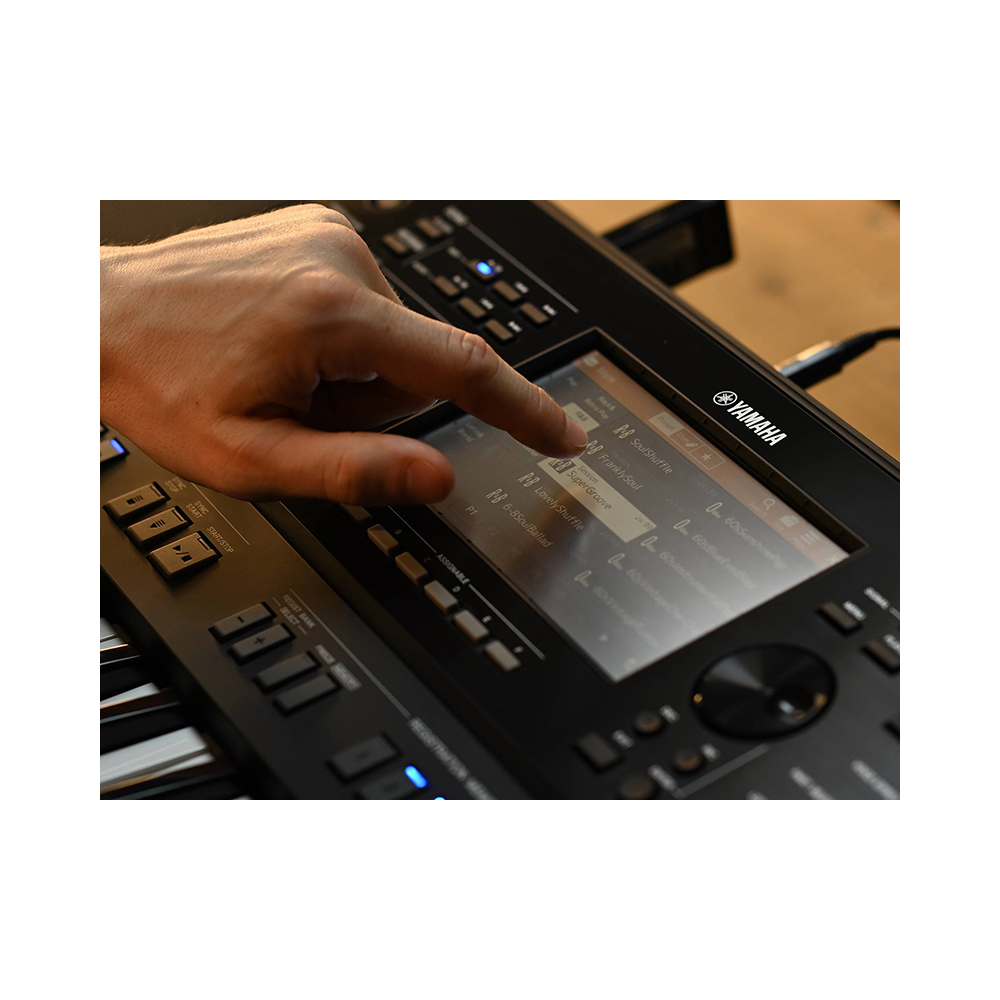

7-inch touchscreen with performance-ready controls

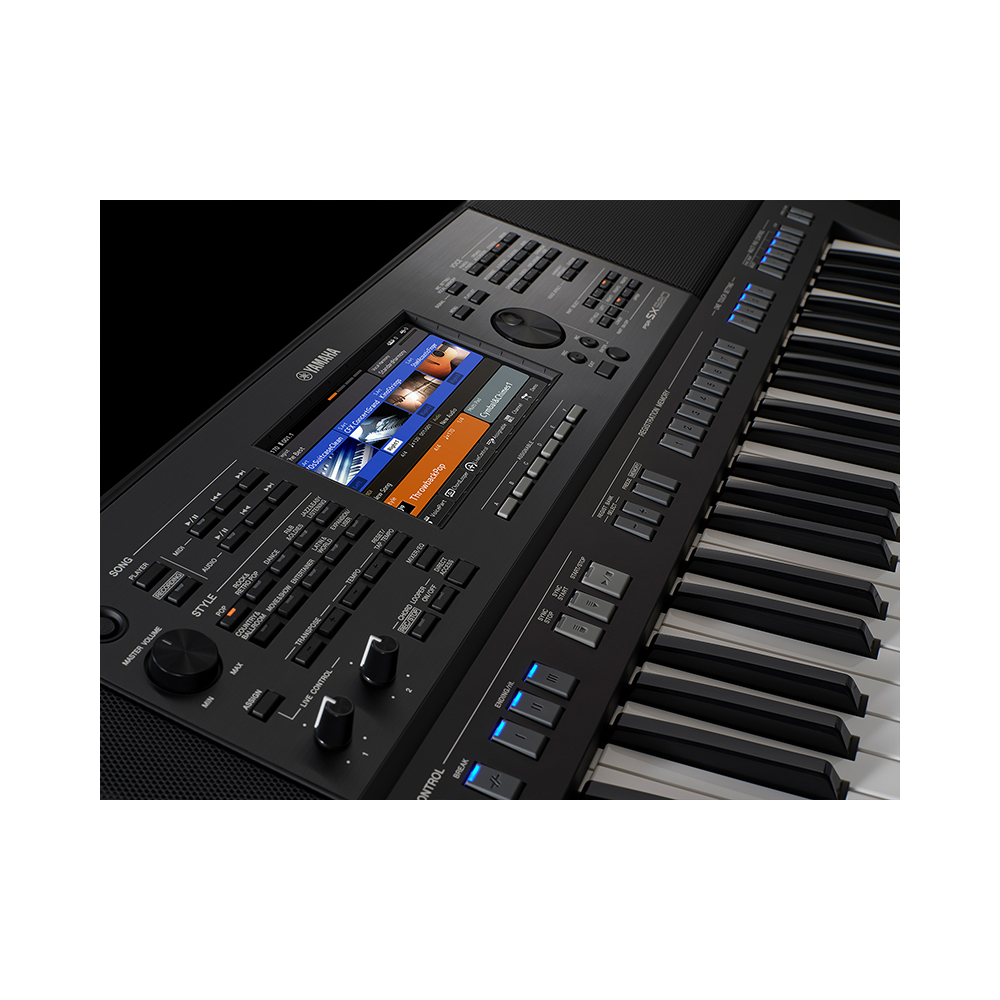

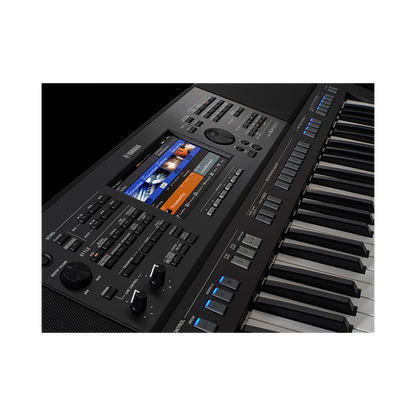

The 800 × 480 colour touchscreen makes Voices, Styles, mixer settings, registrations and song functions easy to reach. An assignable joystick, two Live Control knobs, eight assignable buttons and six Home-screen shortcuts let you tailor the instrument around your performance.
Microphone/guitar input and complete song recording
Connect a microphone or guitar and shape the input with noise gate, compressor and three-band EQ. Record 16-track MIDI arrangements or capture stereo WAV and MP3 audio, then use the instrument's playback tools for practice and performance.
A powerful built-in four-speaker system
Two 15 W amplifier channels drive a pair of 13 cm speakers and a pair of 5 cm speakers, delivering clear full-range sound for practice, rehearsals and many intimate performance settings. Main outputs make connection to a mixer or PA straightforward.
FAQ
Q. Who is the PSR-SX720+ best suited to?
It is an excellent choice for solo performers, worship musicians, songwriters, teachers, home players and entertainers seeking professional arranger tools without stepping up to the flagship SX920.
Q. What is the main difference between PSR-SX920 and PSR-SX720+?
PSR-SX720+ shares the 61-note FSB keyboard, 7-inch touchscreen, Chord Looper, Style Dynamics Control and core recording workflow. PSR-SX920 adds Super Articulation2, larger Voice and Style libraries, Vocal Harmony and Synth Vocoder, additional DSP capacity, more expansion memory, sub outputs and stronger amplification.
Q. Does it have built-in speakers?
Yes. Its built-in system provides 15 W × 2 amplification through two 13 cm and two 5 cm speakers, with main audio outputs available for a mixer, amplifier or PA.
Q. Can I connect a microphone?
Yes. The microphone/guitar input provides noise gate, compressor and three-band EQ. Unlike PSR-SX920, PSR-SX720+ does not include Vocal Harmony or Synth Vocoder.
Q. Can it record songs and audio?
Yes. It supports 16-track MIDI song recording plus stereo WAV and MP3 audio recording. Audio playback includes time stretch, pitch shift and vocal cancel functions.
Q. Can I add expansion Voices and Styles?
Yes. PSR-SX720+ provides approximately 1 GB for Expansion Voices and supports Expansion Styles through internal memory.
Q. What is included in the box?
Yamaha lists the owner's manual, music rest and AC adaptor; included items may vary by region.
Why Buy from YMS?
- ✓ Authorised Yamaha Premium Retailer: Buy a genuine India-market Yamaha instrument with official manufacturer warranty support.
- ✓ Arranger-workstation guidance: Our team can help with Styles, registrations, microphone setup, amplification, pedals and performance workflows.
- ✓ Support beyond the keyboard: Ask us about suitable stands, benches, pedals, headphones, cases, microphones and cables.
- ✓ Pan-India delivery: Order from anywhere in India, subject to serviceability for your location.
- ✓ Physical-store support: YMS teams in Bengaluru and Mangaluru are available for product enquiries and after-sales guidance.
Specifications
Overview
| Model | Yamaha PSR-SX720+ |
|---|---|
| Instrument type | Digital arranger workstation |
| Keyboard | 61-note organ-style FSB keyboard with initial touch |
| Touch response | Normal; Soft 1; Soft 2; Hard 1; Hard 2 |
| Display | 7-inch TFT colour Wide VGA LCD touchscreen (800 × 480) |
| Controllers | Assignable joystick; 2 assignable Live Control knobs; 8 assignable buttons |
Dimensions and weight
| Width | 1,017 mm (40-1/16 in) |
|---|---|
| Height | 139 mm (5-1/2 in) |
| Depth | 431 mm (17 in) |
| Weight | 11.6 kg (25 lb, 9 oz) |
Voices and effects
| Tone generation | AWM Stereo Sampling |
|---|---|
| Maximum polyphony | 128 notes |
| Preset Voices | 1,377 Voices + 56 Drum/SFX Kits + 480 XG Voices |
| Featured Voices | 9 S.Articulation+; 252 S.Articulation; 55 OrganFlutes; 54 MegaVoice |
| Expansion Voice memory | Approx. 1 GB |
| Keyboard Parts | Right 1; Right 2; Right 3; Left |
| Reverb | 59 preset + 30 user |
| Chorus | 106 preset + 30 user |
| DSP | 322 preset + 30 user |
| Insertion effect blocks | 9 blocks |
| Vocal features | Mic/Guitar input processing: Noise Gate; Compressor; 3-band EQ |
Accompaniment Styles
| Preset Styles | 450 |
|---|---|
| Featured Styles | 410 Pro; 37 Session; 3 Free Play |
| Style controls | 3 Intros; 4 Main Variations; 4 Fills; Break; 3 Endings |
| One Touch Setting | 4 for each Style |
| Chord Looper | Yes |
| Style Dynamics Control | Yes, using knobs or pedal |
| Style compatibility | SFF and SFF GE |
| Expansion Styles | Yes, using internal memory |
Songs, recording and performance
| MIDI recording | 16 tracks; Quick, Multi and Step Recording |
|---|---|
| MIDI formats | Playback: SMF 0/1 and XF; Recording: SMF 0 |
| Audio recording | WAV 44.1 kHz/16-bit stereo; MP3 44.1 kHz at 128/256/320 kbps |
| Maximum audio recording time | 80 minutes per Song |
| Audio playback tools | Time Stretch; Pitch Shift; Vocal Cancel |
| Registration Memory | 8 buttons; Registration Sequence and Freeze |
| Playlist | Up to 2,500 records per Playlist file |
| Tempo range | 5-500 BPM; Tap Tempo |

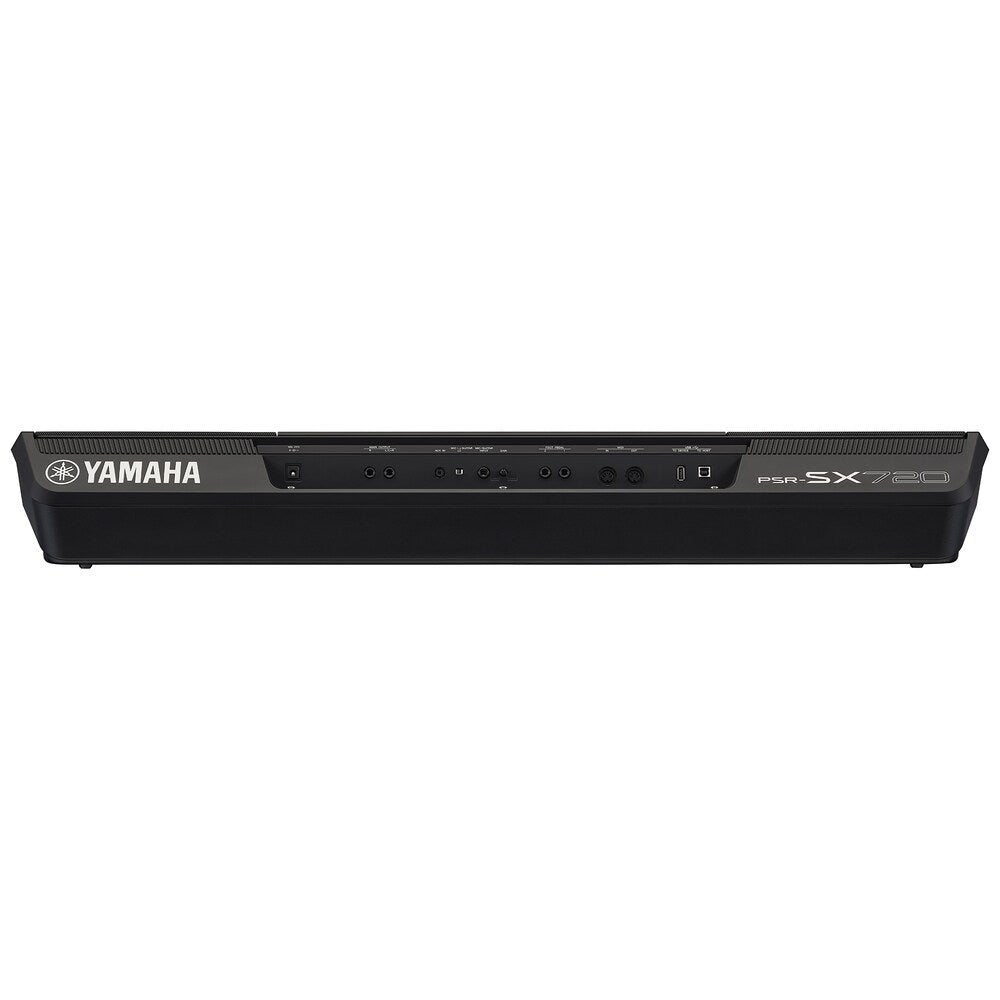

Storage and connectivity
| Internal memory | Approx. 1 GB |
|---|---|
| External storage | USB flash drive |
| Microphone/Guitar input | Yes |
| Headphones | 6.3 mm stereo phone jack |
| MIDI | MIDI IN and OUT |
| Aux input | 3.5 mm stereo mini jack |
| Line outputs | Main L/L+R and R |
| Foot pedals | 2 assignable pedal connections |
| USB | USB TO DEVICE; USB TO HOST |
| Bluetooth audio | Yes, depending on destination |
Amplification, power and accessories
| Amplifiers | 15 W × 2 |
|---|---|
| Speakers | 2 × 13 cm + 2 × 5 cm |
| Power supply | Yamaha PA-300C or equivalent recommended adaptor |
| Power consumption | 21 W |
| Auto power off | Yes |
| Included accessories | Owner's Manual; music rest; AC adaptor (regional inclusion may vary) |
Specifications are based on Yamaha India's published PSR-SX920 and PSR-SX720+ specifications and may change with firmware updates or vary by region.
