Yamaha AG03MK2 3-Channel Live Streaming Mixer & USB Audio Interface

Hands-on streaming mixer with zero-latency effects and USB-C audio

Combo mic/line input with +48 V phantom power, plus a 3.5 mm headset mic jack
Hi-Z guitar input on CH2 with a built-in amp simulator
One-touch COMP/EQ and SPX reverb on onboard DSP with zero latency
LOOPBACK, mute button and 4-pole TRRS jack for smartphones and voice chat
24-bit/192 kHz USB-C audio interface powered over a single USB-C cable

MRP~~₹17,000~~30% OFF

YMS Price₹11,899

Taxes included.

Colour

White

Black

Quantity

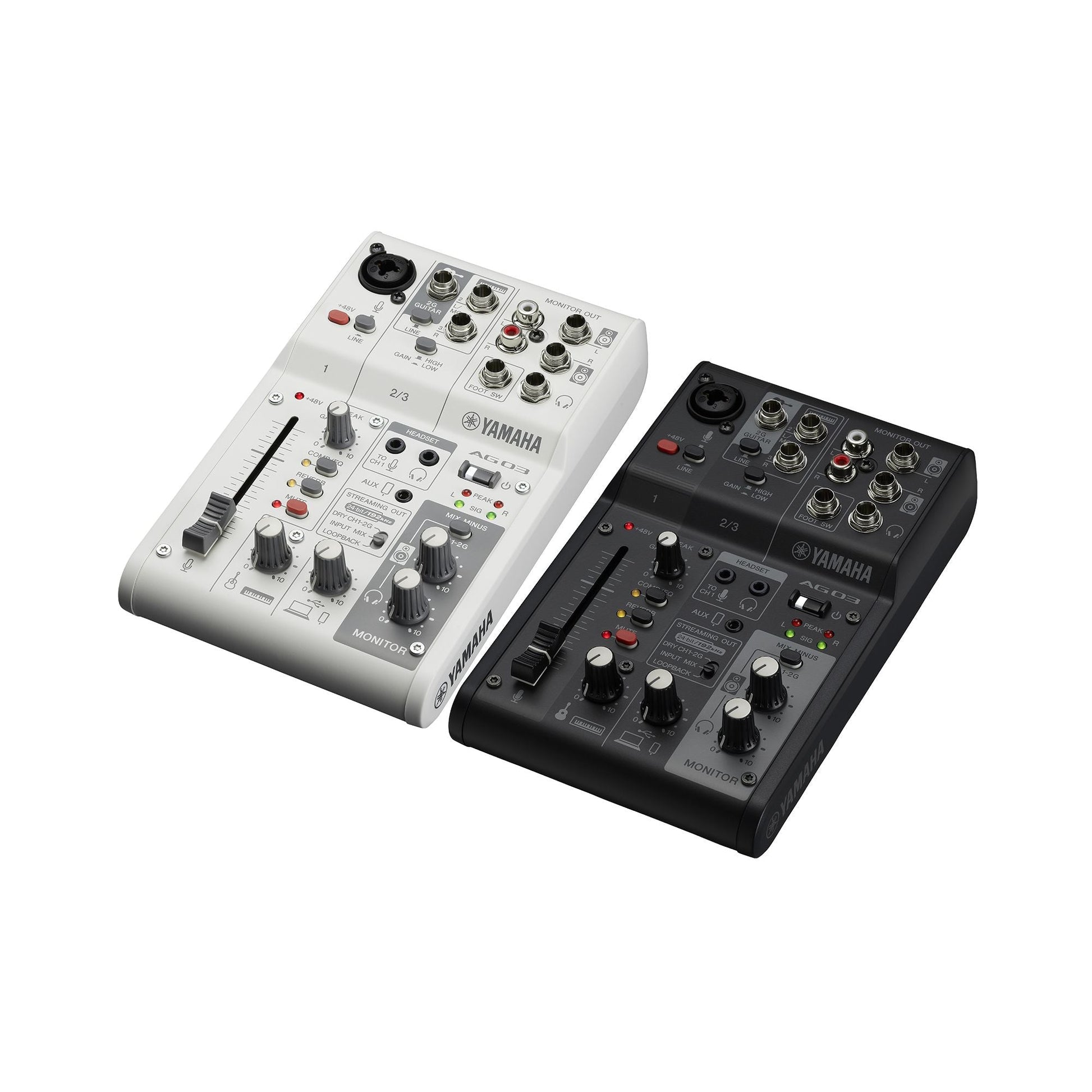

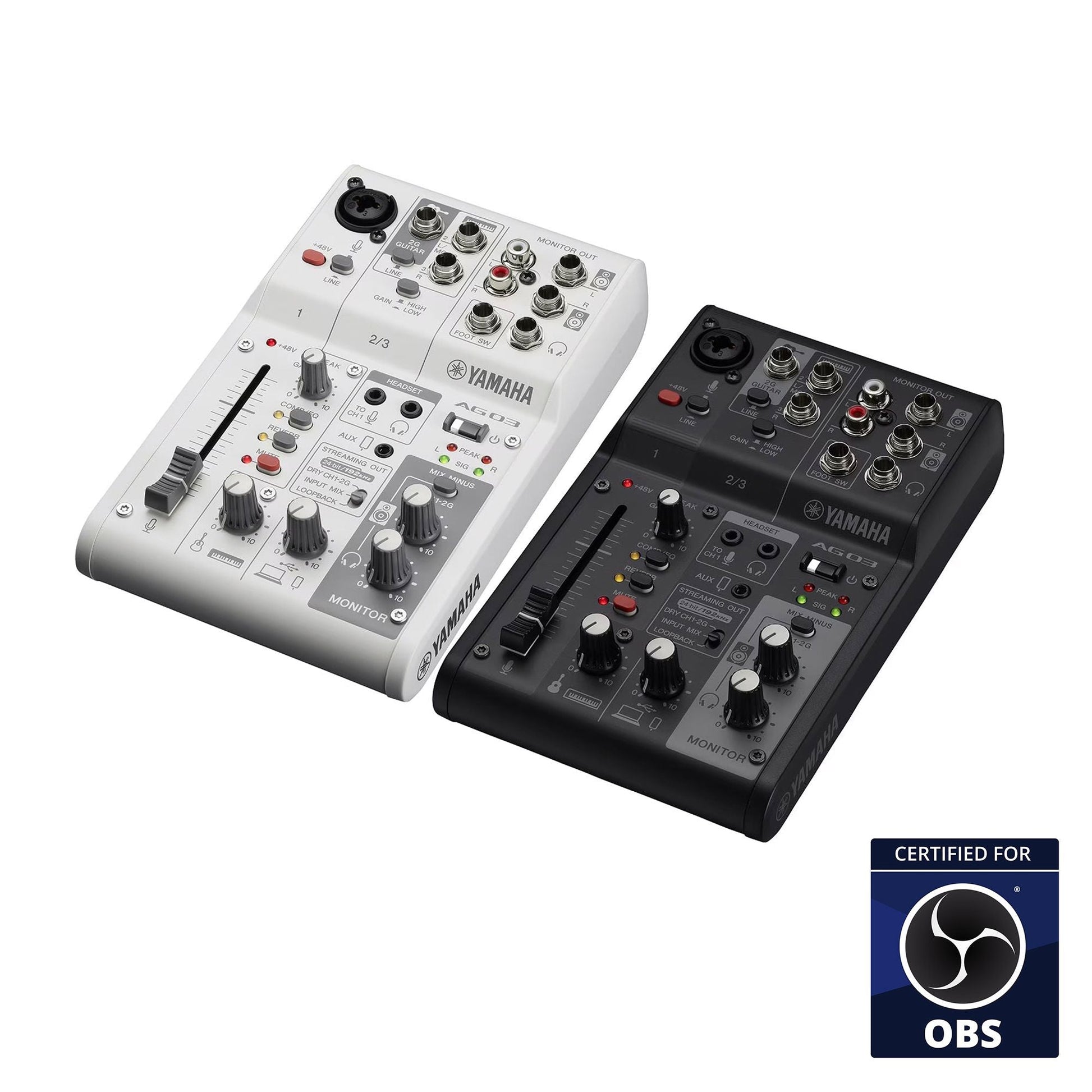

Yamaha AG03MK2 Live Streaming Mixer and USB Audio Interface

The Yamaha AG03MK2 is a compact 3-channel mixer with a built-in USB-C audio interface, made for live streaming, podcasting and home recording. It is the second-generation version of the AG03 and adds a 4-pole mini (TRRS) jack for smartphones, a dedicated mute button and improved internal circuitry.

It suits solo creators who want one microphone, a guitar or keyboard and background audio from a computer or phone under hands-on control. Effects run on the mixer's own DSP, and the whole unit is powered from a single USB-C connection.

Key Features

Phantom-Powered Mic Input with Headset Option

Channel 1 is a combo jack that takes a microphone on XLR, with +48 V phantom power for condenser mics or DI boxes, or a line source. There is also a 3.5 mm headset mic input with plug-in power, though CH1 and the headset mic cannot be used at the same time. The PHONES output likewise has a HEADSET PHONES option; Yamaha notes the two cannot be used at the same time.

Hand moving the 60 mm fader on the Yamaha AG03MK2 streaming mixer

60 mm Fader and Mute Button on the AG03MK2

Mic level on CH1 is set with a 60 mm fader, so you can ride your voice level smoothly while live. A new mute button cuts the mic instantly when you need to cough or step away. With an optional FC5 foot switch, you can also switch reverb or mute hands-free.

Yamaha AG03MK2 connection diagram showing mic, guitar or line, headset, TRRS smartphone and USB connections

Guitar, Line and Smartphone Inputs

The stereo line input doubles as a Hi-Z guitar input on CH2, so you can plug a guitar straight in. The 4-pole mini (TRRS) jack works as both input and output for a smartphone, handy for bringing in a voice-chat guest or sending your mix to a phone. Stereo monitor outputs (phone and RCA) feed powered speakers.

LOOPBACK and Streaming Output Modes

LOOPBACK sends audio playing on your computer, such as music or game sound, back out to your streaming software together with your microphone. The STREAMING OUT switch selects DRY CH 1-2G, INPUT MIX or LOOPBACK, and a MIX MINUS MIC switch is also provided. This lets one small mixer cover talk streams, music performances and calls.

Illustration of the DSP chip that processes effects inside the Yamaha AG03MK2

Zero-Latency DSP Effects

1-TOUCH COMP/EQ, SPX reverb and an amp simulator for guitar are processed on the AG03MK2's internal DSP chip, so there is no delay in what you hear. Because the processing happens in the mixer, it adds no load to your computer. Fine-tune them in Yamaha's free AG Controller app (Windows, Mac and iOS), or switch them off to record a clean signal for later editing. The AG03MK2 is also an OBS Certified device.

24-bit/192 kHz USB-C Audio Interface

The USB-C port carries 2-in/2-out audio at up to 24-bit/192 kHz and is USB Audio Class 2.0 compliant. Yamaha cites the move to USB-C and enhanced internal circuitry for a clear improvement in sound quality and more stable operation over the original AG03. It works with Windows and Mac computers, and with iOS devices through an Apple Camera Adapter with external USB power.

Yamaha AG03MK2 used as a compact streaming station beside a laptop

Compact, USB-Powered Streaming Station

The slim 126 x 63 x 201 mm body weighs 0.8 kg and sits on almost any flat surface, or on a mic stand with the optional BMS-10A adaptor. It runs on 5 V DC 900 mA over USB-C, so it can even be paired with a mobile battery for streaming on the go. Cubase AI and WaveLab Cast are bundled for recording and editing.

Watch & Hear It

Frequently Asked Questions

How is the AG03MK2 different from the AG06MK2?

Both share the same DSP effects, LOOPBACK, TRRS smartphone jack and 24-bit/192 kHz USB-C interface. The AG03MK2 has one phantom-powered combo mic input and one stereo line input, while the AG06MK2 has two combo inputs with +48 V phantom power and two stereo line inputs. Choose the AG06MK2 if two people need to talk on microphones at once.

Should I choose the AG03MK2 or the AG08?

The AG08 is the flagship of the AG range, with eight channels, 60 mm faders and mute buttons for each input, six sound pads, extra effects such as a voice changer, delay, ducker and maximizer, and 8-in/14-out multichannel USB audio at up to 48 kHz. The AG03MK2 is smaller and simpler, with 2-in/2-out USB audio at up to 192 kHz, and suits a single creator.

Does the AG03MK2 need a power adaptor?

No adaptor is required. The AG03MK2 is powered through its USB Type-C port at 5 V DC, 900 mA, with a maximum consumption of 4.5 W. Yamaha notes that a supply of at least 5 V 900 mA is needed for stable operation, and that iOS devices need an external USB power supply when connected through the Apple Camera Adapter.

Which computers and devices work with the AG03MK2?

Yamaha lists Windows and Mac support via USB-C, iOS through an Apple Camera Adapter, and Android through the 4-pole mini (TRRS) jack. The AG Controller app supports Windows 10 (64-bit) and 11, and macOS 10.15 to macOS 26, and Yamaha provides the Yamaha Steinberg USB Driver for Windows.

What comes in the box?

Yamaha lists a 1.5 m USB 2.0 cable, a Quick Guide, a Safety Guide and download information for Cubase AI and WaveLab Cast. A microphone and headphones are not included with the mixer on its own; the AG03MK2 LSPK pack adds a YCM01 condenser microphone, YH-MT1 headphones and an XLR cable.

Can I control the AG03MK2 with a foot switch?

Yes. Yamaha says reverb and mute can be controlled with the optional FC5 foot switch, which is sold separately, leaving your hands free while you play or present.

Why Buy from YMS?

Authorised Yamaha Premium Retailer
Genuine stock with full manufacturer warranty
Demo units at our Bengaluru and Mangaluru stores
Secure delivery across India
Free domestic shipping on all orders

Specifications

Overview

Model	AG03MK2
Series	AG Series (second generation)
Type	3-channel live streaming mixer with USB audio interface
Colours (this listing)	White, Black

Inputs

Mono [MIC/LINE]	1 - Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, plug-in power); CH1 input and headset mic cannot be used simultaneously
Stereo [LINE]	1 - Stereo line / guitar input (mono)
Hi-Z Guitar Input	CH2
Smartphone	1 - 4-pole mini input/output (TRRS)
USB	1

Processing

DSP	COMP/EQ, REVERB (SPX Reverb), AMP SIM (details set in AG Controller)
Functions	MUTE button x 1, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF)
Fader	60 mm fader for mic CH1
Bus	1 stereo

Outputs

PHONES	1 - PHONES / HEADSET PHONES (cannot be used simultaneously)
MONITOR OUT	2 - L/R stereo: Phone, RCA
Smartphone	1 - 4-pole mini input/output (TRRS)
USB	1

USB / Connectivity

USB Audio	2 IN / 2 OUT, USB Audio Class 2.0 compliant, max. 192 kHz sampling frequency, 24-bit
Connector	USB Type-C
USB DC Power Input	1 - Type-C, 5 V DC, 900 mA

Software / Compatibility

AG Controller (Windows)	Windows 10 (64-bit), Windows 11
AG Controller (Mac)	macOS 10.15 to macOS 26 (Intel / Apple silicon with Rosetta 2)
AG Controller (iOS)	Available for iOS devices
Yamaha Steinberg USB Driver (Windows)	Windows 10 (64-bit) / Windows 11 (Intel); Windows 11 24H2 or later (Arm)
iOS Connection	Via Apple Camera Adapter (requires external USB power supply)
Android	Supported via the 4-pole mini (TRRS) input/output
Bundled / Compatible Software	Cubase AI and WaveLab Cast (download information included); compatible with Cubasis LE and Rec'n'Share for iOS
OBS	OBS Certified device

General

Power Requirements	5 V DC, 900 mA (USB Type-C)
Power Consumption	Max. 4.5 W
Dimensions (W x H x D)	126 x 63 x 201 mm (5.0" x 2.5" x 7.9")
Net Weight	0.8 kg (1.8 lbs)
Operating Temperature	0 to +40 °C
Included Accessories	USB 2.0 cable (1.5 m), Quick Guide, Safety Guide, WaveLab Cast download information, Cubase AI download information
Optional Accessories	FC5 foot switch (reverb or mute on/off), BMS-10A mic stand adaptor

Specifications from Yamaha India's AG03MK2 specs page and Yamaha India's AG Controller and Yamaha Steinberg USB Driver download pages; subject to change by Yamaha.
