Yamaha
Yamaha AG06MK2 6-Channel Live Streaming Mixer & USB Audio Interface
Two-mic streaming mixer for podcasts, interviews and duets
- Two combo mic inputs with +48 V phantom power for two condenser mics
- Hi-Z guitar input on CH2 plus a 3.5 mm headset mic input on CH1
- Two stereo line inputs (phone and RCA) plus a 4-pole TRRS smartphone jack
- Zero-latency COMP/EQ, SPX reverb and amp simulator on onboard DSP
- 24-bit/192 kHz USB-C audio with LOOPBACK, powered over one cable
Taxes included.

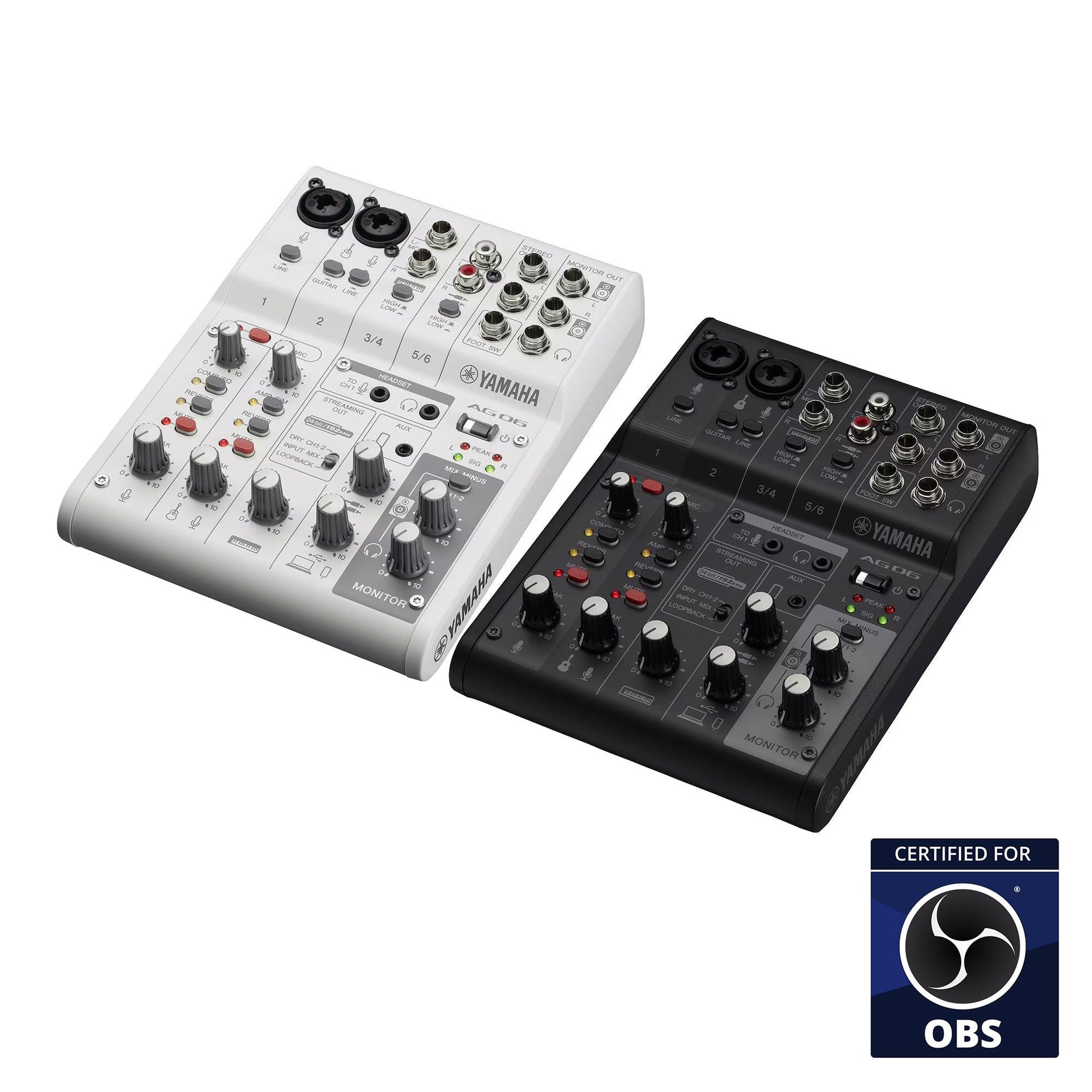

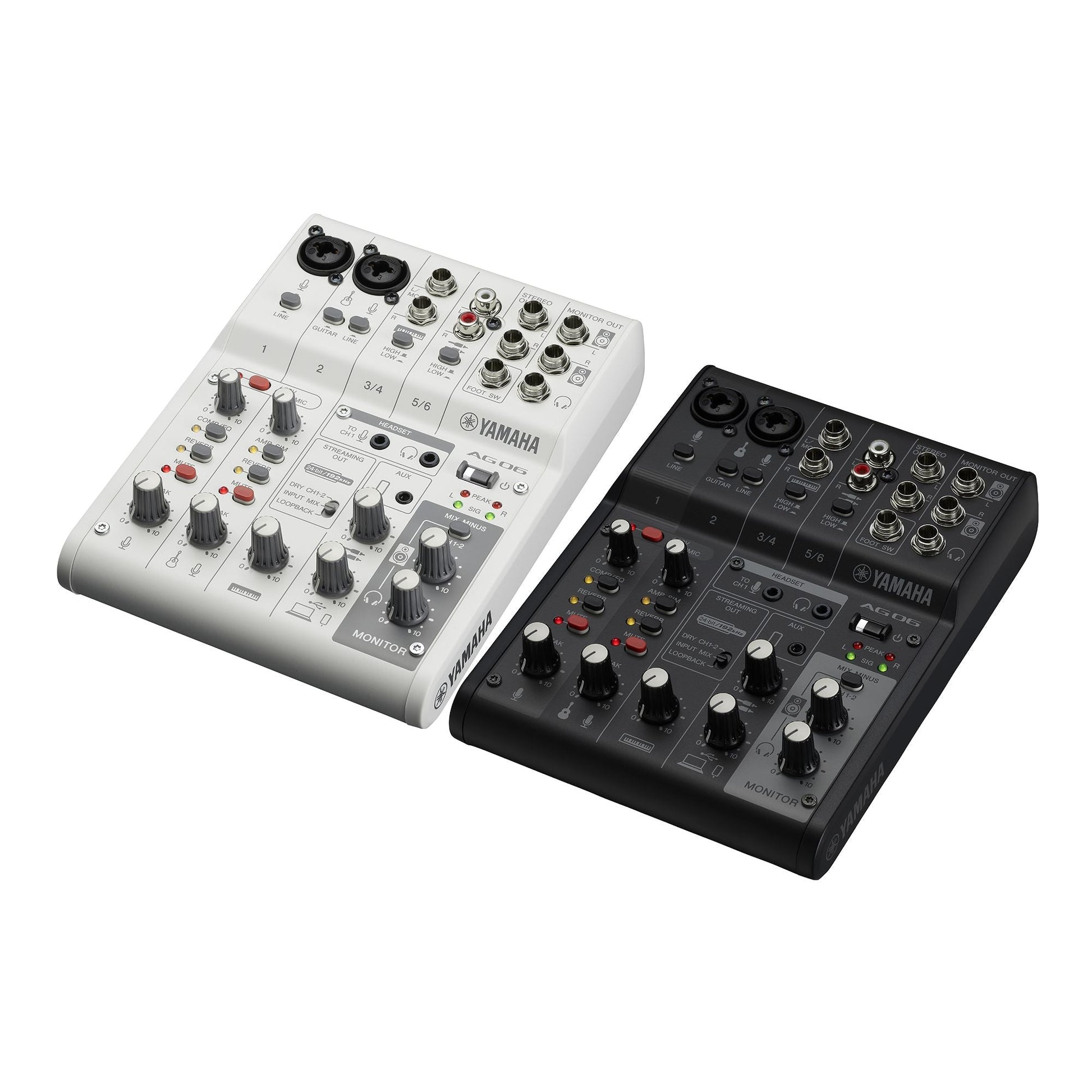

Yamaha AG06MK2 Live Streaming Mixer and USB Audio Interface
The Yamaha AG06MK2 is a 6-channel mixer with a built-in USB-C audio interface, designed for live streaming, podcasting and home recording. It keeps the simple layout of the AG series but gives you two phantom-powered microphone inputs and two stereo line inputs, plus separate monitor and stereo outputs.
That makes it a natural choice for podcasts with a co-host, interviews, a singer with an acoustic instrument, or a small ensemble. Effects run on the mixer's DSP with zero latency, and the whole unit is powered over one USB-C cable.
Key Features
Two Condenser Mic Inputs on the AG06MK2
Channels 1 and 2 are both combo jacks with +48 V phantom power, so two condenser microphones can be used at the same time. CH1 also has a 3.5 mm headset mic input with plug-in power, and CH2 can switch to a Hi-Z guitar input. This opens up dialogue, interview and duet streams that a single-mic mixer can't cover.
Monitor, Stereo and Headphone Outputs
The AG06MK2 provides a MONITOR OUT and a separate STEREO OUT, so you can feed powered speakers and other equipment at the same time. For headphones, Yamaha lists PHONES and HEADSET PHONES outputs, which cannot be used simultaneously. The headset jack pairs with the CH1 headset mic input for gaming-style headsets.
Flexible Inputs with LOOPBACK
Besides the two mic channels, there are two stereo line inputs (phone and RCA) for keyboards, music players or other sources, plus a 4-pole mini (TRRS) jack for smartphone input and output. LOOPBACK adds audio from your computer to the stream, and the STREAMING OUT switch selects DRY CH 1-2G, INPUT MIX or LOOPBACK.
Console-Style Controls and Mute
Laid out like a mixing console, the AG06MK2 gives you physical controls for shaping your sound while you are live. The mute button cuts your mic in an instant, and with an optional FC5 foot switch you can also switch mute or reverb hands-free.
1-TOUCH Effects with Zero Latency
1-TOUCH COMP/EQ, SPX reverb and an amp simulator for guitar are processed on the internal DSP chip, so there is no delay and no load on your computer. Turn them off when you want a raw recording that an engineer will edit later.
24-bit/192 kHz USB-C Audio
The USB-C interface records and plays back 2 channels at up to 24-bit/192 kHz and is USB Audio Class 2.0 compliant. Yamaha credits USB-C and improved internal circuitry for a significant step up in sound quality over earlier models. The free AG Controller app (Windows, Mac and iOS) gives Simple and Detail modes for fine-tuning the DSP.
Compact, Bus-Powered Design
At 152 x 63 x 201 mm and 0.9 kg, the AG06MK2 fits easily on a desk, or on a mic stand with the optional BMS-10A adaptor. It runs on 5 V DC 900 mA over USB-C and can be paired with a mobile battery for streaming away from a wall socket. Cubase AI and WaveLab Cast are bundled, and it is an OBS Certified device.
Watch & Hear It
Frequently Asked Questions
What is the difference between the AG06MK2 and the AG03MK2?
The AG06MK2 adds a second combo mic input with +48 V phantom power, a second stereo line input and a separate STEREO OUT. The AG03MK2 has one combo mic input and one stereo line input. Both have the same DSP effects, LOOPBACK, TRRS jack and 24-bit/192 kHz USB-C interface.
Should I choose the AG06MK2 or the AG08?
Both have two phantom-powered mic inputs. The AG08 adds two independent headphone channels, 60 mm faders and mute buttons for each input, three stereo channels assignable to line or USB sources, six sound pads, a voice changer, delay, ducker and maximizer, and 8-in/14-out multichannel USB audio at up to 48 kHz. The AG06MK2 is more compact, USB bus-powered and records 2 channels at up to 192 kHz.
How is the AG06MK2 powered?
It is powered over USB Type-C at 5 V DC, 900 mA (maximum 4.5 W), so no adaptor is needed with a computer. Yamaha notes a supply of at least 5 V 900 mA is required for stable operation, and iOS connections through the Apple Camera Adapter need an external USB power supply.
Is the AG06MK2 compatible with my computer or phone?
Yamaha lists Windows and Mac via USB-C, iOS via the Apple Camera Adapter and Android via the TRRS jack. The AG Controller app supports Windows 10 (64-bit) and 11, and macOS 10.15 to macOS 26, and Yamaha provides the Yamaha Steinberg USB Driver for Windows.
What comes with the AG06MK2?
Yamaha lists a 1.5 m USB 2.0 cable, a Quick Guide, a Safety Guide and download information for Cubase AI and WaveLab Cast. Microphones and headphones are chosen separately, so you can pair it with the mics that suit your show.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | AG06MK2 |
|---|---|
| Series | AG Series (second generation) |
| Type | 6-channel live streaming mixer with USB audio interface |
| Colours (this listing) | White, Black |
Inputs
| Mono [MIC/LINE] | 2 - CH1: Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8") stereo mini (Headset mic, plug-in power); CH2: Combo (Mic, +48 V phantom power / Guitar input / Line). CH1 input and headset mic cannot be used simultaneously |
|---|---|
| Hi-Z Guitar Input | CH2 |
| Stereo [LINE] | 2 - L/R stereo: Phone, RCA |
| Smartphone | 1 - 4-pole mini input/output (TRRS) |
| USB | 1 |
Processing
| DSP | COMP/EQ, REVERB (SPX Reverb), AMP SIM (details set in AG Controller) |
|---|---|
| Functions | MUTE button, PAD button x 2, HI-Z button x 1, STREAMING OUT (DRY CH 1-2G / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) |
| Bus | 1 stereo |
Outputs
| PHONES | 2 - PHONES / HEADSET PHONES (cannot be used simultaneously) |
|---|---|
| MONITOR OUT | 1 |
| STEREO OUT | 1 |
| Smartphone | 1 - 4-pole mini input/output (TRRS) |
| USB | 1 |
USB / Connectivity
| USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 compliant, max. 192 kHz sampling frequency, 24-bit |
|---|---|
| Connector | USB Type-C |
| USB DC Power Input | 1 - Type-C, 5 V DC, 900 mA |
Software / Compatibility
| AG Controller (Windows) | Windows 10 (64-bit), Windows 11 |
|---|---|
| AG Controller (Mac) | macOS 10.15 to macOS 26 (Intel / Apple silicon with Rosetta 2) |
| AG Controller (iOS) | Available for iOS devices |
| Yamaha Steinberg USB Driver (Windows) | Windows 10 (64-bit) / Windows 11 (Intel); Windows 11 24H2 or later (Arm) |
| iOS Connection | Via Apple Camera Adapter (requires external USB power supply) |
| Android | Supported via the 4-pole mini (TRRS) input/output |
| Bundled / Compatible Software | Cubase AI and WaveLab Cast (download information included); compatible with Cubasis LE and Rec'n'Share for iOS |
| OBS | OBS Certified device |
General
| Power Requirements | 5 V DC, 900 mA (USB Type-C) |
|---|---|
| Power Consumption | Max. 4.5 W |
| Dimensions (W x H x D) | 152 x 63 x 201 mm (6.0" x 2.5" x 7.9") |
| Net Weight | 0.9 kg (2.0 lbs) |
| Operating Temperature | 0 to +40 °C |
| Included Accessories | USB 2.0 cable (1.5 m), Quick Guide, Safety Guide, WaveLab Cast download information, Cubase AI download information |
| Optional Accessories | FC5 foot switch (reverb or mute on/off), BMS-10A mic stand adaptor |
Specifications from Yamaha India's AG06MK2 specs page and Yamaha India's AG Controller and Yamaha Steinberg USB Driver download pages; subject to change by Yamaha.
