Yamaha MODX M7 76-Key Music Synthesizer
76 keys of range with flagship-derived sound at 7.6 kg
- 76-note semi-weighted FSB keyboard with room for splits
- AWM2, FM-X and AN-X engines with 268-note total polyphony
- Only 7.6 kg, light enough for stage, church and studio
- Motion Control, Super Knob and 7-inch colour touchscreen
- USB MIDI 2.0 with 10-out/4-in audio and DAW Remote control
Taxes included.
Required accessory
One adaptor per instrument is added to your cart and charged separately.

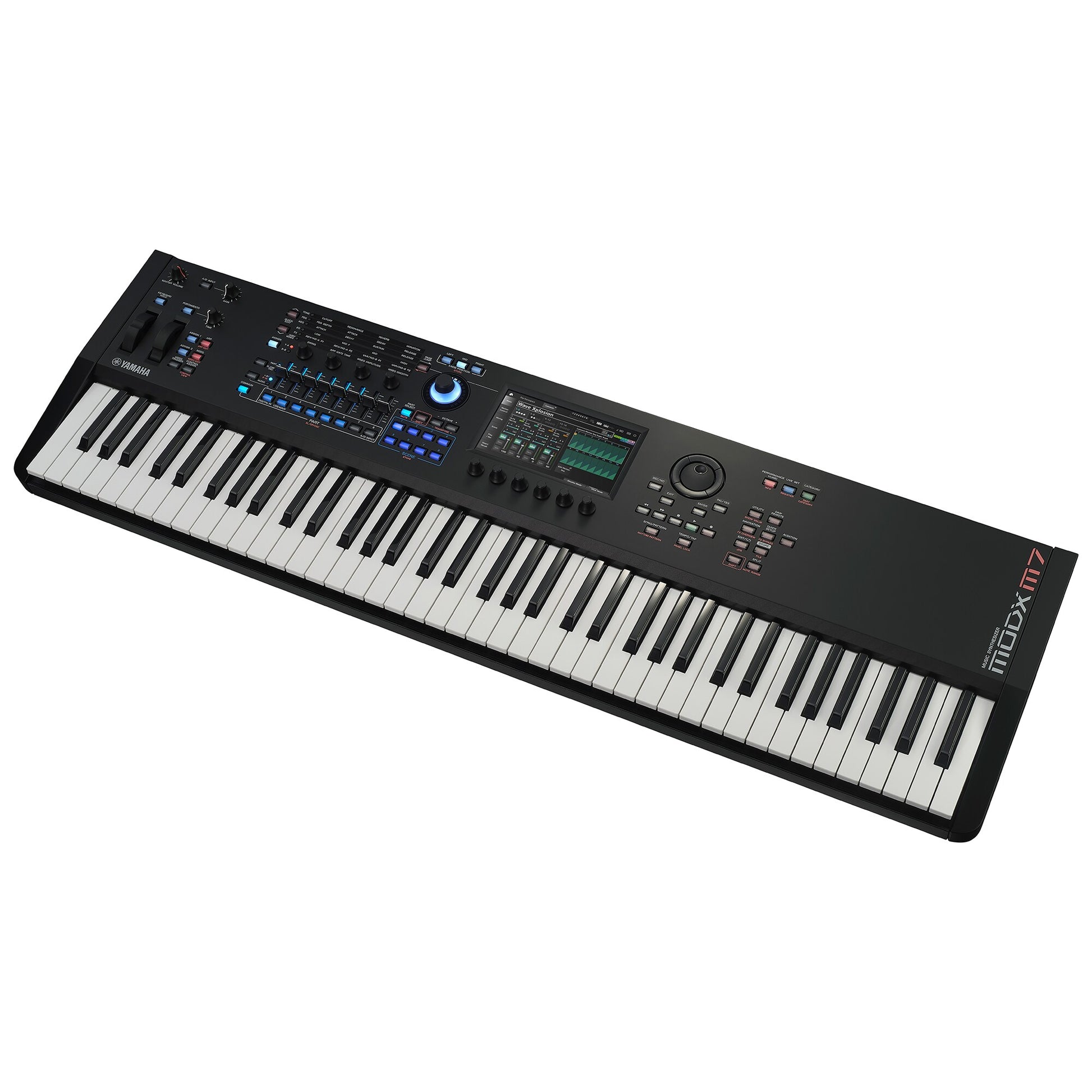

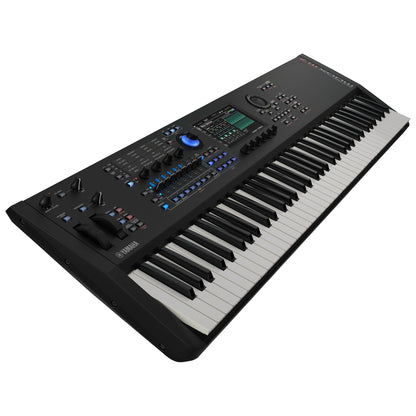

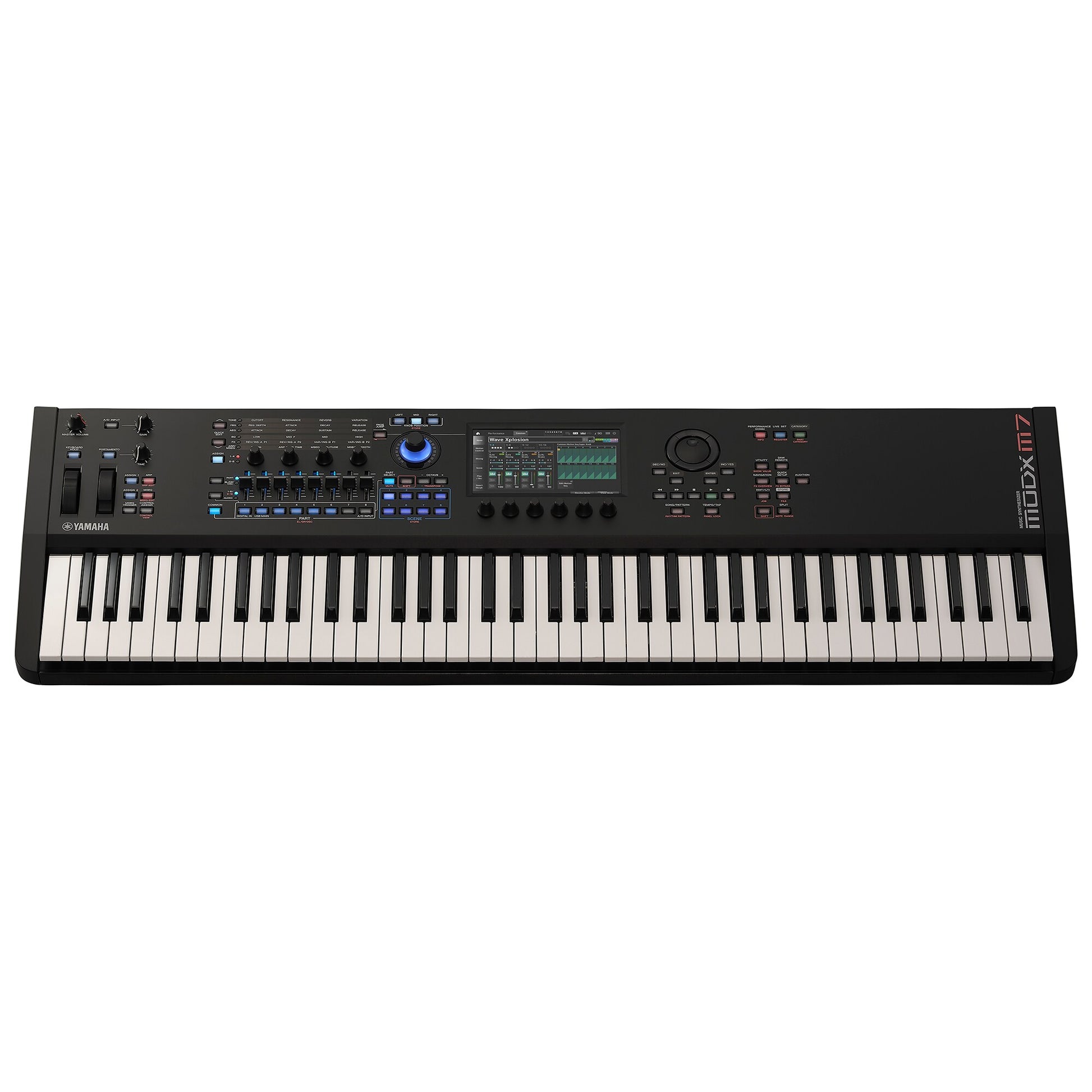

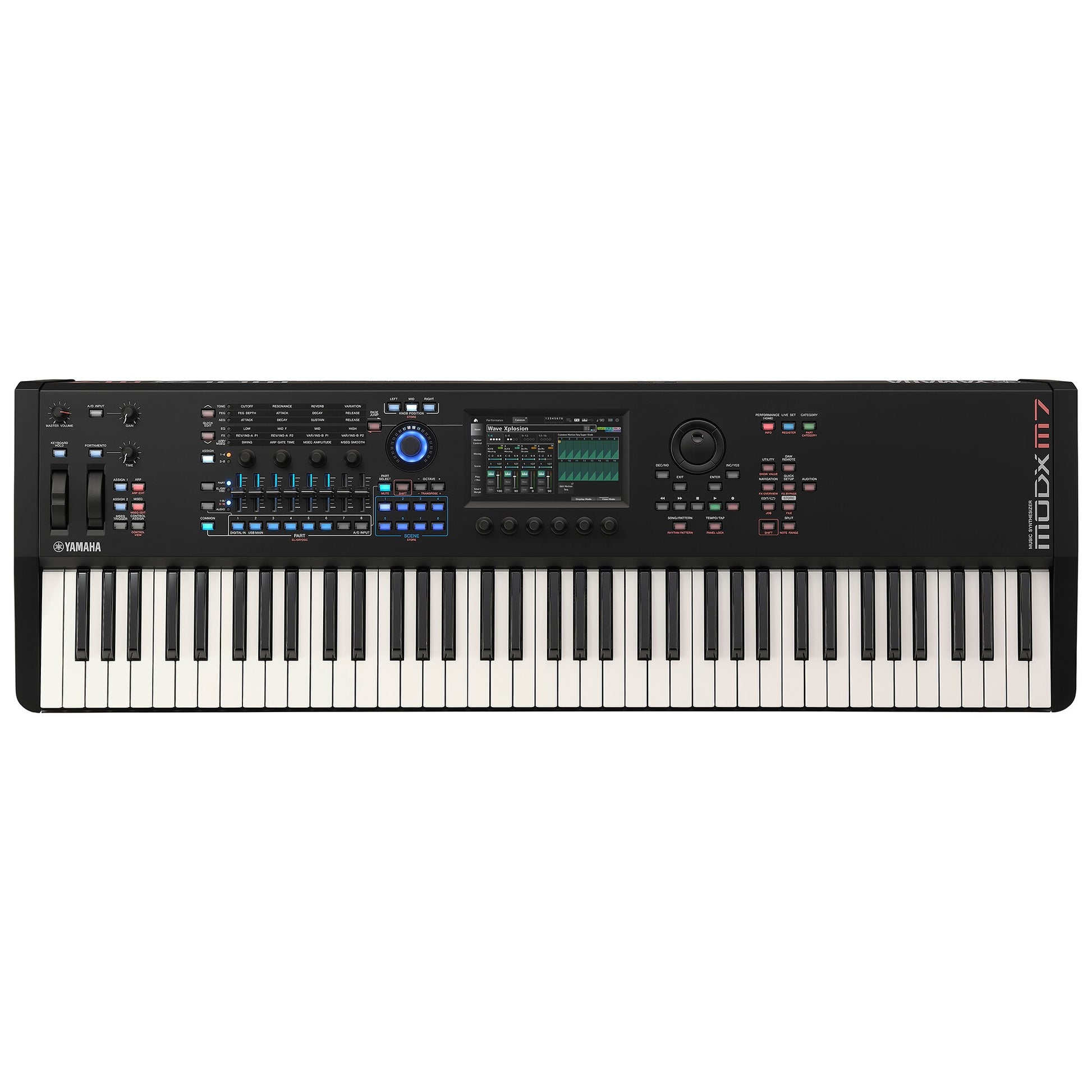

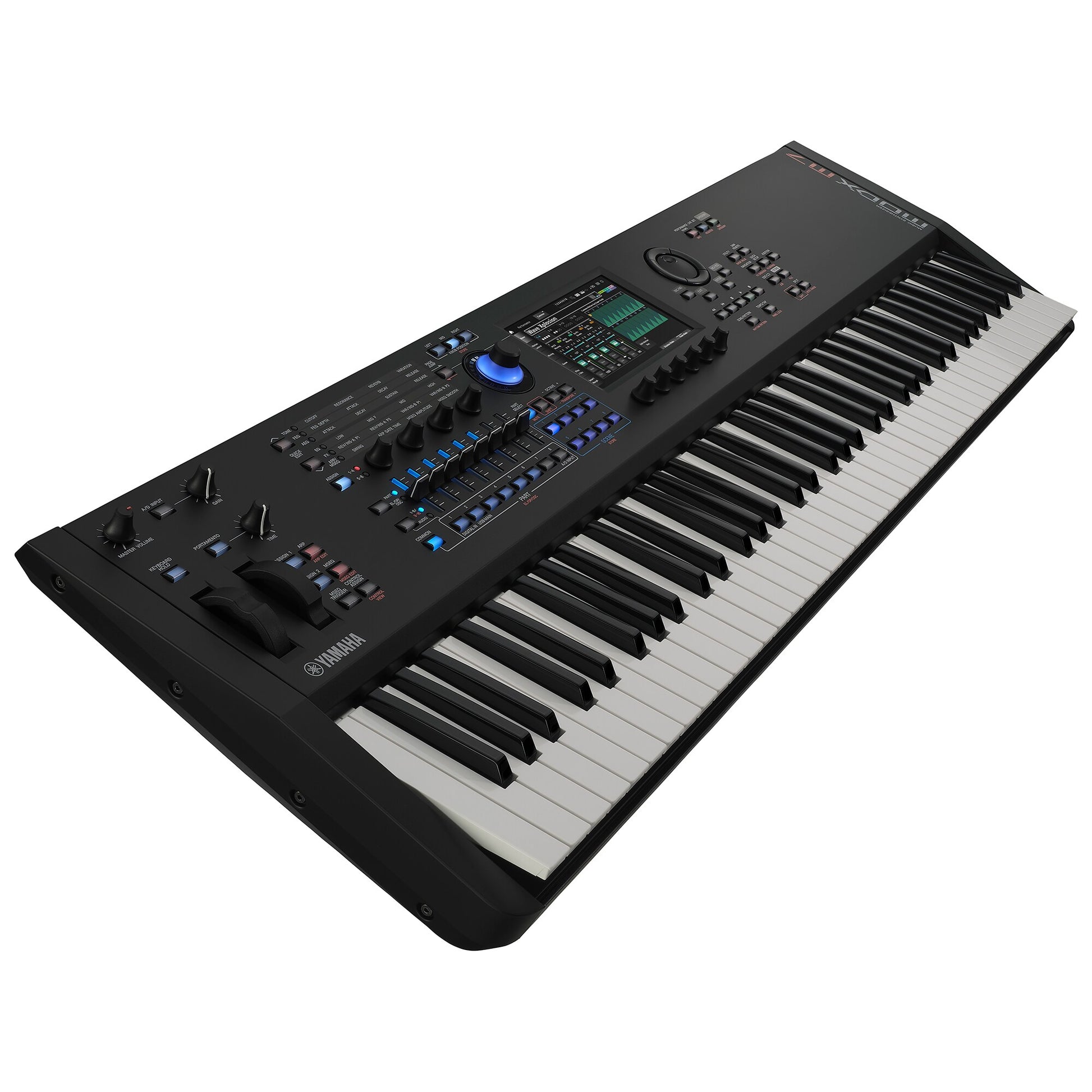

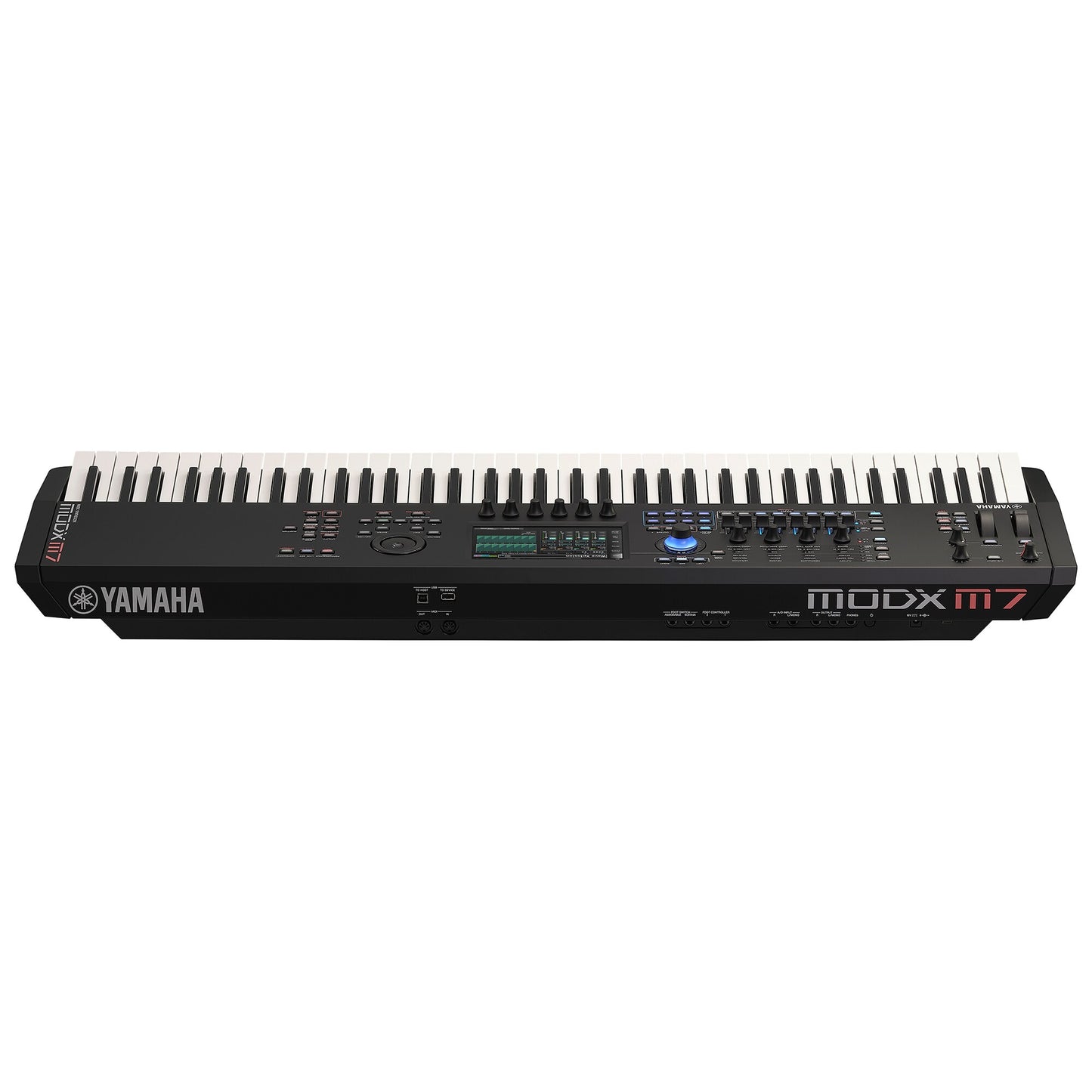

Yamaha MODX M7 76-Key Synthesizer for Stage and Studio
The Yamaha MODX M7 is a 76-key music synthesizer built on the same three-engine architecture as Yamaha's flagship MONTAGE M. AWM2, FM-X and AN-X synthesis, Motion Control and 3,487 preset Performances sit behind a 7-inch colour touchscreen.
It is aimed at working keyboardists, worship players and producers who need more range than 61 keys but want to avoid the bulk of an 88-key board. At 7.6 kg it travels easily, and its USB audio interface makes it a capable studio hub too.
Key Features
Yamaha MODX M7: 76 semi-weighted keys for splits and layers
The MODX M7 gives you a 76-note semi-weighted FSB keyboard with initial touch, adding over an octave of range to a 61-key board. That extra room makes split bass and lead parts, two-handed pads and wider piano voicings far more comfortable, at 1,089 mm wide.
Three engines: AWM2, FM-X and AN-X
The MODX M7 pairs AWM2 sample-based synthesis, with up to 128 Elements per Part for detailed pianos and strings, with 8-operator FM-X and the analogue-modelling AN-X engine. Polyphony totals 268 notes: 128 for AWM2, 128 for FM-X and 12 for AN-X, so dense layers and splits stay clear.
AN-X engine for vintage analogue character
AN-X gives you two filters with 10 filter types, pulse width modulation, oscillator self sync, ring modulation, FM, a wave shaper and a wave folder. Voltage drift and ageing settings imitate the slight instability of classic synths, adding warmth and movement to leads, basses and pads.
Motion Control, Super Knob and high-resolution controls
Motion Sequences animate synth and effect parameters in time with the tempo, the Super Knob sweeps many settings with a single turn, and the Envelope Follower lets audio from the A/D input or another Part shape a sound. The knobs, Super Knob, pitch bend and modulation wheels are high resolution for smoother changes.
Light enough to carry at 7.6 kg
Despite its 76 keys, the MODX M7 weighs just 7.6 kg, so one person can carry it to rehearsals and services. Dedicated Part and Scene buttons for 8 Parts per Performance, 8 sliders and 4 knobs keep live changes at your fingertips.
Touchscreen editing and stereo A/D input
A 7-inch colour touchscreen with six display knobs speeds up browsing and editing. The stereo A/D input, with two insertion effects of its own, lets you route an external instrument or audio source into a Performance and process it alongside the internal sounds.
MODX M7 as a USB MIDI 2.0 audio interface and DAW controller
A single USB cable handles MIDI 2.0 data and multichannel audio, with 10 outputs and 4 inputs at 44.1 kHz. The dedicated DAW Remote button turns the panel into a controller for Cubase, Logic, Pro Tools and Live, and Cubase AI download information is included to get you recording.
Expanded Softsynth Plugin for your DAW
Registered MODX M owners get the Expanded Softsynth Plugin free of charge. It recreates the instrument inside your DAW, so you can build, edit and mix Performances for your MODX M7 even when the hardware is not with you.
Watch & Hear It
More videos
Frequently Asked Questions
How does the MODX M7 compare with the MONTAGE M7?
Both have 76 keys and the same three engines and Performance library. The MONTAGE M7 adds an FSX keyboard with channel aftertouch, higher polyphony (256 AWM2 and 16 AN-X notes) and 3.7 GiB of user wave memory, but weighs 17.6 kg. The MODX M7 uses a semi-weighted FSB keyboard without aftertouch and weighs only 7.6 kg.
MODX M6, M7 or M8: which size should I pick?
All three share the same sound engines, controls and connections; the difference is the keyboard. The M6 has 61 semi-weighted keys at 6.6 kg, the M7 has 76 semi-weighted keys at 7.6 kg, and the M8 has 88 GHS weighted keys at 13.6 kg. The M7 is the middle ground if you play splits and layers but do not need a full piano range.
Is the MODX M7 keyboard weighted, and does it have aftertouch?
The MODX M7 uses a semi-weighted FSB keyboard with initial touch (velocity response); it has no aftertouch. Players who want a graded-hammer piano feel should consider the MODX M8.
Can I record into a computer with the MODX M7?
Yes. One USB cable carries MIDI 2.0 data and audio, with 4 inputs and 10 outputs at 44.1 kHz or 2 in/2 out at 44.1, 48 or 96 kHz. The DAW Remote button controls Cubase, Logic, Pro Tools and Live, and Cubase AI download information is included.
What comes in the box with the MODX M7, and how is it powered?
Yamaha lists the PA-300C AC adaptor, a Quick Guide, Cubase AI download information, Expanded Softsynth Plugin for MONTAGE M/MODX M download information, manual download information and a welcome card. The MODX M7 runs from the PA-300C adaptor and draws 19 W.
Can I add my own sounds to the MODX M7?
Yes. There is 1.9 GB of user wave memory for your own waveforms, and the free Expanded Softsynth Plugin for registered owners lets you build and edit Performances on your computer.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | Yamaha MODX M7 |
|---|---|
| Instrument type | Music synthesizer |
| Keyboard | 76-note semi-weighted FSB keyboard |
| Initial touch | Yes |
| Aftertouch | No |
Dimensions and weight
| Width | 1,089 mm (42-7/8 in) |
|---|---|
| Height | 117 mm (4-5/8 in) |
| Depth | 347 mm (13-11/16 in) |
| Weight | 7.6 kg (16 lb, 12 oz) |
Sound engines and polyphony
| Synthesis engine | Motion Control Synthesis Engine |
|---|---|
| AWM2 | Up to 128 Elements |
| FM-X | 8 Operators; 88 Algorithms |
| AN-X | 3 Oscillators; 1 Noise source |
| Maximum polyphony | AWM2: 128; FM-X: 128; AN-X: 12 |
| Multitimbral capacity | 16 internal Parts; stereo A/D and USB audio input Parts |
| Filters | 18 types |
| Effects | 13 Reverb; 91 Variation; 91 Insertion A; 94 Insertion B; 28 Master Effect types; Master EQ and Part EQ |
Sound memory and performance
| Preset waveform memory | 11.29 GB (converted to 16-bit linear format) |
|---|---|
| User waveform memory | 1.9 GB |
| Performances | 3,487 |
| Live Sets | Preset: 256; User: 2,048 |
| Arpeggios | Up to 8 Parts simultaneously; 10,922+ preset; 256 user |
Recorder and sequencer
| Note capacity | Approx. 130,000 notes per Song/Pattern; approx. 520,000-note storage each for Songs and Patterns |
|---|---|
| Resolution | 480 ppq |
| Tempo range | 5-300 BPM |
| Sequence formats | MONTAGE M/MODX M original format; SMF formats 0 and 1 |
| Patterns | 128; 16 sequence tracks |
| Songs | 128; 16 sequence tracks plus Tempo and Scene tracks |
| Recording modes | Real-time replace and overdub; Songs also support punch in/out |

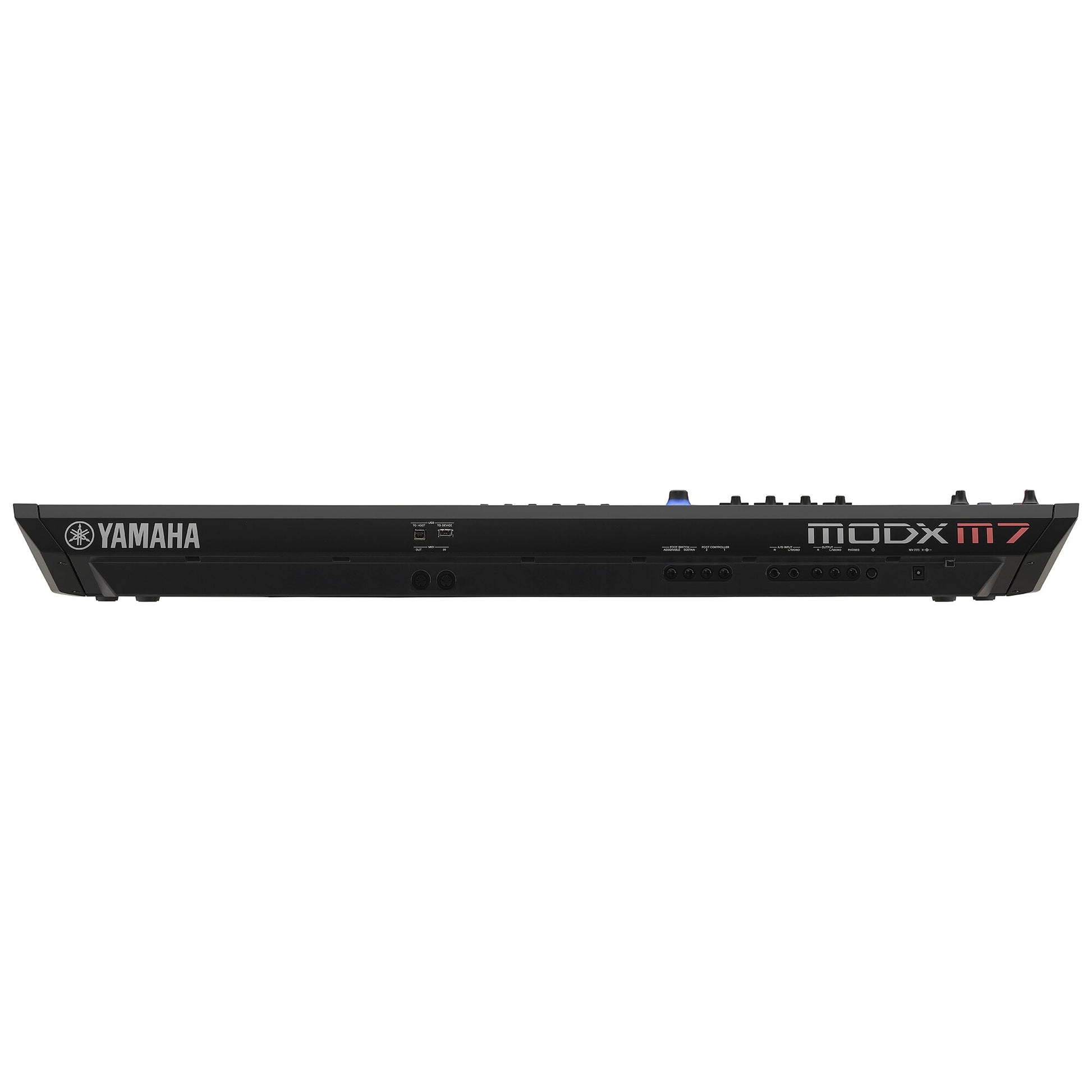

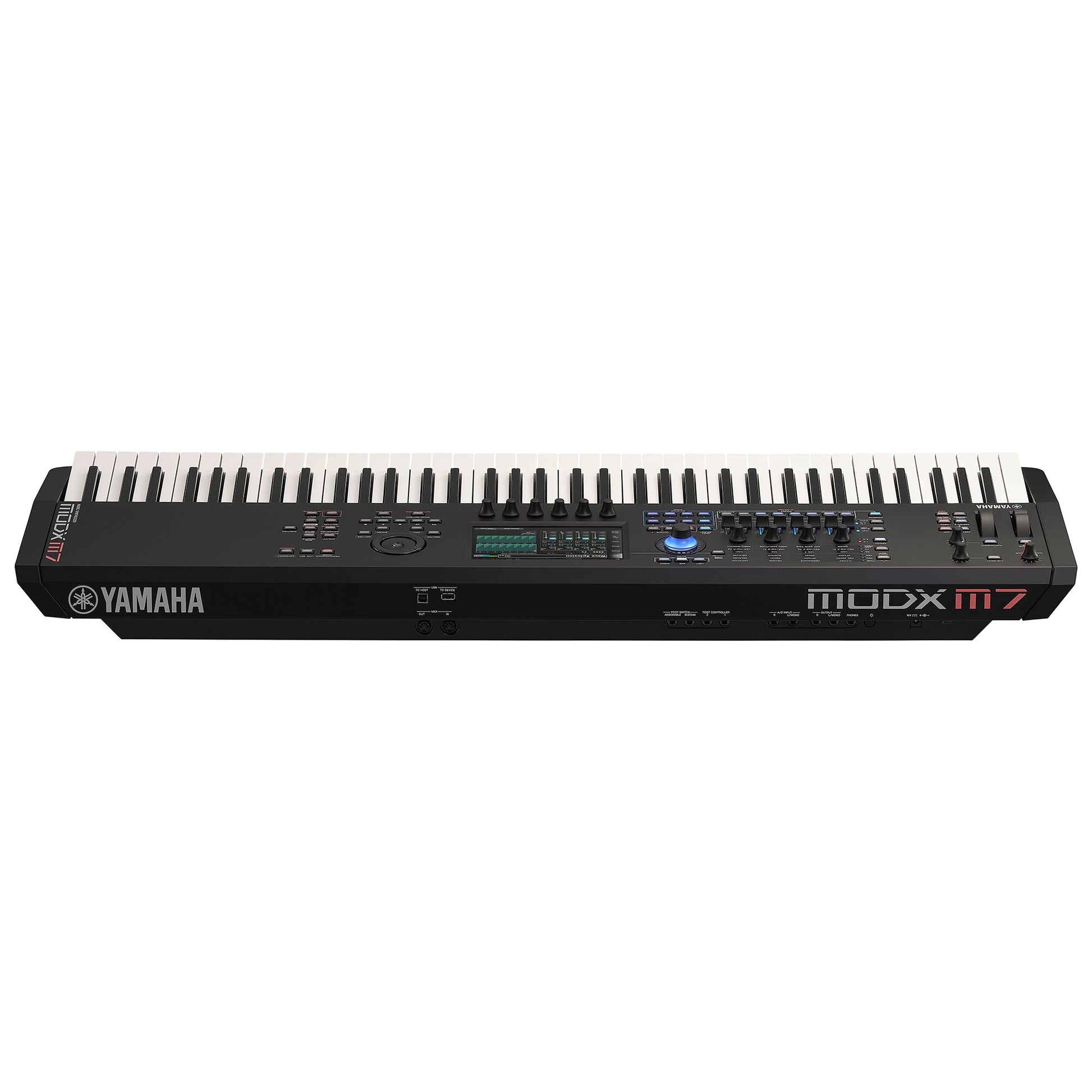

Controls, display and connectivity
| Display | 7-inch TFT colour Wide VGA LCD touchscreen |
|---|---|
| Controllers | Master Volume; A/D Input Gain; Pitch Bend and Modulation wheels; 8 sliders; 4 knobs; Super Knob; 6 display knobs; Portamento knob; Data Dial; 2 assignable switches; MSEQ Trigger; Portamento; Keyboard Hold |
| USB audio interface | 44.1 kHz: 4 inputs / 10 outputs; 44.1, 48 or 96 kHz: 2 inputs / 2 outputs |
| USB | USB TO DEVICE; USB TO HOST |
| MIDI | MIDI IN and OUT |
| Foot control | 2 Foot Controller inputs; Sustain and Assignable Foot Switch inputs |
| Audio outputs | L/MONO and R 6.3 mm outputs; 6.3 mm stereo headphone output |
| Audio inputs | A/D Input L/MONO and R, 6.3 mm |
Power and included accessories
| Power consumption | 19 W with PA-300C AC adaptor |
|---|---|
| Included adaptor | Yamaha PA-300C |
| Other included items | Quick Guide; Cubase AI download information; Expanded Softsynth Plugin download information; manual-download information; welcome card |
| Built-in speakers | No |
Specifications are based on Yamaha's published MODX M specifications for OS v3.0 and may change with firmware updates or vary by region.
Similar products
Yamaha MODX M8 88-Key Music Synthesizer
MRP₹2,09,99012% OFFYMS Price₹1,84,791Yamaha MONTAGE M6 61-Key Music Synthesizer

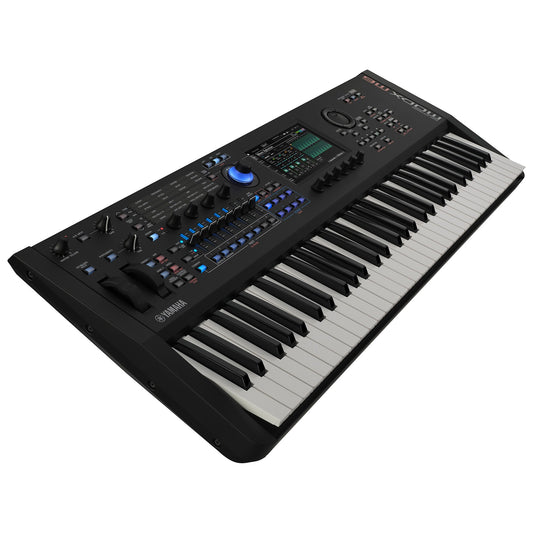

MRP₹3,44,99010% OFFYMS Price₹3,10,491Yamaha MODX M6 61-Key Music Synthesizer
