Product details
The DM3, with Dante on Board

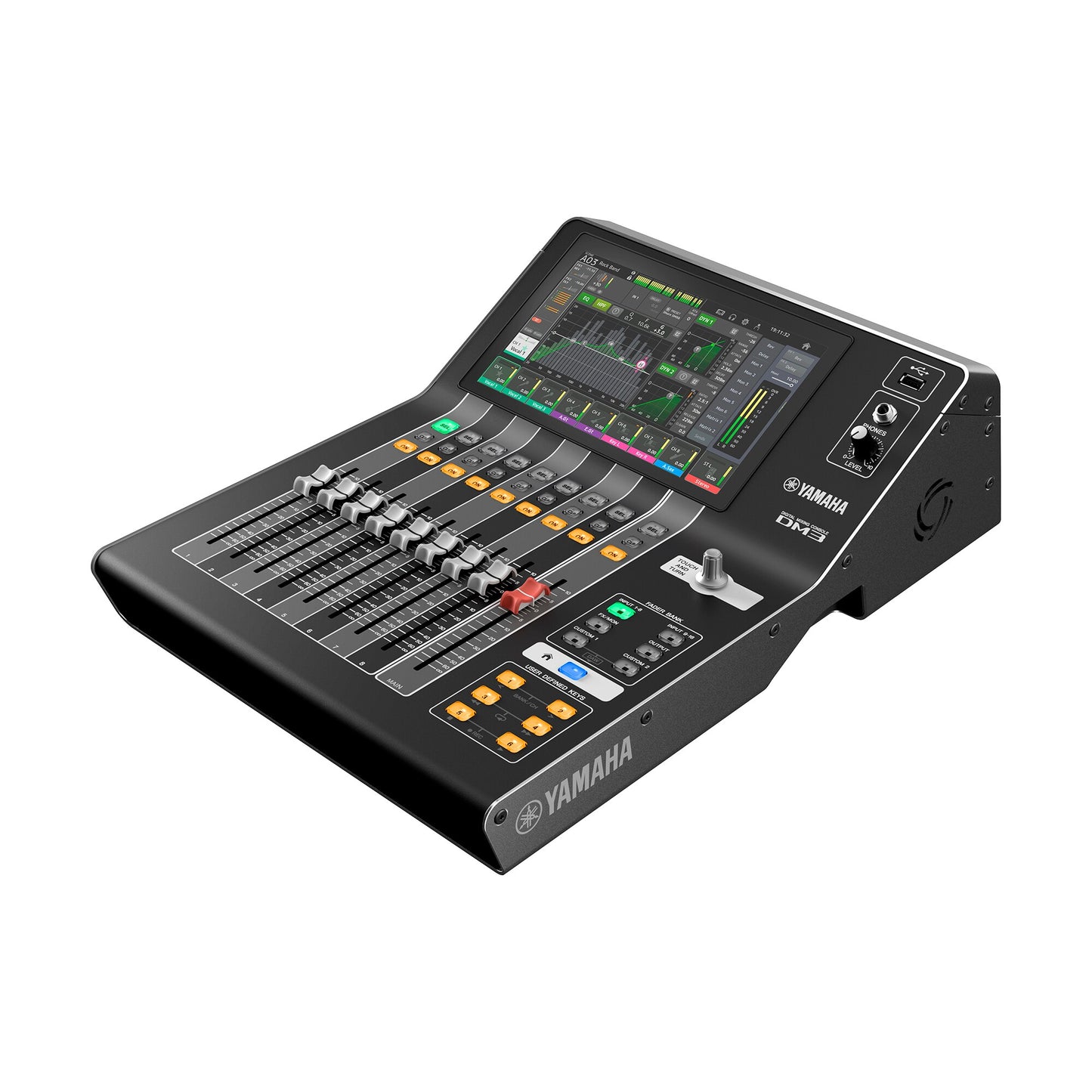

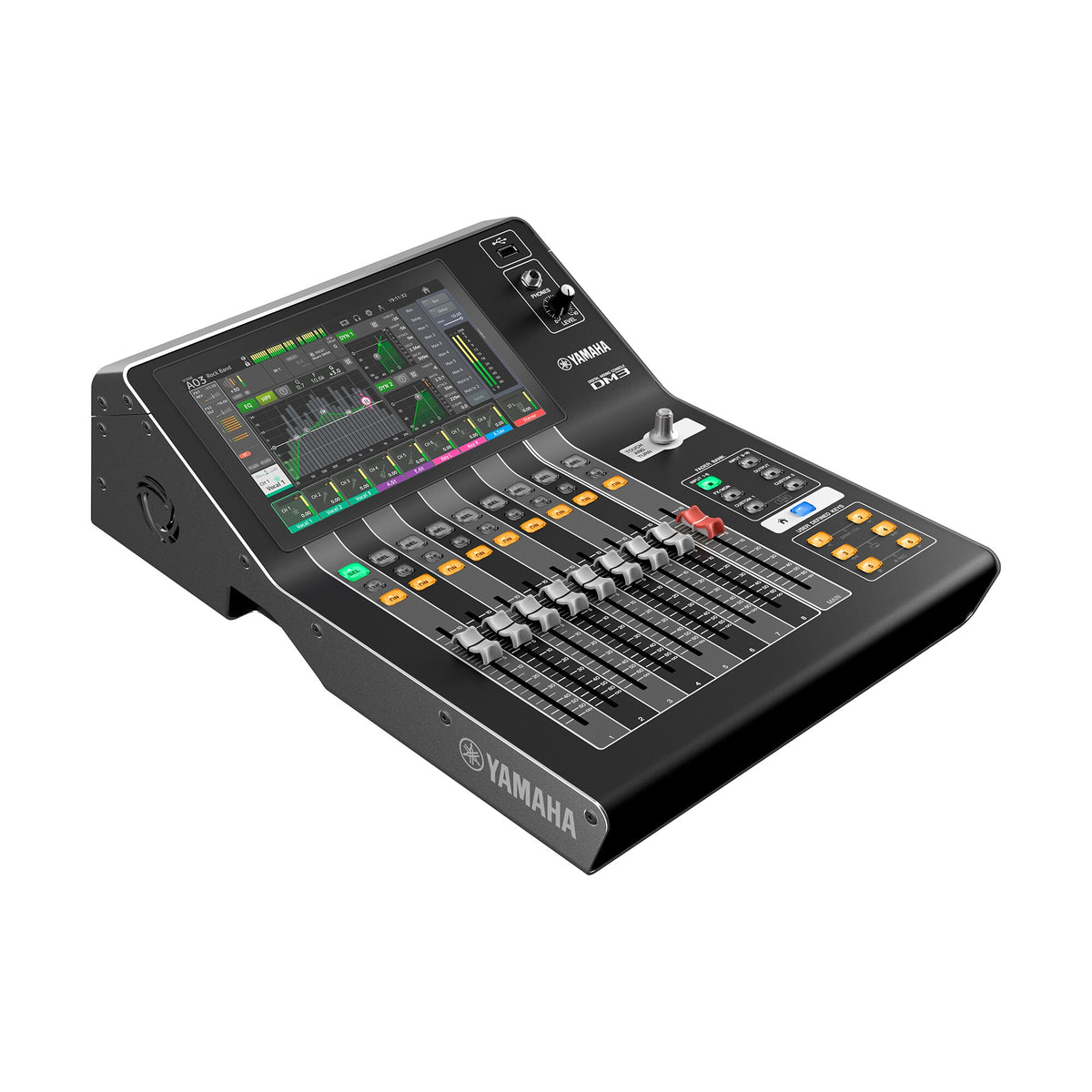

The Yamaha DM3 is the Dante-equipped member of the DM3 Series: 16 mono inputs, one stereo channel and two FX returns in a 6.5 kg console, with 16 local mic/line inputs, eight XLR outputs, six Mix buses, two Matrix buses, an 18-in/18-out USB interface and a 9-inch multi-touch screen with 8+1 motorised faders.

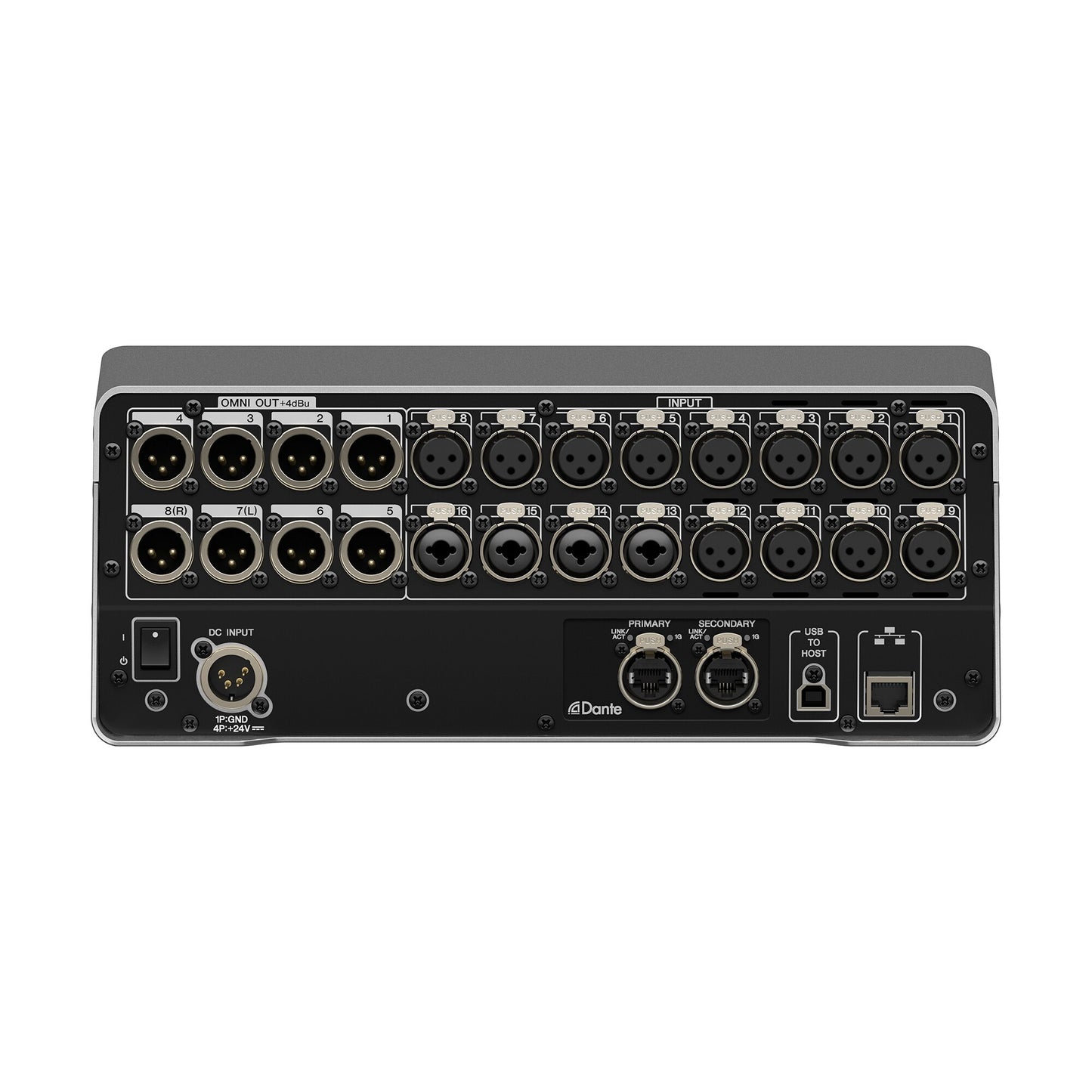

What the DM3S cannot do is join a network. This console adds 16-in/16-out Dante on Primary and Secondary etherCON ports, so it can take its inputs from a stagebox at the other end of a Cat5e run, share sources with other Dante devices, or feed a networked recording rig — without adding an interface card or a converter.
At a Glance
What You Get
- 16-in/16-out Dante on two etherCON ports configured as Primary and Secondary — the reason to choose this console over the DM3S.
- 16 local mic/line inputs — twelve XLR sockets plus four XLR/TRS combo inputs — and eight assignable XLR analog outputs, so the console still works as a standalone desk.
- Flexible digital routing: six Mix buses, two FX buses, two Matrix buses with input-to-matrix support, one Stereo bus and one Cue bus.

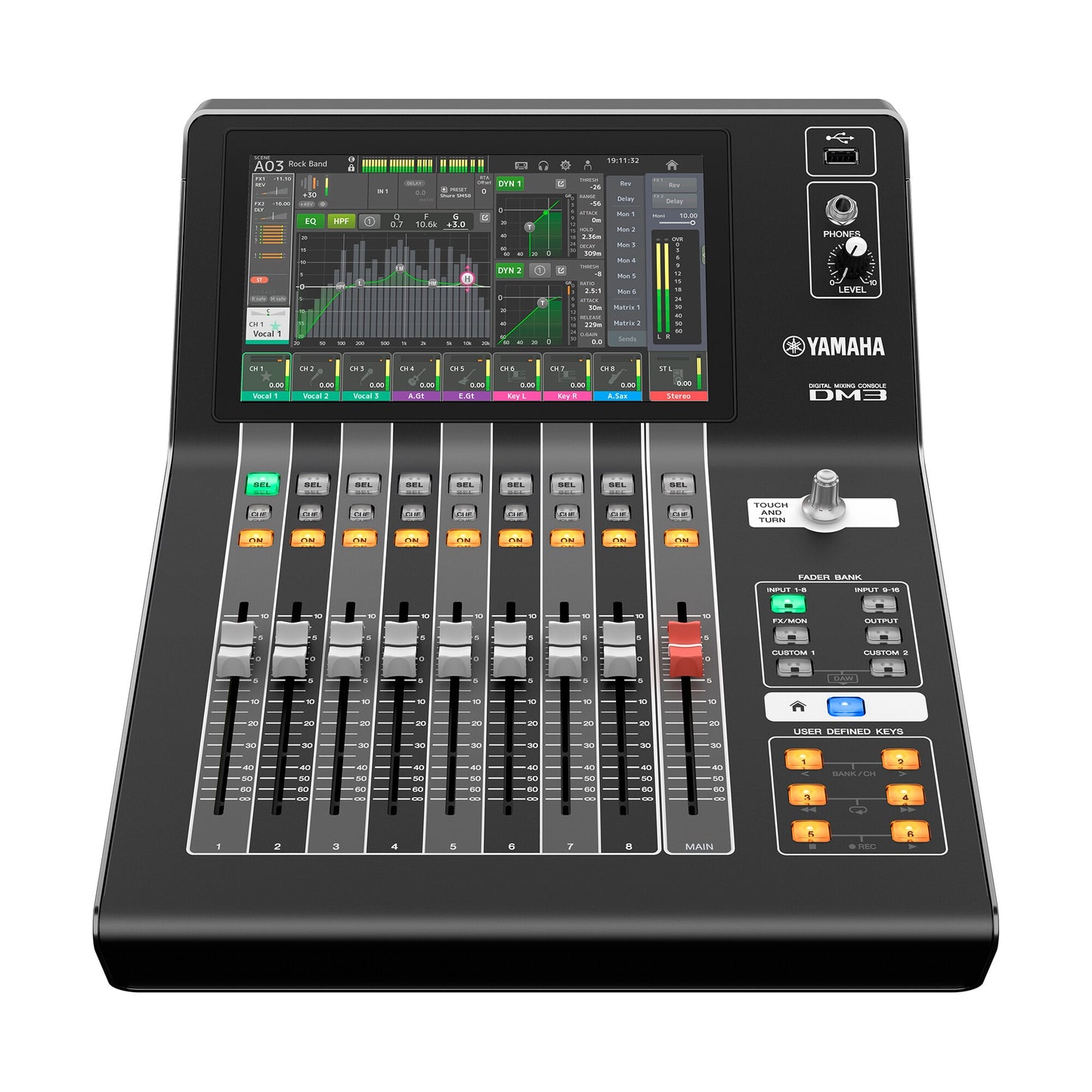

- A 9-inch multi-touch screen, eight channel faders and one main fader. Yamaha's Touch and Turn encoder gives physical control of the parameter selected on screen.
- 48 kHz or 96 kHz operation with less than 1.3 ms input-to-output signal delay at 96 kHz.
- Two multi-effects processors with 18 effect types, plus graphic EQ on Mix 1–6 and Stereo, and QuickPro Presets for compatible microphones and output equipment.
- 18-track recording and playback with a PC or Mac over USB, plus two-track recording and playback from a front-panel USB storage device. A Cubase AI download is included.
- Remote and offline workflows through DM3 StageMix and DM3 Editor, for walking the room with an iPad and preparing shows away from the console.
- Small enough for mobile work or a rack. 320 × 140 × 455 mm, 6.5 kg, rack-mountable with the optional Yamaha RK-DM3 kit.
Three Reasons to Take the Dante Model
1. The Stage Moves Away from the Desk
With a Dante stagebox, one Cat5e cable replaces a multicore. Inputs stay at the stage end where the microphones are, and the console sits wherever the engineer needs to be, without a snake to run, coil or repair.
2. Redundancy That Analog Cannot Offer
Primary and Secondary ports allow a redundant network topology, so a single cable or switch failure does not have to end the show. For fixed installs and broadcast work this is often the deciding factor.
3. It Shares Audio with the Rest of the System
Sources can be passed to and from other Dante devices on the same network - a second console, a recorder, a processor or a streaming machine - without patching analog cables between them.
If your system stays inside the console's own I/O and a USB cable, the DM3S gives you the same desk for less. The moment a stagebox or a networked device enters the plan, this is the model you need.
DM3 or DM3S?
The consoles share the same mixing engine, local I/O, control surface, USB interface, dimensions and weight. The decision comes down to one feature: Dante.
| DM3 (this console) | DM3S | |
|---|---|---|
| Dante audio network | 16 inputs / 16 outputs via Primary and Secondary ports | Not included |
| Mixing capacity | Identical — 16 mono + 1 stereo + 2 FX returns | |
| Local analog I/O | Identical — 16 mic/line inputs and 8 XLR outputs | |
| Buses & effects | Identical — 6 Mix, 2 FX, 2 Matrix, Stereo and Cue; 18 effect types | |
| Control surface | Identical — 9-inch multi-touch screen, 8+1 faders and Touch and Turn encoder | |
| USB audio | Identical — 18 inputs and 18 outputs | |
| Best choice when | You need Dante stageboxes or networked digital audio | Your system uses the console's local I/O and USB connectivity |
FAQ
Q. What is the difference between the DM3 and the DM3S?
Dante, and nothing else. This console has 16-in/16-out Dante on Primary and Secondary etherCON ports; the DM3S does not. Mixing capacity, local analog I/O, screen, faders, effects, USB interface, dimensions and weight are identical.
Q. Do I need Dante if I already have enough inputs on the back?
Not necessarily. Dante earns its money when the microphones are a long way from the console, when you want redundancy, or when audio has to be shared with other devices on a network. If your inputs plug straight into the desk and stay there, the DM3S does the same job.
Q. Can it record multitrack?
Yes. Connect a PC or Mac over USB for 18-track recording and 18-track playback, or capture over the Dante network with a Dante-enabled recording system. The front USB storage port handles simpler two-track recording and playback.
Q. Can I control it from an iPad or prepare a show offline?
Yes. DM3 StageMix supports wireless mixing from an iPad, while DM3 Editor supports offline preparation and detailed console control from a computer. Network hardware and compatible devices are required.
Q. Can the DM3 be rack-mounted?
Yes, with the optional Yamaha RK-DM3 rack-mount kit. The console measures 320 mm wide, 140 mm high and 455 mm deep, and weighs 6.5 kg.
Q. What comes with it?
Yamaha lists the owner's manual, PA-L500 power adapter and download information as included accessories. Cubase AI is supplied as a download. Dante stageboxes, network switches and cabling are separate.
Why Buy from YMS?
YMS For Music is an authorised Yamaha Premium Retailer. Every console is genuine Yamaha stock with full manufacturer warranty, sold and supported by people who understand live-sound and recording workflows.
Talk to us before ordering if you need help planning inputs, monitor mixes, a Dante network or deciding between the DM3 and the DM3S. Demo units in Bengaluru and Mangaluru, with secure delivery across India.
Specifications
Overview
| Model | Yamaha DM3 (Dante model, also listed as DM3-D) |
|---|---|
| Type | Compact digital mixing console with Dante |
| Sampling Rate | 96 kHz / 48 kHz |
| Signal Delay | Less than 1.3 ms, channel input to OMNI output at 96 kHz |
Dante Network
| Dante Audio | 16 inputs / 16 outputs |
|---|---|
| Dante Ports | 2 x etherCON, Primary and Secondary |
| Typical Use | Dante stageboxes, networked digital audio and multitrack capture over the network |
Mixing Capacity & Buses
| Input Mixing Channels | 16 mono + 1 stereo + 2 FX returns |
|---|---|
| Mix Buses | 6 |
| Matrix Buses | 2, with Input to Matrix support |
| Stereo Buses | 1 |
| FX Buses | 2 |
| Cue Buses | 1 |
Local I/O & Connectivity
| Analog Inputs | 16 mic/line - 12 XLR + 4 XLR/TRS combo |
|---|---|
| Analog Outputs | 8 XLR |
| Network | 1 x RJ-45 |
| USB TO HOST | 1 x USB Type-B, USB 2.0 |
| USB TO DEVICE | 1 x USB Type-A |
| Headphones | 1 x TRS phones output |
| DC Input | 1 x XLR 4-pin |
Control & Processing
| Touchscreen | 9-inch multi-touch |
|---|---|
| Faders | 9 motorised faders - 8 channel + 1 main |
| Encoder | 1 x Touch and Turn rotary encoder |
| Effects | Two multi-effects processors, 18 effect types including REV HD and REV R3 |
| Graphic EQ | Available on Mix 1-6 and Stereo |
| Setup Tools | QuickPro Presets, scene recall and flexible patching |
Recording, Playback & Software
| Computer USB Audio | 18-track recording and 18-track playback |
|---|---|
| USB Storage | 2-track recording and 2-track playback |
| Remote Control | DM3 StageMix |
| Offline Editing | DM3 Editor |
| Included Software | Cubase AI download |
General
| Frequency Response | +0.5 / -1.0 dB, 20 Hz-20 kHz, INPUT to OMNI OUT |
|---|---|
| Total Harmonic Distortion | Less than 0.01%, 20 Hz-20 kHz, INPUT to OMNI OUT |
| Equivalent Input Noise | -126 dBu typical |
| Dynamic Range | 110 dB typical, DA converter |
| Dimensions (W x H x D) | 320 x 140 x 455 mm |
| Net Weight | 6.5 kg |
| Power Requirement | DC 24 V / 2.5 A via PA-L500 adapter (100-240 V, 50/60 Hz) |
| Power Consumption | 43 W |
| Included Accessories | Owner's manual, PA-L500 power adapter and download information |
| Optional Accessory | RK-DM3 rack-mount kit |
Dante is the only difference between the DM3 and the DM3S; every other specification is identical. Specifications from Yamaha official DM3 Series product data.
