Yamaha AG01 USB Streaming Microphone with Built-In Mixer
Condenser mic and streaming mixer in one USB-C unit
- Studio-quality cardioid condenser mic with a built-in mixer and USB-C audio
- Zero-latency COMP/EQ and 1-TOUCH reverb processed on onboard DSP
- LOOPBACK, AUX input and 4-pole TRRS jack for music, phones and voice chat
- Mute button, 3-step mic gain and headphone output on the mic body
- 24-bit/192 kHz audio powered over one USB-C cable, OBS Certified
Taxes included.
Yamaha AG01 Live Streaming USB Microphone with Built-In Mixer
The Yamaha AG01 combines a studio-quality cardioid condenser microphone with a compact mixer, DSP effects and a USB-C audio interface in one unit. Plug in your headphones and one USB-C cable, set your levels, and you have a complete streaming station.
Yamaha designed it for creators with little or no audio experience who want a simple, all-in-one setup for streaming, podcasts, voice-overs and online meetings. Add a phone or music player through its line and TRRS jacks, and bring in computer audio with LOOPBACK.
Key Features
Studio-Quality Cardioid Condenser Microphone
The AG01 uses a back electret condenser capsule with a cardioid pattern, capturing your voice or instrument in front while rejecting unwanted noise from the sides and rear. It is a side-address mic with a 30 Hz-20 kHz frequency response, and it converts audio to high-resolution 24-bit/192 kHz.
A Mixer Built into the AG01
Alongside the microphone, the AG01 has a stereo mini AUX input, a 4-pole mini (TRRS) jack for smartphone input and output, a headphone output and USB audio. That covers background music, a voice-chat guest on a phone and computer audio, all without a separate mixer.
LOOPBACK and Streaming Output Modes
LOOPBACK sends audio from your computer back into your stream along with your voice. The STREAMING OUT switch chooses MIC, INPUT MIX or LOOPBACK, and a MIX MINUS MIC switch is provided, giving you control over what your audience hears.
Zero-Latency COMP/EQ and Reverb
COMP/EQ and 1-TOUCH reverb are processed by the AG01's internal DSP chip, so there is no delay and no extra load on your computer. You can switch the effects off to capture a clean, raw recording for later editing.
Simple Physical Controls and Mute
Physical controls on the mic body let you adjust levels on the fly without leaving your stream. Mic gain has HIGH, MID and LOW settings, and a mute button cuts the mic instantly. For deeper adjustments, the free AG Controller app (Windows, Mac and iOS) offers Simple and Detail modes.
Modern Retro Design in Black or White

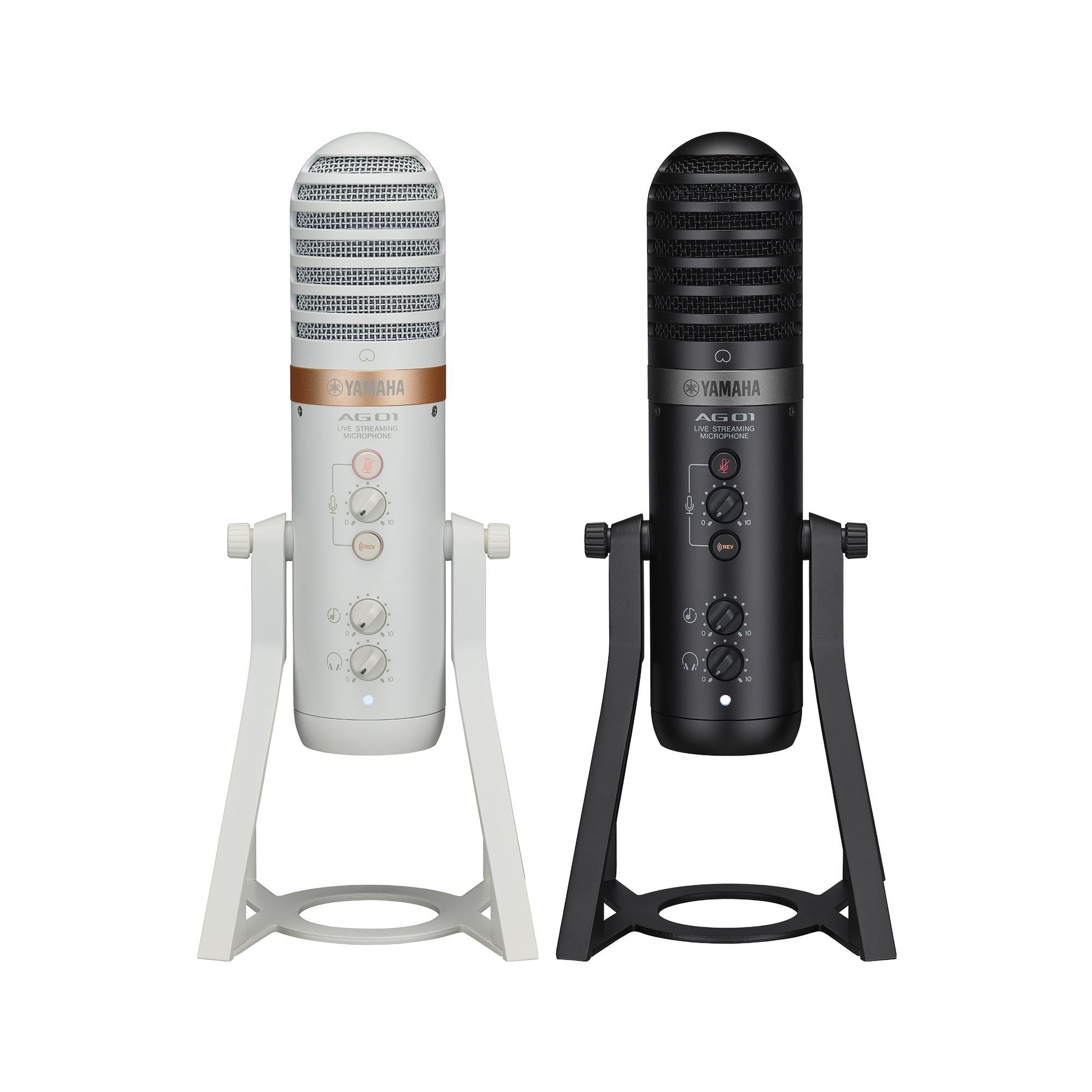

Your mic is often on camera, so Yamaha gave the AG01 a design that blends classic and contemporary styling. YMS offers it in White and Black.
Desk, Arm or On the Move

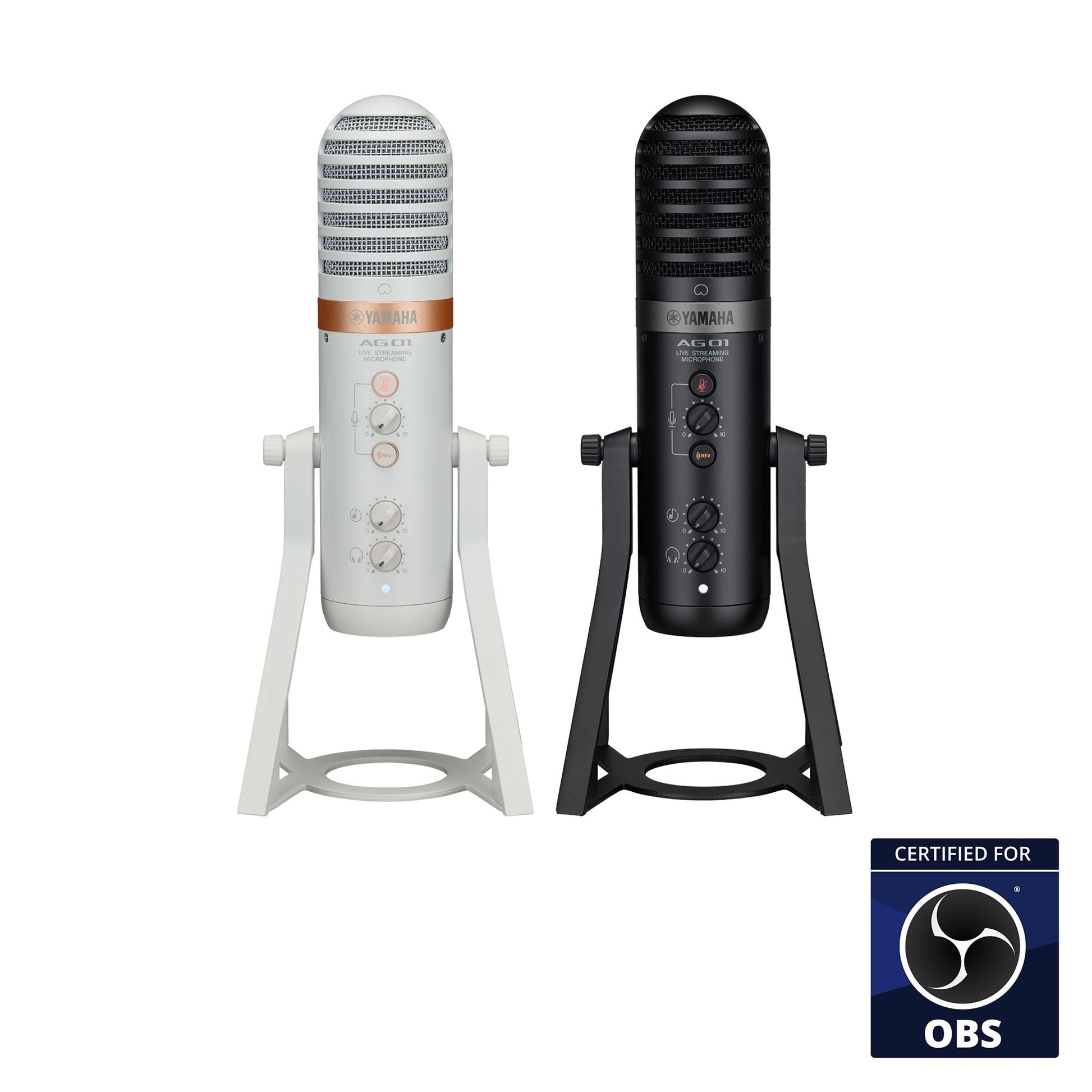

Yamaha says the AG01 can stand on a desk with its dedicated stand or be mounted on a desk arm using its 3/8-inch thread, which has a protective cap. It is powered over USB-C at 5 V DC 900 mA, so it can also run from a mobile battery for streaming away from your desk. Yamaha lists it as an OBS Certified device.
Watch & Hear It
Frequently Asked Questions
Should I choose the AG01 or the AG03MK2?
The AG01 is a microphone with a mixer built in, so it is the simplest one-unit setup. The AG03MK2 is a separate mixer with an XLR combo input and +48 V phantom power for the microphone of your choice, a Hi-Z guitar input with amp simulator, a 60 mm fader and monitor outputs for speakers. Choose the AG03MK2 if you want to use your own mic or plug in a guitar.
Can I connect another microphone to the AG01?
Yamaha's specifications list the built-in condenser microphone as the only mic input, plus a stereo mini AUX input, a TRRS smartphone jack and USB. For a second microphone, the AG06MK2 or AG08 offer two phantom-powered combo mic inputs.
How is the AG01 powered?
It is powered over its USB Type-C port at 5 V DC, 900 mA, with a maximum consumption of 4.5 W, so no separate adaptor is needed. Yamaha notes a supply of at least 5 V 900 mA is required for stable operation, and an iOS device connected through the Apple Camera Adapter needs an external USB power supply.
Which devices does the AG01 work with?
Yamaha lists Windows and Mac via USB-C, iOS via the Apple Camera Adapter and Android via the 4-pole mini (TRRS) jack. The AG Controller app supports Windows 10 (64-bit) and 11, and macOS 10.15 to macOS 26. It is also compatible with the Rec'n'Share and Cubasis LE iOS apps.
What comes in the box?
Yamaha lists a 1.5 m USB 2.0 cable, a Quick Guide, a Safety Guide and download information for Cubase AI and WaveLab Cast. Headphones are not part of the listed accessories, so you can use your own pair.
Why Buy from YMS?
- Authorised Yamaha Premium Retailer
- Genuine stock with full manufacturer warranty
- Demo units at our Bengaluru and Mangaluru stores
- Secure delivery across India
- Free domestic shipping on all orders
Specifications
Overview
| Model | AG01 |
|---|---|
| Series | AG Series |
| Type | Live streaming USB condenser microphone with integrated mixer |
| Colours (this listing) | White, Black |
Microphone
| Microphone Unit | Back electret condenser |
|---|---|
| Polar Pattern | Cardioid |
| Address Type | Side |
| Frequency Response | 30 Hz - 20 kHz |
| Max Input SPL | 110 dB (THD ≤1.0% at 1 kHz) |
| Sensitivity | -34 dB ± 3 dB (0 dB = 1 V/Pa, at 1 kHz) |
| Mounting | 3/8" screw hole for mic stand (with protective cap) |
Inputs
| Microphone | 1 (mono condenser microphone) |
|---|---|
| AUX | 1 - Stereo mini |
| Smartphone | 1 - 4-pole mini input/output (TRRS) |
| USB | 1 |
Processing
| DSP | COMP/EQ, REVERB (SPX Reverb) (details set in AG Controller) |
|---|---|
| Functions | MIC GAIN (HIGH / MID / LOW), MUTE button x 1, STREAMING OUT (MIC / INPUT MIX / LOOPBACK), MIX MINUS MIC (ON / OFF) |
| Bus | 1 stereo |
Outputs
| PHONES | 1 - Stereo mini |
|---|---|
| Smartphone | 1 - 4-pole mini input/output (TRRS) |
| USB | 1 |
USB / Connectivity
| USB Audio | 2 IN / 2 OUT, USB Audio Class 2.0 compliant, max. 192 kHz sampling frequency, 24-bit |
|---|---|
| Connector | USB Type-C |
| USB DC Power Input | 1 - Type-C, 5 V DC, 900 mA |
Software / Compatibility
| AG Controller (Windows) | Windows 10 (64-bit), Windows 11 |
|---|---|
| AG Controller (Mac) | macOS 10.15 to macOS 26 (Intel / Apple silicon with Rosetta 2) |
| AG Controller (iOS) | Available for iOS devices |
| Yamaha Steinberg USB Driver (Windows) | Windows 10 (64-bit) / Windows 11 (Intel); Windows 11 24H2 or later (Arm) |
| iOS Connection | Via Apple Camera Adapter (requires external USB power supply) |
| Android | Supported via the 4-pole mini (TRRS) input/output |
| Bundled / Compatible Software | Cubase AI and WaveLab Cast (download information included); compatible with Cubasis LE and Rec'n'Share for iOS |
| OBS | OBS Certified device |
General
| Power Requirements | 5 V DC, 900 mA (USB Type-C) |
|---|---|
| Power Consumption | Max. 4.5 W |
| Dimensions (W x H x D) | 116 x 281 x 118 mm (4.6" x 11.1" x 4.6") |
| Net Weight | 1.2 kg (2.6 lbs) |
| Operating Temperature | 0 to +40 °C |
| Included Accessories | USB 2.0 cable (1.5 m), Quick Guide, Safety Guide, WaveLab Cast download information, Cubase AI download information |
Specifications from Yamaha India's AG01 specs page and Yamaha India's AG Controller and Yamaha Steinberg USB Driver download pages; subject to change by Yamaha.
