Product details
Everything You Need to Go Live, in One Box
The LSPK is Yamaha's Live Streaming Pack: the AG03MK2 mixer, a YCM01 studio condenser microphone, YH-MT1 monitor headphones and a 3 m XLR cable, supplied together and voiced to work together.
It exists because the mixer on its own is only a third of a setup. Buying the pack means you plug in one USB-C cable and you are on air — no working out which microphone suits the preamp, no discovering at the last minute that the XLR cable is not in the box.
At a Glance

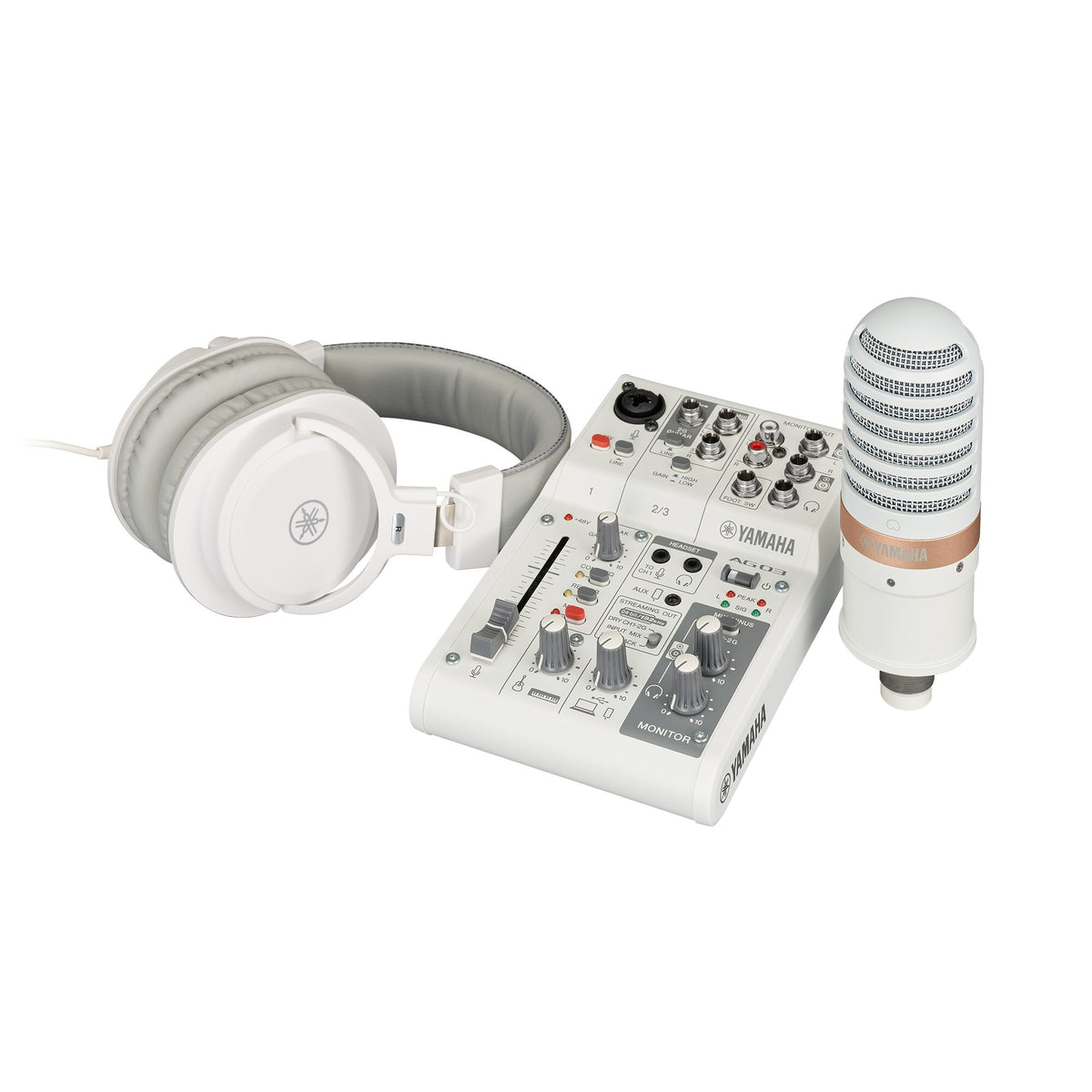

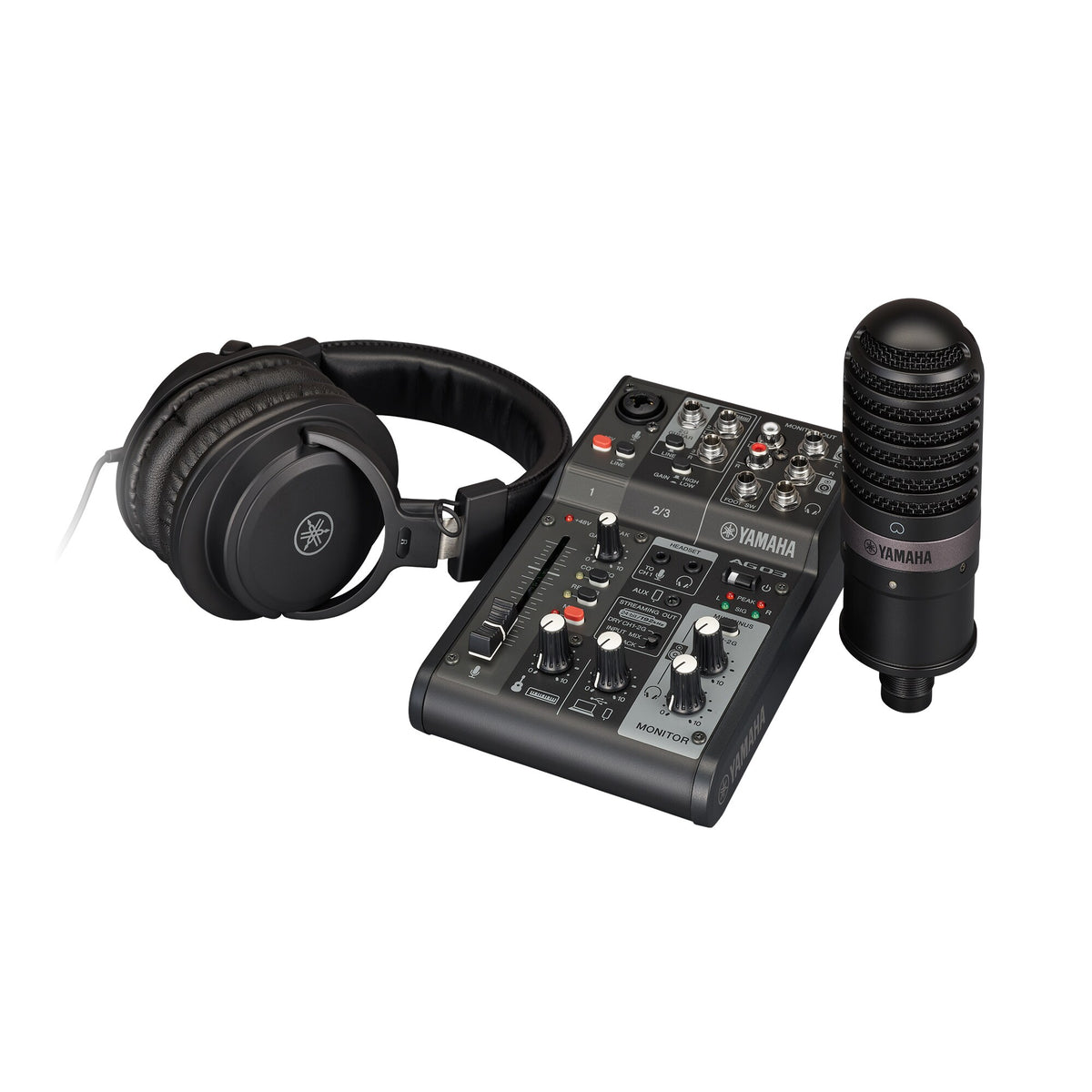

What Is in the Box

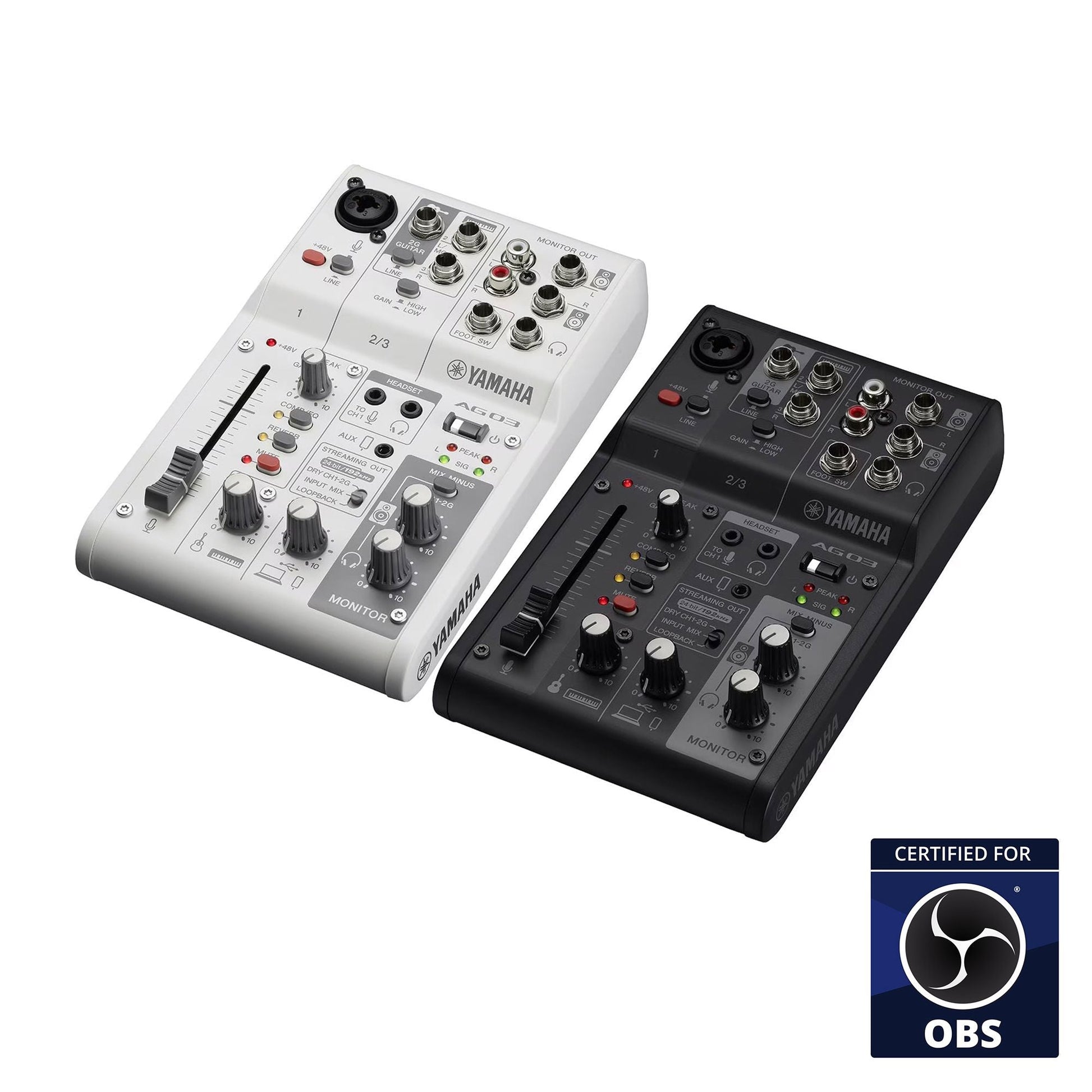

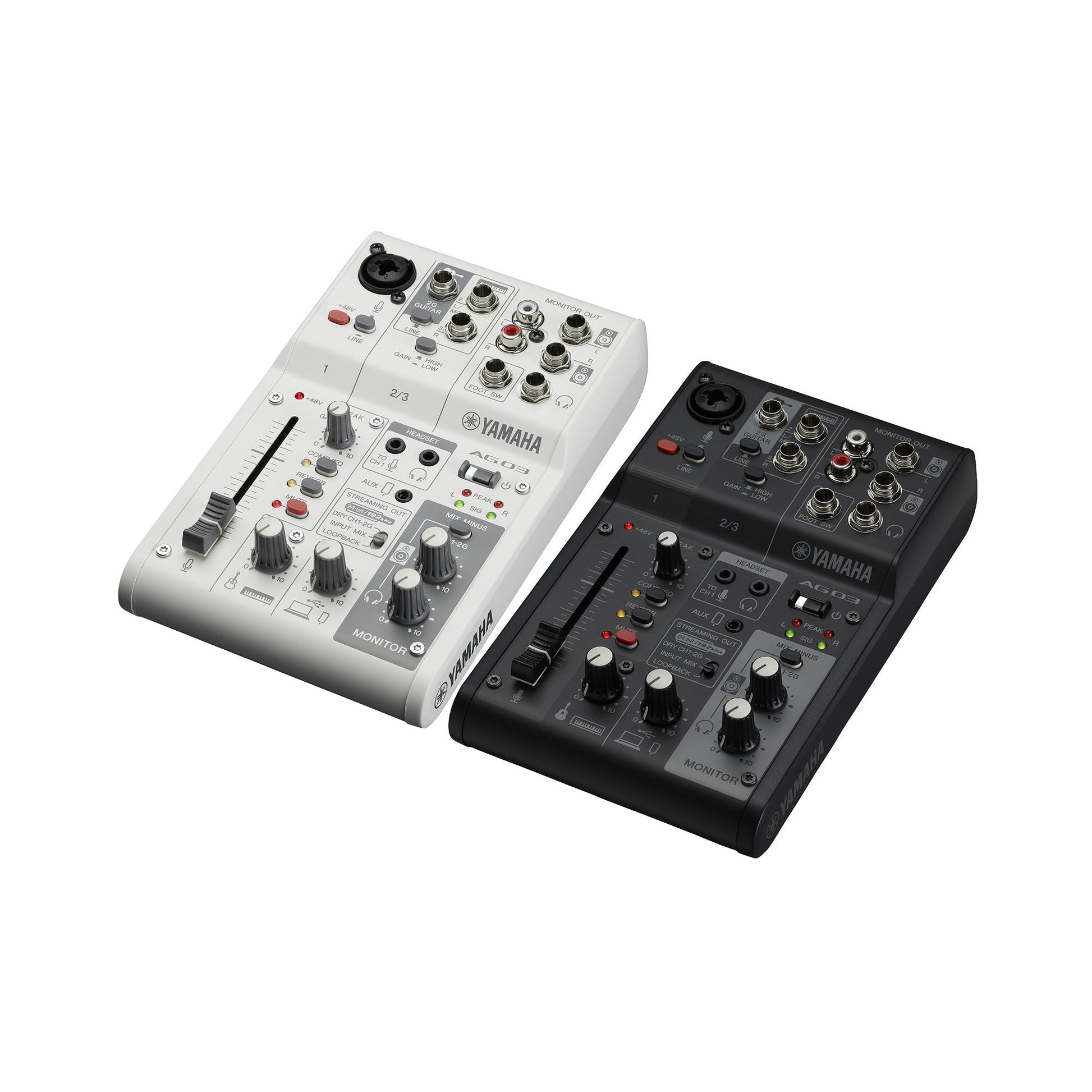

- AG03MK2 live streaming mixer — one combo mic/line input with +48V phantom power and a Hi-Z switch for guitar, a stereo line input, a smartphone jack, and a 24-bit/192 kHz USB-C interface.
- YCM01 condenser microphone — a cardioid XLR studio condenser, powered by the mixer's phantom supply.
- YH-MT1 headphones — closed-back monitor headphones for tracking and monitoring without spill into the mic.
- 3 m XLR microphone cable, plus the mixer's USB-C cable and the Cubase AI and WaveLab Cast download licences.
Not included: a microphone stand or boom arm, and a pop filter. Tell us how your desk is set up and we will recommend the right one alongside the pack.
What the Mixer Gives You
- One-touch COMP/EQ and SPX REVERB running in the hardware — zero latency, no load on your computer, and applied to the stream as well as your headphones.
- LOOPBACK folds your voice and your computer's audio into one outgoing stream, which is why the AG range became the default for podcasts and game streams.
- MIX MINUS MIC keeps your own voice out of the return feed so remote guests do not hear themselves.
- Hi-Z guitar input with AMP SIM on CH1 — a guitar plugs straight in with no amp or DI box.
- Bus powered over USB-C, 126 × 63 × 201 mm, 0.8 kg. Class compliant, so it also works with an iPad through a camera adapter.
The Full AG Range at YMS
Every AG model we stock. All USB figures are 24-bit.
| Model | Channels | Mic inputs (+48V) | Hi-Z guitar | USB audio | Sound pads | Weight |
|---|---|---|---|---|---|---|
| AG01 | Mic + line + phone | Built-in condenser | — | 2 in / 2 out, 192 kHz | — | 1.2 kg |
| AG03MK2 | 3 | 1 × combo | Yes (CH1) | 2 in / 2 out, 192 kHz | — | 0.8 kg |
| AG03MK2 LSPK | 3, with mic & headphones | 1 × combo | Yes (CH1) | 2 in / 2 out, 192 kHz | — | 0.8 kg |
| AG06MK2 | 6 | 2 × combo | Yes (CH2) | 2 in / 2 out, 192 kHz | — | 0.9 kg |
| AG08 | 8 | 2 × combo | Yes (CH2) | 8 in / 14 out, 48 kHz | 6 | 2.2 kg |
FAQ
Q. Is the pack the same mixer as the standalone AG03MK2?
Identical — same mixer, same specification, same warranty. The LSPK simply adds the YCM01 microphone, YH-MT1 headphones and the XLR cable in one carton.
Q. Do I need a microphone stand as well?
Yes — a stand or boom arm is the one thing the pack does not include. A desk-mounted boom arm is the usual choice for podcasting and streaming because it keeps the mic off the desk and away from keyboard noise. Ask us and we will match one to your setup.
Q. Can I use a microphone I already own?
Yes. The AG03MK2 takes any XLR microphone, dynamic or condenser, and supplies +48V phantom power for condensers. If you already have a mic you are happy with, the standalone AG03MK2 may suit you better than the pack.
Q. Is this enough for a two-person podcast?
Not comfortably. The AG03MK2 has one mic input and one headphone output. For two people at the table, look at the AG06MK2 with a second YCM01 — two phantom-powered inputs and two headphone feeds.
Q. Will it work with my phone or iPad?
Yes. There is a 4-pole mini jack for a smartphone, and the mixer is class compliant, so an iPad connects through Apple's USB-C or Lightning camera adapter.
Why Buy from YMS?
YMS For Music is an authorised Yamaha Premium Retailer. Every AG mixer is genuine Yamaha stock with full manufacturer warranty, sold and supported by people who set these up for a living.
Honest advice on which model you actually need, demo units in Bengaluru and Mangaluru, and secure delivery across India. Not sure whether the pack or the separates suit you better? Ask us before you spend.
Specifications
Pack Contents
| Mixer | Yamaha AG03MK2 live streaming mixer |
|---|---|
| Microphone | Yamaha YCM01 cardioid condenser (XLR) |
| Headphones | Yamaha YH-MT1 monitor headphones |
| Cable | XLR microphone cable, 3 m |
| Not Included | Microphone stand, boom arm or pop filter |
Overview
| Model | Yamaha AG03MK2 LSPK |
|---|---|
| Type | Live streaming pack - 3-channel mixer with microphone and headphones |
| Series | AG Series (2nd generation) |
| Finishes | Black, White |
Channels
| Total Input Channels | 3 |
|---|---|
| Mono MIC/LINE | 1 (combo jack, Mic with +48V phantom power / Line) |
| Headset Mic Input | 3.5 mm stereo mini, plug-in power |
| Hi-Z Guitar Input | CH1, switchable |
| Stereo LINE | 1 |
| Smartphone Input | 4-pole mini jack |
Digital
| USB Audio | USB Audio Class 2.0 compliant, 2 IN / 2 OUT, max 192 kHz, 24-bit |
|---|---|
| Connector | USB Type-C |
| Streaming Out | DRY CH 1-2G / INPUT MIX / LOOPBACK |
| Mix Minus Mic | On / Off |
Processing
| Effects | COMP/EQ, REVERB (SPX Reverb), AMP SIM |
|---|---|
| Latency | Zero-latency hardware processing |
| Control | AG Controller app for Windows, Mac and iOS |
Outputs
| MONITOR OUT | 2 (L/R) |
|---|---|
| PHONES | 1 |
| Smartphone Output | 1 |
| USB Output | 1 |
General
| Mixer Dimensions (W x H x D) | 126 x 63 x 201 mm |
|---|---|
| Mixer Net Weight | 0.8 kg |
| Power | USB-C bus power, 5 V DC, 900 mA |
| Power Consumption | 4.5 W |
| Included Software | Cubase AI and WaveLab Cast download information |
A microphone stand or boom arm is not part of the pack. The USB interface carries a stereo mix, not individual channels. Specifications from Yamaha official product data.
